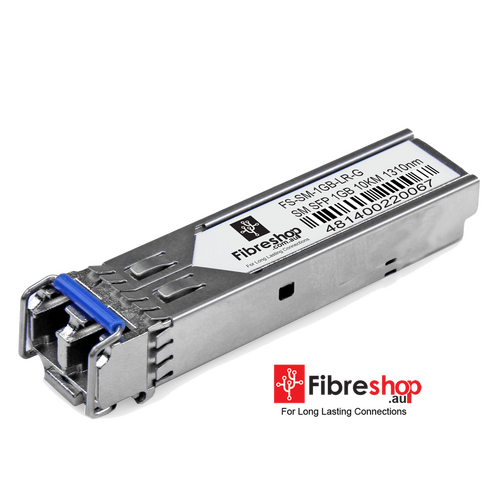

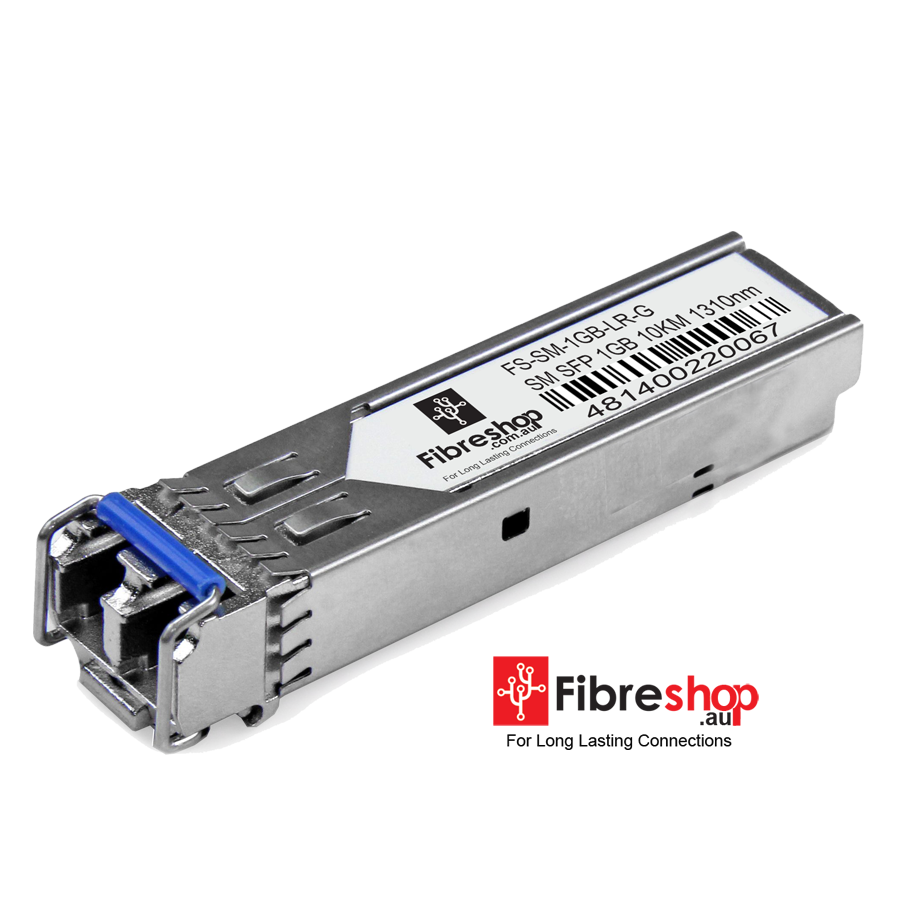

1.25GB Single Mode 10KM LC Connector Optic Fibre Module / Transceiver
FS-SM-1.25GB-LR-G
1.25GB LR SFP 1310nm 10KM LC DOM Transceiver
1.25GB SR compatible SFP transceiver supports up to 10km link lengths over SMF via an LC duplex connector. This transceiver is compliant with SFF-8431, SFF-8432 and IEEE 802.3ae standards.
Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption and and high speed, this 1.25G SFP transceiver is ideal for data centers, enterprise wiring closets, service provider transport applications, Radio & Baseband Units, etc.
| Part Number | FS-SM-1GB-LR-G | Vendor Name | Fibreshop |
| Form Type | SFP | Max Data Rate | 1.25Gbps |
| Wavelength | 1310nm | Max Cable Distance | 10Km |
| Interface | LC Duplex | Optical Components | VCSEL 1310nm |
| Cable Type | SM | DOM Support | Yes |
| TX Power | -7.3~-1dBm | Receiver Sensitivity | < -11.1dBm |
| Commercial Temperature Range | -40 to 85°C (-40 to 185°F) | Protocols | MSA Compliant |
(FS-SM-1.25GB-LR-G)
1.25GB LR SFP 1310nm 10KM SM DOM Transceiver
Pack Includes:
- 1 x 1.25GB-LR SFP 1310nm 10KM SM DOM Transceiver
1.25GB LR SFP 850nm 10KM DOM Transceiver - Specifications
| Fibreshop | FS-SM-1.25GB-LR-G |
| Vendor Name | Fibreshop.com.au |
| Form Type | SFP |
| Max Data Rate | 1000Mbps |
| Wavelength | 1310nm |
| Max Cable Distance | 10KM |
| Interface | LC duplex |
| Optical Components | FP 1310nm |
| Cable Type | SMF |
| DOM Support | Yes |
| TX Power | -9.5 ~ -3dBm |
| Receiver Sensitivity | < -23dBm |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Extended Temperature Range | -5 to 85°C (23 to 185°F) |
| Industrial Temperature Range | -40 to 85°C (-40 to 185°F) |
| Protocols | SFF-8472 MSA Compliant, IEEE 802.3ah-2004 |
Please Note:
* A mode-conditioning patch cord, as specified by the IEEE standard, is required regardless of the span length. Note how the mode conditioning patch cord for 62.5-μm fibers has a different specification from the mode-conditioning patch cord for 50-μm fibers.
** ITU-T G.652 SMF as specified by the IEEE 802.3z standard.
Shipping Specifications
| SKU | FS-SM-1.25GB-LR-G |
| Model # | FS-SM-1.25GB-LR-G |
| Barcode # | 4.81E+11 |
| Brand | FibreShop |
| Shipping Weight | 0.0300kg |
| Shipping Width | 0.010m |
| Shipping Height | 0.010m |
| Shipping Length | 0.060m |
| Shipping Cubic | 0.000006000m3 |
| Unit Of Measure | ea |
