Buy 10GB Multimode 300m LC Connector Fibre Optic Module Transceiver Fibreshop Online in Australia
FS-MM-10GB-SR-G

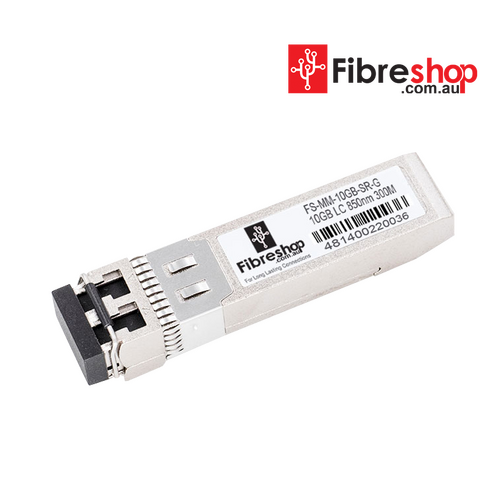

10G Multimode 300m LC Connector Fibre Optic Module / Transceiver with DOM 850nm
10GBASE-SR compatible SFP+ transceiver supports up to 300m link lengths over OM4 MMF (300m over OM3 MMF) via an LC duplex connector. This transceiver is compliant with SFF-8431, SFF-8432 and IEEE 802.3ae standards.
Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption and and high speed, this 10G SFP+ transceiver is ideal for data centers, enterprise wiring closets, service provider transport applications, Radio & Baseband Units, etc.
| Part Number | FS-MM-10GB-SR-G | Vendor Name | Fibreshop |
| Form Type | SFP+ | Max Data Rate | 10.3125Gbps |
| Wavelength | 850nm | Max Cable Distance | 300m over OM3 MMF |
| Interface | LC Duplex | Optical Components | VCSEL 850nm |
| Cable Type | MMF | DOM Support | Yes |
| TX Power | -7.3~-1dBm | Receiver Sensitivity | < -11.1dBm |
| Commercial Temperature Range | -40 to 85°C (-40 to 185°F) | Protocols | MSA Compliant |
(FS-MM-10GB-SR-G)
10GBASE-SR SFP+ 850nm 300m DOM Transceiver
Pack Includes:
- 1 x 10GBASE-SR SFP+ 850nm 300m DOM Transceiver
10GBASE-SR SFP+ 850nm 300m DOM Transceiver - Specifications
| Fibreshop | FS-MM-10GB-SR-G |
| Vendor Name | Fibreshop.com.au |
| Form Type | SFP |
| Max Data Rate | 10000Mbps |
| Wavelength | 850nm |
| Max Cable Distance | 300m over MMF |
| Interface | LC duplex |
| Optical Components | FP 850nm |
| Cable Type | MMF*/SMF** |
| DOM Support | Yes |
| TX Power | -9.5 ~ -3dBm |
| Receiver Sensitivity | < -23dBm |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Extended Temperature Range | -5 to 85°C (23 to 185°F) |
| Industrial Temperature Range | -40 to 85°C (-40 to 185°F) |
| Protocols | SFF-8472 MSA Compliant, IEEE 802.3ah-2004 |
Please Note:
* A mode-conditioning patch cord, as specified by the IEEE standard, is required regardless of the span length. Note how the mode conditioning patch cord for 62.5-μm fibers has a different specification from the mode-conditioning patch cord for 50-μm fibers.
** ITU-T G.652 SMF as specified by the IEEE 802.3z standard.
Shipping Specifications
| SKU | FS-MM-10GB-SR-G |
| Model # | FS-MM-10GB-SR-G |
| Barcode # | 4.81E+11 |
| Brand | FibreShop |
| Shipping Weight | 0.0300kg |
| Shipping Width | 0.010m |
| Shipping Height | 0.010m |
| Shipping Length | 0.060m |
| Shipping Cubic | 0.000006000m3 |
| Unit Of Measure | ea |
