18 Port Switch with 16 PoE Ports 2 SFP+ Ports, netPower by MiktoTik
CRS318-16P-2S+OUT
An outdoor 18 port switch with 16 Gigabit PoE-out ports and 2 SFP+. Power all your access points anywhere! by MiktoTik
A Generation 6 version of the legendary hAP ac². With PoE-in and PoE-out, much faster wireless, more RAM, and a modern CPU. The smallest fully-fledged AX router on the market!

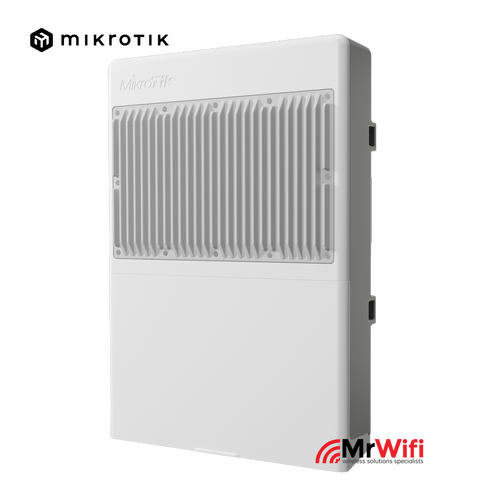

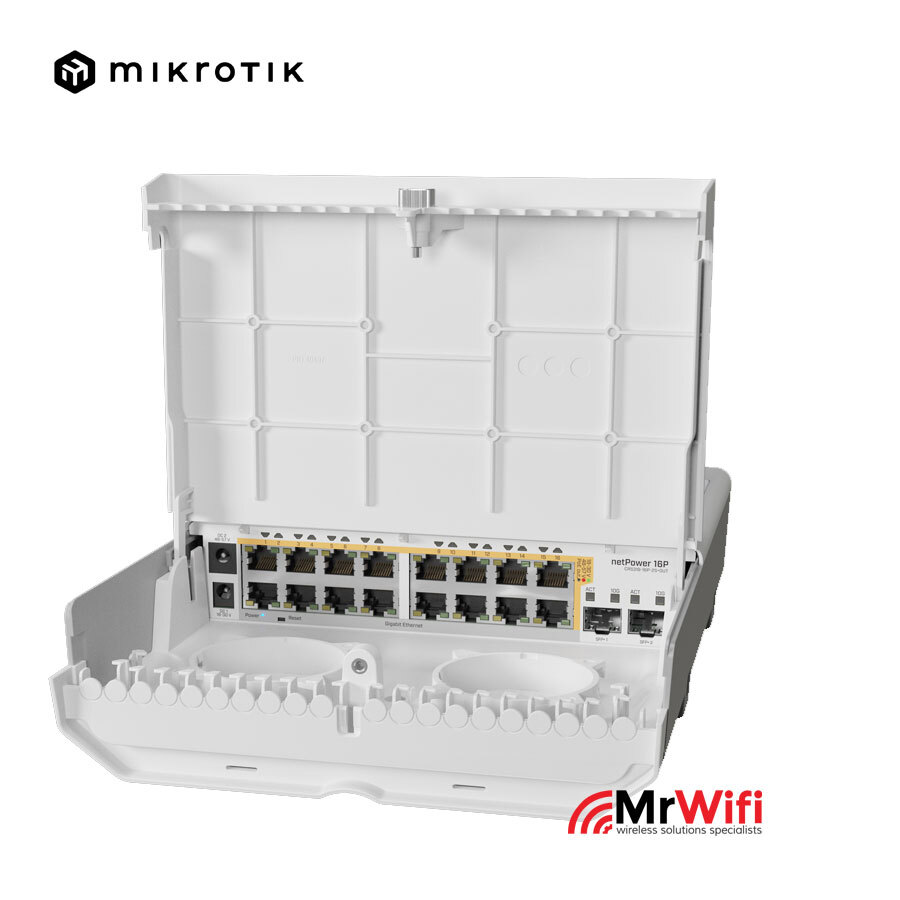

Powering a bunch of access points or IP cameras and a few uplinks on a tower has never been easier. netPower 16P has 16 Gigabit Ethernet ports with PoE-out and two SFP+ ports for 10G fiber uplinks.

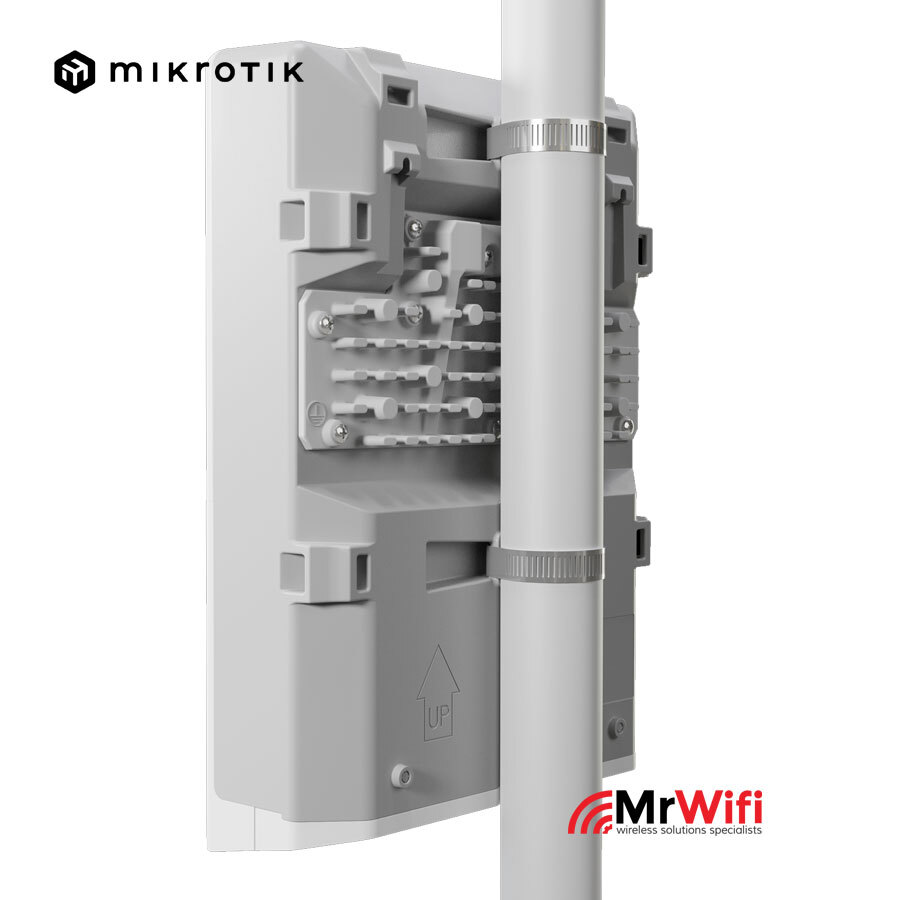

Its sturdy and compact outdoor enclosure allows the switch to be mounted in all kinds of environments – from damp attics and shafts to towers, masts and poles with hose clamps. netPower 16P has a non-blocking throughput of 36 Gbps, switching capacity of 72 Gbps and forwarding rate of 53.6 Mpps.
The device itself does not have an onboard voltage converter. You need 24V PSU to have 24V PoE out and/or 48V PSU to have 48V PoE out (IEEE 802.3 at/af).
* Power supply is NOT included with the product. You are welcome to use your preferred power option, like battery pack etc. Compatible also with MikroTik power supplies 24HPOW, 48POW and 48V2A96W
(CRS318-16P-2SFPP-OUT)
18 Port PoE Switch netPower by MiktoTik
Pack Includes:
- 1 x 18 Port PoE Switch netPower
- 2 x Hose clamp 2
- 1 x K-66 fastening set
- 1 x DC to Terminal block adapter x2
18 Port PoE Switch netPower by MiktoTik - Specifications
Specifications
| Details | |
|---|---|
| Product code | CRS318-16P-2S+OUT |
| Architecture | ARM 32bit |
| CPU | 98DX226S |
| CPU core count | 1 |
| CPU nominal frequency | 800 MHz |
| Switch chip model | 98DX226S |
| Dimensions | 303 x 212 x 78 mm |
| RouterOS license | 5 |
| Operating System | RouterOS / SwitchOS |
| Size of RAM | 256 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
Powering
| Details | |
|---|---|
| Number of DC inputs | 2 (DC jack) |
| DC jack input Voltage | 18-30 V / 48-57 V |
| Max power consumption | 316 W |
| Max power consumption without attachments | 16 W |
| Cooling type | Passive |
PoE-out
| Details | |
|---|---|
| PoE-out ports | Ether1-Ether16 |
| PoE out | 802.3af/at (PoE+) |
| Max out per port output (input 18-30 V) | 1.1 A |
| Max out per port output (input 30-57 V) | 0.6 A |
| Max total out (A) | 2.8A (18V-30V) & 1.4A (48V-57V) x2 A |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 16 |
| Number of 1G Ethernet ports with PoE-out | 16 |
Fiber
| Details | |
|---|---|
| SFP+ ports | 2 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | IP54 |
SHIPPING DETAILS
| SKU | CRS318-16P-2SFPP-OUT |
| Model # | CRS318-16P-2S+OUT |
| Barcode # | 4.75E+12 |
| Brand | Mikrotik |
| Shipping Weight | 0.4800kg |
| Shipping Width | 0.230m |
| Shipping Height | 0.110m |
| Shipping Length | 0.350m |
| Shipping Cubic | 0.008855000m3 |
| Unit Of Measure | ea |
