4 Way Splitter SMA Female 698-4000MHz Micro Strip Power Divider. Buy Online in Australia The "STRIPPA"
SPLIT-OA-SMA-4W
$219.90
In Stock
ALTERNATE PRODUCT:
SPLIT-OA-SMA-3W-3 Way Splitter SMA Female 698-4000MHz Micro Strip Power Divider. Buy Online in Australia The "STRIPPA"
In Stock: YES

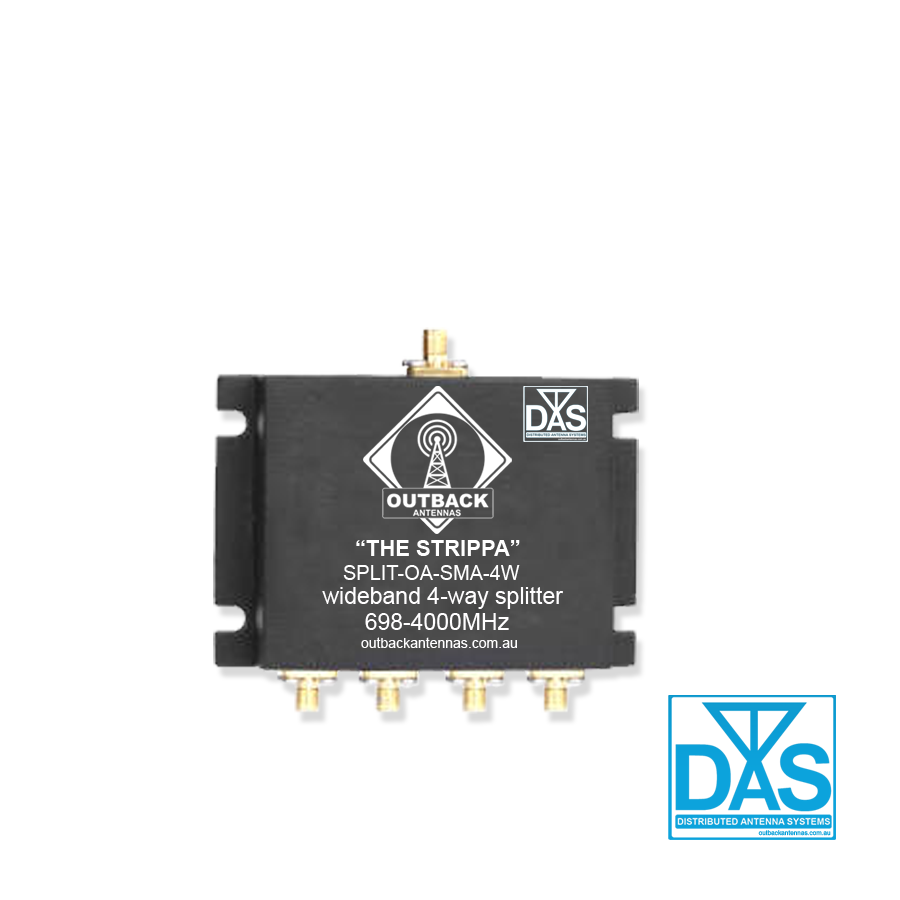

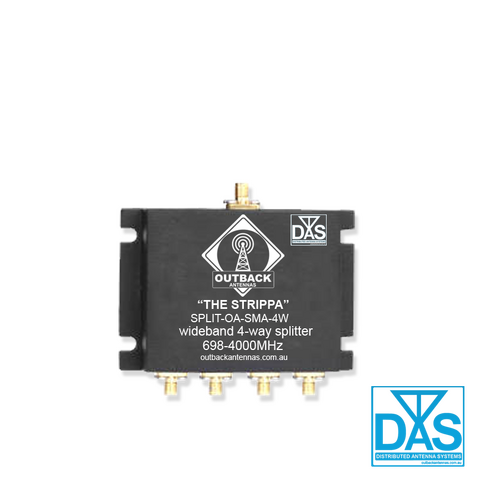

The "STRIPPA" Power Divider 4 Way Microwave RF Splitter 698-4000MHz with SMA Female Connector
The "STRIPPA" 4 Way Splitter 698~960,1427-4000MHz with SMA Female Connector is designed to operate on the cellular network with all mobile carriers, regardless of what frequency they operate on. Perfect for indoor mobile repeater applications.
Outback Antenna provide the perfect solution for voice and data applications. Perfect repeater applications so ensure complete indoor coverage.
Features
- Wide Band Range 698~960,1427-4000MHz
- Suitable for all mobile carriers
- or 2.4Ghz WiFi Applications
- Distributed Antenna Systems (DAS)
- High Quality
- Indoor & outdoor IP64
- SMA Female connectors
- Ideal for Cel-Fi GO repeater applications for Home. Office, Marine and Caravan
Dimensions (mm) : 100Lx110Wx10H
Weight: 80g
(SPLIT-OA-SMA-4W)
The "STRIPPA" Power Divider 4 Way Microwave Splitter 698-4000MHz with SMA Female Connectors
Pack Includes:
- 1 x "STRIPPA" Power Divider 4 Way Microwave Splitter 700-4000MHz with SMA Female Connectors
The "STRIPPA" Micro Strip Power Divider 4 Way Microwave Splitter 698-4000MHz with SMA Female Connector - SPECIFICATIONS
|
Model
|
The "STRIPPA" Splitter 698-4000MHz(Micro strip)
|
||||
|
Frequency Range
|
698-4000MHz(Micro strip)
|
||||
|
Split Way
|
2
|
3
|
4
|
6
|
8
|
|
VSWR
|
≤1.3: 1
|
||||
|
Insertion Loss(dB)
|
≤0.9
|
≤1.2
|
≤1.2
|
≤1.2
|
≤1.2
|
|
Split Loss(db)
|
≤3.0
|
≤4.8
|
≤6.0
|
≤7.8
|
≤9.0
|
|
Average Power(W)
|
50
|
||||
|
3rd Order IMD(dBc)
|
≤-140/-155/-160@2x43dBm
|
||||
|
Impedance(Ω)
|
50
|
50
|
|||
|
Connectors Type
|
SMA Female
|
SMA Female
|
|||
|
Operation Temp.(℃)
|
-35~+65
|
||||
|
Application
|
Indoor or Outdoor IP64
|
Indoor or Outdoor IP64
|
|||
|
Finish
|
Black Plated
|
Black Plated
|
|||
SHIPPING SPECIFICATIONS
| SKU | SPLIT-OA-SMA-4W |
| Model # | SPLIT-OA-SMA-4W |
| Barcode # | 4.81E+11 |
| Brand | OUTBACK ANTENNAS |
| Shipping Weight | 0.5000kg |
| Shipping Width | 0.195m |
| Shipping Height | 0.102m |
| Shipping Length | 0.195m |
| Shipping Cubic | 0.003879000m3 |
| Unit Of Measure | ea |
The "STRIPPA" Micro Strip Power Divider 2 Way Microwave Splitter 698-4000MHz with SMA Female Connectors - Documents
Datasheet The "STRIPPA" Power Divider/Splitter 698-4000MHzBe The First To Review This Product!
