Omni Antenna MIMO OUTDOOR 3G, 4G/LTE & 2.4Ghz Wi-Fi 12dBi 698-2700MHz ,The "BIG BOY" Online Australia
ANT-OA-BIG-O4G-MIMO-NF
ALTERNATE PRODUCT:
ANT-OA-BATON-18-Omni Antenna Outdoor 4G-5G 360° High Gain, 698 to 2700Mhz
In Stock: YES
OMNI ANTENNA 360° OUTDOOR, The "BIG BOY" 2X2 N Female MIMO High Gain 12dBi, 698-2700MHz
The "BIG BOY" Outdoor Omni antenna is designed to operate on the cellular network with all mobile carriers, regardless of what frequency they operate on. This roof & Pole mountable antenna offers a 12dBi gain and is suitable as an outdoor antenna with a weather rating of IP66. No longer do you have to buy a new antenna when you switch carriers or be concerned what frequency your antenna supports. Perfect for outdoor mobile repeater applications.
The "BIG BOY" Outback Antenna will provide the perfect solution for voice and data applications. Perfect for repeater applications that require beam width for complete outdoor coverage.
Features
- Suitable for all mobile carriers
- MIMO Antenna
- Provides a 12dbi gain for 698~2700MHz

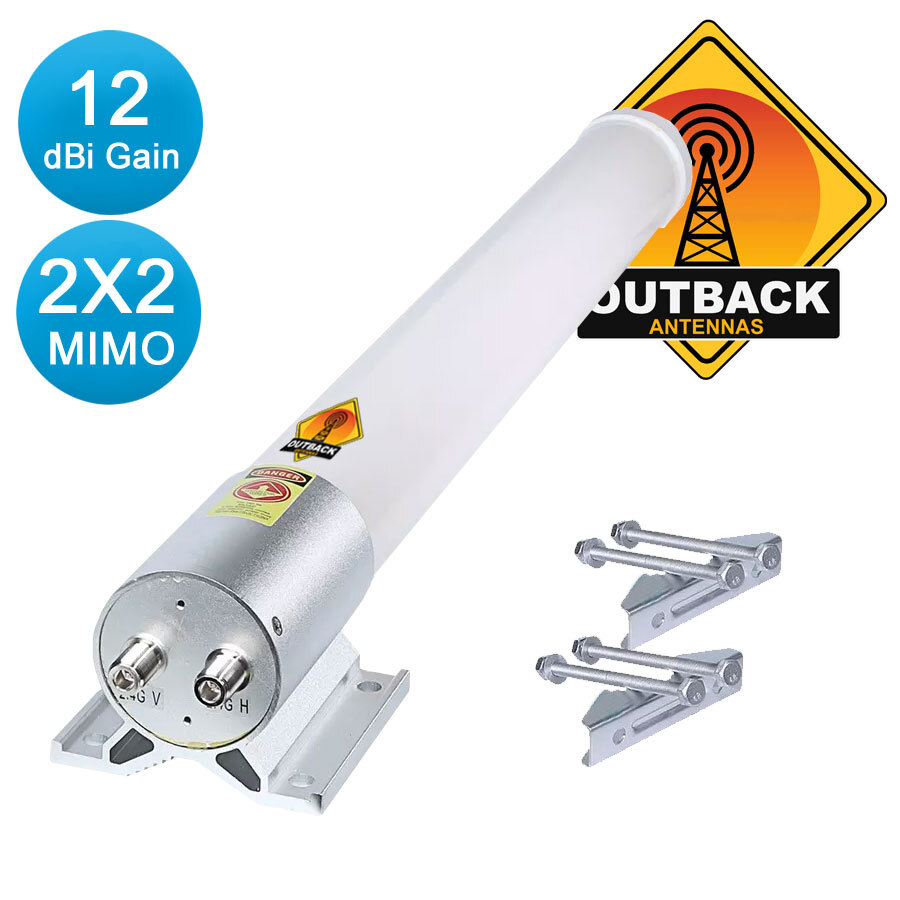

- 2 x N Female Connectors

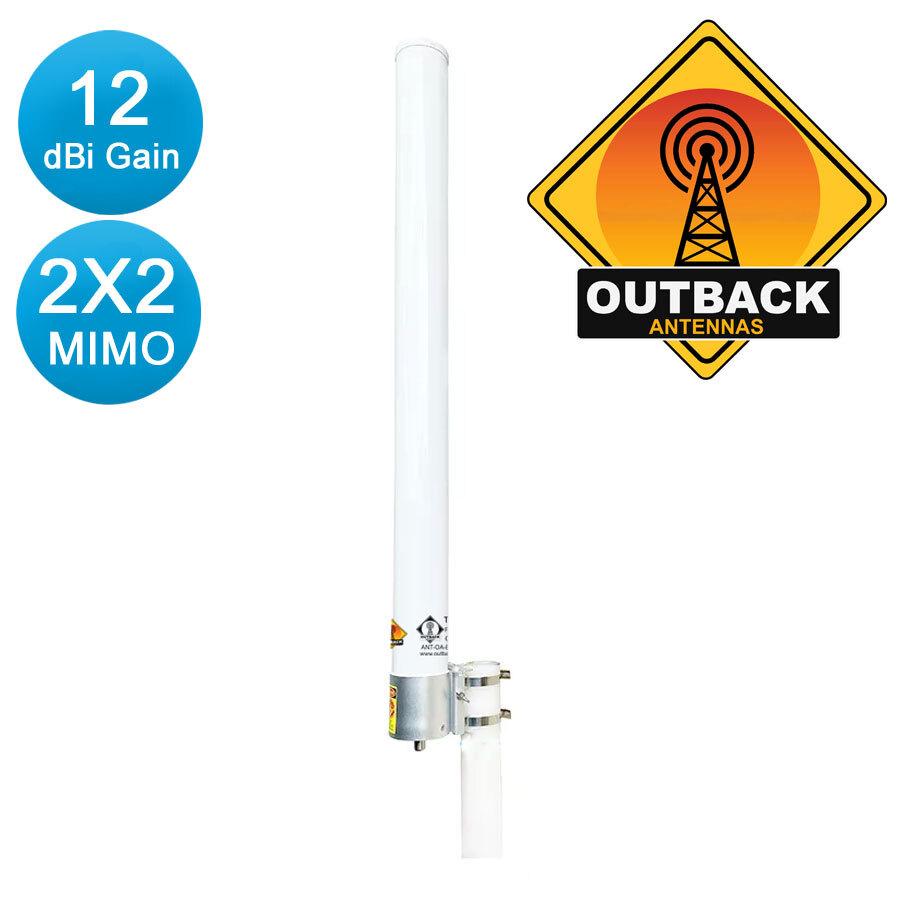

- Pole Mountable
- Weather rating IP66
- Ideal for Cel-Fi GO repeater applications for Home. Office, Marine and Caravan
- or 2.4Ghz Wi-Fi Applications
Dimensions: 70mm Ø x 960mm L
Weight: 1kg
(ANT-OA-BIG-O4G-MIMO-NF)
The "BIG BOY" 2X2 N Female MIMO OMNI Antenna High Gain 12dBi, 698-2700MHz
Pack Includes:

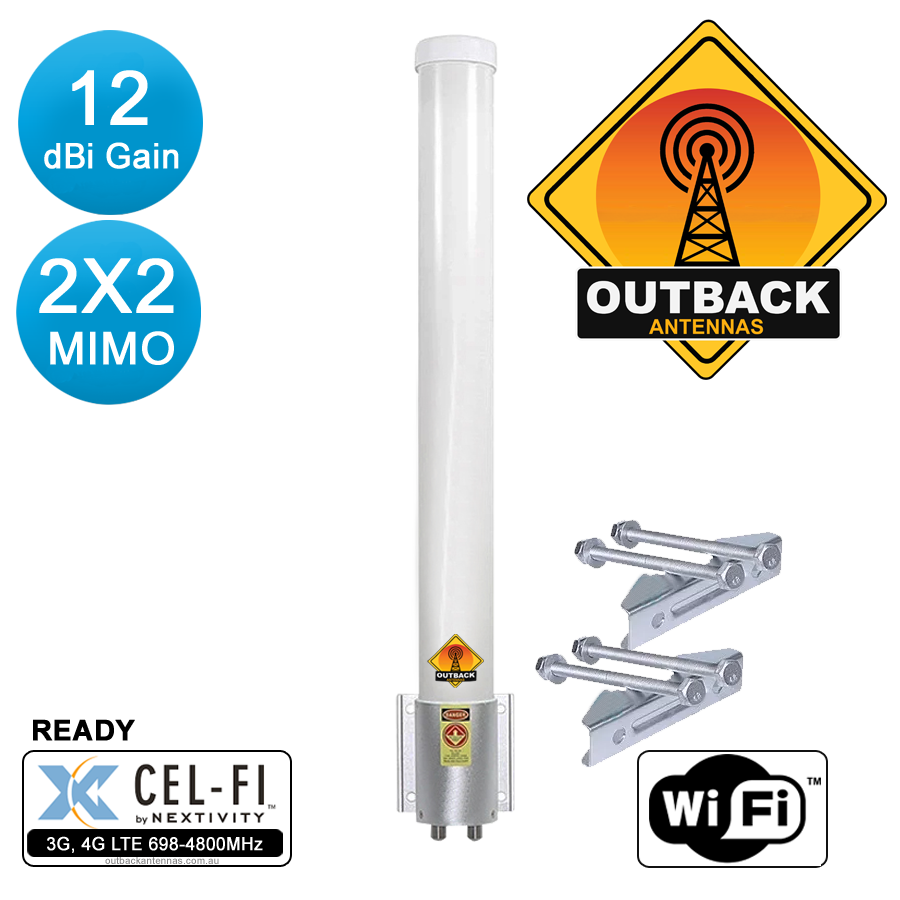

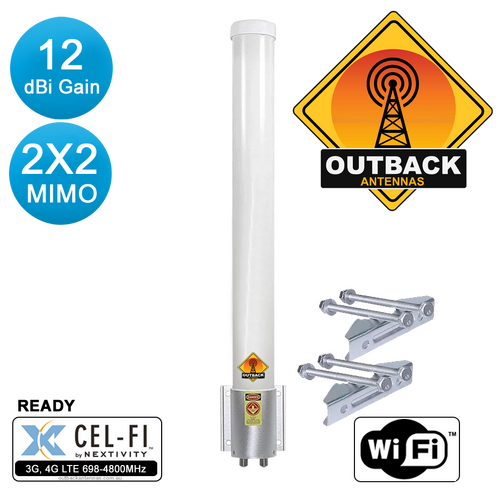

- 1 x The "THE BIG BOY" Omni Antenna Outdoor 12dBi, 698-2700MHz
- 1 x Mount Bracket
The "BIG BOY" 2X2 N Female MIMO OMNI Antenna High Gain 12dBi, 698-2700MHz - SPECIFICATIONS
| Electrical Characteristics | |
| Frequency Range (MHz) | 698-2700MHz |
| Polarization | Vertical |
| Gain (dBi) | 12 |
| 3dB Beamwidth | H: 360° E: 60° |
| VSWR | ≤1.5 |
| Input Impedance (Ω) | 50 |
| Maximum Power (W) | 100 |
| Lightning Protection | DC grounding |
| Mechanical Characteristics | |
| Connector type | 2 x Type N Female |
| Mount Type | Mast Mount |
| Cable length (Meter) | 3 (customizable) |
| Radome material | UV-ABS |
| Mount way | Pole-Holding |
| Reflector material | Brass |
| Dimensions (mm) | 70mm Ø x 960mm L |
| Weight (g) | 1kg |
| Environmental Characteristics | |
| Noise Factor (dBi) | ≤1.5 |
| Waterproof | IP66 |
| Operating Temperature (℃) | -30-+60°C |
| Relative Humidity | Up to 95% |
| ROHS Compliant | yes |
SHIPPING SPECIFICATIONS
| SKU | ANT-OA-BIG-O4G-MIMO-NF |
| Model # | ANT-OA-BIG-O4G-MIMO-NF |
| Barcode # | 4.81E+11 |
| Brand | OUTBACK ANTENNAS |
| Shipping Weight | 1.0000kg |
| Shipping Width | 0.070m |
| Shipping Height | 0.070m |
| Shipping Length | 0.950m |
| Shipping Cubic | 0.004655000m3 |
| Unit Of Measure | ea |
The "BIG BOY" 2X2 N Female MIMO OMNI Antenna High Gain 12dBi, 698-2700MHz - Documents
Datasheet The "BIG BOY" Omni Antenna OUTDOOR 12dBi, 698-2700MHzBe The First To Review This Product!
