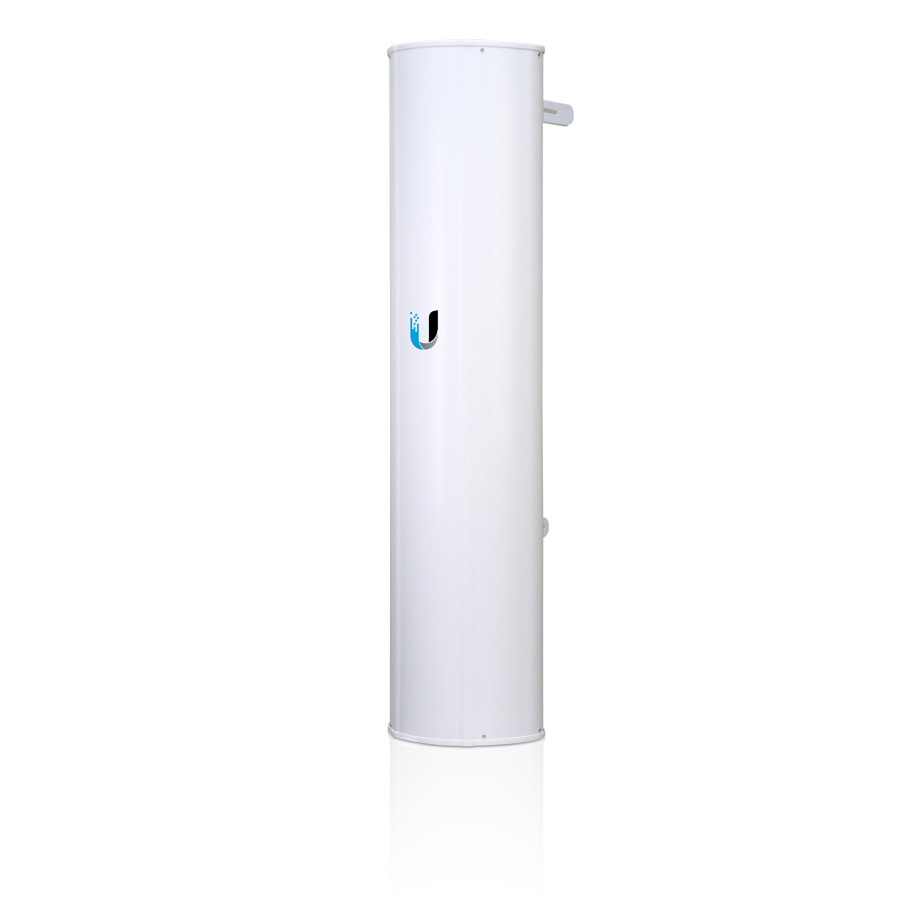

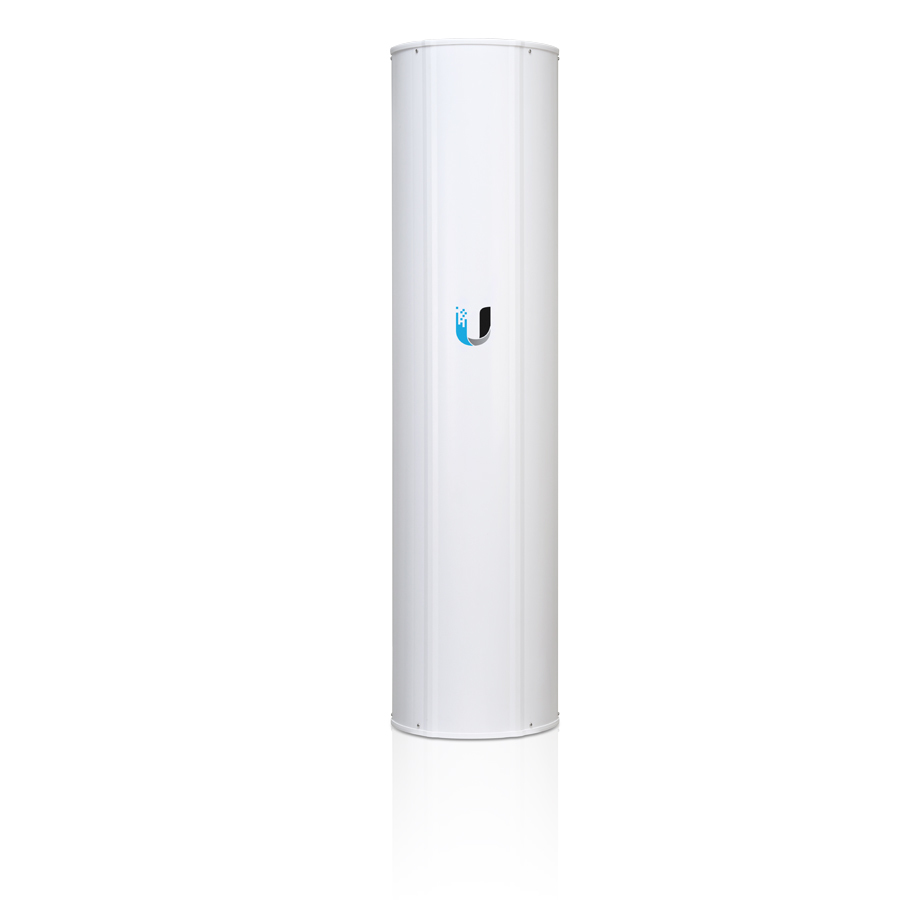

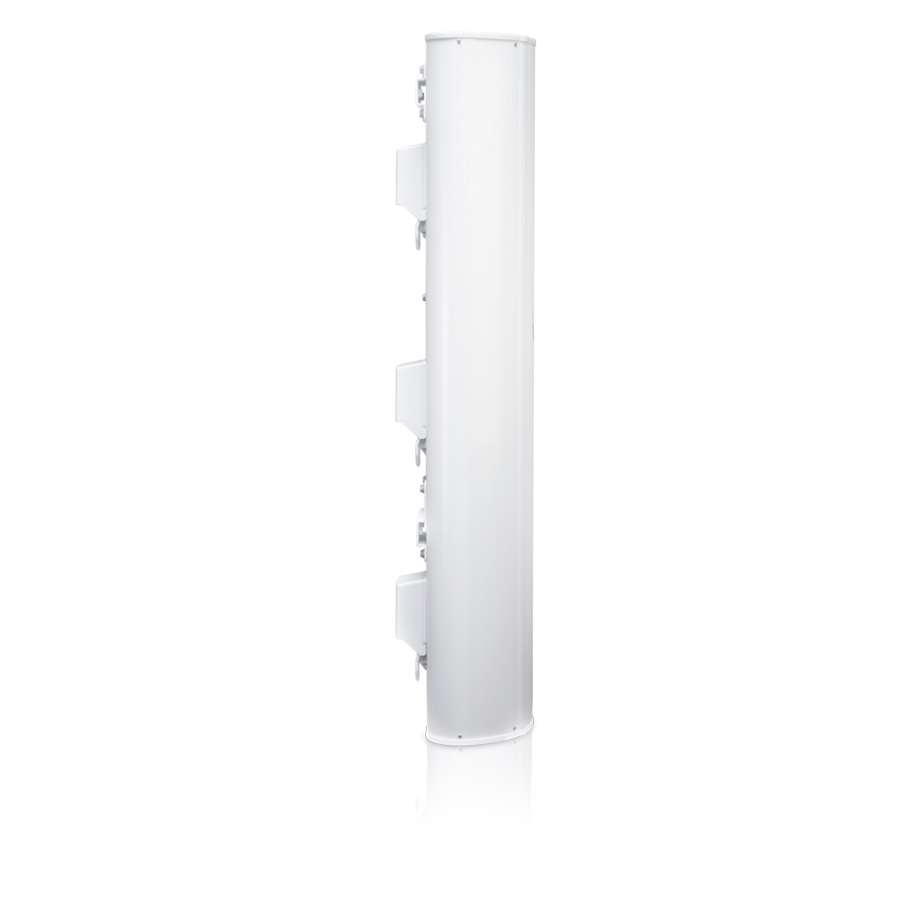

airPRISM 5GHz 3x30° HD Sector Antenna
AP‑5AC‑90‑HD
5 GHz, 3x30° HD Sector Antenna
Ubiquiti Networks introduces an innovative sector antenna for your Point-to-MultiPoint (PtMP) applications, the airPrism® 5 GHz 3x30° HD Sector Antenna. The airPrism antenna features significant advances in noise isolation and beam performance to complement the Rocket®5ac Prism™ radios (not included) for co-location deployments.
Breakthrough Design
Three Rocket5ac Prism radios mounted on a single airPrism antenna maximizes throughput in an efficient tower footprint, minimizing installation and tower costs. Powerful Performance Highly resistant to noise interference, the airPrism antenna provides superior beam performance in high-density areas for high-capacity, multipoint networks.

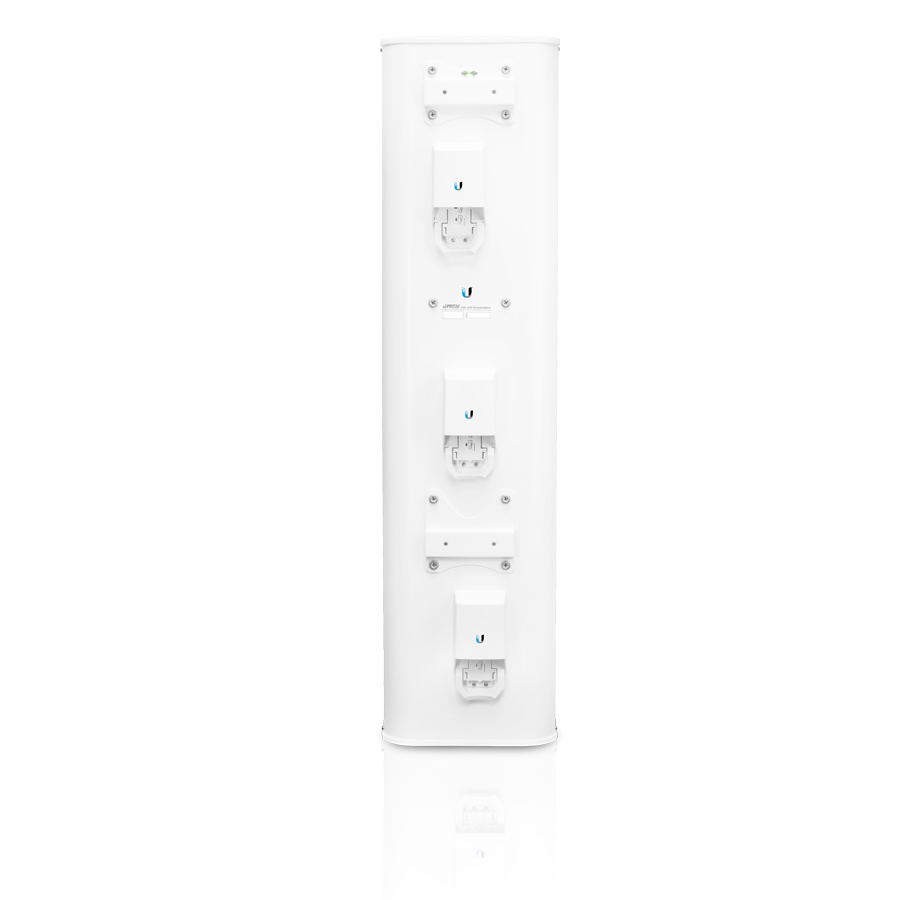

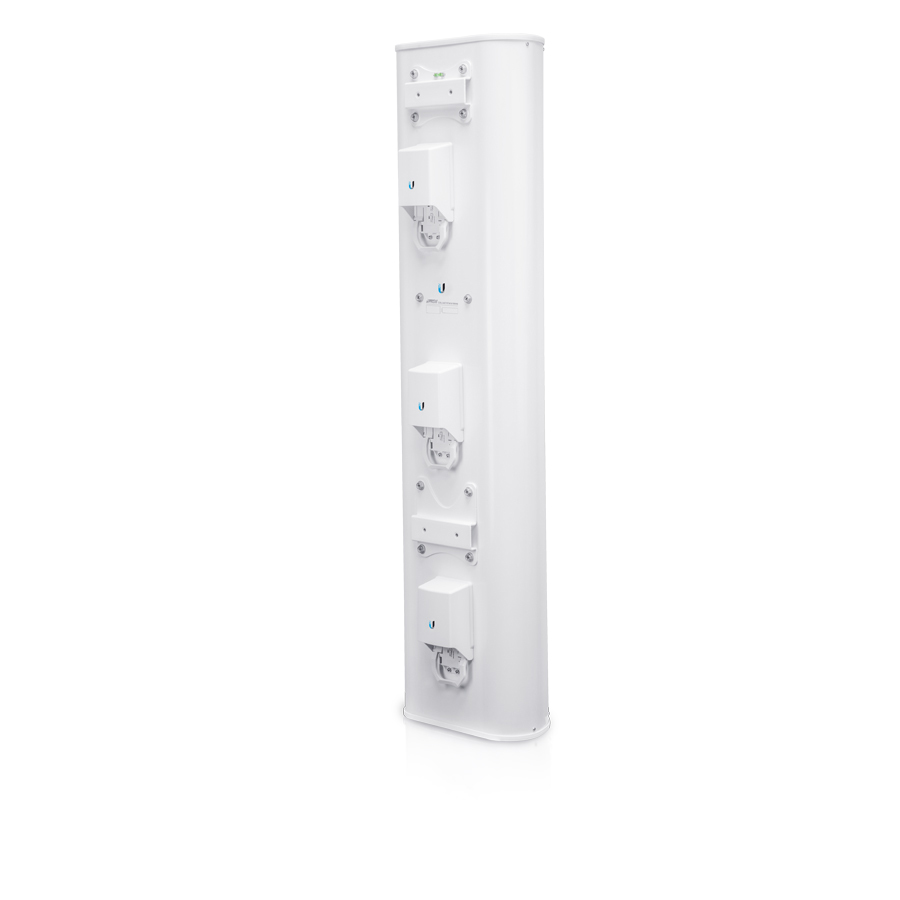

Plug and Play Integration The airPrism antenna and Rocket5ac Prism radios have been designed to seamlessly work together. Every airPrism antenna has three built-in Rocket radio mounts, so installation requires no special tools. Snap the three Rocket5ac Prism radios securely into place and mount the antenna for your PtMP link.
(AP-5AC-90-HD)
airPrism 5 GHz, 3x30° HD Sector Antenna
Package Includes
- 1 x airPrism Antenna
- 3 x Protective Shrouds
- 2 x U-Brackets
- 2 x Pole Bracket
- 2 x Pole Clamp
- 4 x Carriage Bolts (M10x150)
- 8 x Hex Bolts with Washers (M8x20)
- 4 x Serrated Flange Nuts (M10)
- 4 x Hex Nuts (M10)
- Quick Start Guide
airPrism 5 GHz, 3x30° HD Sector Antenna - Specifications
| AP-5AC-90-HD | |
|---|---|
| Dimensions (mm)* | 322.6 x 201.5 x 1300 mm (12.7 x 7.93 x 51.18") |
| Weight** | 13.1 kg (28.9 lb) |
| Frequency Range | 5.15 - 5.85 GHz |
| Gain | 22 dBi |
| HPOL Beamwidth | 3 x 30° (6 dB) |
| VPOL Beamwidth | 3 x 30° (6 dB) |
| Electrical Beamwidth | 8° |
| Electrical Downtilt | 2° |
| Max. VSWR | 1.75:1 |
| Wind Survivability | 125 mph |
| Wind Loading | 24 lbf @ 100 mph |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 30 dB Min. |
| Interfaces | (6) RP-SMA Connectors (Weatherproof ) |
| Compatible Radio | Rocket5ac Prism, model R5AC-PRISM |
| Wind Loading | 534 N @ 200 km/h (120 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included |
| Certifications | CE, FCC, IC |
* Dimensions exclude pole mount and Rocket5ac Prism (Rocket5ac Prism sold separately)
** Weight includes pole mount and excludes Rocket5ac Prism (Rocket5ac Prism sold separately)
Shipping Specifications
| SKU | AP-5AC-90-HD |
| Model # | AP‑5AC‑90‑HD |
| Barcode # | 810354021947 |
| Brand | Ubiquiti |
| Shipping Weight | 13.6000kg |
| Shipping Width | 0.395m |
| Shipping Height | 0.295m |
| Shipping Length | 1.532m |
| Shipping Cubic | 0.178516000m3 |
| Unit Of Measure | ea |
