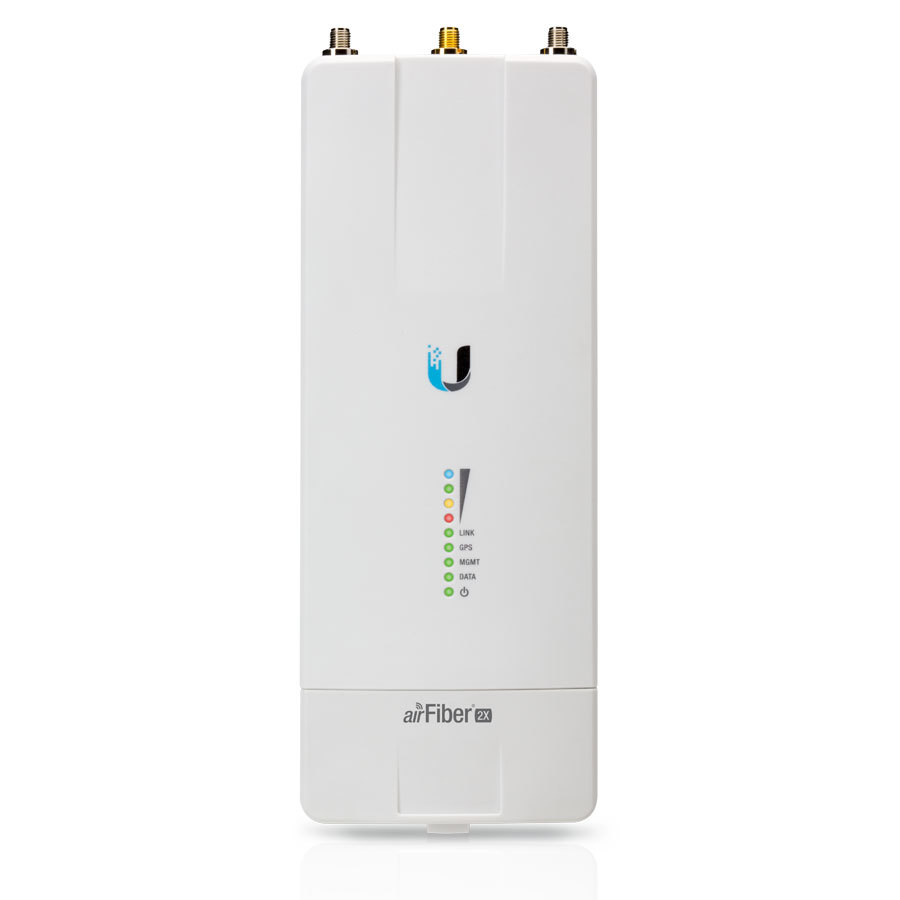

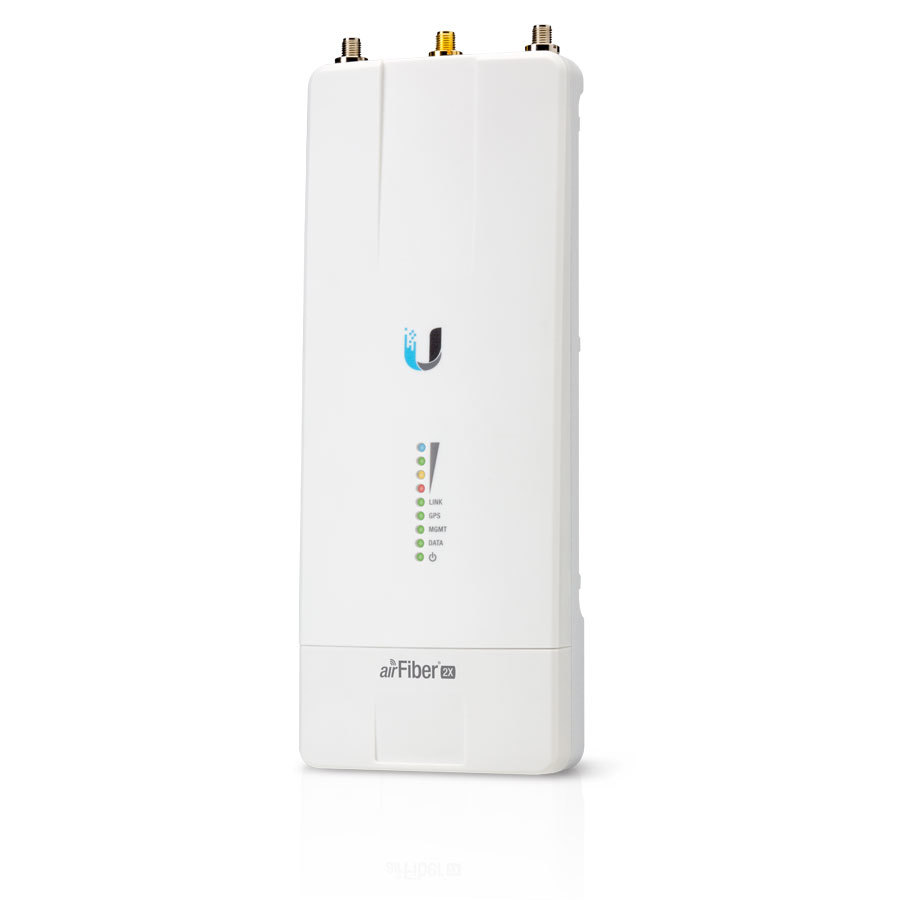

airFiber 2X 2.4GHz, 500Mbps+ 200+km Radio Backhaul
AF-2X
Ubiquiti airFiber, airFiber 2X 5.1 - 2.4GHz, 500Mbps+ 200+km Radio Backhaul
The airFiber®2X.
The airFiber® X features up to 17.1 Mbps/MHz of industry-leading spectral efficiency and uses proprietary Hybrid Division Duplexing technology to achieve the highest TDD throughput available for long-range, PtP links.
Engineered for Performance
Ubiquiti’s INVICTUS™ custom silicon and proprietary radio architecture are designed specifically for long-distance, outdoor wireless applications.
Deployment Flexibility
The compact form factor allows the airFiber X to be used with airFiber Slant 45 antennas, or instantly upgrade a 2 GHz Rocket™link that uses a RocketDish™RD‑5G30/RD‑5G34* antenna.
Carrier Backhaul for the World
Deploy the 2.4, 3, 4, 5 or 11 GHz model that meets your specific spectrum requirements, anywhere around the world. The airFiber X features multiple channel width options to suit your deployment needs – up to 11 different channel sizes available for the AF-2X or AF-3X.
Optimal Operation and Channel Configuration
Channel width flexibility allows you to independently configure TX and RX channel frequencies and place them anywhere within the radio band to avoid local interference. You also have the ability to program different uplink and downlink duty cycles to support asymmetric traffic requirements.
(AF-2X)
airFiber 2X 2.4GHz, 500Mbps+ 200+km Radio Backhaul
Package Includes
- 1 x airFiber AF 2X
- 1 x GPS Antenna Mount
- 1 x External GPS Antenna
- 1 x Metal Strap
- 2 x Cable Ties
- 1 x airFiber PoE Adapter with Mounting Bracket (24V, 1A)
- 1 x Power Cord
- Quick Start Guide
airFiber 2X 2.4GHz, 500Mbps+ 200+km Radio Backhaul - Specifications
| airFiber AF‑2X | |
|---|---|
| Dimensions Radio Box |
224 x 82 x 48 mm (8.82 x 3.23 x 1.89") 261 x 107 x 107 mm (10.28 x 4.21 x 4.21") |
| Weight Radio Box |
0.35 kg (0.77 lb) 1.1 kg (2.43 lb) |
| RF Connections | (2) RP-SMA Weatherproof (CH0, CH1) (1) SMA Weatherproof (GPS) |
| GPS Antenna | External, Magnetic Base |
| Power Supply | 24V, 1A PoE Gigabit Adapter (Included) |
| Power Method | Passive Power over Ethernet Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-) |
| Max. Power Consumption | 17W @ Max. Power/Duty Cycle |
| Supported Voltage Range | +18 to +54VDC1 |
| Automatic Transmit Power Control (ATPC) |
Yes |
| Mounting | airFiber X Mount (Rocket Mount Compatible) GPS Pole Mount (Included) |
| Certifications | CE, FCC, IC |
| Operating Temperature | 40 to 55° C (-40 to 131° F) |
| AF-2X Networking Interface | |

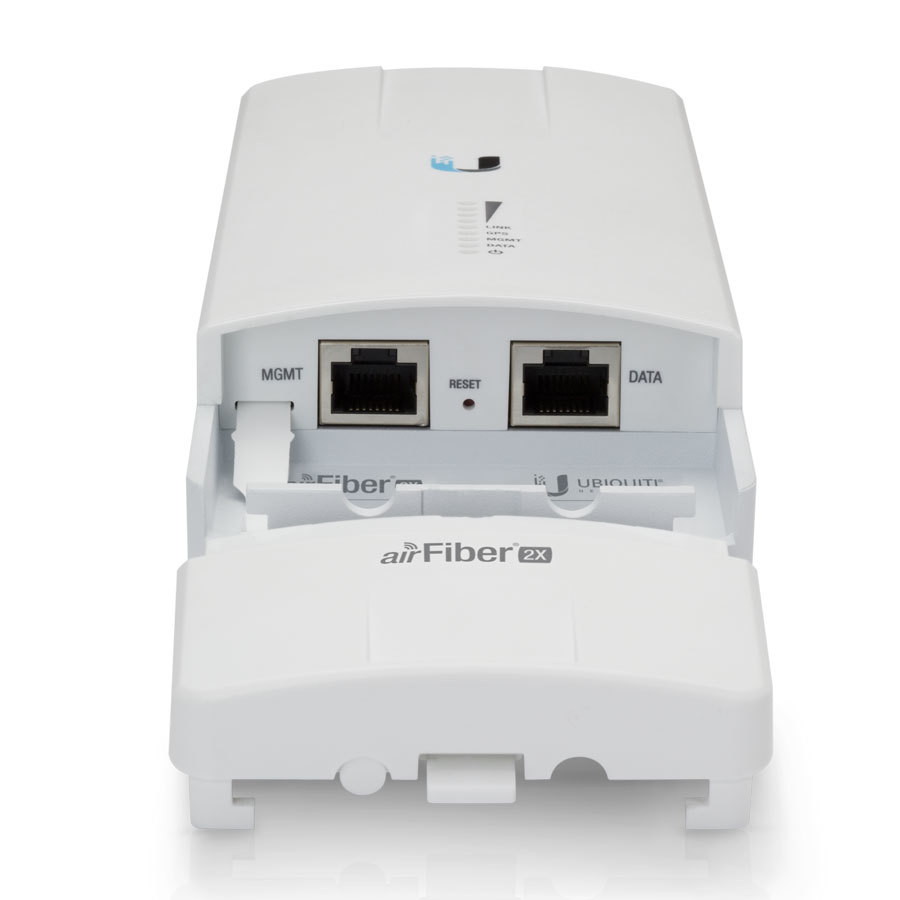

| Data Port | (1) 10/100/1000 Ethernet Port |
| Management Port | (1) 10/100 Ethernet Port |
| AF-2X System | |
| Processor | INVICTUS IC |
| Maximum Throughput | 687 Mbps2 |
| Maximum Range | 200+ km2 |
| Packets per Second | 1+ Million |
| Encryption | 128-bit AES |
| OS | airOS F |
| Wireless Modes | Master/Slave |
| Latency Half Duplex Mode |
< 2 ms at Full Throughput |
| MTU (Maximum Transmission Unit) | Up to 9600 |
| AF-2X Radio | |
| Frequency Range | 2300-2700 MHz (Dependent on Regulatory Region)1 |
| Max. Conducted TX Power | 30 dBm1 (Dependent on Regulatory Region) |
| Frequency Accuracy | ± 2.5 ppm without GPS Synchronization ± 0.2 ppm with GPS Synchronization |
| Channel Bandwidth | 3.5/5/7/10/14/20/28/30/40/50/56 MHz Selectable2 Programmable Uplink and Downlink Duty Cycles Independently Programmable TX and RX Frequencies |
| 1 For region-specific details, refer to the Compliance chapter of the airFiber X User Guide at www.ubnt.com/download/airfiber 2 Channel widths may vary according to country/region regulations. |
|
Shipping Specifications
| SKU | AF-2X |
| Model # | AF-2X |
| Brand | Ubiquiti |
| Shipping Weight | 0.5000kg |
| Shipping Width | 0.200m |
| Shipping Height | 0.100m |
| Shipping Length | 0.300m |
| Shipping Cubic | 0.006000000m3 |
| Unit Of Measure | ea |
airFiber 2X 2.4GHz, 500Mbps+ 200+km Radio Backhaul - Documents
