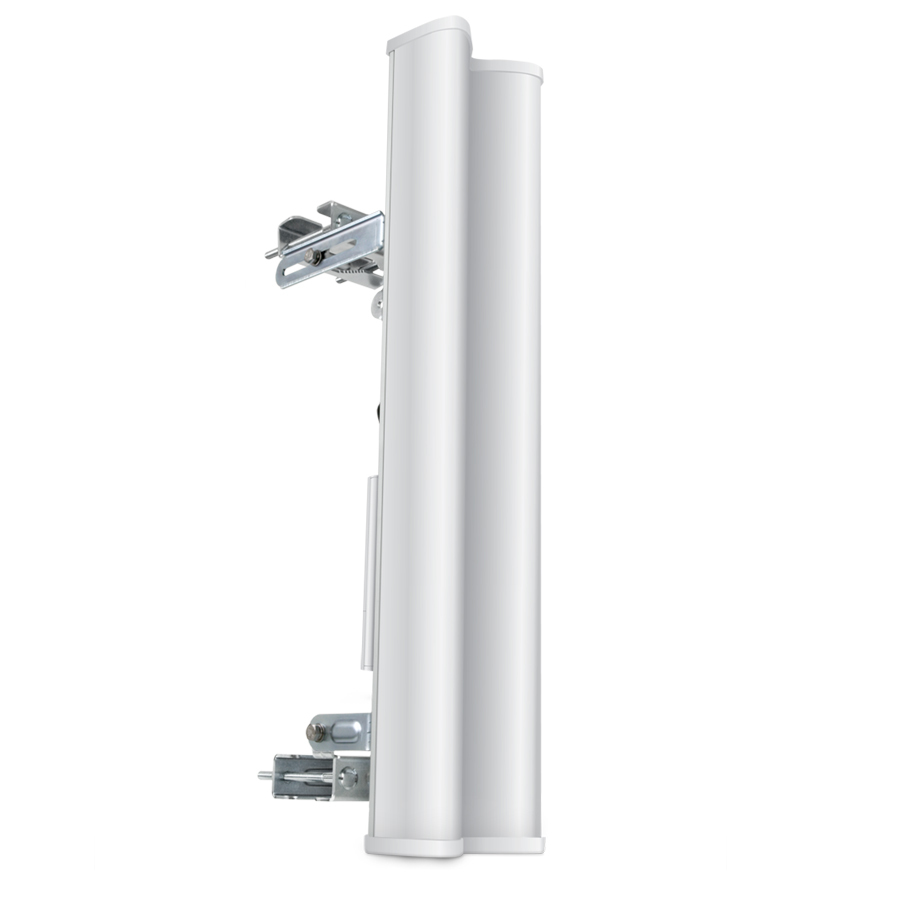

airMAX 2GHz 15dBi 120° BaseStation Sector Antenna
AM‑2G15-120
airMAX® 2x2 BaseStation Sector Antenna
The airMAX® Sector Antenna is a carrier-class 2x2 dual-polarity MIMO sector antenna that was designed to seamlessly integrate with Rocket radios (Rocket sold separately). On the right is one example of how the airMAX Sector Antenna can be deployed in a Point-to-MultiPoint (PtMP) network.
Flexibility
To support your specific application, the airMAX Sector Antenna is available in several frequency models:
- 900 MHz
- 2.4 GHz
- 3 GHz
- 5 GHz
High Performance
Highly resistant to noise interference, the airMAX Sector Antenna provides superior gain and beam performance for high-capacity, multipoint networks.
Durable Construction
Each airMAX Sector Antenna is designed with robust mechanical design for outdoor application use.
Plug and Play Integration
Every airMAX Sector Antenna has a built-in Rocket mount, so installation requires no special tools. Snap the Rocket securely into place and mount the antenna; you then have the optimal combination of Rocket radio and airMAX Sector Antenna for your application.
Pair the Rocket radio with the airMAX Sector Antenna to create a powerful basestation. This versatile combination gives network architects unparalleled flexibility and convenience.
(AM-2G15-120)
AirMax 2GHz 15dBi, 120° BaseStation Sector Antenna
Package Includes
- 1 x Antenna
- 1 x Protective Shroud
- 2 x U-Brackets
- 2 x Pole Bracket
- 2 x Pole Clamp
- 4 x Carriage Bolts (M8x135)
- 4 x Serrated Flange Bolts (M8x20)
- 8 x Serrated Flange Nuts (M8)
- 2 x RF Cables
- Quick Start Guide
AirMax 2GHz 15dBi, 120° BaseStation Sector Antenna - Specifications
| AM-2G15-120 | |
|---|---|
| Dimensions (mm) | 700 x 145 x 93 |
| Weight | 4.0 kg |
| Frequency Range | 2.3 - 2.7 GHz |
| Gain | 15.0 - 16.0 dBi |
| HPOL Beamwidth | 123° (6 dB) |
| VPOL Beamwidth | 118° (6 dB) |
| Electrical Beamwidth | 9° |
| Electrical Downtilt | 4° |
| Max. VSWR | 1.5:1 |
| Wind Survivability | 125 mph |
| Wind Loading | 24 lbf @ 100 mph |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 28 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included |
Shipping Specifications
| SKU | AM-2G15-120 |
| Model # | AM‑2G15-120 |
| Barcode # | 810354020865 |
| Brand | Ubiquiti |
| Shipping Weight | 5.0000kg |
| Shipping Width | 0.195m |
| Shipping Height | 0.176m |
| Shipping Length | 0.895m |
| Shipping Cubic | 0.030716000m3 |
| Unit Of Measure | ea |
AirMax 2GHz 15dBi, 120° BaseStation Sector Antenna - Documents
