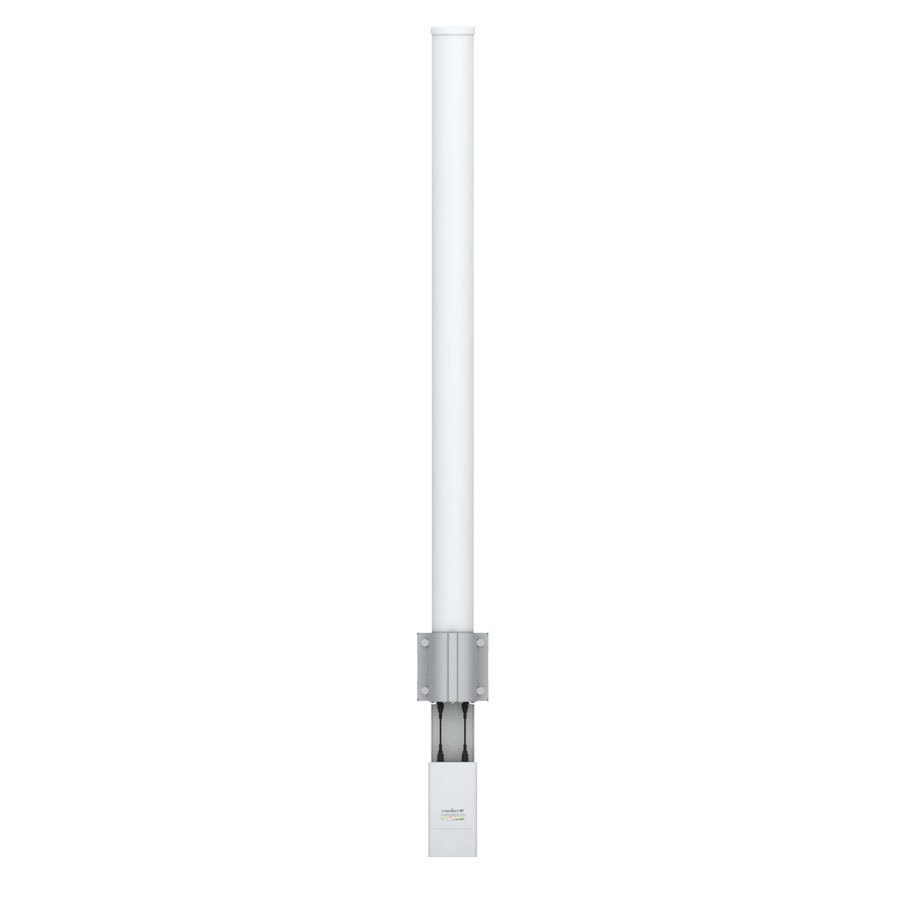

airMAX 5GHz 13dBi 360° BaseStation Omni Antenna
AMO‑5G13
2x2 Dual-Polarity MIMO Omni Antenna
The airMAX® Omni Antenna is a carrier-class 2x2 dual-polarity MIMO omnidirectional antenna designed to seamlessly integrate with Rocket radios (Rocket sold separately). On the right is one example of how the airMAX Omni Antenna can be deployed in a Point-to-MultiPoint (PtMP) network.
Flexibility
To support your specific application, the airMAX Omni Antenna is available in multiple frequency models:
- 2.4 GHz
- 3 GHz
- 5 GHz
Breakthrough Design
The airMAX Omni Antenna is the first of its kind to feature a patented, dual-polarity omni design.
Coverage
The airMAX Omni Antenna provides powerful 360° coverage, 2x2 MIMO performance in Line-of-Sight (LoS) or Non-Line-of-Sight (NLoS) applications.
Durable Construction
Each airMAX Omni Antenna features a robust mechanical design for outdoor application use.
Plug and Play Integration
Every airMAX Omni Antenna has a built-in Rocket mount, so installation requires no special tools. Snap the Rocket securely into place and mount the antenna; you then have the optimal combination of Rocket radio and airMAX Omni Antenna for your application. Pair the Rocket radio with the airMAX Omni Antenna to create a powerful omnidirectional basestation. This combination gives network architects unparalleled flexibility and convenience.
(AMO-5G13)
airMAX 5GHz 13dBi 360° BaseStation Omni Antenna
Package Includes
- 1 x Antenna
- 2 x Pole Clamp
- 4 x Carriage Bolts (M8x120)
- 4 x Serrated Flange Nuts (M8)
- 2 x RF Cables
- Quick Start Guide
airMAX 5GHz 13dBi 360° BaseStation Omni Antenna - Specifications
| AMO-5G13 | |
|---|---|
| Dimensions (mm)* | 799 x 90 x 65 mm |
| Weight | 0.82 kg |
| Frequency Range | 5.45 - 5.85 GHz |
| Gain | 13 dBi |
| Elevation Beamwidth | 7° |
| Max. VSWR | 1.5:1 |
| Downtilt | 2° |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 84.52 N @ 200 km/h (19 lbf @ 125 mph) |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 25 dB min. |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included |
* Dimensions and weight exclude pole mount and Rocket (Rocket sold separately)
Shipping Specifications
| SKU | AMO-5G13 |
| Model # | AM‑5G13 |
| Barcode # | 810354020995 |
| Brand | Ubiquiti |
| Shipping Weight | 1.6500kg |
| Shipping Width | 0.148m |
| Shipping Height | 0.093m |
| Shipping Length | 0.866m |
| Shipping Cubic | 0.011920000m3 |
| Unit Of Measure | ea |
airMAX 5GHz 13dBi 360° BaseStation Omni Antenna - Documents
