The "WHIP SNAKE" Magnetic Vehicle Wideband Omni Antenna Outdoor Cellular Cel-Fi Ready, 3G, 4G/LTE & WiFi 698-2700MHz
ANT-OA-WHIP-O4G-MAG-SMA-M
ALTERNATE PRODUCT:
ANT-OA-FAT-O4G-MAG-SMA-M-4G LTE Antenna Magnetic Base Omni Directional Antenna 698-2700MHz NMO. The "FAT BOY" Online Australia
In Stock: YES

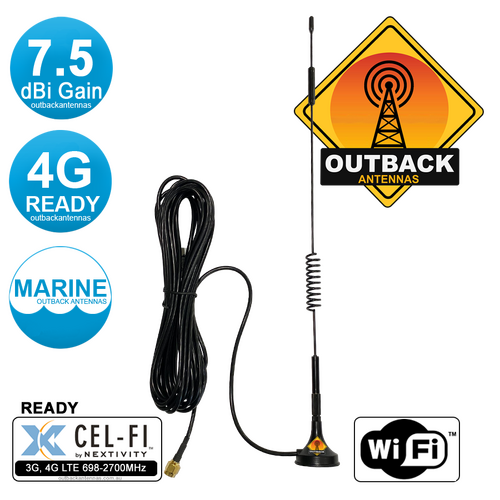

The "WHIP SNAKE" Omni Directional Vehicle Antenna, Magnetic Mount Wideband Antenna by Outback Antennas
The "WHIP SNAKE" is a Wideband Magnetic Mount Vehicle Antenna by Outback Antennas. The "WHIP SNAKE" is a flexible Whip Omni Directional Antenna which attaches to its Magnetic Base. The antenna has 7.5dBi gain across 698-2700MHz band 3G, 4G/LTE & Cel-Fi Ready for boosting 3G and 4G/LTE signals for Telstra Next-G and 4GX networks, Optus, and Vodafone 3G/4G.
Compatible with all carrier networks utilising frequency range: 698-2700MHz. The "WHIP SNAKE" Cellular Antenna is an ideal antenna for Cel-Fi Mobile Phone Repeater installations in vehicles including Cars, Trucks, RV's, Buses, Caravans, Boats and more. Also suitable for devices on the 2.4GHz Wi-Fi networks including solar Wi-Fi installations.
FEATURES
- 7.5 dBi gain across lower bands 698-2700MHz
- Detachable 30mm Magnetic Base Vehicle Mountable
- Connector Type SMA Male
- Cable length 3 metres
- Colour Black
- Ø1.5 Stainless Steel Spring
- Oxidized Corrosion Resistant
Dimensions: 30mm×300mm
Materials: Copper & Stainless Steel
Weight: 45g
Compatibility:
2.4Ghz WiFi Antenna
Cel-Fi Mobile Boosters/Repeaters
4G LTE Mobile Routers
Mobile Broadband Modem Hotspots
CPE Router and Cellular Gateways
Phone Signal Booster Repeaters including Cel-Fi
Mobile Cellular Amplifier
4G LTE Cellular
Vehicle 4G LTE Tracker, Real Time Monitor, Mobile Vehicle Car DVR MDVR Video Recorder
Cellular IoT Gateway
4G LTE M2M RTU DTU Terminal
Cellular Embedded Module
Remote Metering and SMS Alarm
Remote SCADA DAQ Module
Remote Relay Gate Opener Switch
Vending Machine & Digital Signage
ATM Mobile Cellular Antenna
Cellular Temperature Humidity Sensor Monitoring System
(ANT-OA-WHIP-O4G-MAG-SMA-M)
The "WHIP SNAKE" Magnetic Vehicle Antenna, Wideband Omni Cellular Antenna - 698-2700MHZ 3G, 4G/LTE and 2.4Ghz WiFi
Pack Includes:
- 1 x The "WHIP SNAKE" Magnetic Vehicle Antenna, Wideband Omni Cellular Antenna - 700-2700MHZ 3G & 4G LTE
- 1 x Magnetic Base 30mm Detachable
The "WHIP SNAKE" Magnetic Vehicle Antenna, Wideband Omni Cellular Antenna - 698-2700MHZ 3G, 4G/LTE and 2.4Ghz WiFi - Specifications
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | 698-2700MHz |
| Input Impedance | 50 Ω |
| Gain | 7.5 dBi |
| VSWR | ≤3.0 |
| Polarisation | Vertical |
| Radiation Direction | 360° (omnidirectional) |
| Maximum Input Power | 50 W |
| Operating Temperature | -40°C ~ +80°C |
| Storing temperature | -20°C ~ +60°C |
| MECHANICAL SPECIFICATIONS | |
| Antenna Length | 30mmx300mm |
| Cable | 3m |
| Connector Type | SMA Male |
| Mounting | Magnetic Base 30mm Detachable |
| Radome Color | Black |
| Cable | RG174 |
| Suction | 07kg |
| Material | Copper & Stainless Steel |
| Waterproof | IP65 |
SHIPPING SPECIFICATIONS
| SKU | ANT-OA-WHIP-O4G-MAG-SMA-M |
| Model # | ANT-OA-WHIP-O4G-MAG-SMA-M |
| Barcode # | 4.81E+11 |
| Brand | OUTBACK ANTENNAS |
| Shipping Weight | 0.3000kg |
| Shipping Width | 0.030m |
| Shipping Height | 0.300m |
| Shipping Length | 0.030m |
| Shipping Cubic | 0.000270000m3 |
| Unit Of Measure | ea |
