Bullet Dual-Band AC, Dual-Band airMAX Radio.
B-DB-AC
Ubiquiti Bullet Dual-Band airMAX® ac Radio with Dedicated Wi-Fi Management by Ubiquiti Networks
Ubiquiti Bullet™ AC covers both 2.4 and 5 GHz bands, covering a wide range of frequency bands that work well for both short and long-distance links.

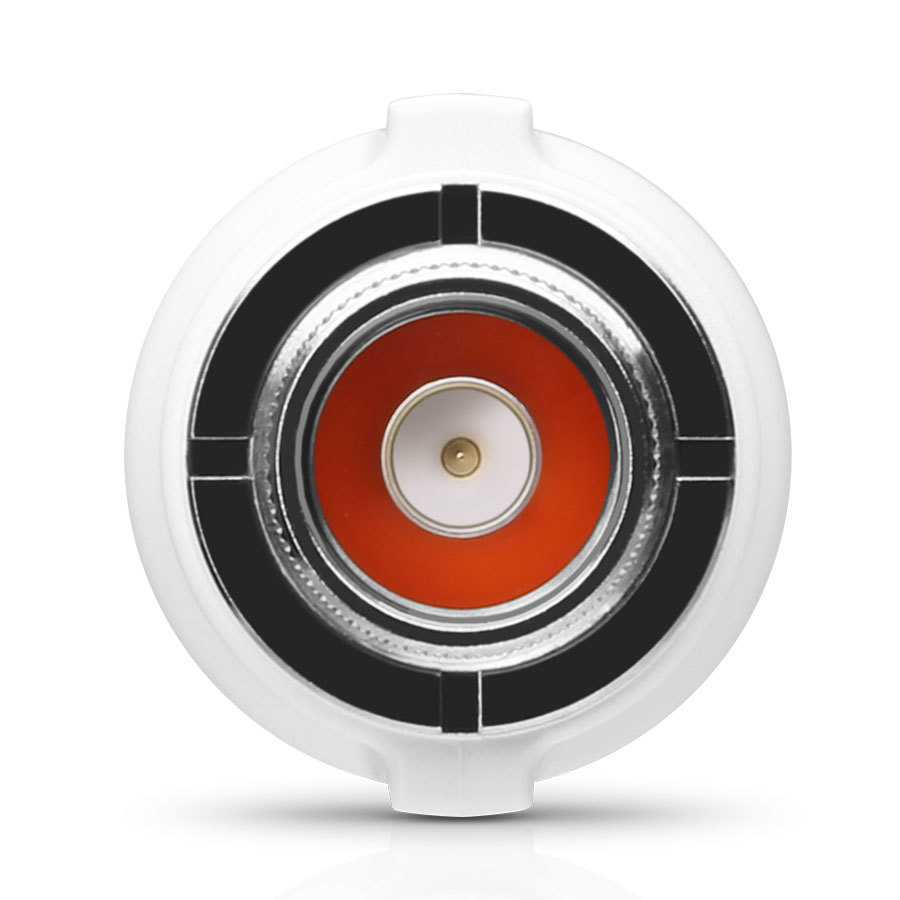

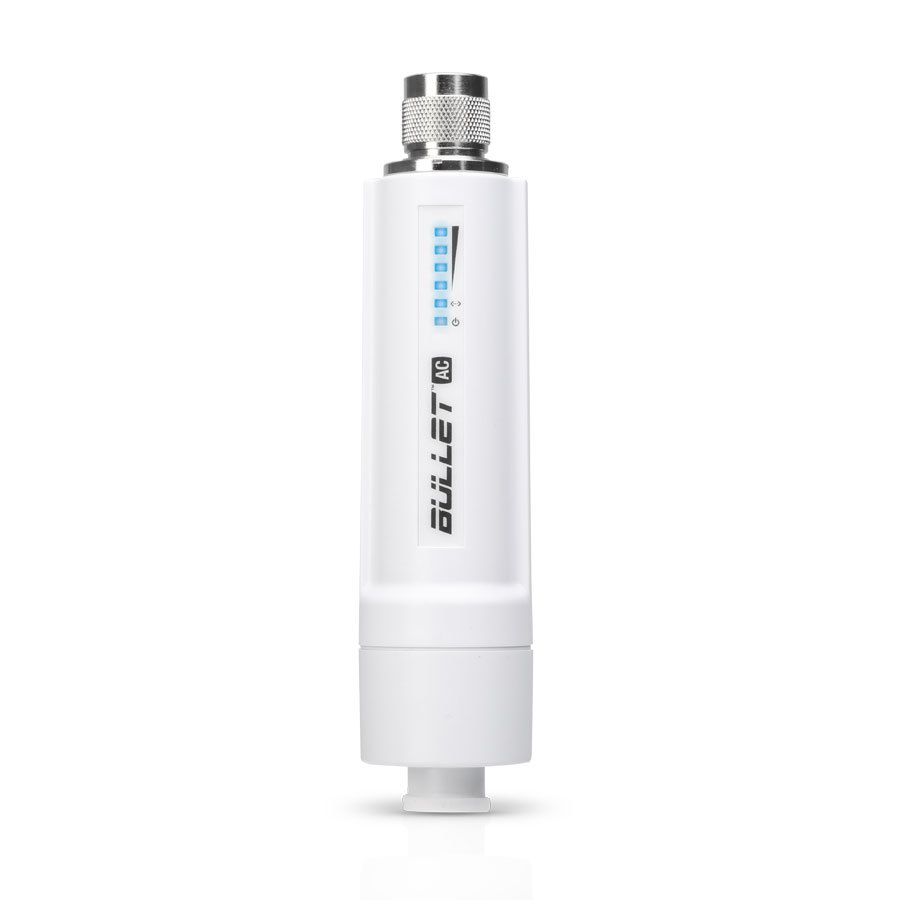

Ubiquiti Bullet Dual Band AC is a wireless radio with an integrated Type N RF connector that can be directly plugged in to any Antenna* to create a powerful and robust outdoor Access Point, Client, or Bridge. The Bullet AC features a signal strength LED meter for antenna alignment, a low-loss integrated N-type RF connector, and a robust weatherproof design. With up to 600mW of power and enhanced receiver design, the Bullet AC is ideal for long-distance links, and is a fully integrated radio that delivers up to 300+ Mbps Real TCP/IP throughput.
UNMS Configuration Screen
Configure your device with WiFi Management App
UNMS App
The Bullet AC integrates a separate Wi-Fi radio for fast and easy setup using the Ubiquiti Network Management System (UNMS) app on your mobile device.
Accessing airOS via Wi-Fi
The UNMS™ app provides instant accessibility to the airOS configuration interface and can be downloaded from the App Store® (iOS) or Google Play™ (Android). UNMS allows you to set up, configure, and manage your device, and offers various configuration options once you’re connected or logged in.
Zero Variable Deployment
The Bullet AC eliminates the need to use RF cables and requires no special antenna or tools to install. There are no radio card / host board issues, no RF cable quality concerns, no mechanical stability concerns, and no enclosure mounting requirements. With the Bullet AC, operators can just plug in and go.
* Bullet AC works with any antenna with a Type N female connector
** Ethernet cable and POE Adapter sold separately
Powerful Wireless Features
- Dedicated WiFi Management
- Access Point PtMP airMAX Mixed Mode
- airMAX ac Protocol Support
- Long-Range Point-to-Point (PtP) Link Mode
- Selectable Channel Width
- PtP: 10/20/30/40/50/60/80 MHz
- PtMP: 10/20/30/40 MHz
- Automatic Channel Selection
- Transmit Power Control: Automatic/Manual
- Automatic Distance Selection (ACK Timing)
- Strongest WPA2 Security
(B-DB-AC)
Ubiquiti Bullet Dual-Band AC, Dual-Band airMAX® ac Radio
Pack Includes:
- 1 x Bullet Dual-Band AC, airMAX Radio
- 1 x Compression Seal
- 1 x Quick Start Guide for Bullet Dual-Band AC
** Ethernet cable and POE Adapter sold separately
Ubiquiti Bullet Dual-Band AC [B-DB-AC], Dual-Band airMAX® ac Radio- Specifications
Specifications
| System Information | |
| Dimensions | 190 x 46 x 46 mm (7.48 x 1.81 x 1.81”) |
| Weight | 116 g (4.09 oz) |
| Enclosure | Polycarbonate |
| Networking Interface | Gigabit Ethernet Port |
| Antenna Connector | N-Type Connector |
| Throughput 2.4GHz 5GHz |
160+ Mbps 300+ Mbps |
| Max. Power Consumption | 8W |
| Output Power | 22 dBm |
| Power Supply | AC to 24VDC, 0.5A Gigabit PoE Adapter |
| Power Method | 24V Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| ESD/EMP Protection | ± 24 kV Contact / Air |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Condensing |
| Shock and Vibration | ETSI300-019-1.4 |
| Certifications | CE, FCC, IC |
| Range Performance | |
| Outdoor (Antenna Dependent) | Over 50km |
* POE Adapter is sold separately
Shipping Specifications
| SKU | B-DB-AC |
| Model # | B-DB-AC |
| Barcode # | 817882021319 |
| Brand | Ubiquiti |
| Shipping Weight | 0.2500kg |
| Shipping Width | 0.047m |
| Shipping Height | 0.047m |
| Shipping Length | 0.200m |
| Shipping Cubic | 0.000442000m3 |
| Unit Of Measure | ea |
