Cat6 RJ45 Unshielded Modular Plug with Loading Bar for Stranded Cables Pack 50
FS-RJ45C6-LB-US-50
$39.93
In Stock
Cat6 RJ45 Unshielded Modular Plug with Loading Bar for Stranded Cables Micron Golded Contacts Pack 50

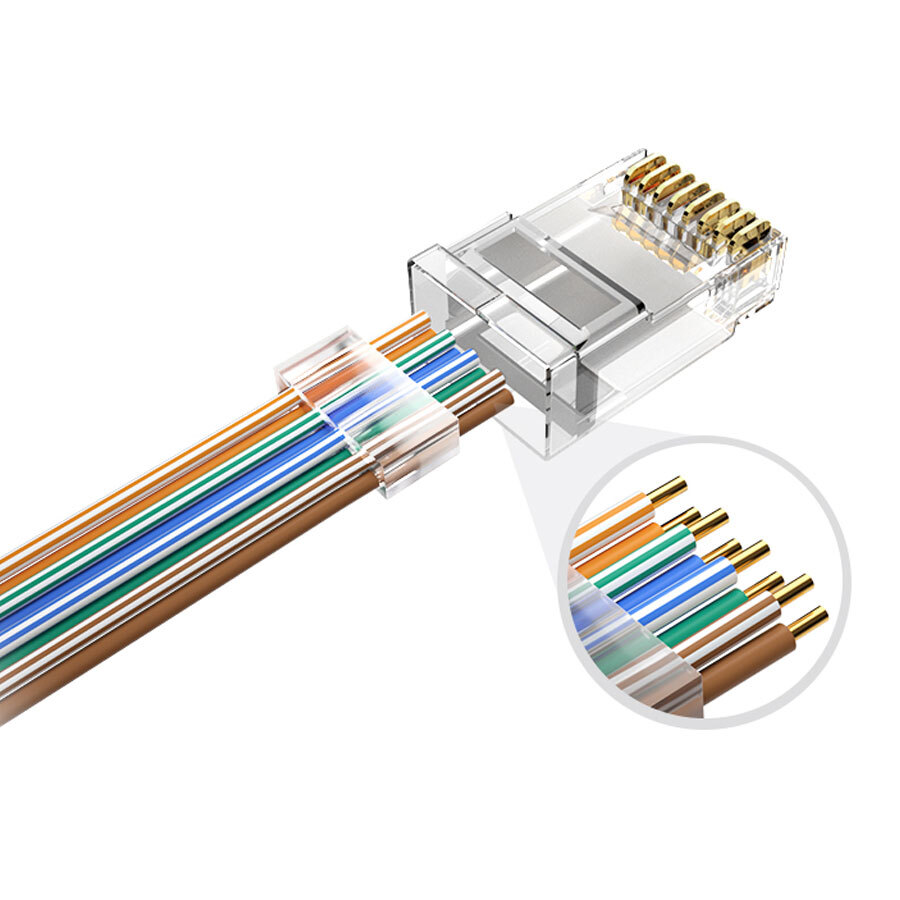

Terminates round solid or stranded cable in cat6 network applications.

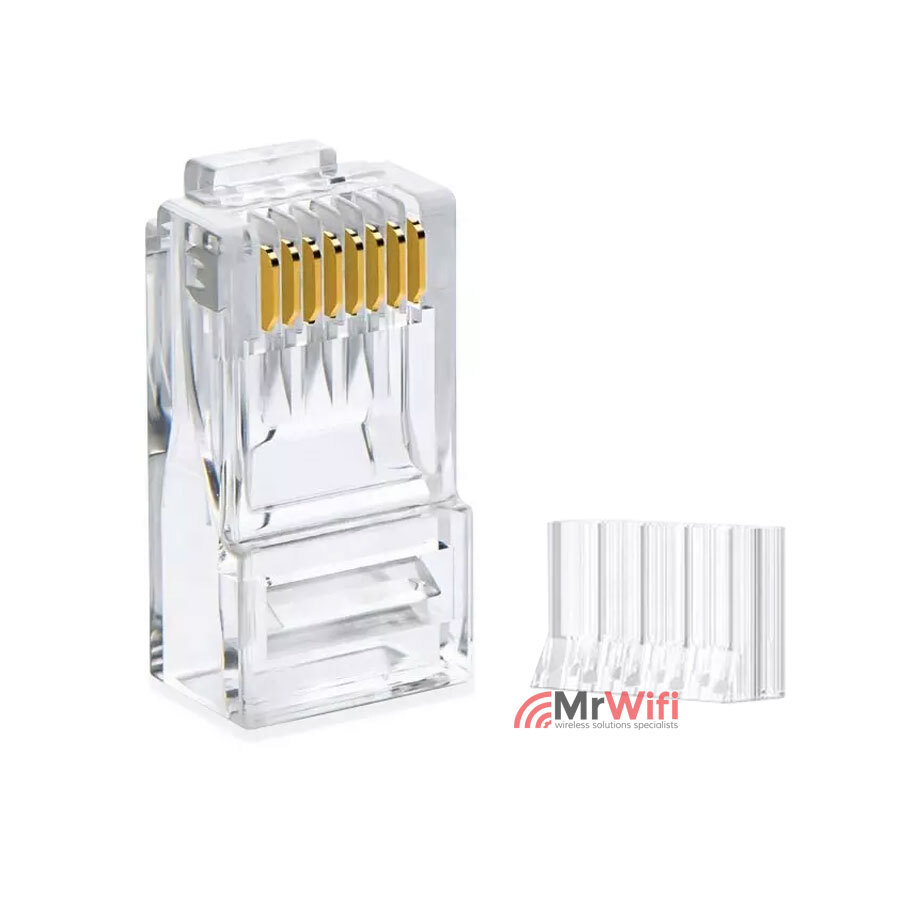

Cat6 Unshielded RJ45 (8P8C) Modular Plug Designed for Cabling System.
These modular plugs are manufactured from high-impact clear polycarbonate to withstand everyday wear and tear, and the contacts are 50 micron gold for optimum signal transmission. In addition, two-piece design with loading bar makes it easier to install.
- Support high band width up to 1000 Mbps under 550MHz transfer rate
- Compatible with cat6 shielded stranded network cable.
- Trigeminal gold plated phosphor bronze contacts provides a fully contact with wire conductor and ensure excellent conductivity.
- High performance and meet with T568A and T568B wiring schemes.
- High-impact clear polycarbonate material modular plug protect the needle from pressuring bias by a modular plug crimping tool.
PRODUCT DETAILS
|
Product Type: |
Cat6 RJ45 modular plug |
Compatibility: |
Stranded cable |
|---|---|---|---|
|
Position/Conductor: |
8x8 |
Conductor Gauges Supported: |
24 AWG cable |
|
Color: |
Clear |
Wiring Scheme: |
T568A/T568B |
|
Load Bar: |
Yes |
Application: |
Unshielded |
|
Material: |
Polycarbonate |
Environment: |
-10°C to 60°C (-14°F to 140°F) |
(FS-RJ45C6-LB-US-50)
Cat6 RJ45 Unshielded Modular Plug with Loading Bar 50 Pack

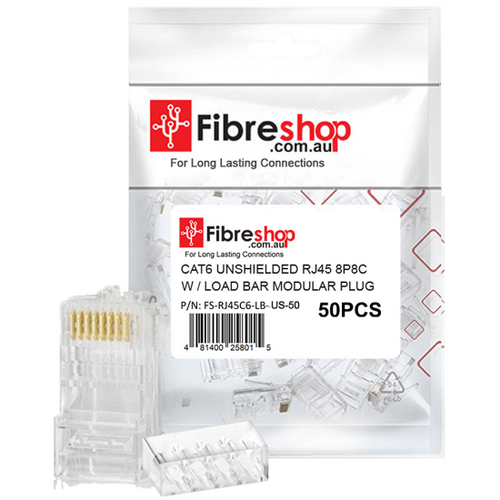

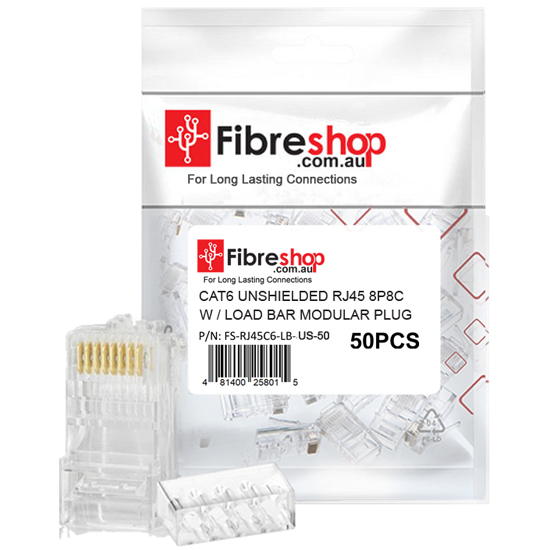

Pack Includes:
- 50 x Cat6 RJ45 Shielded Modular Plug
- 50 x Loading Bar
Cat6 RJ45 Unshielded Modular Plug with Loading Bar 50 Pack - Specifications
| Product Type | Modular Plug | Connector | RJ45 Male |
| Cable Type | Cat6 STP | Data Rate Support | 1000Base-T |
| Compatibility | Stranded Cables | Package | 50pcs/pack |
| Wire Gauge Supported | 26AWG | Wiring Scheme | T568A & T568B |
| Loading Bar | Yes | Material | Polycarbonate |
| Operating Temperature | -10°C to 60°C (14°F to 140°F) | Approvals | RoHS Compliant |
| SKU | FS-RJ45C6-LB-US-50 |
| Model # | FS-RJ45C6-LB-US-50 |
| Brand | FibreShop |
| Shipping Weight | 0.2000kg |
| Shipping Width | 0.050m |
| Shipping Height | 0.100m |
| Shipping Length | 0.200m |
| Shipping Cubic | 0.001000000m3 |
| Unit Of Measure | ea |
