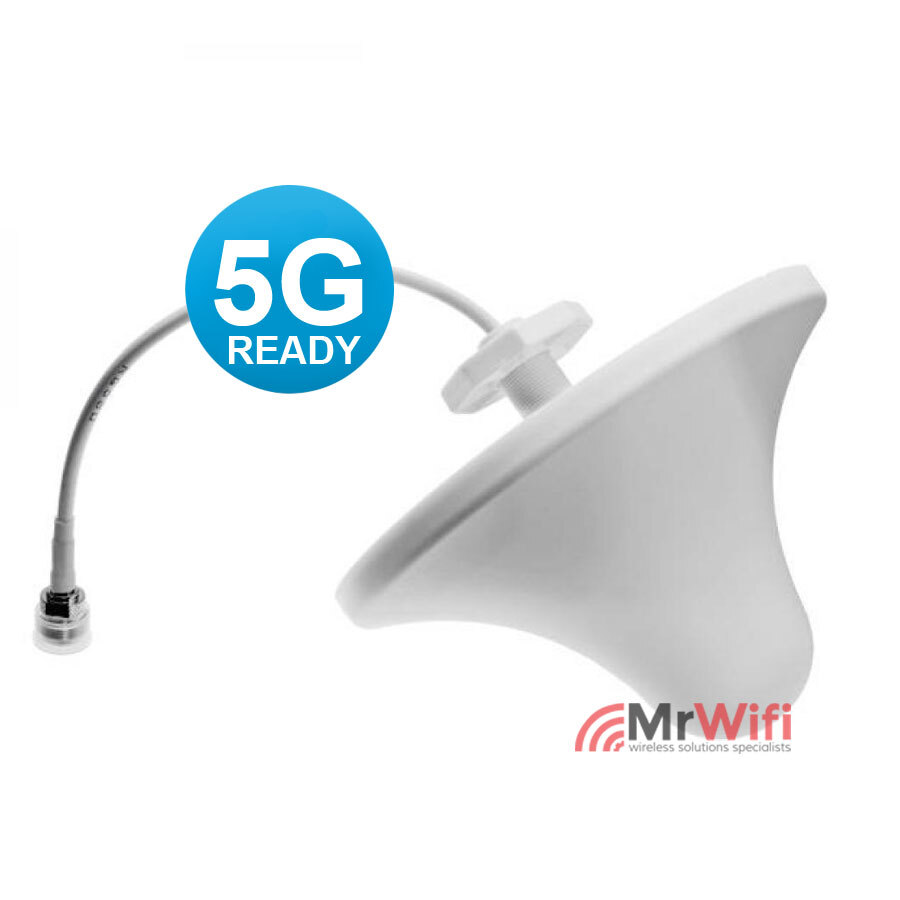

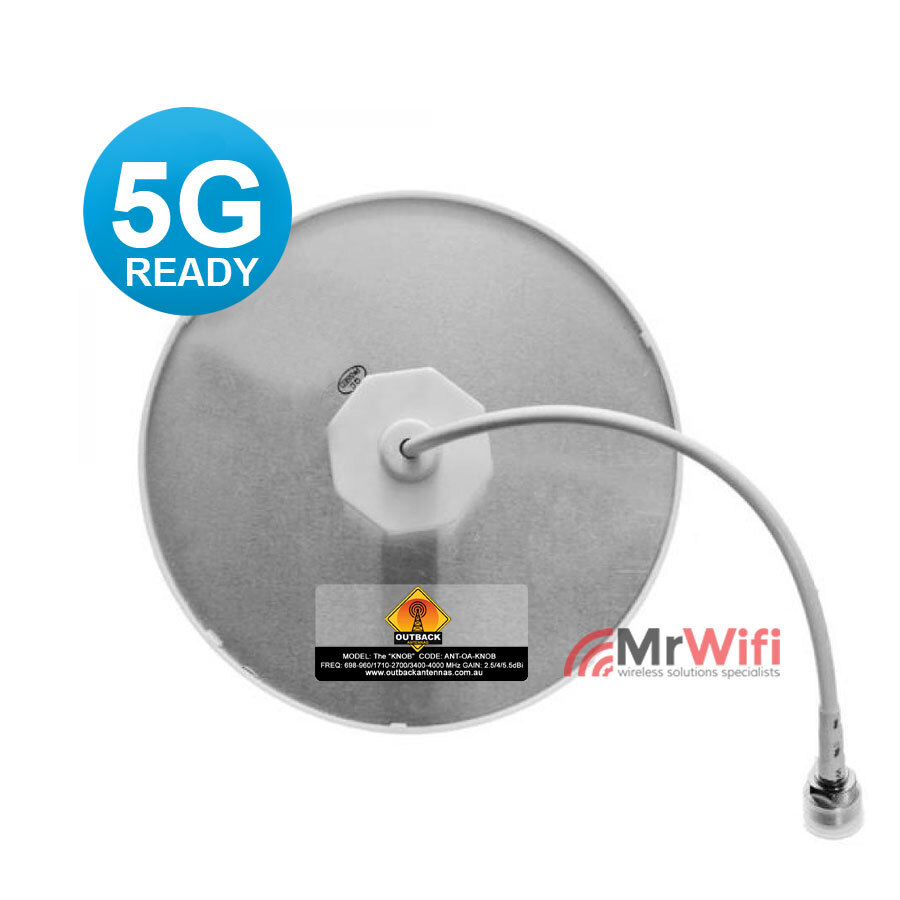

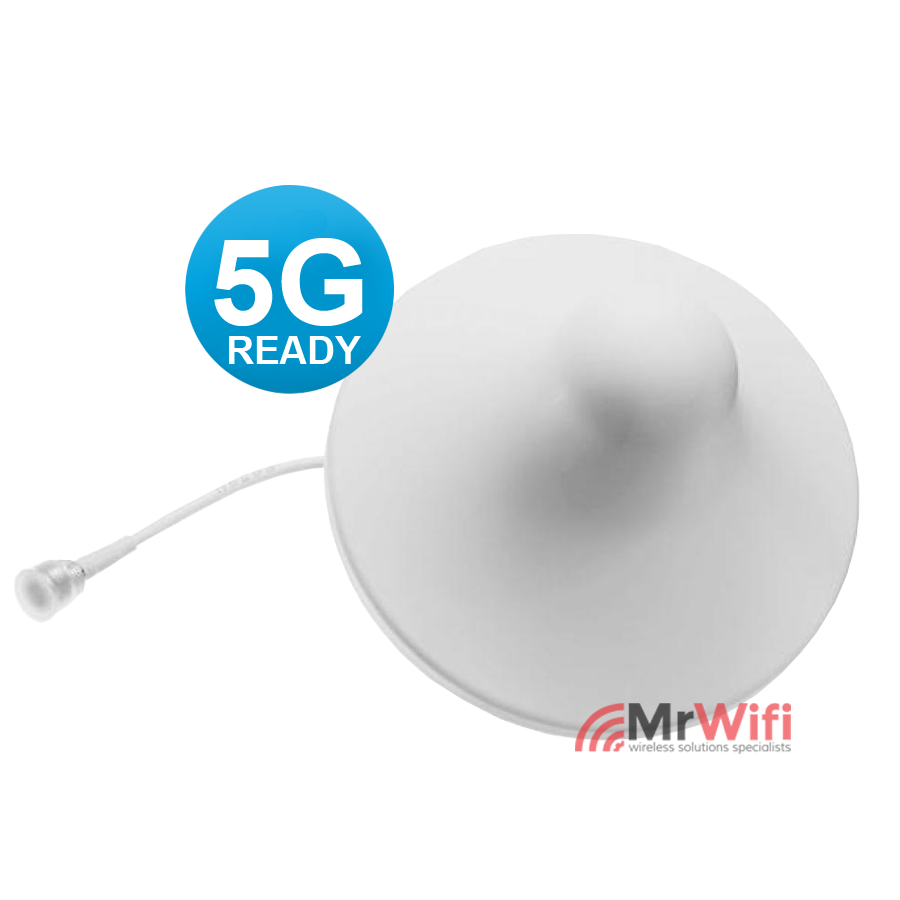

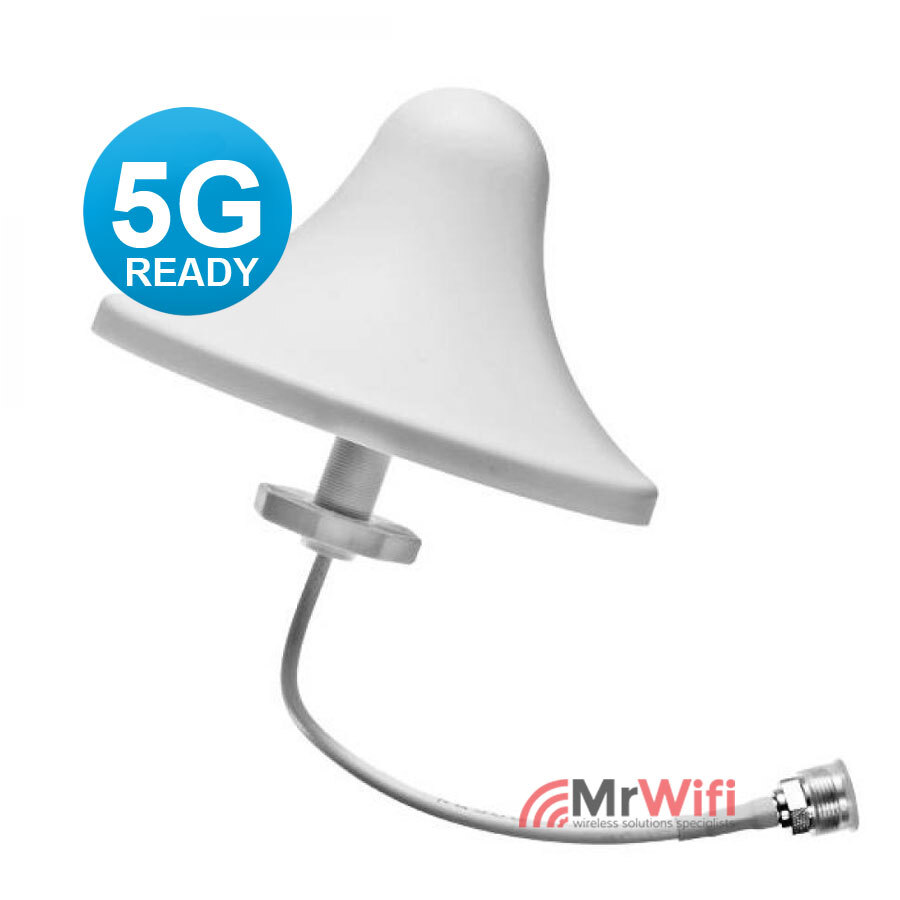

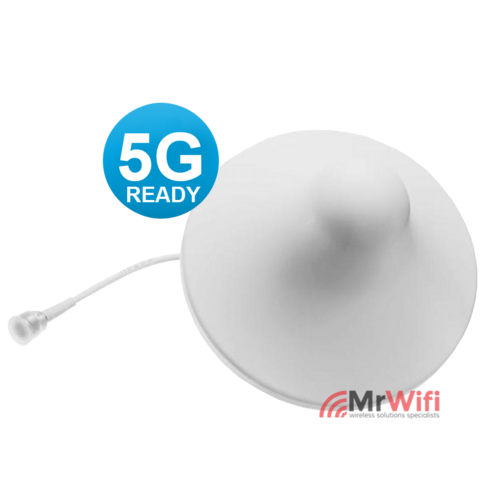

The "KNOB" Ceiling Antenna INDOOR 3/5.5dBi, 698-4000MHz
ANT-OA-KNOB
ALTERNATE PRODUCT:
ANT-OA-WALLY-The"WALLY" Wall Mount Panel Antenna INDOOR 6/9dBi, 698-4000MHz
In Stock: YES
CEILING MOUNT OMNI ANTENNA INDOOR 2/5.5dBi, 698-4000MHz for 3G & 4G and 5G Mobile Networks
The "KNOB" Outback Antennas Indoor ceiling mount antenna is designed to operate on the cellular network with all mobile carriers, regardless of what frequency they operate on. This ceiling mount antenna offers a 3 or 5.5dBi gain depending on MHz range and is suitable as an indoor antenna. No longer do you have to buy a new antenna when you switch carriers or be concerned what frequency your antenna supports. Perfect for indoor mobile repeater applications.
The "KNOB" Outback Antenna will provide the perfect solution for voice and data applications. Perfect for repeater applications that require beamwidth for complete internal coverage.
Features
- Suitable for all mobile carriers
- Provides a 2dbi gain for 698-806 MHz
- Provides a 2.5dbi gain for 806-960 MHz
- Provides a 4dbi gain for 1710-2700 MHz
- Provides a 5.5dbi gain for 3400-4000 MHz
- Includes RG58 cable x 300mm Long
- Short cable tail with N female connector
- Sealed design offering strong protection and weather resistance
- Ideal for Cel-Fi GO repeater applications for Home. Office, Marine and Caravan
(ANT-OA-KNOB)
The "KNOB" Ceiling Antenna INDOOR 3/5.5dBi, 698-4000MHz
Pack Includes:
- 1 x The "KNOB" Ceiling Mount Antenna Indoor 3/5.5dBi, 698-4000MHz
The "KNOB" Ceiling Antenna INDOOR 3/5.5dBi, 698-4000MHz - SPECIFICATIONS
|
Electrical Specifications |
||||||
|
Frequency Range |
MHz |
698-806 |
806-960 |
1710-2700 |
3400-4000 |
|
|
Gain |
dBi |
1.8±0.5 |
2.0±0.5 |
3.0±1.0 |
4.5±1.0 |
|
|
Polarization |
|
Vertical |
||||
|
Beam width |
Horizontal |
deg |
360 |
|||
|
Vertical |
90 |
70 |
35 |
30 |
||
|
VSWR |
|
≤1.8 |
≤1.5 |
≤1.5 |
≤1.8 |
|
|
Input Power, maximum |
watts |
50 |
||||
|
Impedance |
ohm |
50 |
||||
|
Mechanical Specification |
||||||
|
Connector Type |
|
N-female |
||||
|
Dimensions |
mm |
Φ203×115 |
||||
|
Weight |
kg |
0.3 |
||||
|
Mounting Kit |
|
Ceiling, via hole (standard) |
||||
|
Radome Material and Color |
|
ABS, White, RAL9003 |
||||
|
Operational Temperature |
oC |
-40～55 |
||||
|
Operational Humidity |
% |
< 95 |
||||
SHIPPING SPECIFICATIONS
| SKU | ANT-OA-KNOB |
| Model # | ANT-OA-KNOB |
| Brand | OUTBACK ANTENNAS |
| Shipping Weight | 0.4400kg |
| Shipping Width | 0.180m |
| Shipping Height | 0.180m |
| Shipping Length | 0.180m |
| Shipping Cubic | 0.005832000m3 |
| Unit Of Measure | ea |
The "KNOB" Ceiling Antenna INDOOR 3/5.5dBi, 698-4000MHz - Documents
Datasheet The "KNOB" Ceiling Antenna Indoor by Outback AntennasBe The First To Review This Product!
