EdgePower, 54v 150w DC PSU
EP-54V-150W
Ubiquit EdgePower, Modular DC Power Supply for EdgePoint
Modular DC Power Supply for EdgePoint

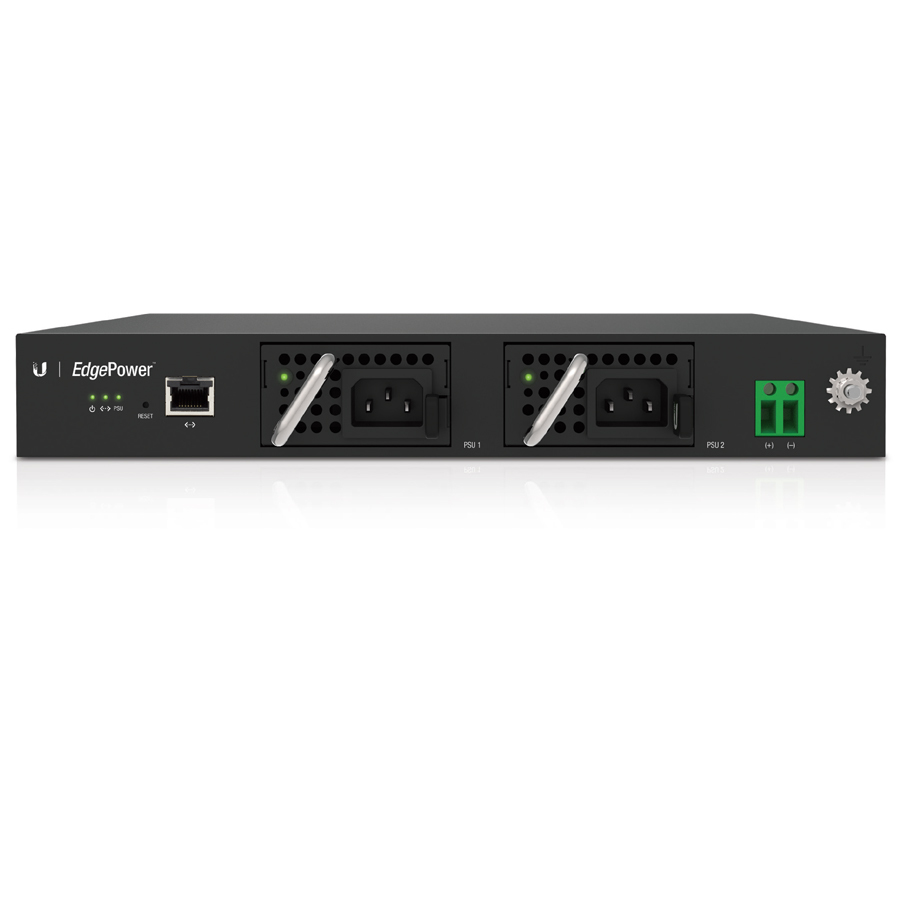

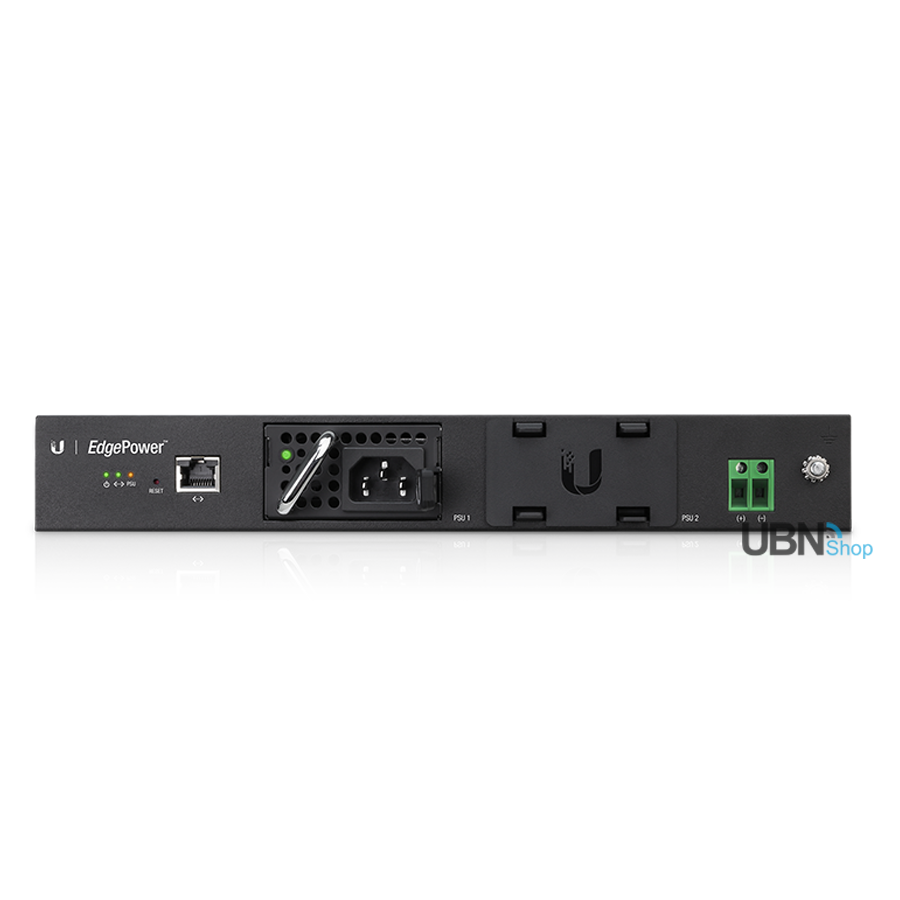

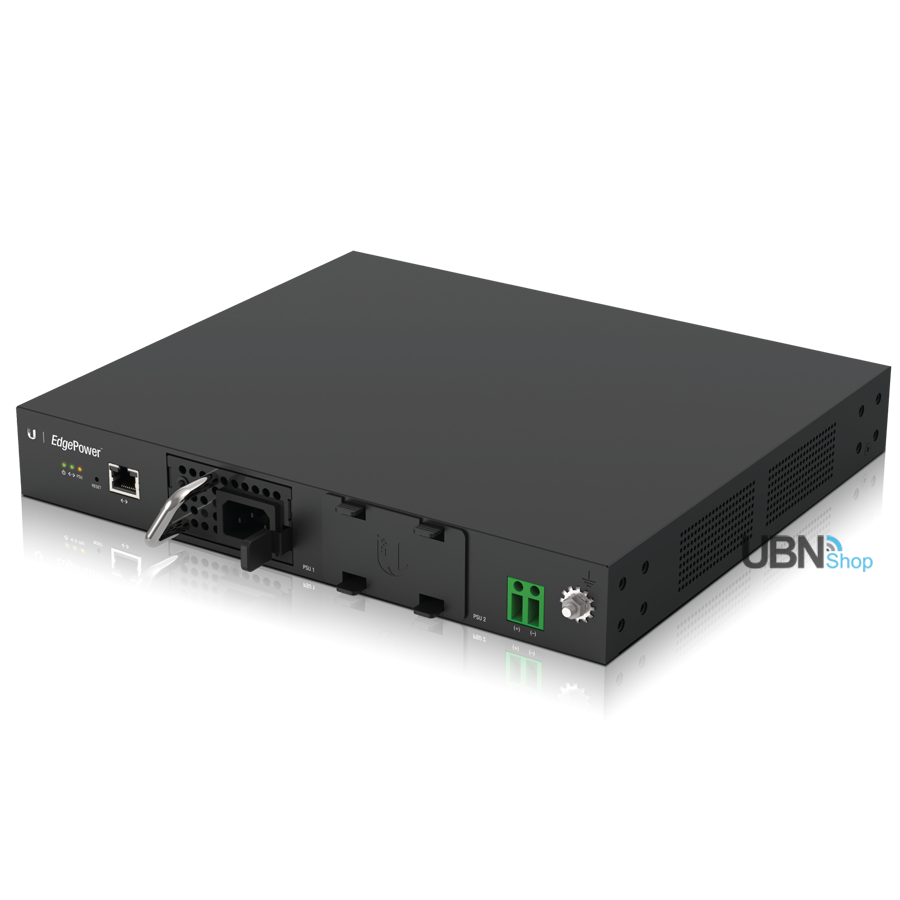

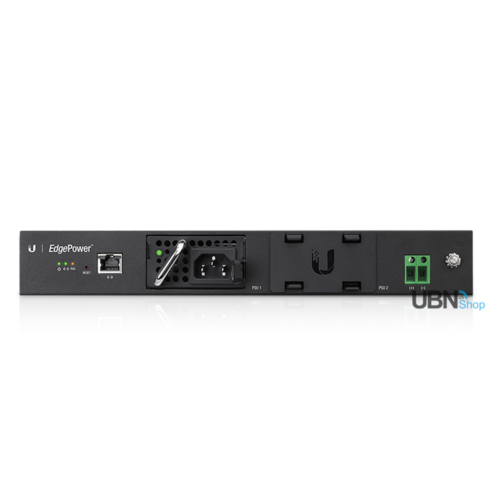

The EdgePower™ is a high-power, modular PSU system designed to connect to EdgePoint™ routers/switches, and provide reliable power to attached PoE devices. The EdgePower uses modular PSUs for flexible configuration options. The EdgePower can utilize two modular PSUs to provide up to 300W of power, or be configured to provide up to 150W of power with an automatic PSU backup.

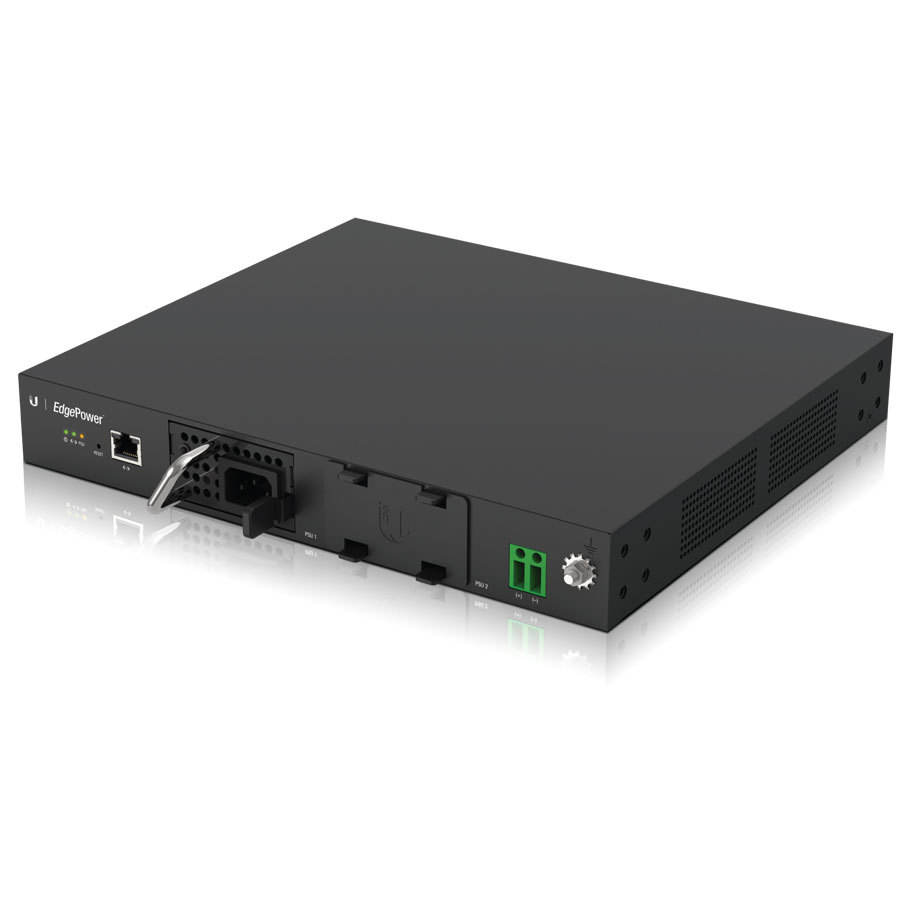

The EdgePower consists of a rack-mountable, two-bay housing and control unit, and includes one AC-DC 54V, 150W PSU module. The second PSU bay can house an AC-DC or DC-DC PSU module (sold separately):
- EP-54V-150W-AC
- EP-54V-150W-DC
High Power
The EdgePower provides up to 150W of power output. With an optional PSU in the secondary bay, the EdgePower may be configured to deliver up to 300W of power.
Backup PSU
The secondary PSU may be configured as a backup PSU. In backup mode, the secondary PSU remains inactive and offline. If failure of the primary PSU is detected, the secondary PSU automatically activates to supply continuous power.
Accessories (Sold Seperately)
EdgePower 54V, 150W DC Power Module
EdgePower 54V 150W AC Power Module
Remote Monitoring
Designed for convenient management, the EdgePower Configuration Interface allows administrators to configure and monitor PSU features in a simple, graphical user interface.
(EP-54V-150W)
EdgePower 54V 150W DC PSU
Package Includes
- 1 x EdgePower EP-54V-150W DC PSU
- 4 x Mount Brackets
- 4 x Bracket Screws (M4x5.3)
- 4 x Rack-Mount Screws (#10-32x5/8")
- 4 x Cage Nuts (#10-32 x 5/8")
- 8 x Mounting Screws (M4x30)
- 8 x Screw Anchors (M4x24)
- 1 x Power Cord
- Quick Start Guide
EdgePower 54V 150W DC PSU- Specifications
| Dimensions without Mount Brackets | 299.8 x 286.9 x 42.55 mm (11.89 x 11.3 x 1.675") |
| Weight without Mount Brackets | 2.7 kg (5.95 lb) |
| Power Method | 100-240VAC/50-60 Hz, Universal Input |
| Power Supply Module | 54V, 150W AC/DC, Model EP-54V-150W-AC, Installed in PSU 1 |
| Maximum Power Output | 150W (1 PSU Module) 300W (2 PSU Modules @ 150W Each) |
| LEDs Power Ethernet PSU | System On/Off Management Port Link PSU1+PSU2, PSU1/PSU2 |
| Networking Interface | (1) 10/100 RJ45 Ethernet |
| Management Interface | Ethernet In-Band, Web UI |
| Rack-Mount | Yes, 1U High |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Operating Humidity | 10 to 90% RH |
| ESD/EMP Protection | Air ± 24KV; Contact ± 24KV |
| Certifications | CE, FCC, IC |
Shipping Specifications
| SKU | EP-54V-150W |
| Model # | EP-54V-150W |
| Barcode # | 810354023972 |
| Brand | Ubiquiti |
| Shipping Weight | 2.5000kg |
| Shipping Width | 0.330m |
| Shipping Height | 0.080m |
| Shipping Length | 0.450m |
| Shipping Cubic | 0.011880000m3 |
| Unit Of Measure | ea |
EdgePower 54V 150W DC PSU- Documents
