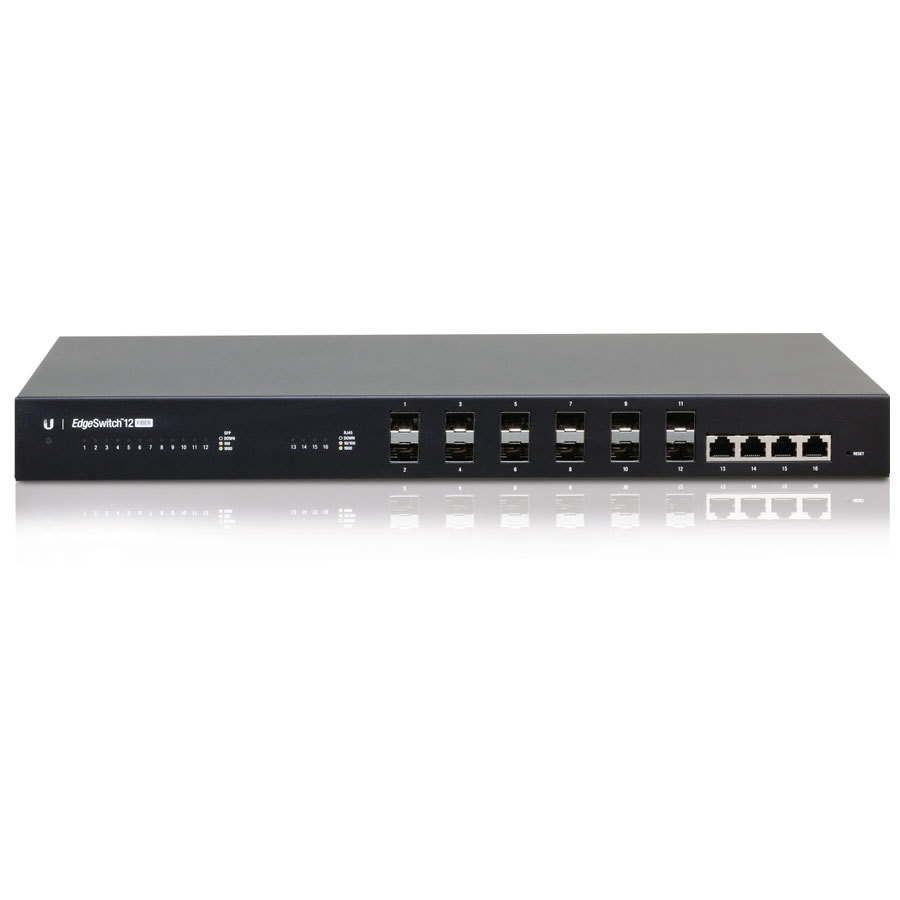

EdgeSwitch 12F Managed Fiber Switch

Managed Gigabit Fiber Switch

Build and expand your network with Ubiquiti Networks® EdgeSwitch™ Fibre, part of the EdgeMAX® line of products. The EdgeSwitch Fibre is a fully managed, Gigabit fibre switch, delivering robust performance and intelligent switching for high‑bandwidth networks. The EdgeSwitch Fibre offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

Switching Performance
The EdgeSwitch Fiber offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non-blocking throughput, the EdgeSwitch Fiber supports up to 16 Gbps

Distribution Layer

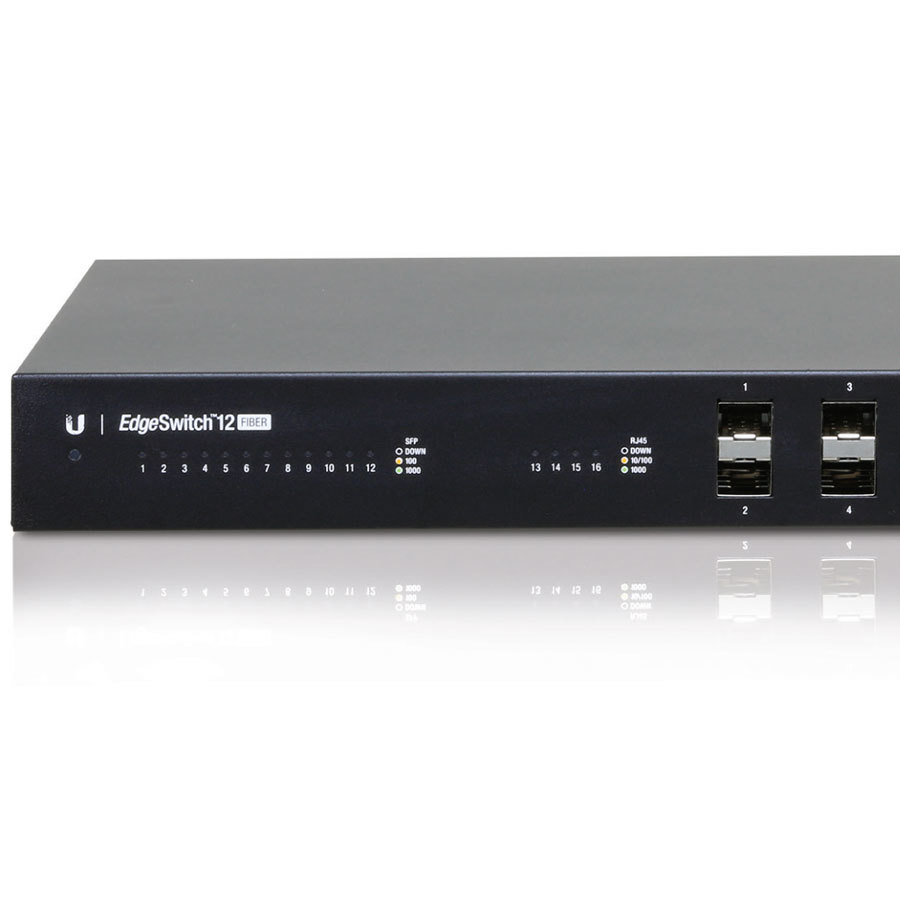

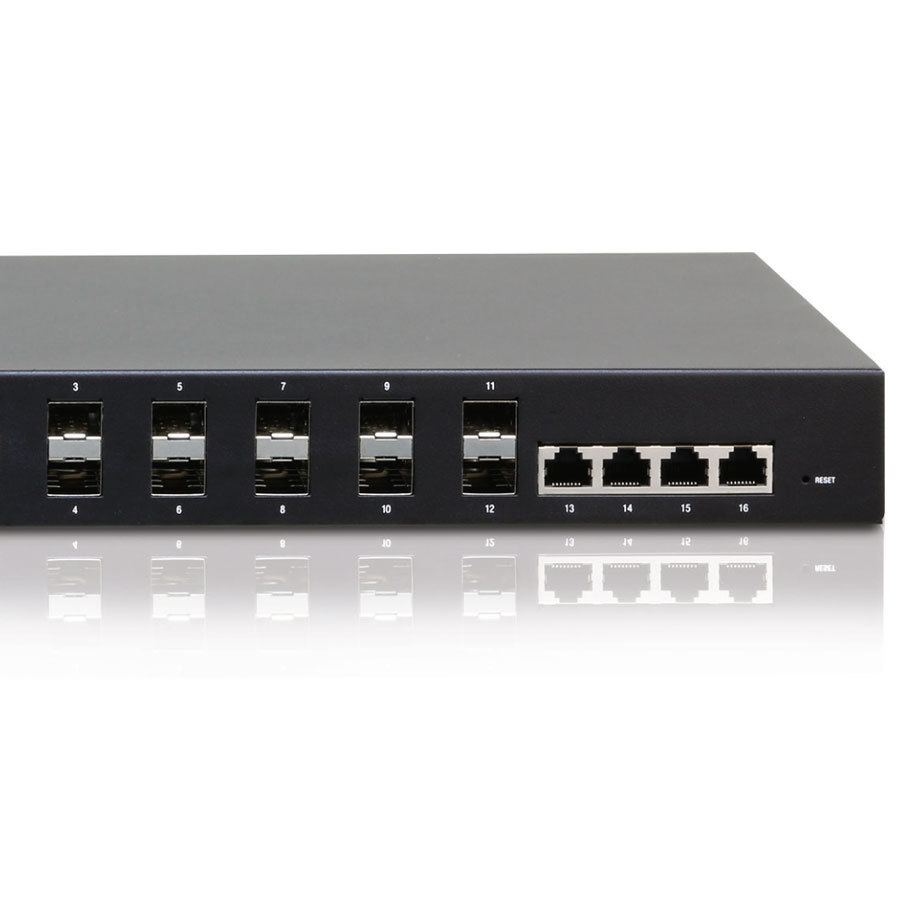

The EdgeSwitch Fibre offers high performance and low latency as an aggregation switch. For fibre connectivity, it features 12 SFP ports, eight of which also support 100 Mbps. For copper connectivity, the EdgeSwitch Fibre offers four Gigabit RJ45 ports.

Comprehensive User Interface
Designed for convenient management, the EdgeSwitch Configuration Interface allows administrators to configure and monitor switch features in a graphical user interface. For advanced users, an industry-standard command-line interface (CLI) is available through the serial console port, telnet, and SSH.

Powerful Functionality
The EdgeSwitch XG uses a sophisticated operating system that provides basic switching features and a variety of advanced features including:

• MSTP/RSTP/STP
• VLAN, Private VLAN, Voice VLAN
• (Link Aggregation
• DHCP Snooping, IGMP Snooping
• TACACS+, RADIUS, 802.1X, MAC
• Filtering, ACL
• DiffServ, CoS
• • Static Routing
• DHCP Server Functionality

Features

• (12) SFP+ Ports
• (4) Gigabit RJ45 Ports

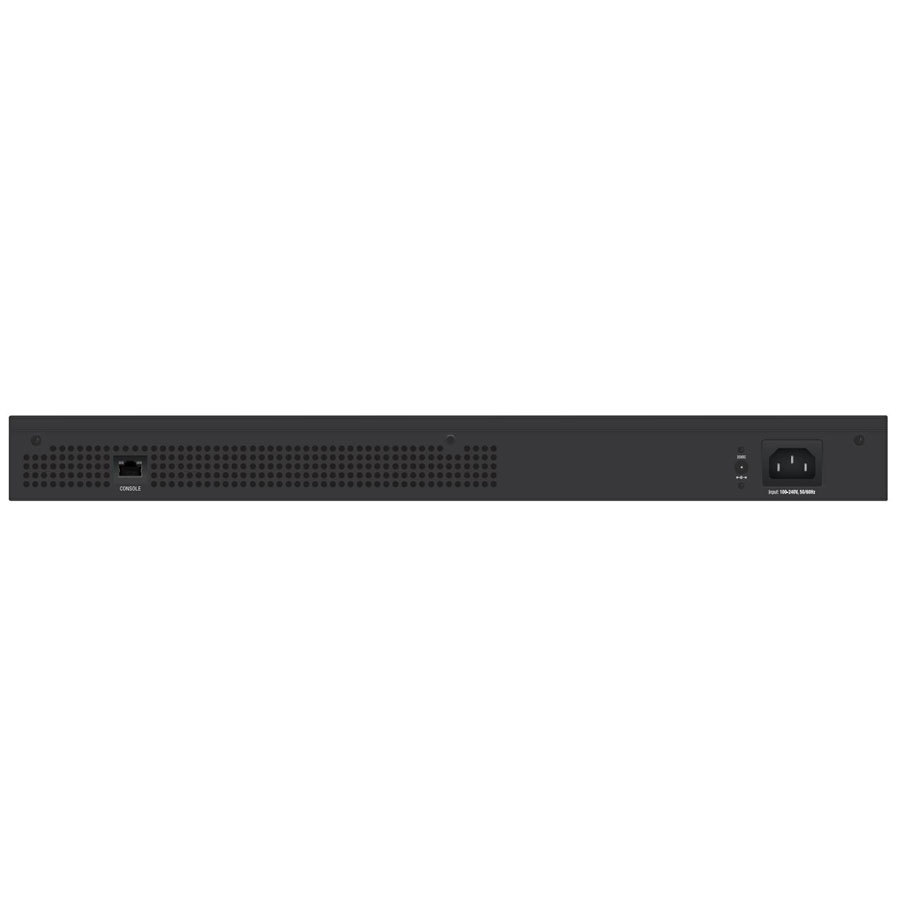

• (1) Serial Console Port
• Non-Blocking Throughput: 16 Gbps
• Switching Capacity: 32 Gbps
• Forwarding Rate: 23.81 Mpps
• Maximum AC Power Consumption: 56W
• Rackmountable with Rack-Mount Brackets (Included)
• DC Input Option (Redundant or Stand-Alone)
