Edgeswitch 16 XG Managed Aggregation Switch
ES-16-XG
10G 16-Port Managed Aggregation Switch
Build and expand your network with Ubiquiti Networks® EdgeSwitch™ XG, part of the EdgeMAX® line of products. The EdgeSwitch XG is a fully managed, 10G fiber switch that enhances network capacity and provides high-bandwidth services to growing networks. The EdgeSwitch XG offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.
Switching Performance
The EdgeSwitch XG offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non-blocking throughput, the EdgeSwitch XG supports up to 160 Gbps.
10G High-Capacity Links

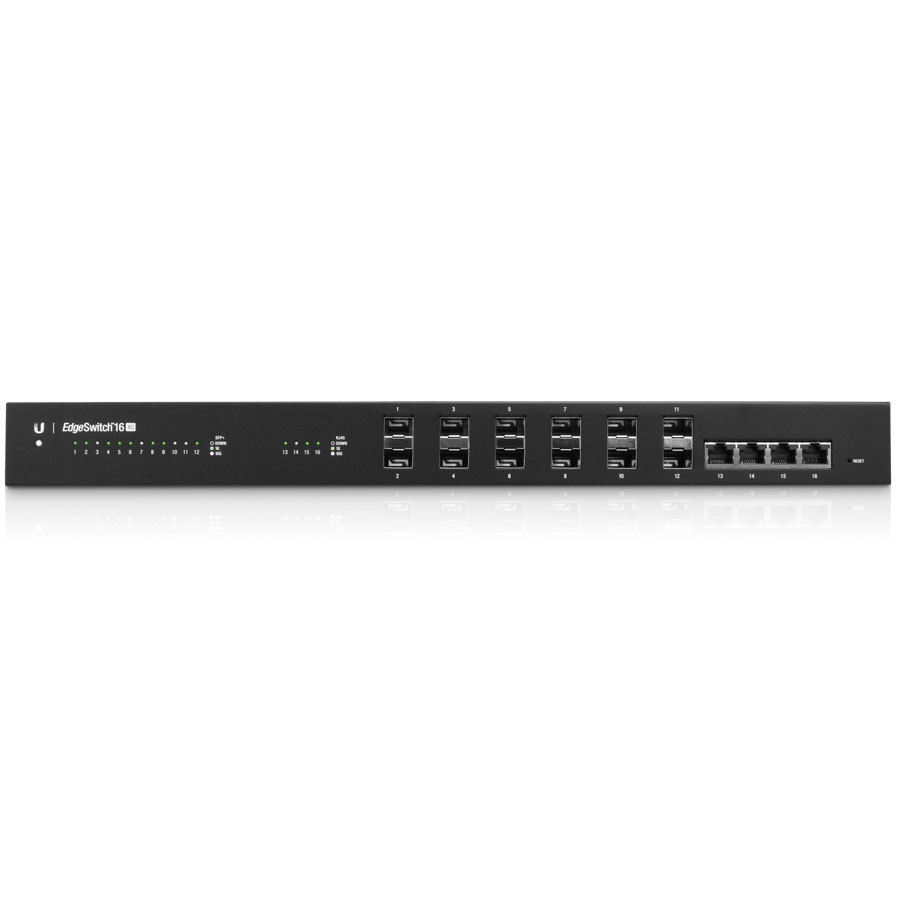

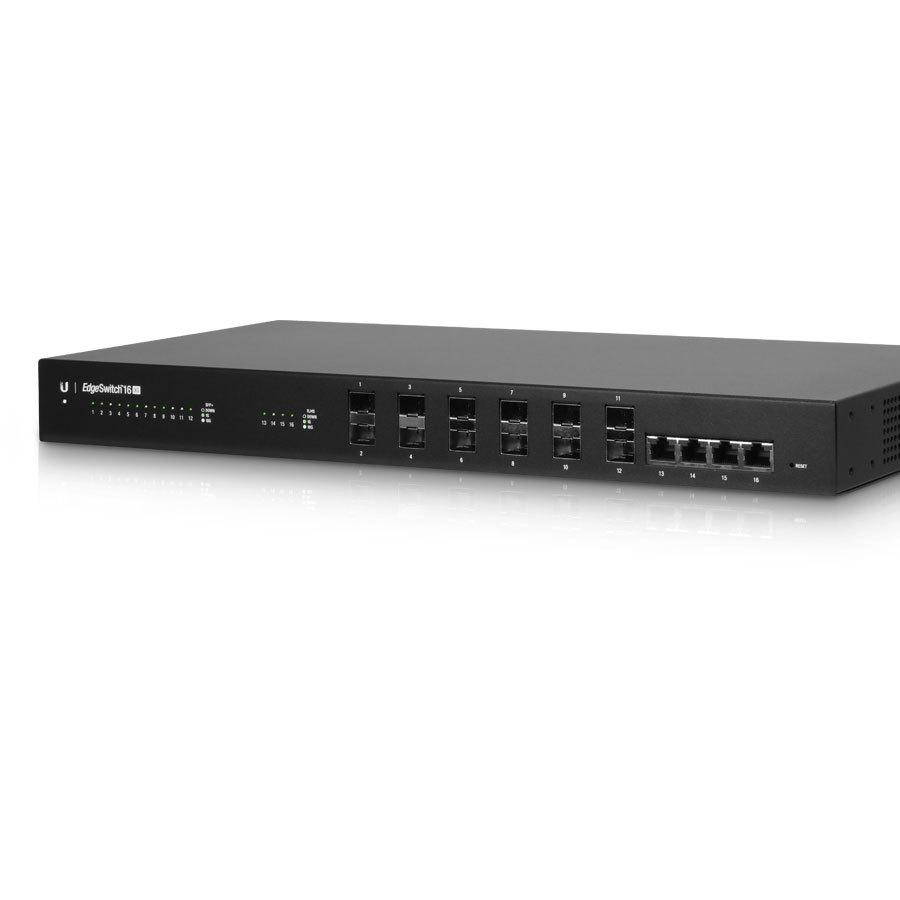

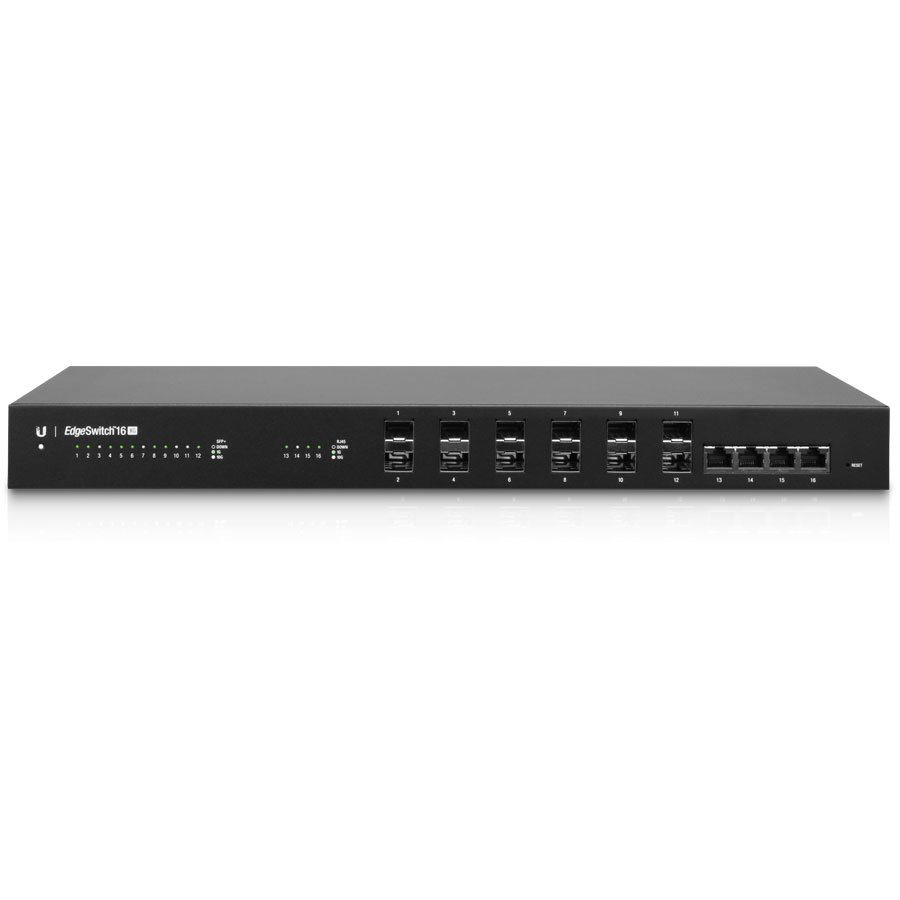

The EdgeSwitch XG offers maximum performance and low latency as an aggregation switch. For fiber connectivity, it features 12 SFP+ ports. For copper connectivity, the EdgeSwitch XG offers four RJ45 ports that support 10GBASE-T, the standard for 10 Gbps connections using Cat6 (or higher) cabling and RJ45 connectors.
Comprehensive User Interface
Designed for convenient management, the EdgeSwitch Configuration Interface allows administrators to configure and monitor switch features in a graphical user interface. For advanced users, an industry-standard command-line interface (CLI) is available through the serial console port, telnet, and SSH.
Powerful Functionality
The EdgeSwitch XG uses a sophisticated operating system that provides basic switching features and a variety of advanced features including:
- MSTP/RSTP/STP
- VLAN, Private VLAN, Voice VLAN
- (Link Aggregation
- DHCP Snooping, IGMP Snooping
- TACACS+, RADIUS, 802.1X, MAC
- Filtering, ACL
- DiffServ, CoS
- • Static Routing
- DHCP Server Functionality
Features
- (12) SFP+ Ports
- (4) 10G RJ45 Ports

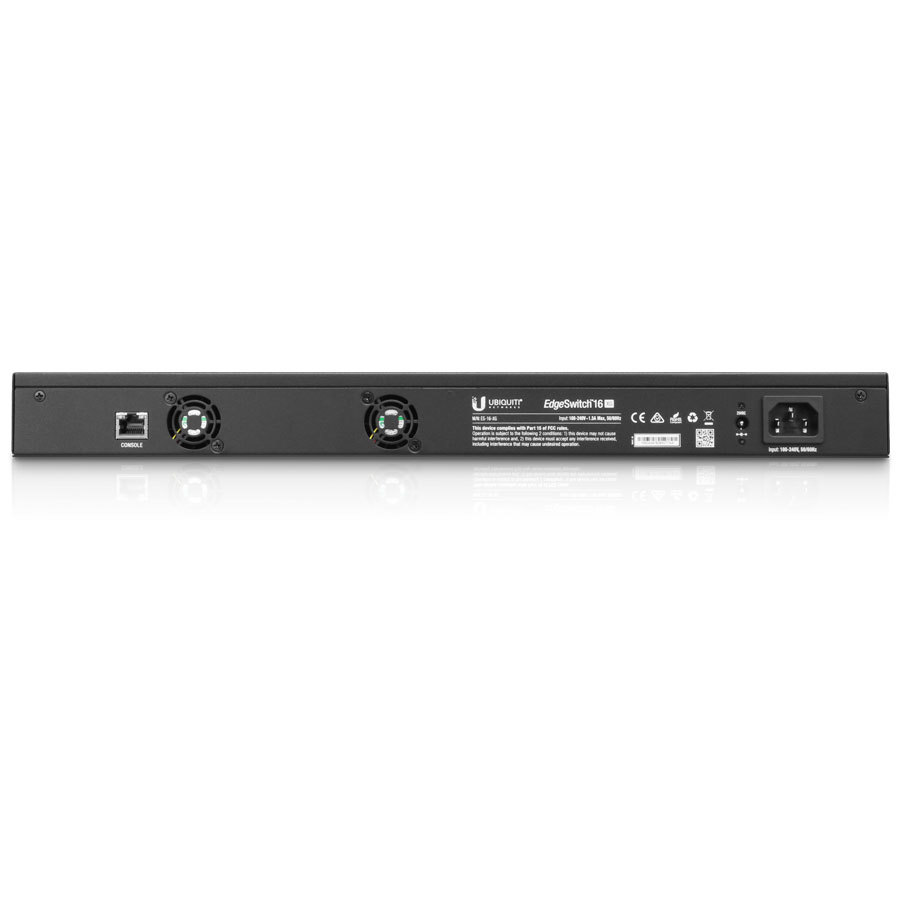

- (1) RJ45 Serial Console Port
- Non-Blocking Throughput: 160 Gbps
- Switching Capacity: 320 Gbps
- Forwarding Rate: 238.10 Mpps
- Rack Mountable with Rack-Mount Brackets (Included)
- DC Input Option (Redundant or Stand-Alone)
(ES-16-XG)
EdgeSwitch 16 XG
Package Includes
- 1 x EdgeSwitch 16 XG
- 2 x Rack-Mount Brackets
- 8 x Bracket Screws
- 4 x Mounting Screws (#10-32 x 5/8")
- 4 x Cage Nuts (#10-32 x 5/8")
- 1 x Power Cord
- Quick Start Guide
EdgeSwitch 16 XG - Specifications
| EDGESWITCH ES-16-XG | |
|---|---|
| Dimensions | 443 x 221 x 43 mm (17.44 x 8.70 x 1.69") |
| Weight Rack-Mount Brackets Included Rack-Mount Brackets Excluded |
2.71 kg (5.97 lb) 2.62 kg (5.78 lb) |
| Enclosure Characteristics | SGCC Steel |
| Total Non-Blocking Throughput | 160 Gbps |
| Switching Capacity | 320 Gbps |
| Forwarding Rate | 238.10 Mpps |
| Max. DC Power Consumption | 36W (Excludes SFP/SFP+ Modules) |
| Power Method AC DC |
100-240VAC/50-60 Hz, Universal Input DC 56W, 25 to 16V, with 2.5 mm DC Power Inline Connector |
| Supported Voltage Range | 100 to 240VAC 25 to 16VDC |
| Power Supply | AC/DC, Internal, 56W DC |
| LEDs Per Data Port | Speed/Link/Activity |
| Networking Interface | (12) 1/10 Gbps SFP+ Ethernet Ports (4) 1/10 Gbps RJ45 Ethernet Ports |
| Management Interface | (1) RJ45 Serial Port, Ethernet In/Out Band |
| Certifications | CE, FCC, IC |
| Rackmount | Yes, 1U High |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Shock and Vibration | ETSI300-019-1.4 Standard |
Shipping Specifications
| SKU | ES-16-XG |
| Model # | ES-16-XG |
| Barcode # | 817882023160 |
| Brand | Ubiquiti |
| Shipping Weight | 3.0000kg |
| Shipping Width | 0.265m |
| Shipping Height | 0.075m |
| Shipping Length | 0.547m |
| Shipping Cubic | 0.010872000m3 |
| Unit Of Measure | ea |
EdgeSwitch 16 XG - Documents
