EdgeSwitch 8 Port 150W Managed Gigabit Switch PoE
ES-8-150W
Managed PoE+ Gigabit Switch with SFP
The fanless EdgeSwitch™ 8 is a fully managed, high-performance, PoE+ Gigabit switch. It delivers powerful performance and intelligent switching with its 10 independent switching ports. A DC input option is included for flexibility.
Gigabit Connectivity

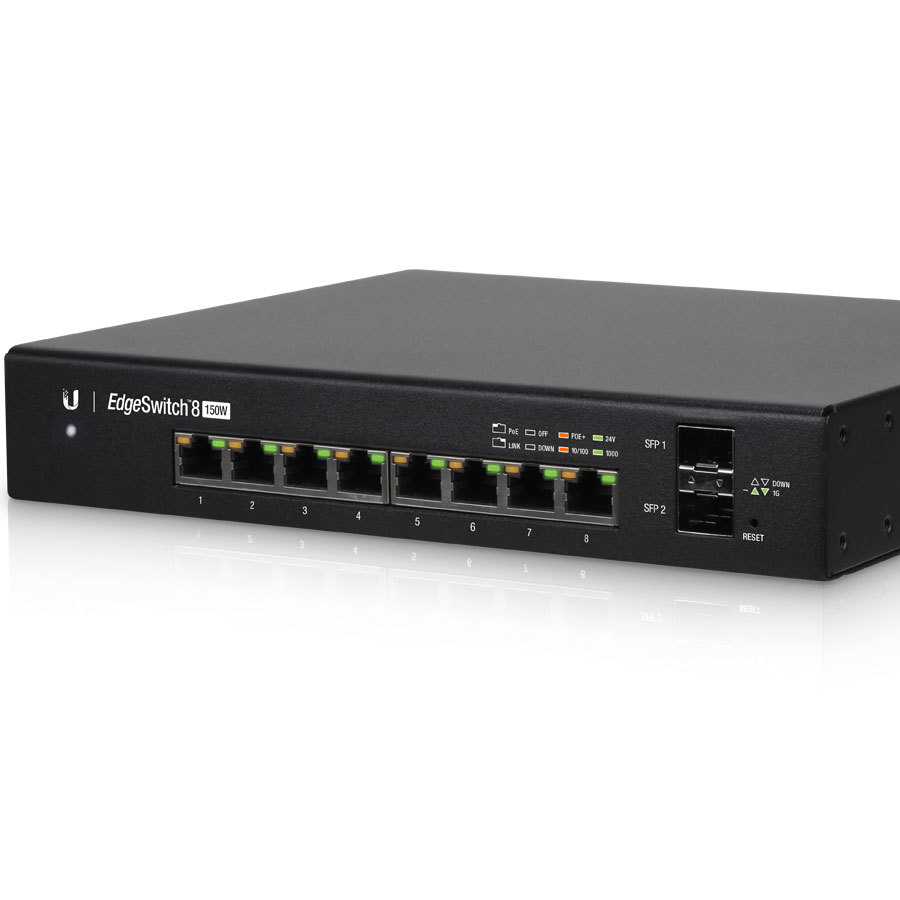

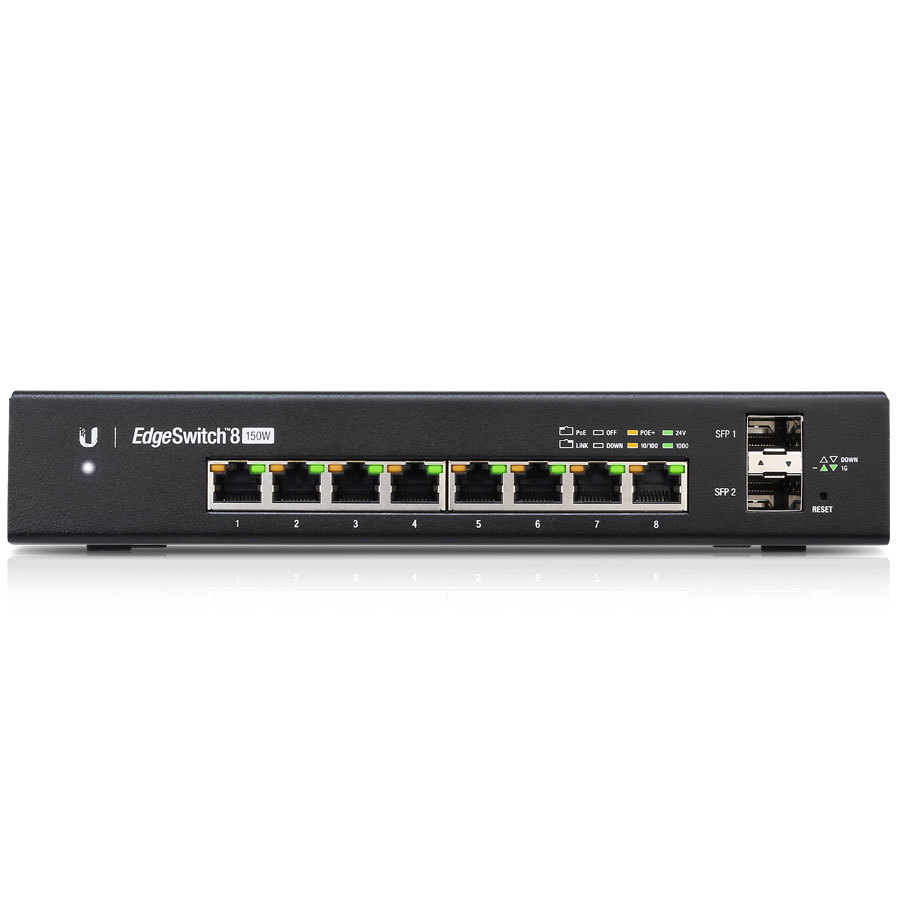

The compact EdgeSwitch features a versatile port configuration: eight Gigabit Ethernet ports that support PoE+ and two SFP ports for fiber connectivity. It can be placed on a desktop or mounted on a wall.
Convenient PoE+ Support
Sharing a total of 150W, eight Gigabit Ethernet ports offer auto-sensing IEEE 802.3af/at PoE/PoE+ or 24V passive PoE to simplify your infrastructure.
Optical Fibre Backhaul
The EdgeSwitch provides fiber connectivity options for your growing networks. Two SFP ports provide uplinks of up to 1 Gbps.
Powerful Performance
The EdgeSwitch delivers robust switching performance with its total, non-blocking throughput of up to 10 Gbps.
Switching Capacity
The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
(ES-8-150W)
EdgeSwitch 8 Port 150W
Package Includes
- 1 x EdgeSwitch 8 150W
- 2 x Mounting Brackets
- 8 x Bracket Screws (M4)
- 4 x Mounting Screws (M4)
- 4 x Screw Anchors (M4)
- 1 x Power Cord
- Quick Start Guide
EdgeSwitch 8 Port 150W - Specifications
| EDGESWITCH | |
|---|---|
| Dimensions | 204 x 43 x 235 mm (8.03 x 1.69 x 9.25") |
| Weight Without Mount Brackets With Mount Brackets |
1.72 kg (3.79 lb) 1.8 kg (3.96 lb) |
| Total Non-Blocking Throughput | 10 Gbps |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.88Mbps |
| Max. Power Consumption Includes PoE Output Excludes PoE Output |
150W 20W |

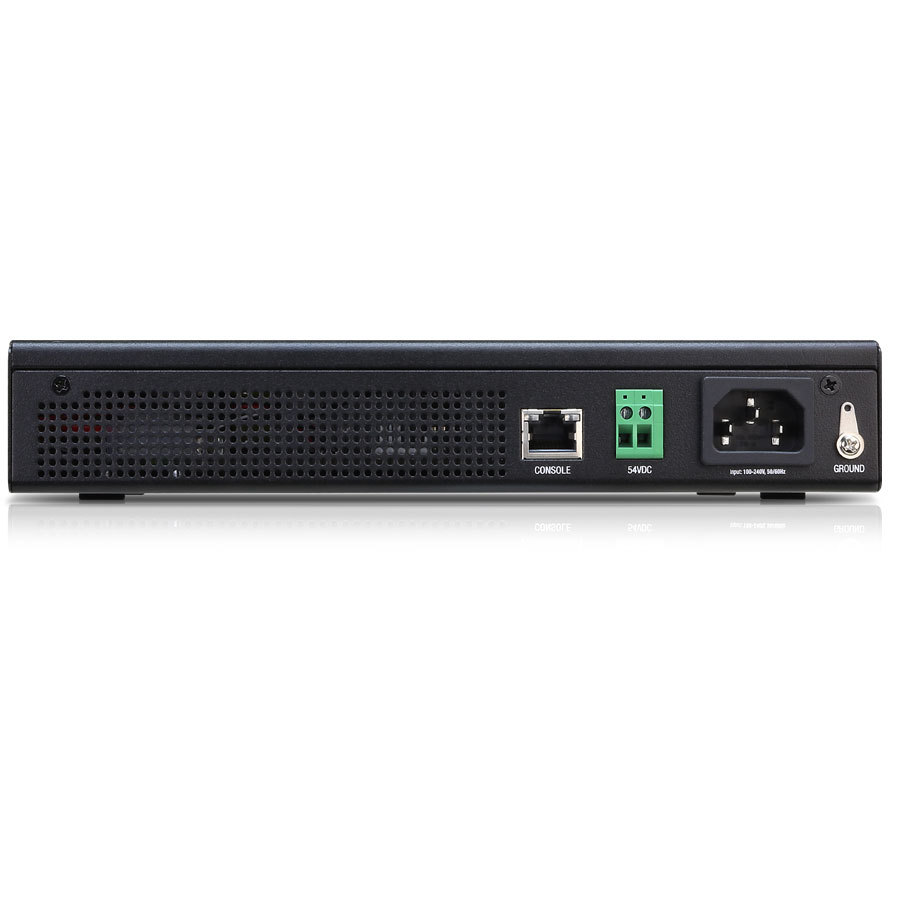

| Power Method AC DC |
100-240VAC/50-60 Hz, AC/DC Integrated PSU, Universal Input 42 to 56VDC External, (Self-Correcting Polarity Protection) Terminal Block Input |
| Power Supply | AC/DC, Internal, 150W DC |
| LEDs Per Port RJ45 Data Ports SFP Data Ports |
PoE, Speed/Link/Activity Speed/Link/Activity |
| Networking Interfaces | ((8) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1 Gbps SFP Ethernet Ports |
| Management Interface | (1) RJ45 Serial Port, Ethernet In/Out Band |
| Certifications | CE, FCC, IC |
| Wallmount | Yes |
| ESD/EMP Protection | Air: ±24 kV, Contact: ±24 kV |
| Operating Temperature Internal AC/DC @ 150W Internal AC/DC @ 100W External DC |
-25 to 45° C (-13 to 113° F) -25 to 55° C (-13 to 131° F) -25 to 60° C (-13 to 140° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| PoE Per Port | |
| PoE Interfaces | POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) 24VDC Passive PoE (Pins 4, 5+; 7, 8-) |
| Max. PoE+ Wattage per Port by PSE | 34.2W |
| Voltage Range 802.3at Mode | 50–57V |
| Max. Passive PoE Wattage per Port | 17W |
| 24V Passive PoE Voltage Range | 20-27V |
Shipping Specifications
| SKU | ES-8-150W |
| Model # | ES-8-150W |
| Barcode # | ES-8-150W |
| Brand | Ubiquiti |
| Shipping Weight | 2.3000kg |
| Shipping Width | 0.236m |
| Shipping Height | 0.075m |
| Shipping Length | 0.345m |
| Shipping Cubic | 0.006106000m3 |
| Unit Of Measure | ea |
EdgeSwitch 8 Port 150W - Documents
