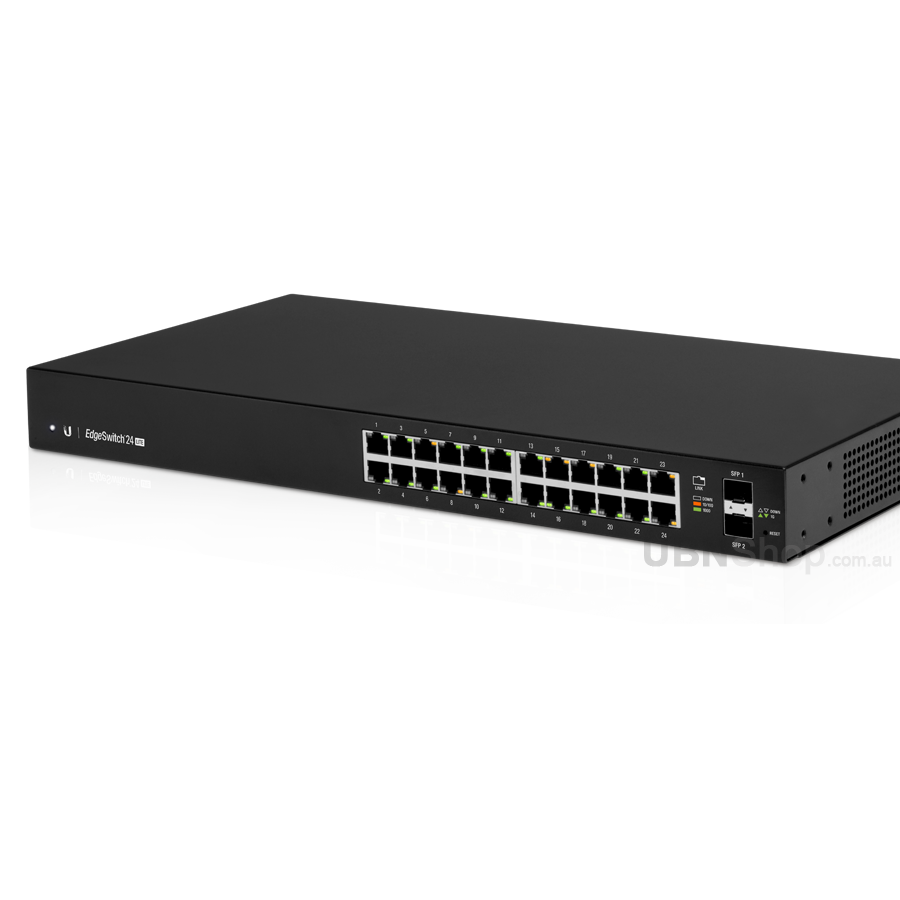

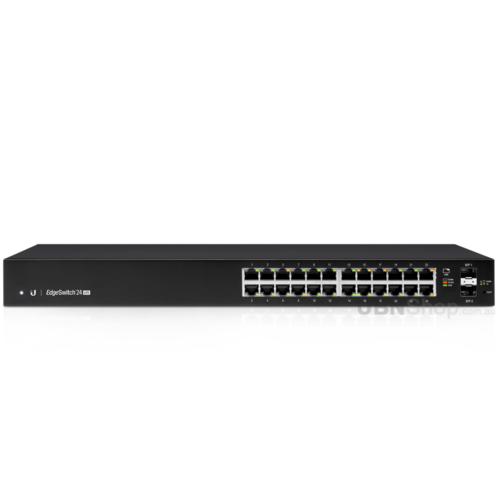

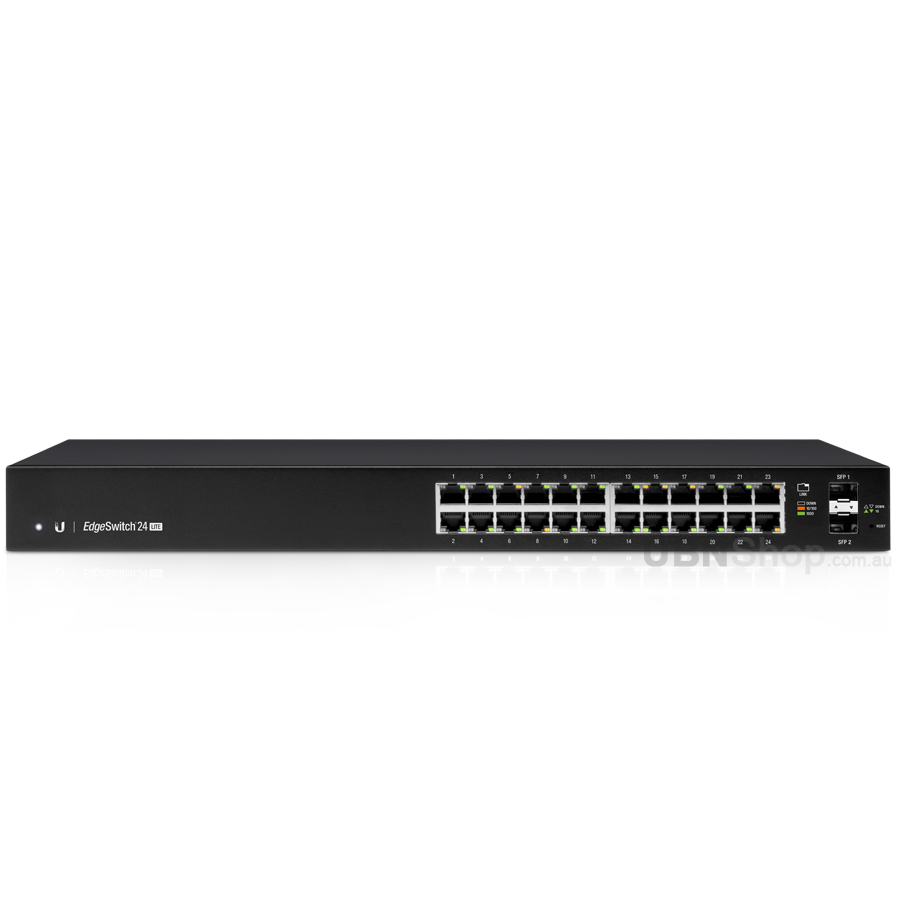

EdgeSwitch Lite 24 Port Managed Gigabit Switch
ES-24-Lite
ALTERNATE PRODUCT:
USW-PRO-48-POE-UniFi 48 Port Gigabit Switch Gen2, 802.3bt PoE, Layer3 Features and SFP+
In Stock: YES
Managed Gigabit Switch with SFP
Available with 24 or 48 RJ45 Gigabit ports, the EdgeSwitch™ Lite delivers robust performance and intelligent switching for growing networks
Powerful Enterprise Switch Models
The EdgeSwitch™ Lite simultaneously processes traffic on all ports at line rate without any packet loss. Total non-blocking throughput: up to 26 Gbps for the fanless, 24-port models and up to 70 Gbps for the 48-port models.
Enterprise-Class Features
The EdgeSwitch™ Lite supports an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.
Optic Fibre Backhaul
Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.
Features

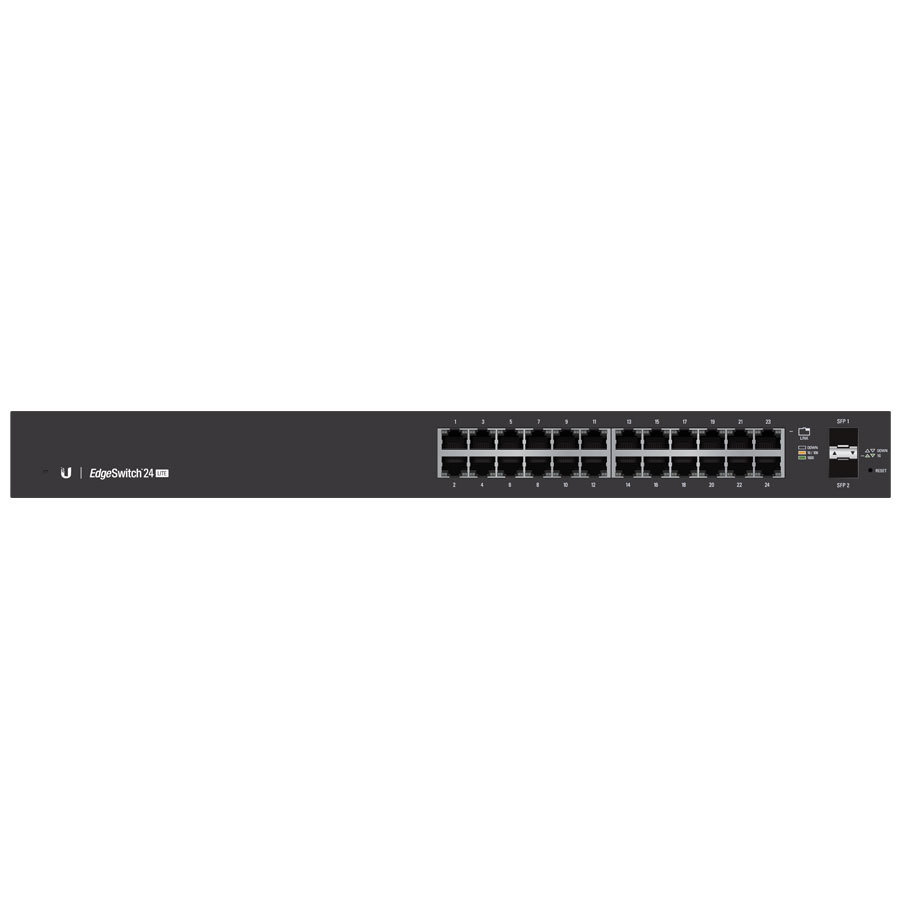

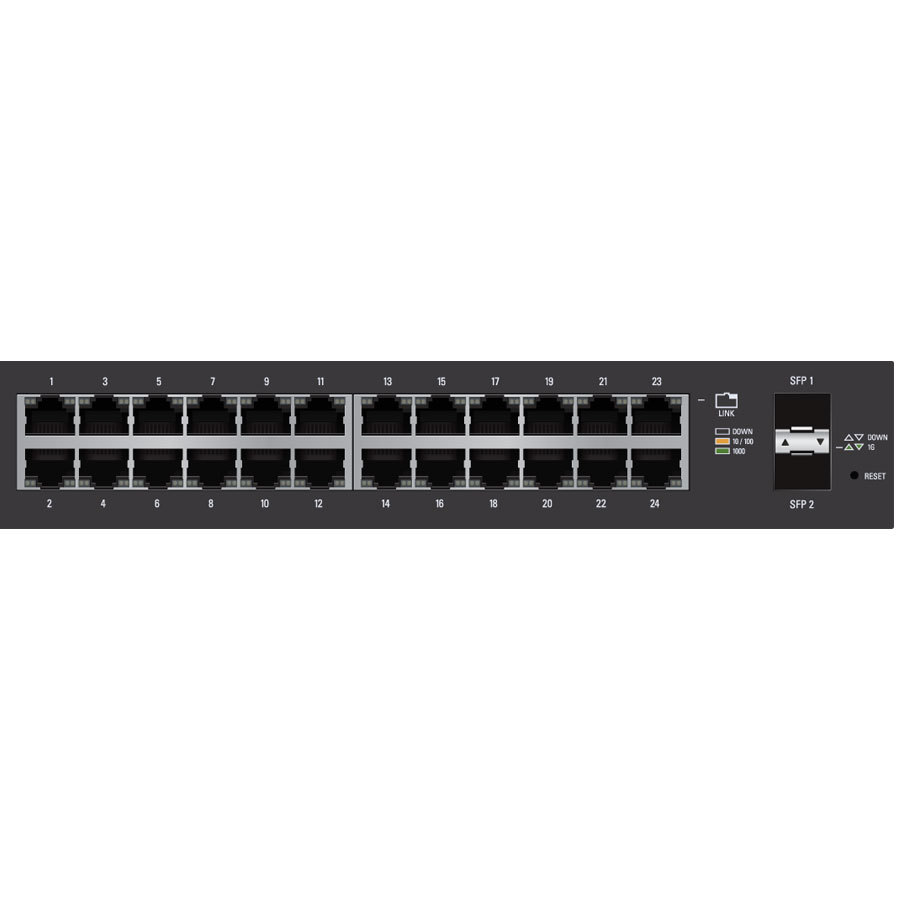

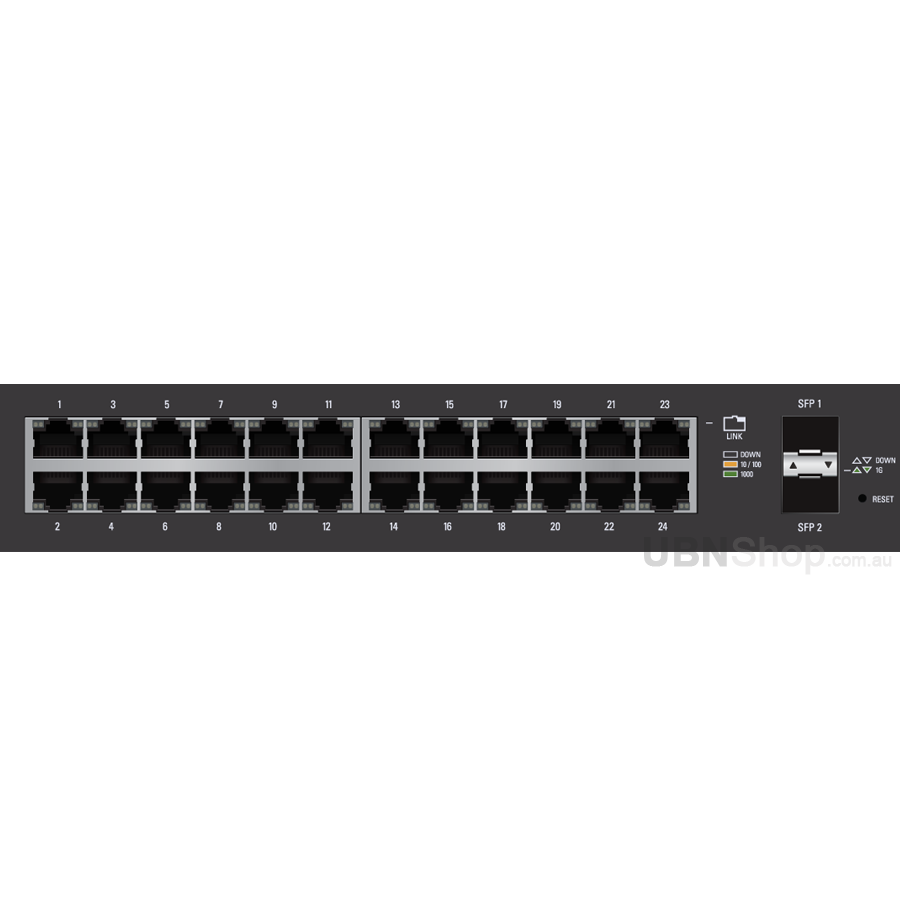

- (24) Gigabit RJ45 Ports
- (2) SFP Ports

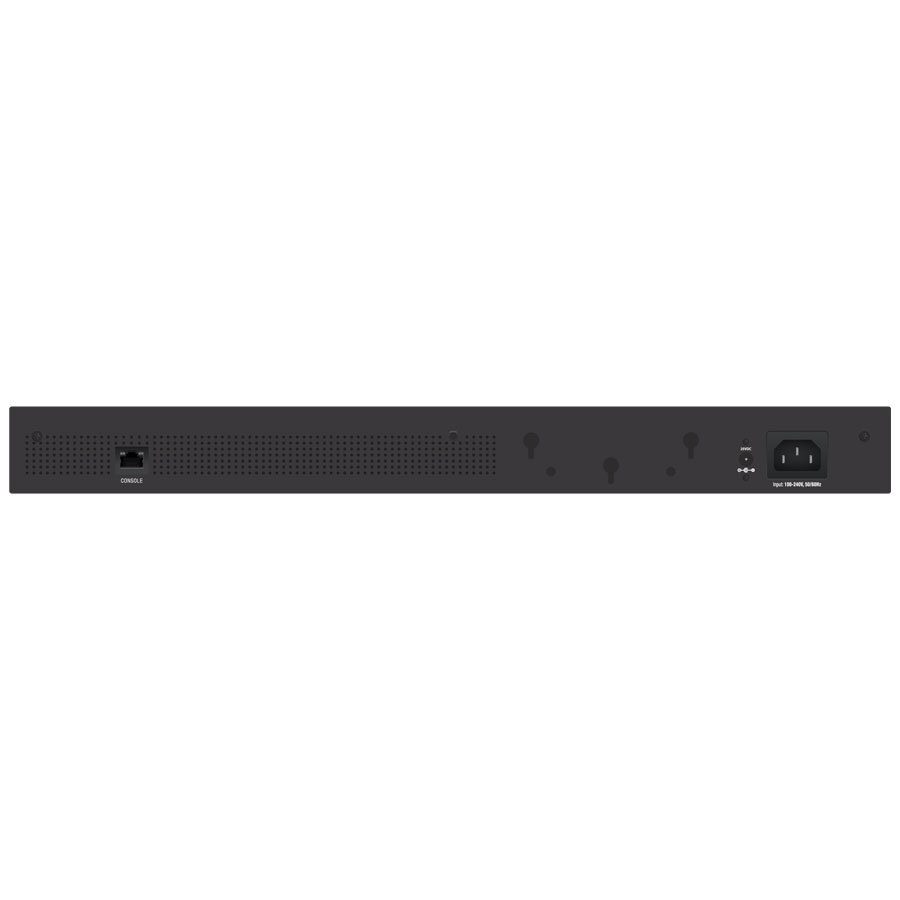

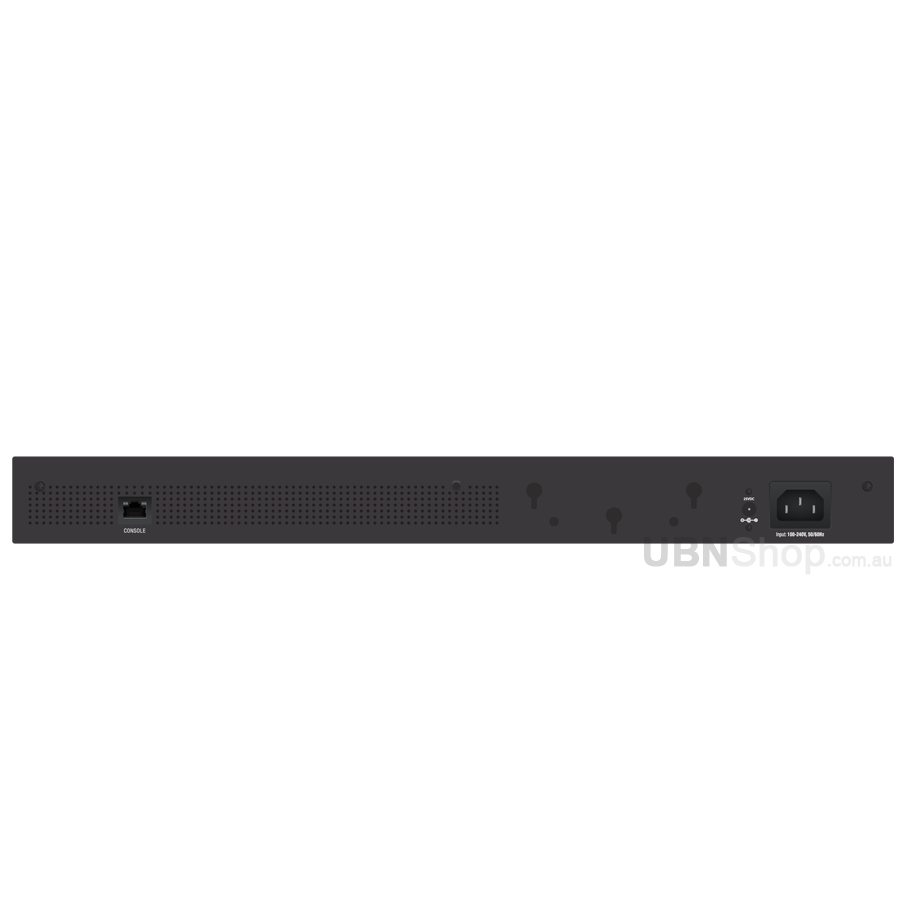

- (1) Serial Console Port
- Non-Blocking Throughput: 26 Gbps
- Switching Capacity: 52 Gbps
- Forwarding Rate: 38.69 Mpps
- Maximum Power Consumption: 25W
- Rack- or Wall-Mountable
- DC Input Option (Redundant or Stand-Alone)
(ES-24-Lite)
EdgeSwitch LITE 24
Package Includes
- 1 x EdgeSwitch 24 LITE
- 2 x Mounting Brackets
- 8 x Bracket Screws
- 4 x Mounting Screws (#10-32 x 5/8")
- 4 x Cage Nuts (#10-32 x 5/8")
- 1 x Power Cord
- Quick Start Guide
EdgeSwitch LITE 24 - Specifications
| EDGESWITCH | |
|---|---|
| Dimensions | 443 x 43 x 221 mm (17.44 x 1.69 x 8.70") |
| Weight | 2.6 kg (5.7 lb) 2.51 kg (5.53 lb) |
| Total Non-Blocking Throughput | 26 Gbps |
| Max. Power Consumption | 25W |
| Power Method | 100-240VAC/50-60 Hz, Universal Input DC 25W, 25 to 16V, with 2.5 mm DC Power Inline Connector |
| Power Supply | AC/DC, Internal, 25W DC |
| Networking Interface | (24) 10/100/1000 Mbps RJ45 Ethernet Ports, (2) 1 Gbps SFP Ethernet Ports |
| Management Interface | (1) RJ45 Serial Port, Ethernet In/Out Band |
| Certifications | CE, FCC, IC |
| Rackmount | Yes, 1U High |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 5 to 95% Noncondensing |
Shipping Specifications
| SKU | ES-24-Lite |
| Model # | ES-24-Lite |
| Barcode # | 817882023221 |
| Brand | Ubiquiti |
| Shipping Weight | 2.8000kg |
| Shipping Width | 0.270m |
| Shipping Height | 0.078m |
| Shipping Length | 0.527m |
| Shipping Cubic | 0.011099000m3 |
| Unit Of Measure | ea |
EdgeSwitch LITE 24 - Documents
