N Type Female to Female Bulkhead RF Coaxial Adapter
CON-OA-DPLUGGER-BH-NFNF
$12.95
Sold Out
ALTERNATE PRODUCT:
CON-OA-DPLUGGER-NFNF-N Type Female to N Type Female RF Coaxial Straight Connector Adapter (2 Pack)
In Stock: YES

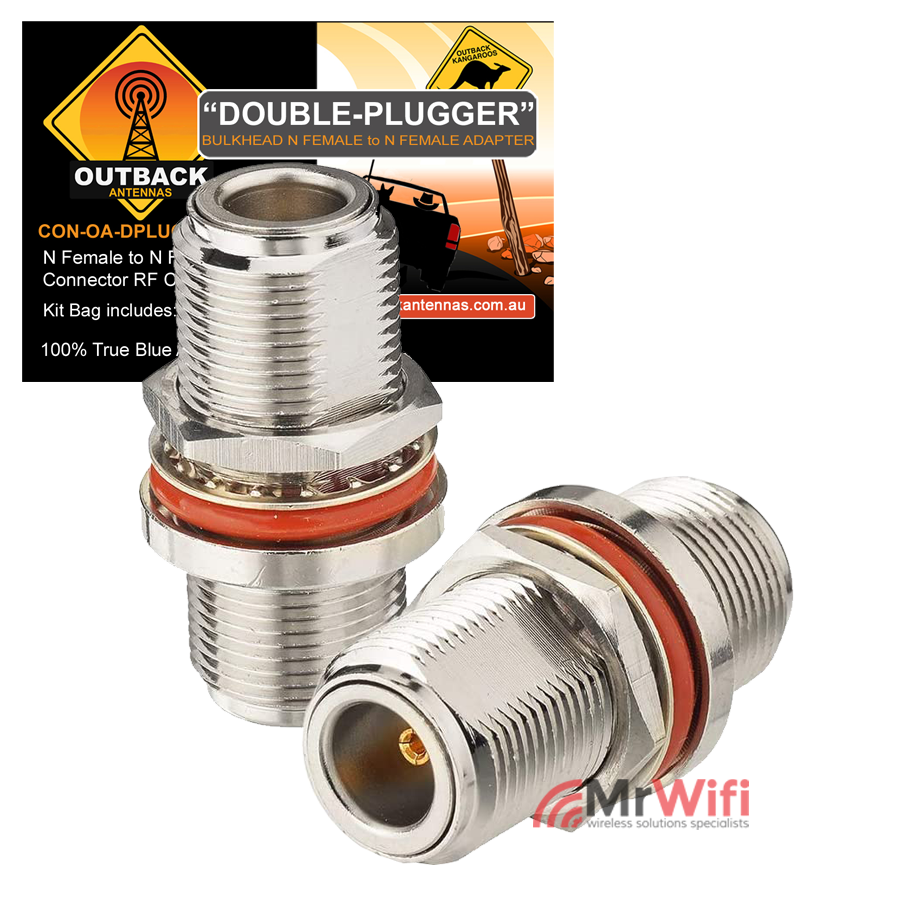

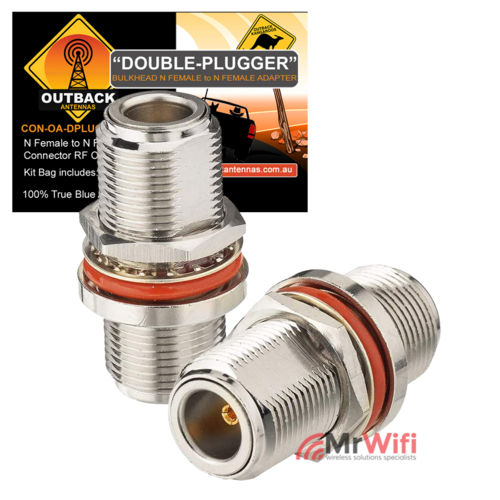

N Type Female to Female Bulkhead RF Coaxial Adapter. Double Plugger Bulkhead by OUTBACK ANTENNAS
High quality N Type Female to Female Bulkhead RF Coaxial Adapter. Made from Brass to maximise connectivity efficacy. N Type Female to Female Bulkhead RF Coaxial Adapter are high-quality, 50 ohm, coaxial interconnect series with a threaded coupling mechanism./p>
N-Type connectors are primarily used in the communications and broadcast industries with applications including base station equipment, satellite systems, antennas, instrumentation equipment, radar, and WLAN.
(CON-OA-DPLUGGER-BH-NFNF)

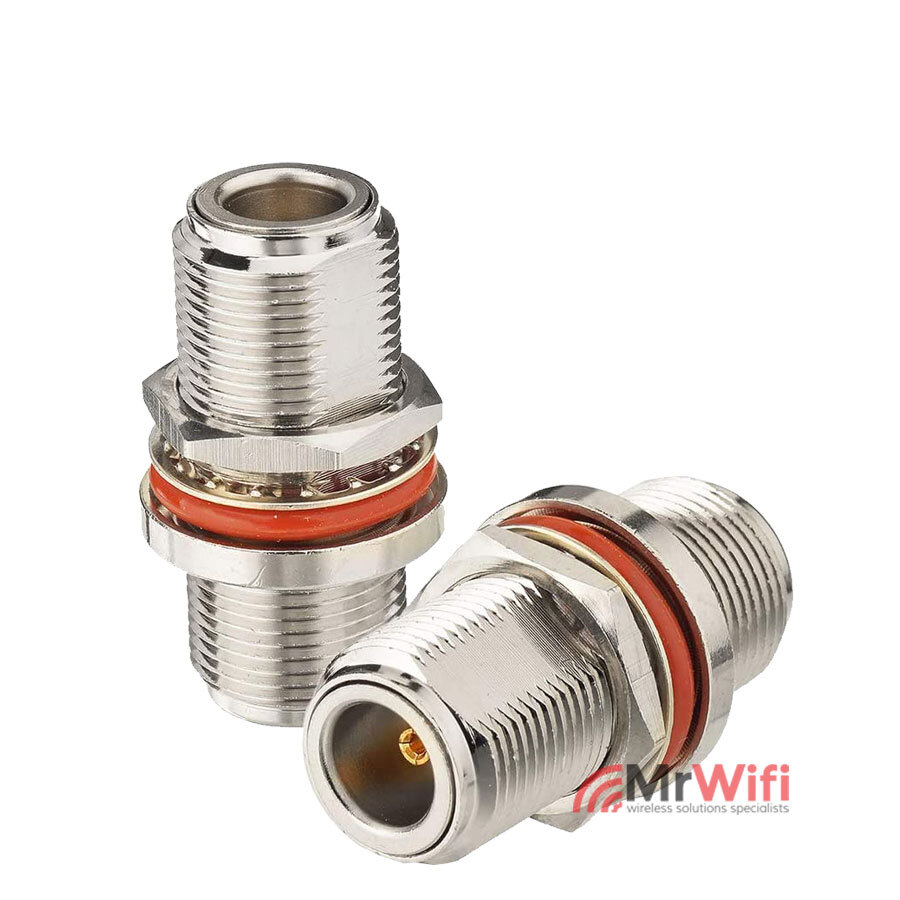

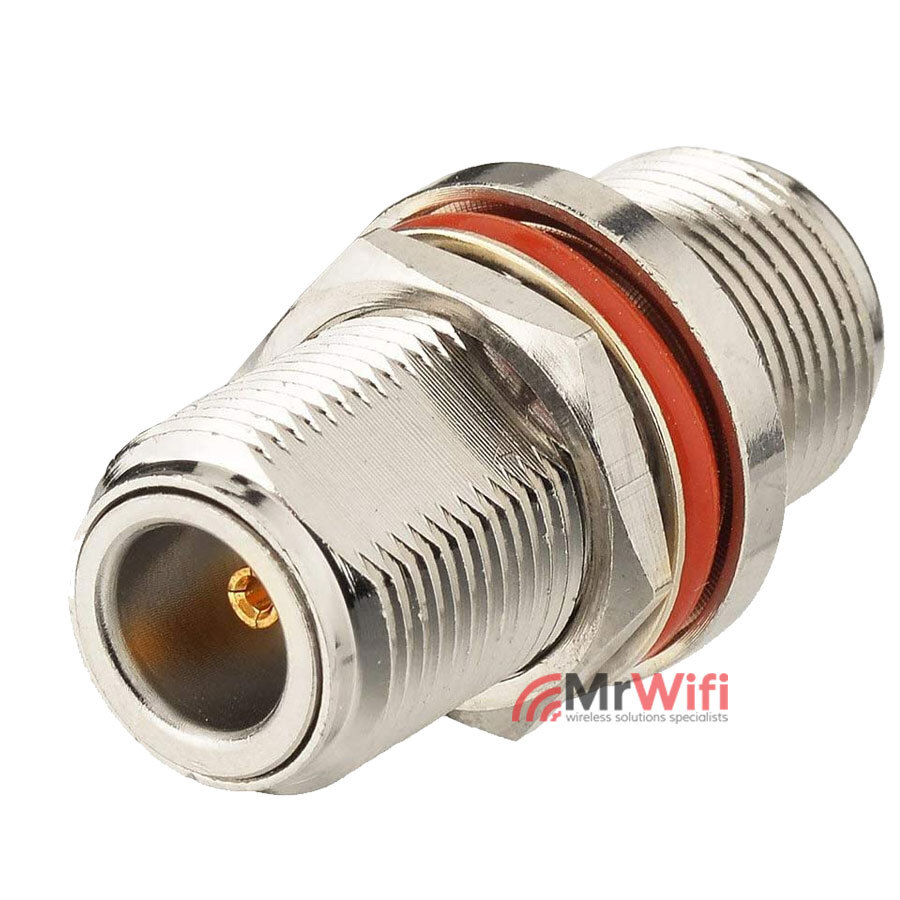

N Type Female to Female Bulkhead RF Coaxial Adapter Brass
Pack Includes:
- 1 x N Type Female to Female Bulkhead RF Coaxial Adapter Brass.
N Type Female to Female Bulkhead RF Coaxial Adapter - Specifications
Connector Types: N Type Female to Female Bulkhead RF Coaxial Adapter.
Dimensions 125mm*30mm-30mm
Cable Types:
|
N Connector Technical Datasheet
|
||
|
Electrical Characteristics
|
Impedance
|
50 ohm
|
|
Frequency Range
|
0~11 GHz for 50 ohm,
|
|
|
VSWR
(Voltage Standing Wave Ratio)
|
Straight type ≦ 1.15max ,
R/A type ≦ 1.25max
|
|
|
Dielectric Withstanding Voltage
|
1000V r.m.s at sea level
2500V r.m.s at sea level
|
|
|
Working Voltage
|
1000V r.m.s at sea level
|
|
|
Center Contact Resistance
|
≤ 1 mΩ (Milliohms max.)
|
|
|
Outer Contact Resistance
|
≦ 1 mΩ (Milliohms max.)
|
|
|
Insultation Resistance
|
≧ 5000 mΩ (Megohms min.)
|
|
|
Mechanical Characteristics
|
Coupling
|
Bayonet
|
|
Contact Retention
|
4 lbs min.
|
|
|
Mating Durability
|
≧ 500 cycles (For Beryllium Copper Contact)
|
|
|
Environmental Characteristics
|
Temperature Range
|
-55℃~+155℃
|
|
Vibration
|
MIL-STD-202 Meth. 204
|
|
|
Corrosion Resistance
|
MIL-STD-202 Meth. 101
|
|
| SKU | CON-OA-DPLUGGER-BH-NFNF |
| Model # | CON-OA-DPLUGGER-BH-NFNF |
| Barcode # | 4.81E+11 |
| Brand | OUTBACK ANTENNAS |
| Shipping Weight | 0.0800kg |
| Shipping Width | 0.030m |
| Shipping Height | 0.030m |
| Shipping Length | 0.130m |
| Shipping Cubic | 0.000117000m3 |
| Unit Of Measure | ea |
