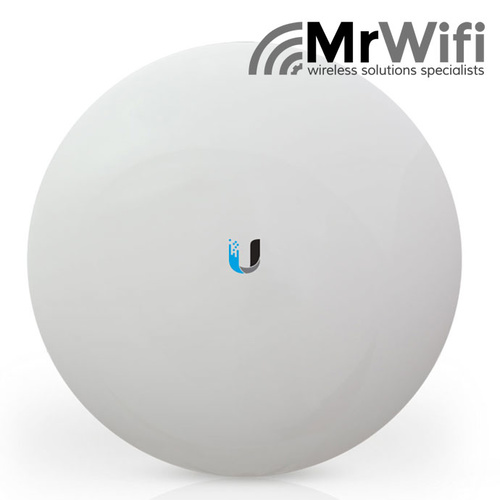

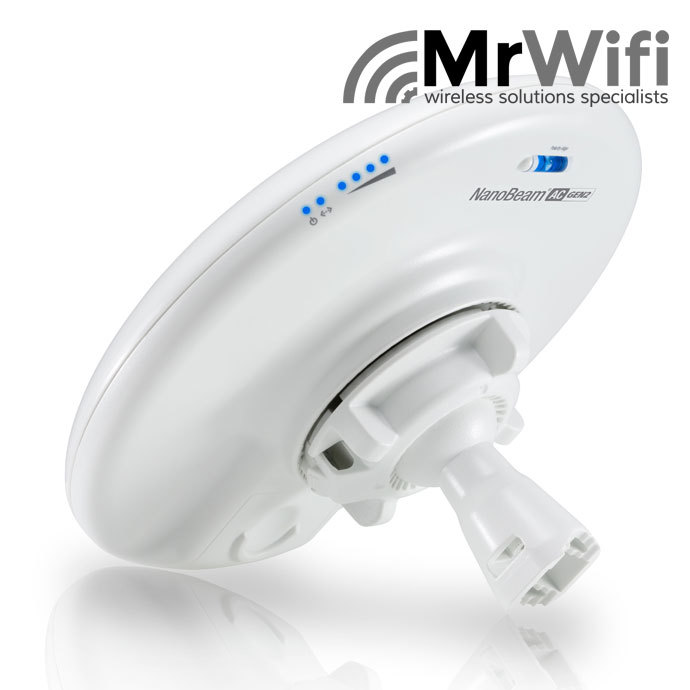

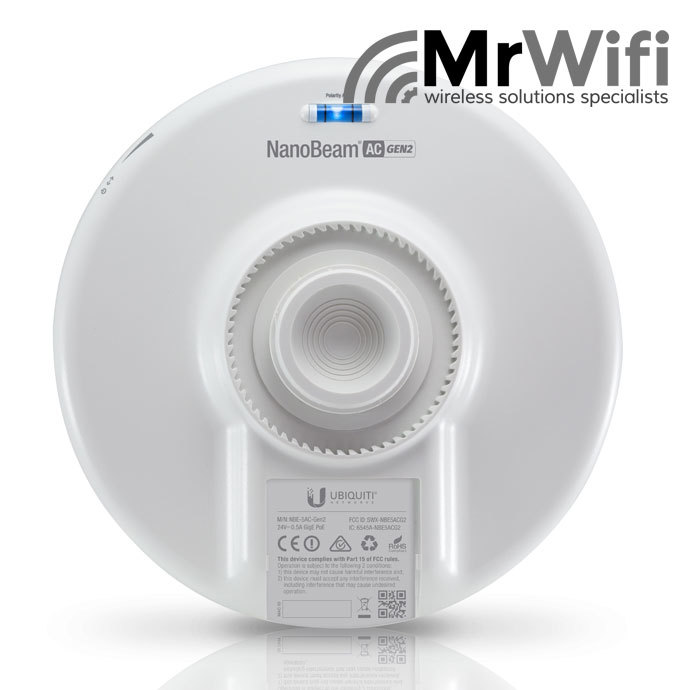

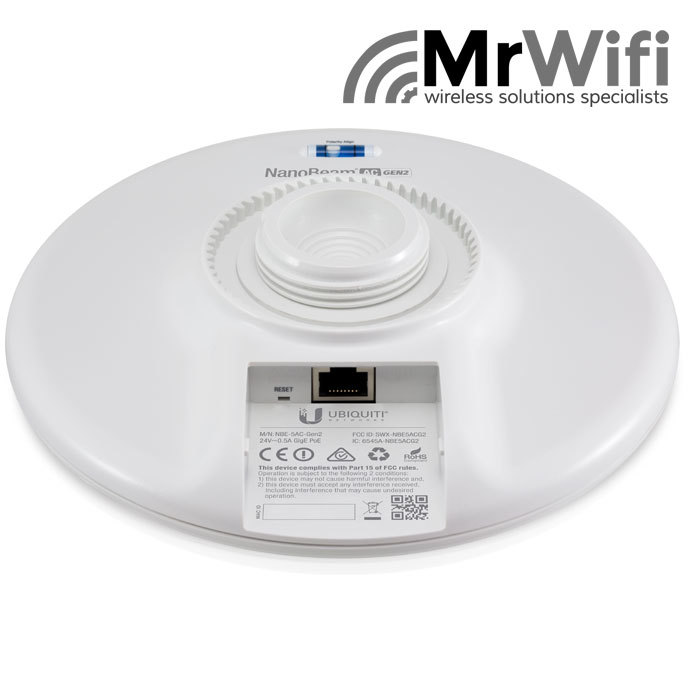

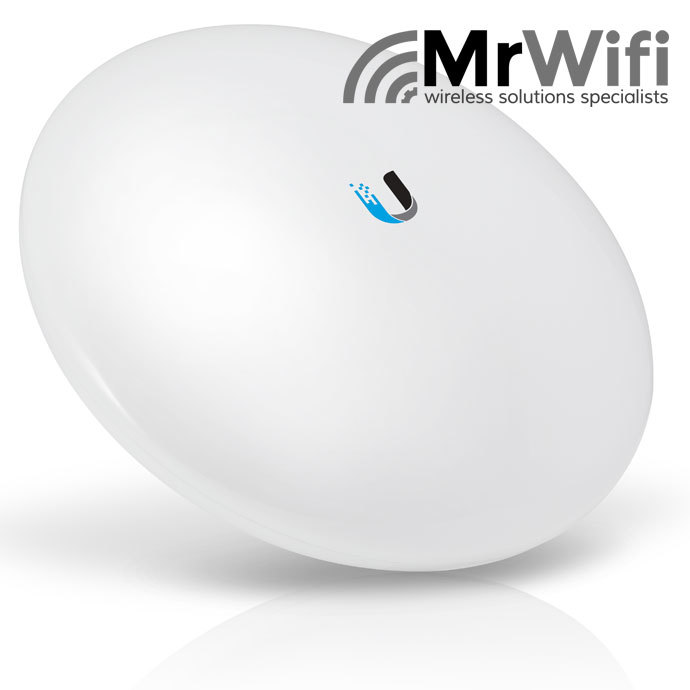

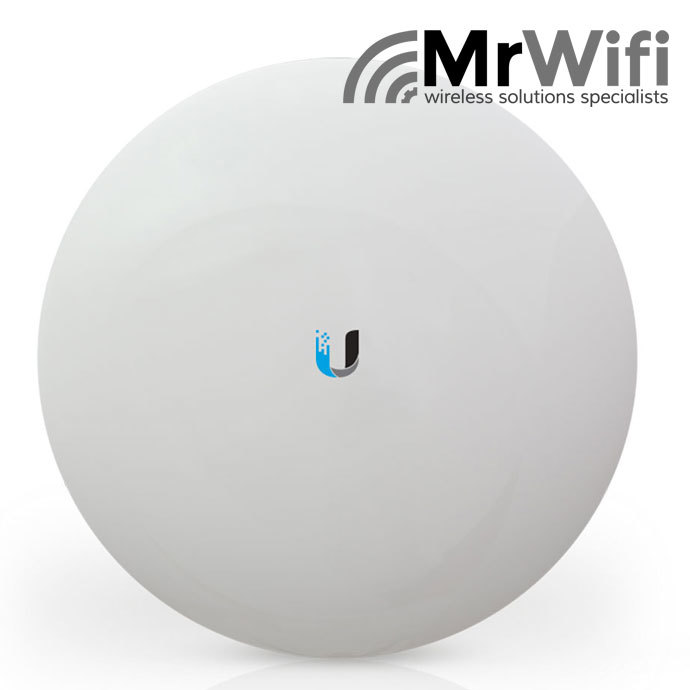

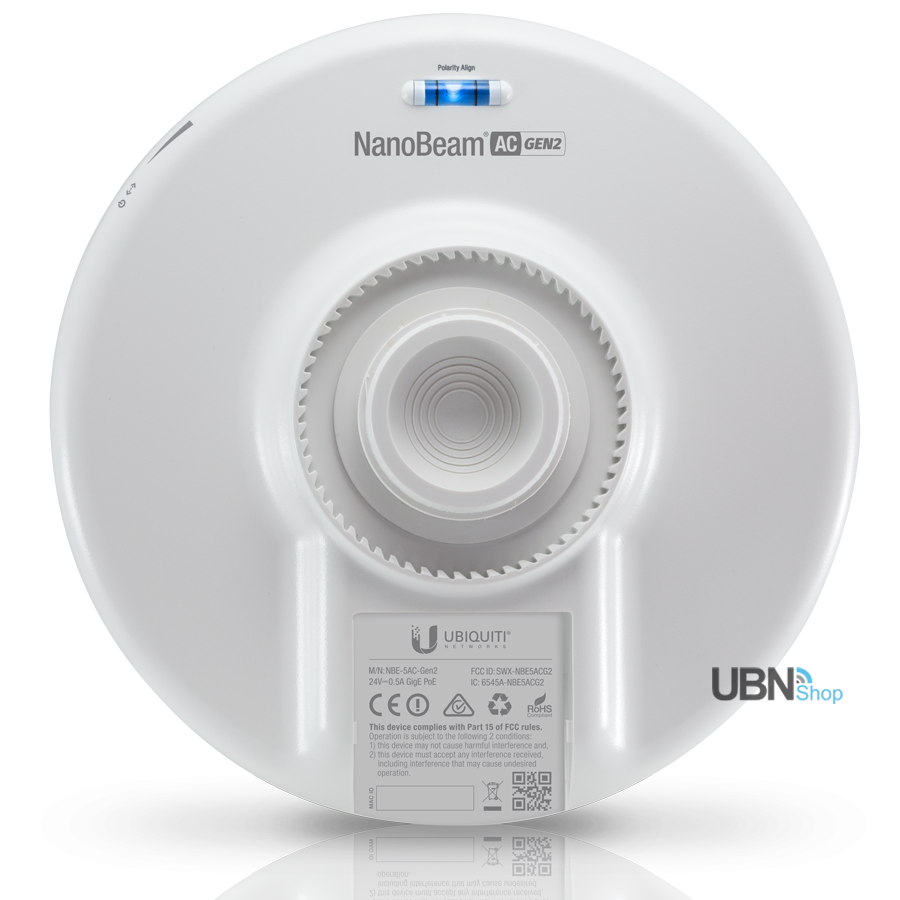

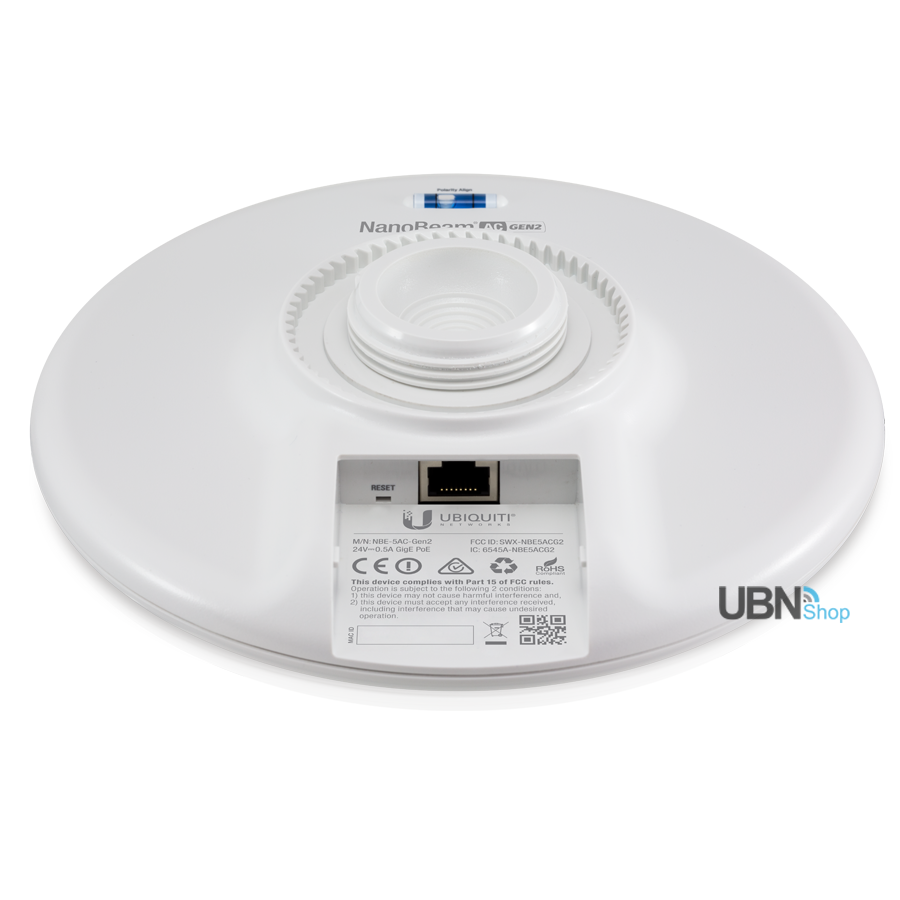

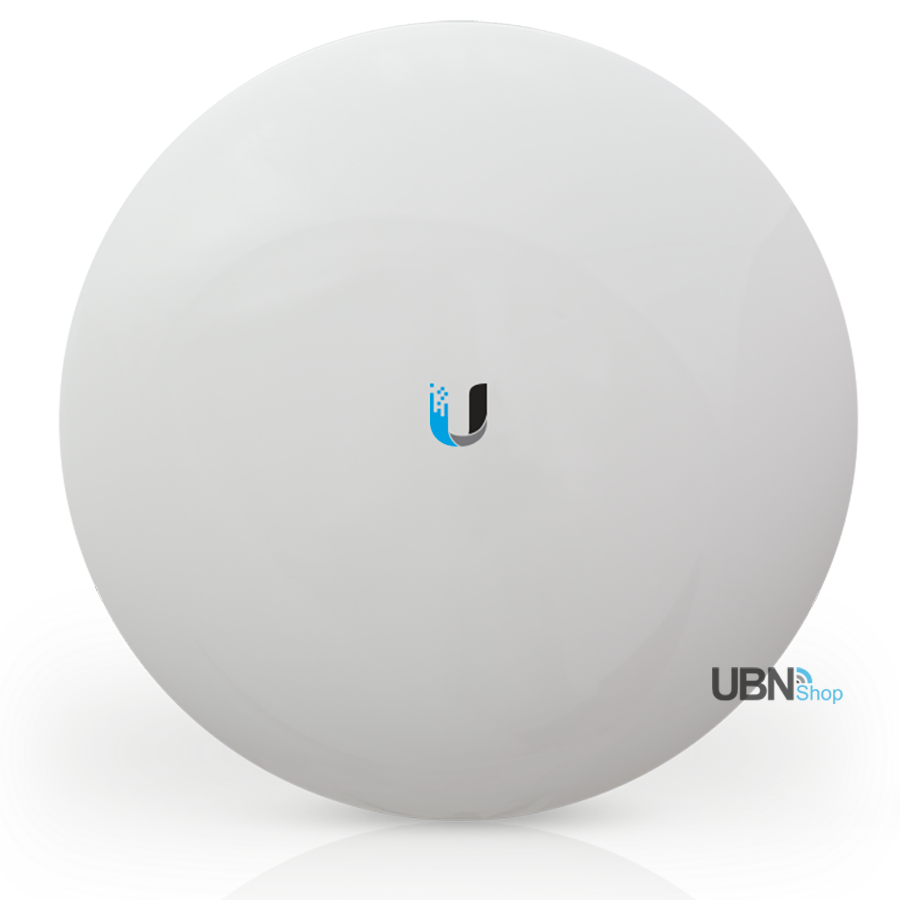

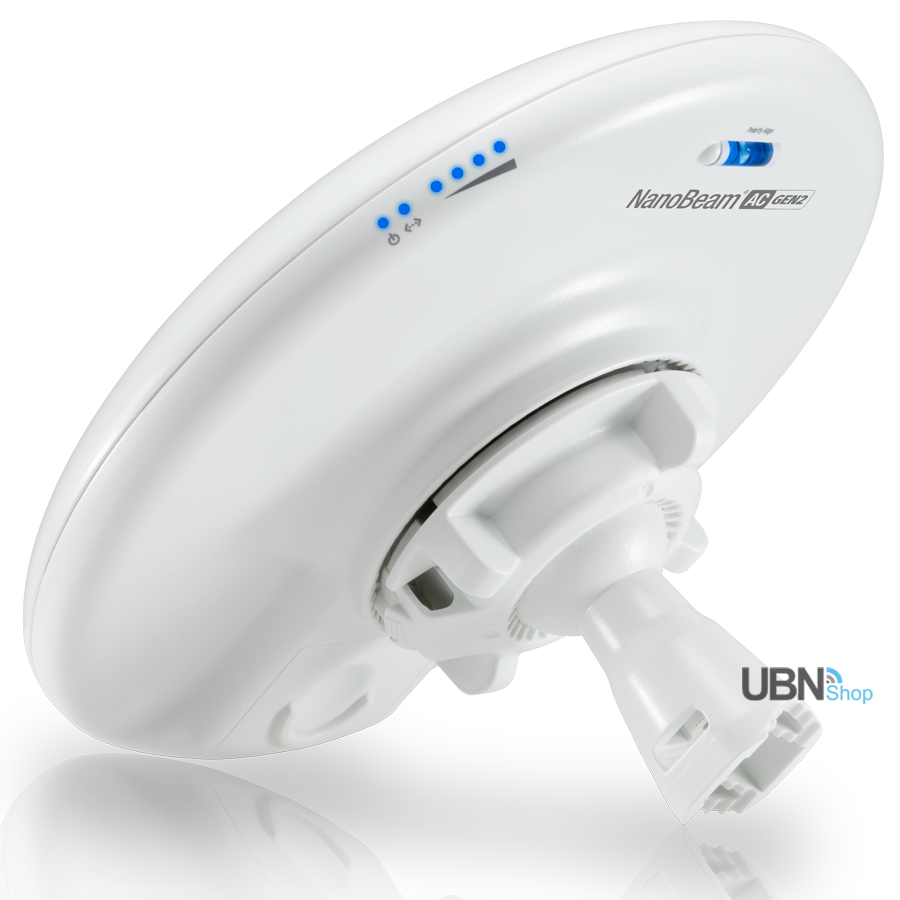

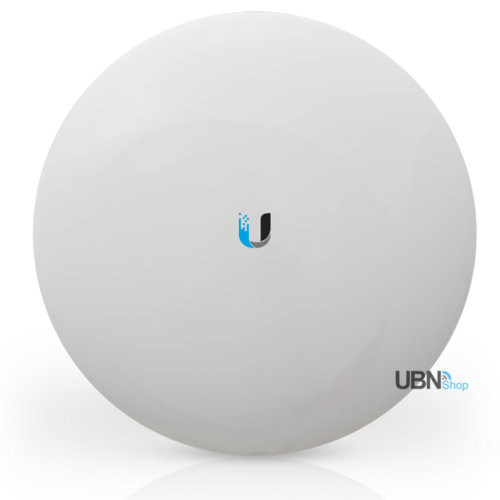

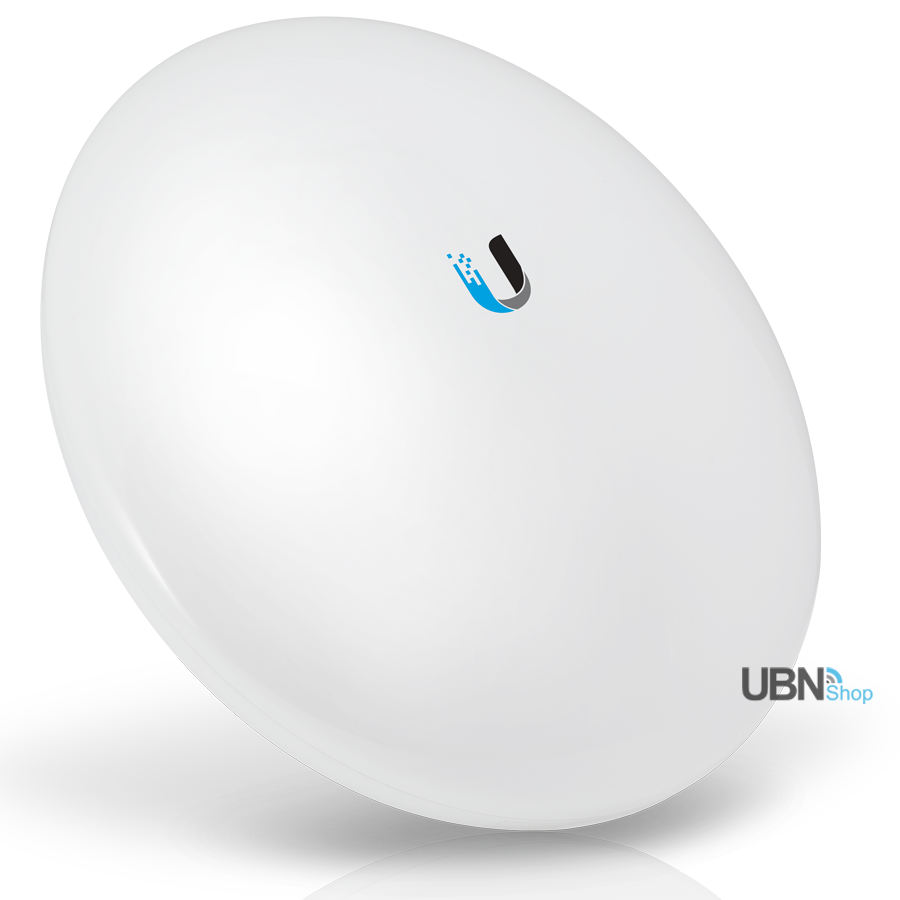

NanoBeam 5AC Gen2 19dBi
NBE-5AC-GEN2
High-Performance airMAX® ac Bridge
Assembly NBE-AC-Gen2
Incorporating innovative industrial design with proprietary airMAX® ac technology, the NanoBeam® AC is ideal for CPE deployments requiring maximum performance from the smallest possible footprint.
The NanoBeam® AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device and features enhanced protection against ESD events. Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability.
The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology. The form factor of the NanoBeam® AC features the highest gain for its size.
The NanoBeam AC’s excellent beam directivity provides the best performance in high-noise environments. airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.
(NBE-5AC-Gen2)
NanoBeam 5AC GEN2
Package Includes
- 1 x NanoBeam 5AC GEN2
- 1 x Ball Joint Mount
- 1 x Lock Ring
- 1 x Metal Strap
- 1 x Gigabit PoE (24V, 0.5A) with Mounting Bracket
- 1 x Power Cord
- Quick Start Guide
NanoBeam 5AC GEN2 - Specifications
| NBE-5AC-GEN2 | |
|---|---|
| Dimensions (Mount Included) | 189 x 189 x 125 mm (7.44 x 7.44 x 4.92") |
| Weight (Mount Included) | 530 g (1.17 lb) |
| Gain | 19 dBi |
| Networking Interface | (2) 10/100/1000 Ethernet Port, Wi-Fi for Management |
| Enclosure | Outdoor UV Stabilized Plastic |
| Max. Power Consumption | 8W |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Wind Loading | 45.4 N @ 200 km/h (10.2 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Certifications | CE, FCC, IC |

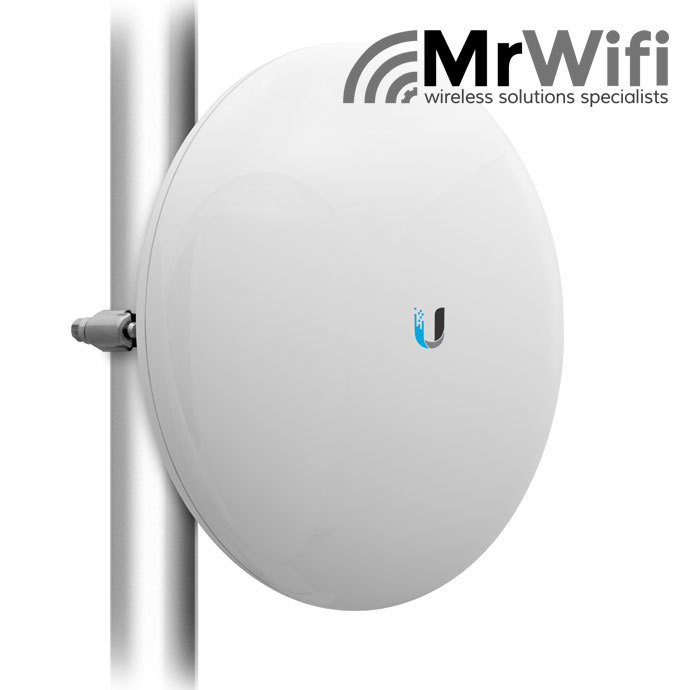

| Mounting | Pole-Mount (Kit Included) Wall-Mount (Not Included) |
| ESD/EMP Protection | ± 24kV Contact/Air |
| Operating Temperature | -40 to 80° C (-40 to 176 F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Salt Fog Test | IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5 |
| Vibration Test | IEC 68-2-6 |
| Temperature Shock Test | IEC 68-2-14 |
| UV Test | IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4 |
| Wind-Driven Rain Test | ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5 |
| Operating Frequency | Worldwide: 5150-5875 MHz USA: U-NII-1: 5150-5250 MHz, U-NII-2A: 5250-5350 MHz, U-NII-2A: 5240-5725 MHz, U-NII-3: 5725-5850 MHz |
Shipping Specifications
| SKU | NBE-5AC-Gen2 |
| Model # | NBE-5AC-GEN2 |
| Barcode # | 817882023375 |
| Brand | Ubiquiti |
| Shipping Weight | 0.6700kg |
| Shipping Width | 0.224m |
| Shipping Height | 0.100m |
| Shipping Length | 0.390m |
| Shipping Cubic | 0.008736000m3 |
| Unit Of Measure | ea |
NanoBeam 5AC GEN2 - Documents
