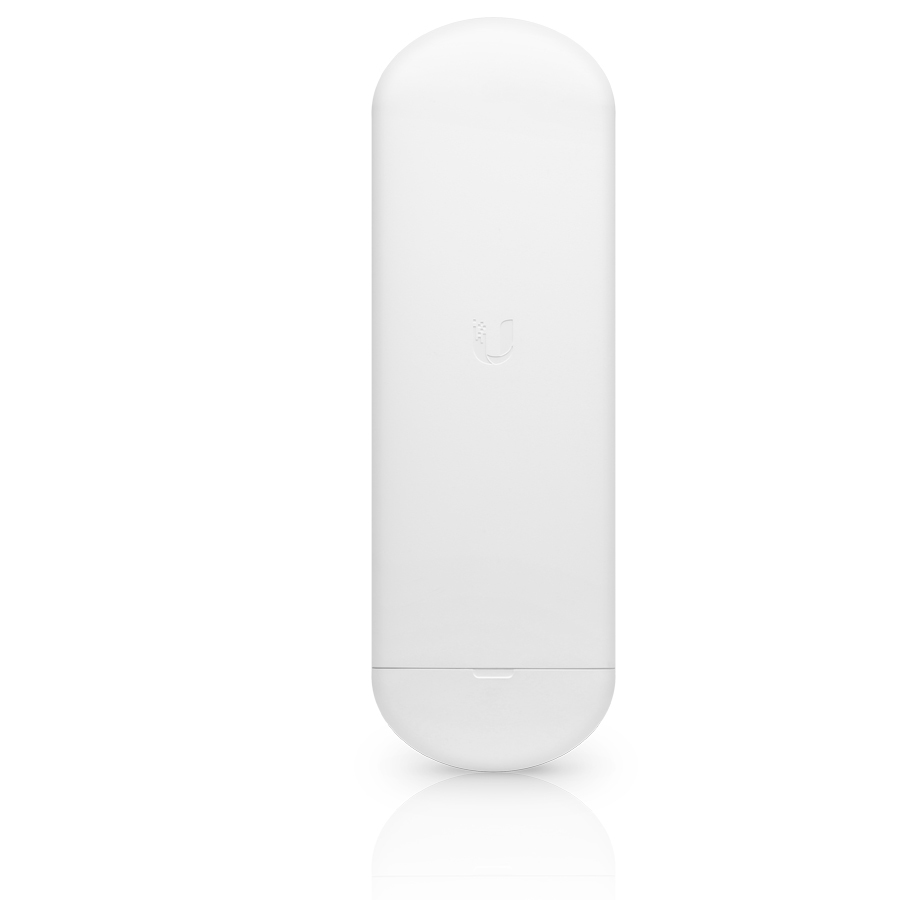

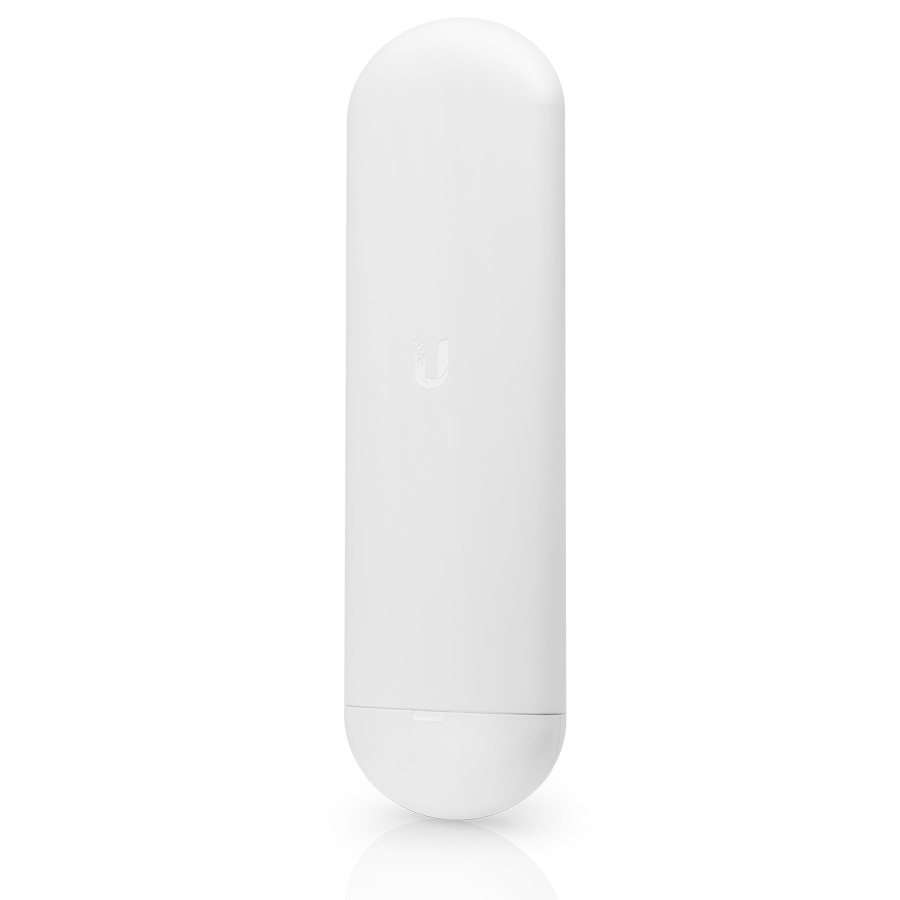

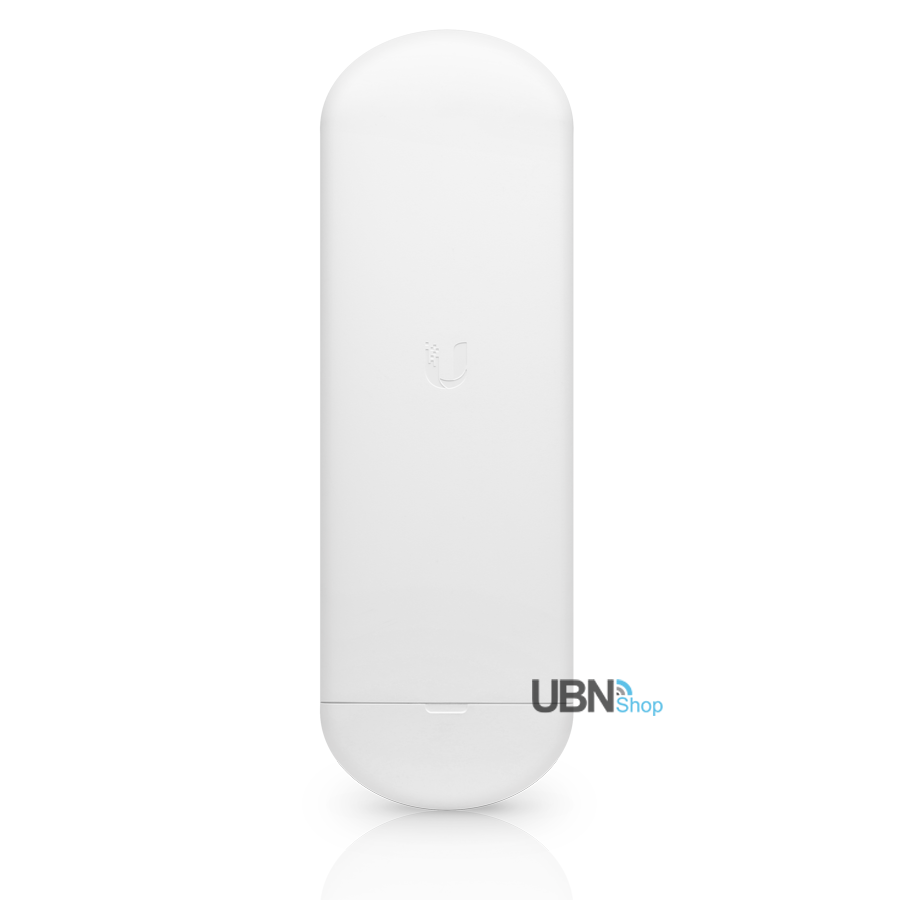

NanoStation 5GHz AC 450+ Mbps
NS-5AC
Indoor/Outdoor airMAX® CPE
Featuring a panel antenna and dual-polarity performance, the NanoStation®M is ideal for Point-to-MultiPoint (PtMP) applications requiring high-performance CPE devices with a sleek form factor. Ubiquiti Networks set the bar for the world's first low-cost and efficient broadband Customer Premises Equipment (CPE) with the NanoStation® M. AC loco take the same concept to the future with sleek form factors, along with integrated airMAX (MIMO TDMA protocol) technology and dedicated Wi-Fi management.
The radio and antenna are combined to create a more efficient and compact CPE. The NanoStation AC and NanoStation AC loco get maximum gain out of the smallest footprint. The low cost, high performance, and small form factor of the NanoStation AC and NanoStation AC loco make them extremely versatile and economical to deploy.
Description:
The indoor/outdoor NanoStation® AC is a compact, high-performance CPE featuring airMAX® AC technology and a dedicated Wi-Fi radio for management.
Dual Connectivity

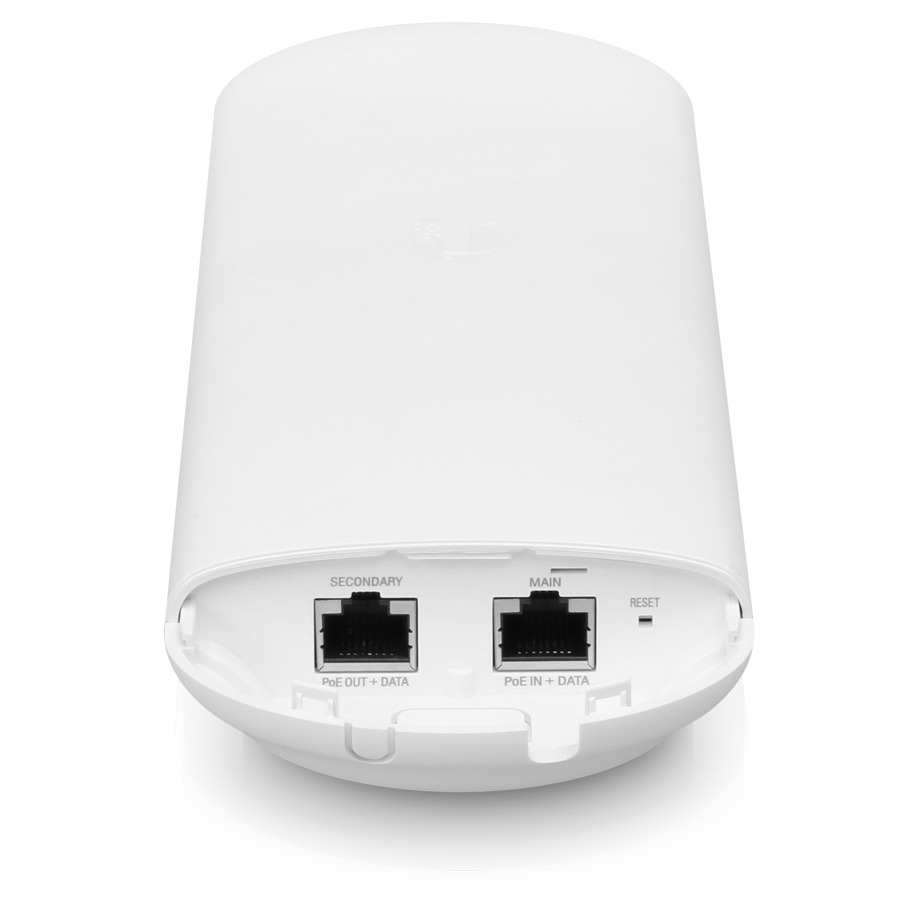

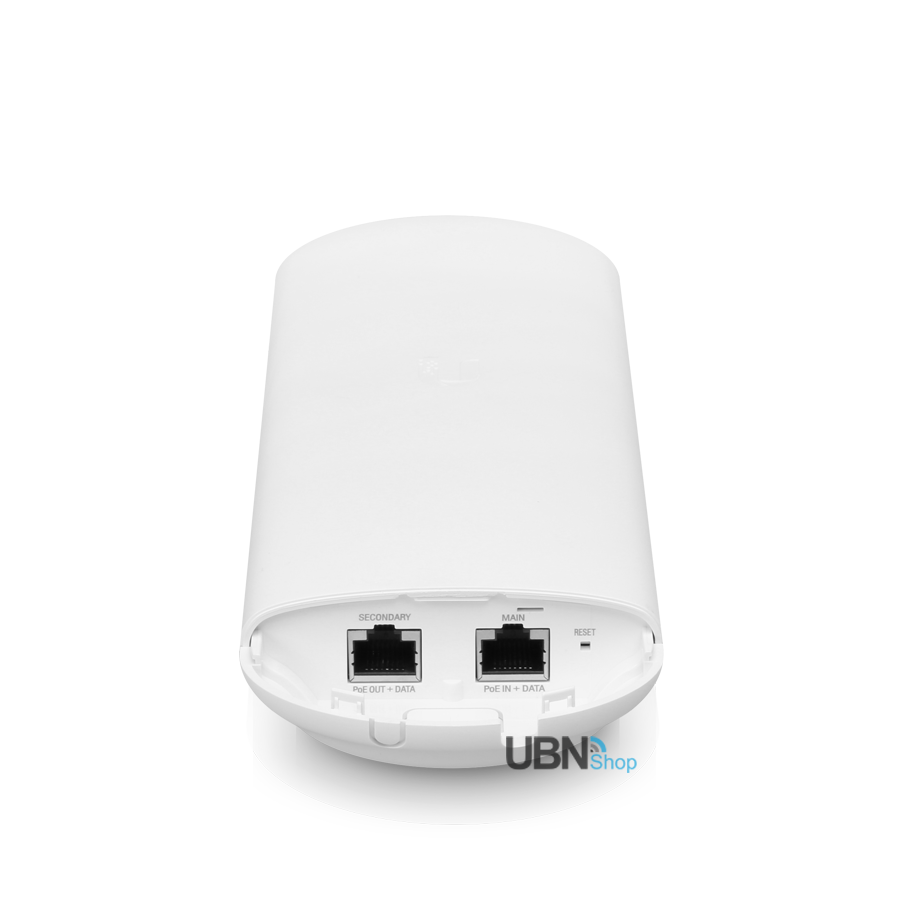

The NanoStation AC provides a secondary Ethernet port with software-enabled PoE. Use this port to conveniently power an external device, such as a PoE security camera, for seamless IP video integration.
Management Wi-Fi Radio
Each NanoStation AC model integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
*Does not include PoE Adapter. For compatible PoE Adapter Click Here
(NS-5AC)
NanoStation AC 5GHz
Package Includes
- 1 x NanoStatio 5AC
- 1 x Wall Mount Bracket
- 2 x Screws
- 2 x Screw Anchors
- 1 x Power Cord
- Quick Start Guide
*Does not include PoE Adapter. Sold Separately
NanoStation AC 5GHz - Specifications
| NANOSTATION NS-5AC | |
|---|---|
| Dimensions With Mount Without Mount |
257 x 84 x 30 mm (10.12 x 3.31 x 1.18") 257 x 84 x 41 mm (10.12 x 3.31 x 1.61") |
| Weight | 233 g (8.22) oz |
| Power Supply | 24V, 0.5A Gigabit PoE Supply (Included) |
| Max. Power Consumption | 8.5W |
| Power Method | 802.3af Alternative A (Pairs 1, 2+; 3, 6 Return) 24V Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Gain | 16 dBi |
| Networking Interface | (2) 10/100/1000 Mbps Ethernet Ports |
| Channel Bandwidth | 10/20/30/40/50/60/80 MHz |
| Processor | Atheros MIPS 74Kc, 560 MHz |
| Memory | 64 MB DDR2 |
| Cross-pol Isolation | 20 dB Minimum |
| Max. VSWR | 1.6:1 |
| Cross-pol Isolation | 20 dB Minimum |
| Beamwidth | 45° (H-pol) / 45° (V-pol) / 45° (Elevation) |
| Polarization | Dual Linear |
| Enclosure | UV Resistant Polycarbonate |
| LEDs | (1) Power, Eth1, Eth2; (1) Signal Strength |

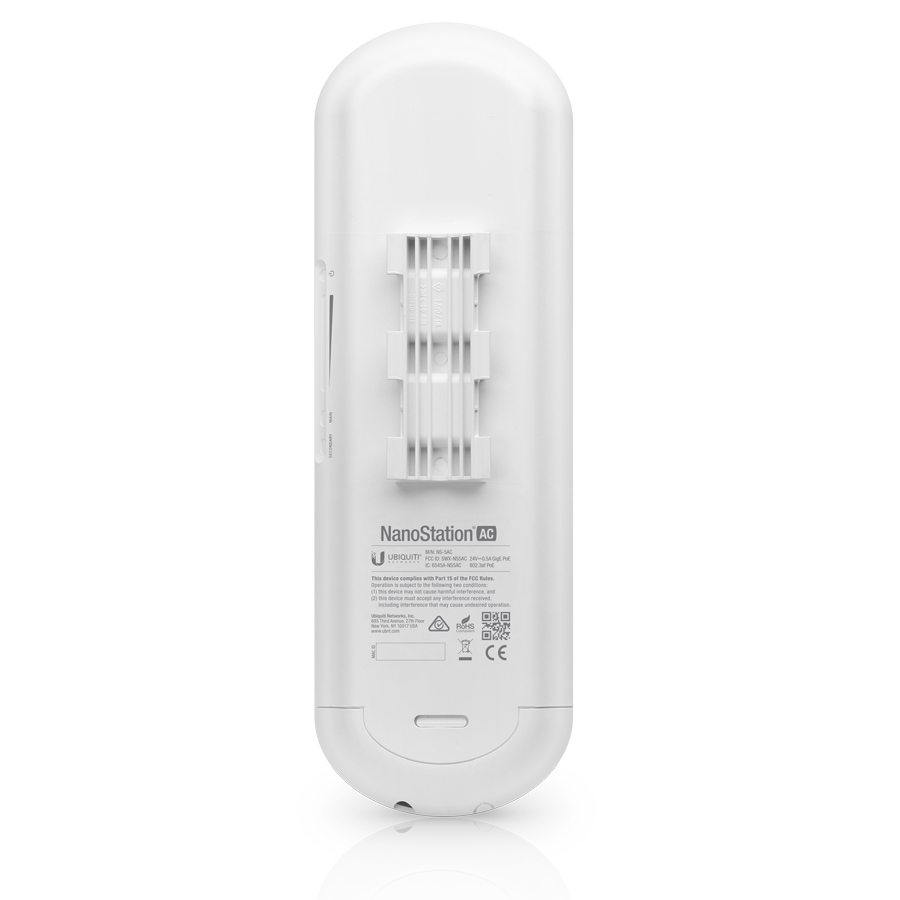

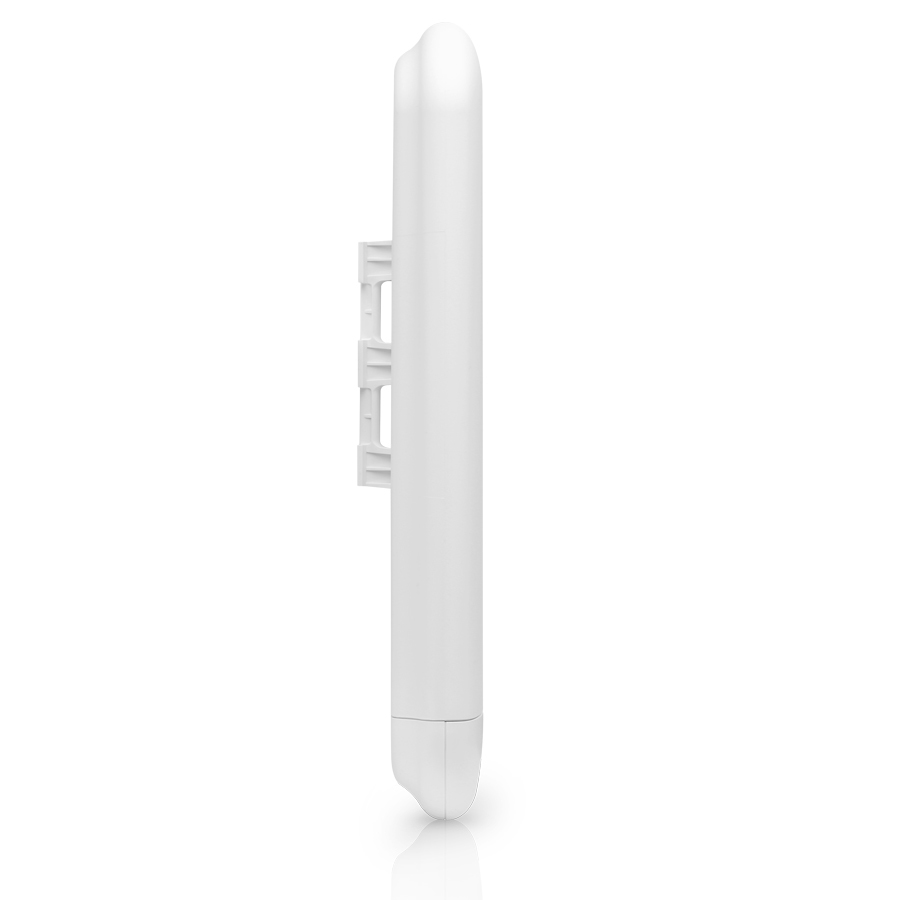

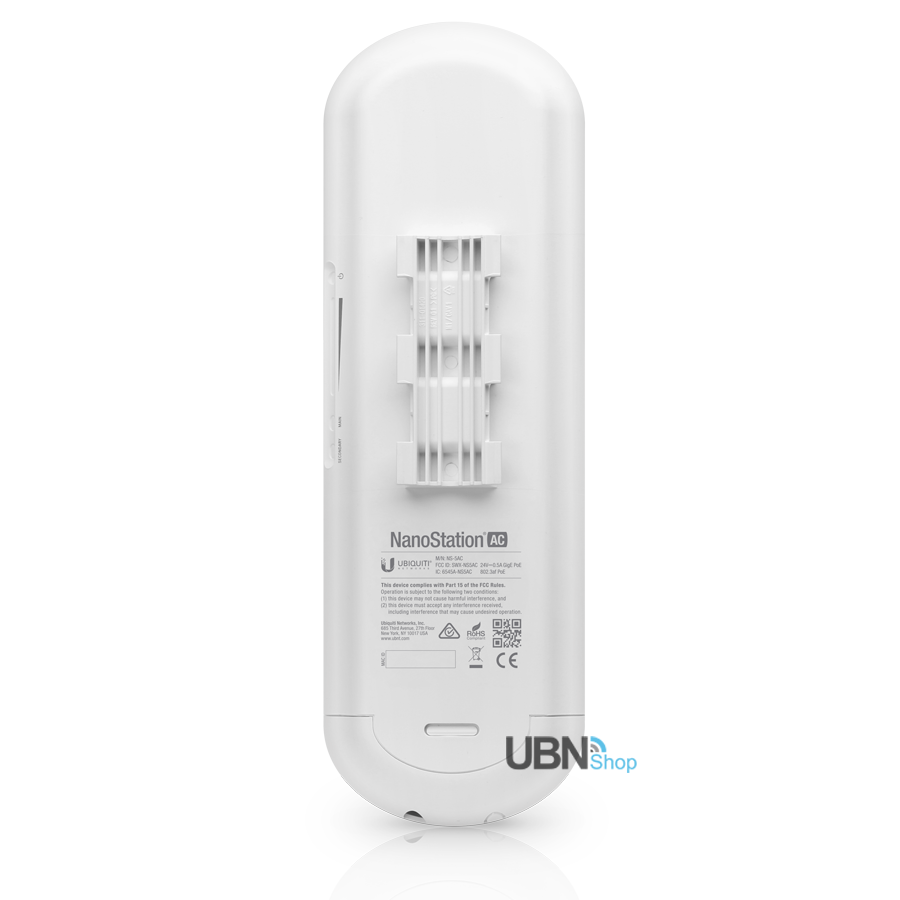

| Mounting | Pole-Mount (Kit Included) |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| RoHS Compliance | Yes |
| ESD/EMP Protection | ±24kV Contact/Air |
| Shock & Vibration | ETSI300-019-1.4 |
| Certifications | CE, FCC, IC |
| Operating Frequency (MHz) | |
| Worldwide | 5150 - 5875 |
| USA | U-NII-1: 5150 - 5250, U-NII-3: 5725 - 5850 |
| Management Radio (MHz) | |
| Worldwide | 2412 - 2472 |
| USA | 2412 - 2462 |
Shipping Specifications
| SKU | NS-5AC |
| Model # | NS-5AC |
| Barcode # | 817882024419 |
| Brand | Ubiquiti |
| Shipping Weight | 0.2500kg |
| Shipping Width | 0.225m |
| Shipping Height | 0.115m |
| Shipping Length | 0.300m |
| Shipping Cubic | 0.007763000m3 |
| Unit Of Measure | ea |
NanoStation AC 5GHz - Documents
