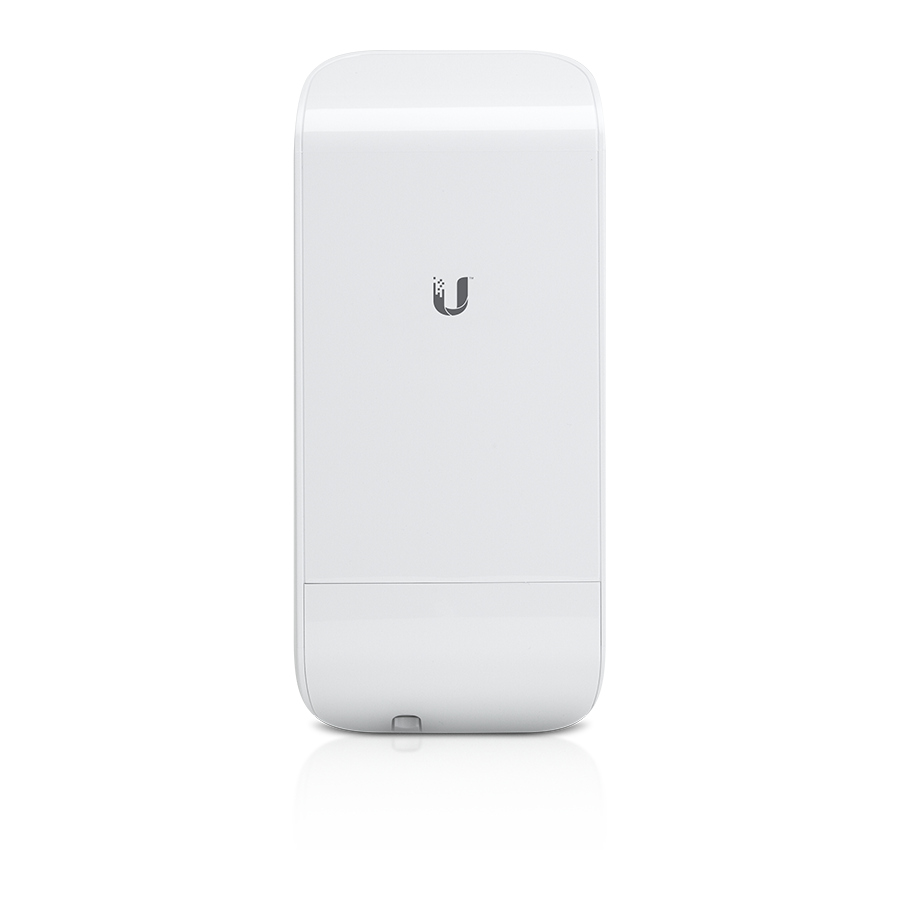

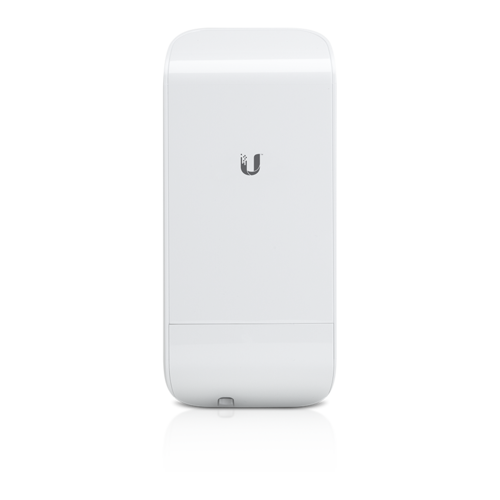

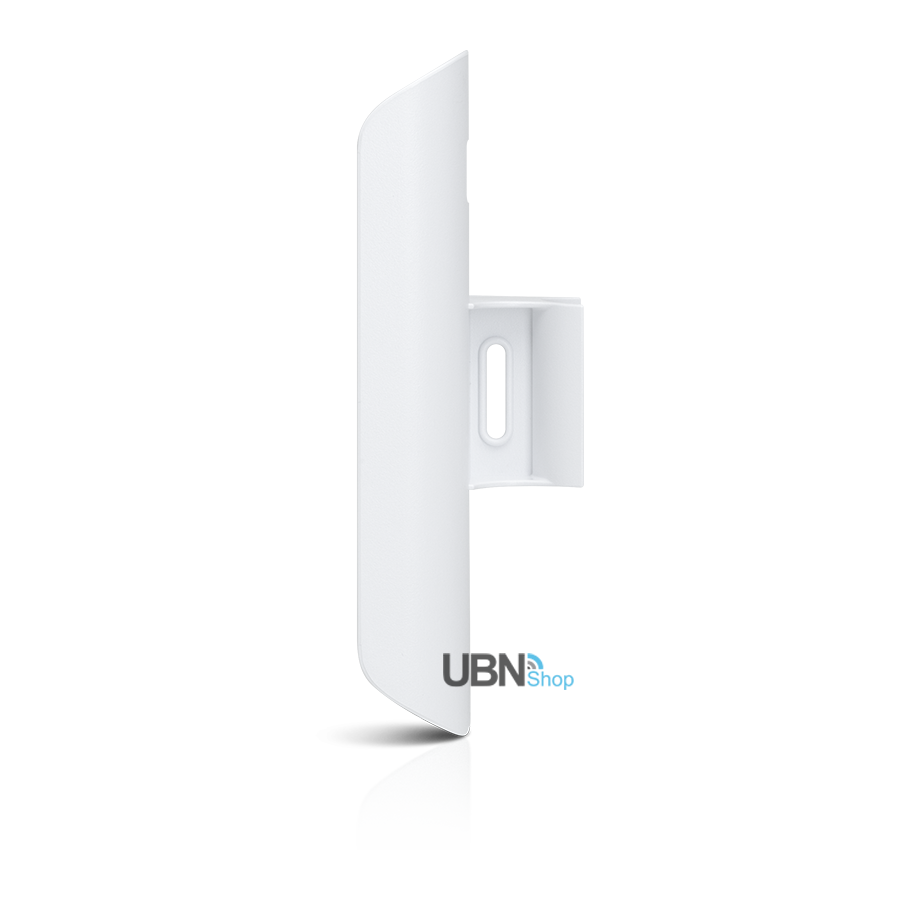

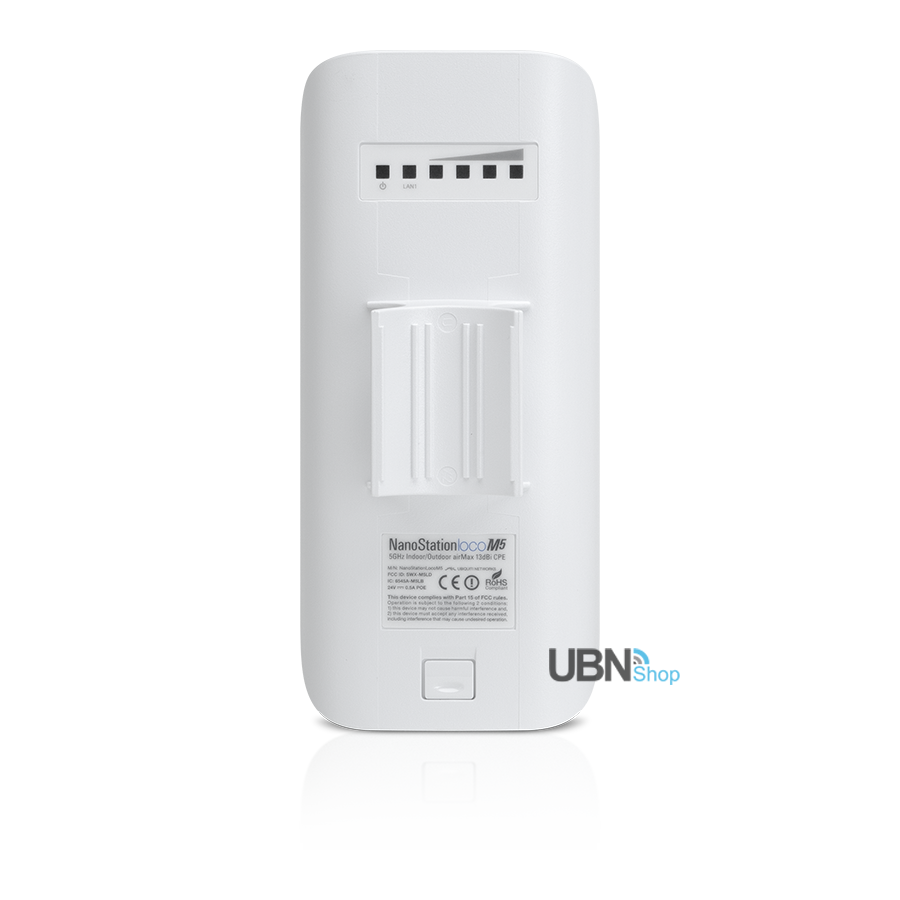

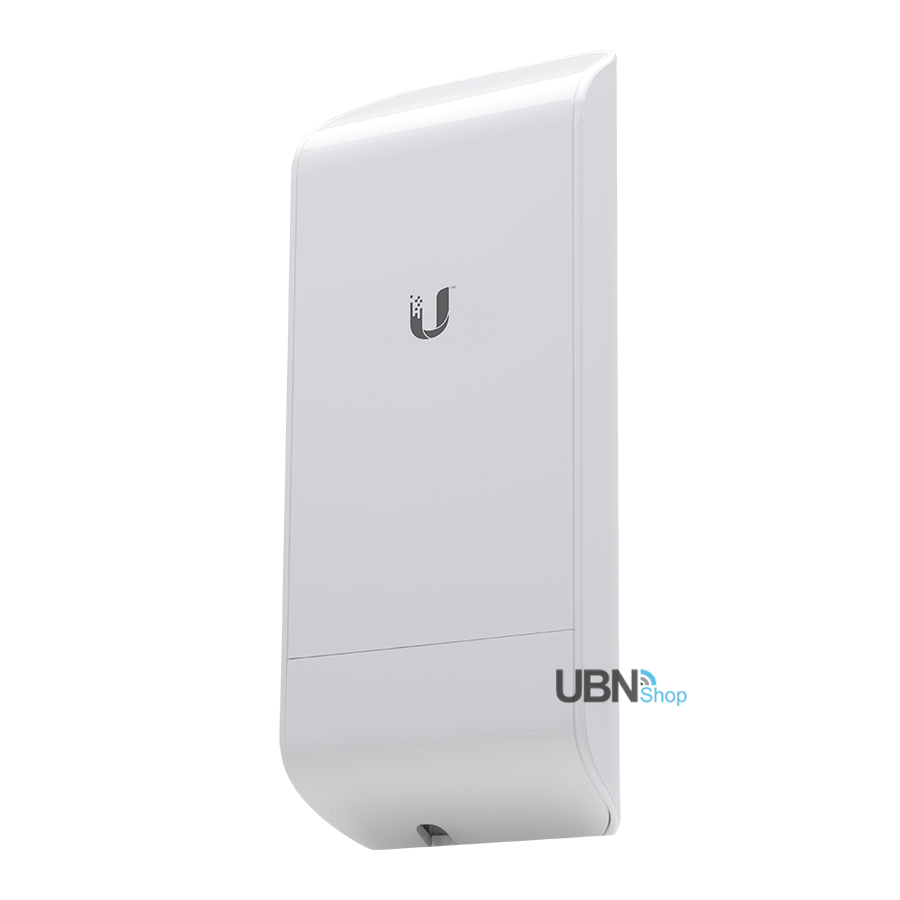

NanoStation Loco M5
LocoM5
Indoor/Outdoor airMAX® CPE
Leading-Edge Industrial Design
Ubiquiti Networks sets the bar for the world's first low-cost and efficient broadband Customer Premises Equipment (CPE) with the original NanoStation®. The NanoStationM and NanoStationlocoM take the same concept to the future with sleek and elegant form factors, along with integrated airMAX® (MIMO TDMA protocol) technology.
The low cost, high performance, and small form factor of NanoStationM and NanoStationlocoM make them extremely versatile and economical to deploy.
The radio and antenna are combined to create a more efficient and compact CPE. The NanoStation AC and NanoStation AC loco get maximum gain out of the smallest footprint. The low cost, high performance, and small form factor of the NanoStation AC and NanoStation AC loco make them extremely versatile and economical to deploy.
(LocoM5)
NanoStation Loco M5
Package Includes
- 1 x NanoStation Loco M
- 1 x Cable Tie
- 1 x PoE Adapter (24V, 0.5A) with Mounting Bracket
- 1 x Power Cord
- Quick Start Guide
NanoStation Loco M5 - Specifications
| LOCOM5 | |
|---|---|
| Dimensions | 161 x 31 x 80 mm (6.31 x 1.22 x 3.15") |
| Weight | 180 g (6.35 oz) |
| Power Supply (PoE) | 24V, 0.5A |
| Max. Power Consumption 5.5W | 5.5W |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Operating Frequency | Worldwide: 5170-5875 MHz US: 5725-5850 MHz USA DFS: 5250-5850 MHz |
| Gain | 13 dBi |

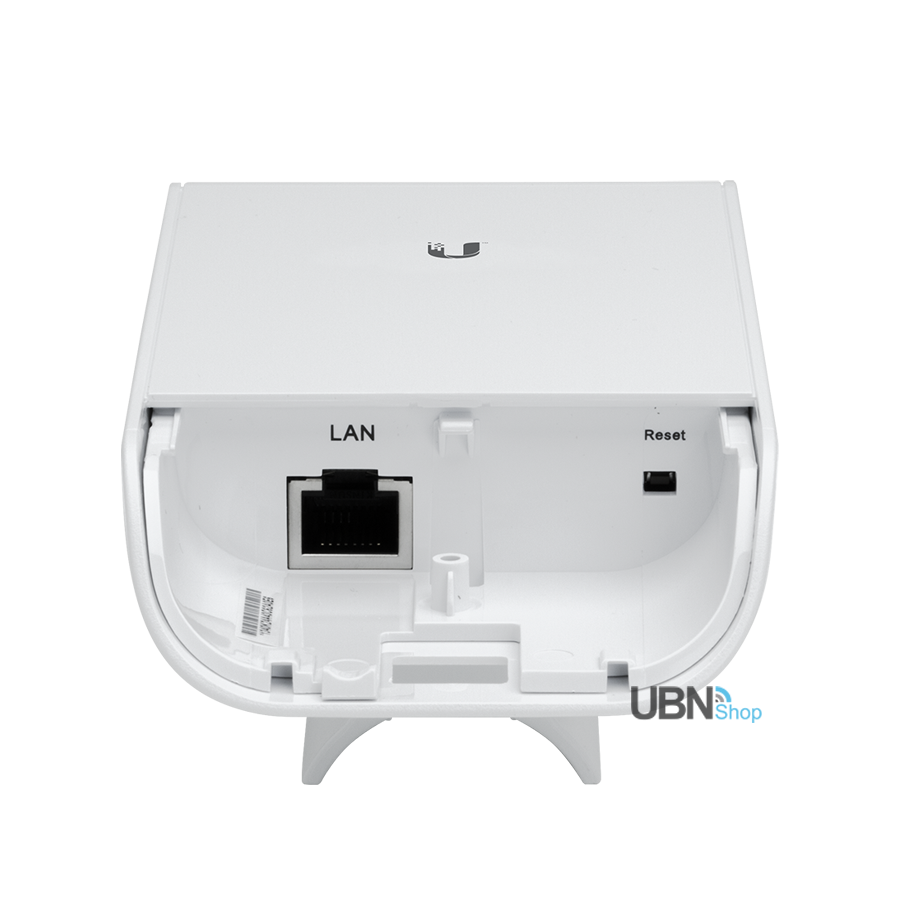

| Networking Interface | (1) 10/100 Ethernet Port |
| Processor Specs | Atheros MIPS 24Kc, 400 MHz |
| Memory | 64 MB DDR2, 8 MB Flash |
| Frequency | 5 GHz |
| Cross-pol Isolation | 20 dB Minimum |
| Max. VSWR | 1.4:1 |
| Beamwidth | 45° (H-pol) / 45° (V-pol) / 45° (Elevation) |
| Polarization | Dual Linear |
| Enclosure | Outdoor UV Stabilized Plastic |
| Mounting | Pole-Mount (Kit Included) |
| Operating Temperature | -30 to 75° C (-22 to 167° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Wireless Approvals | FCC Part 15.247, IC RS210, CE |
| RoHS Compliance | Yes |
| Shock & Vibration | ETSI300-019-1.4 |
Shipping Specifications
| SKU | LocoM5 |
| Model # | LocoM5 |
| Barcode # | 817882023252 |
| Brand | Ubiquiti |
| Shipping Weight | 0.3100kg |
| Shipping Width | 0.094m |
| Shipping Height | 0.083m |
| Shipping Length | 0.216m |
| Shipping Cubic | 0.001685000m3 |
| Unit Of Measure | ea |
NanoStation Loco M5 - Documents
