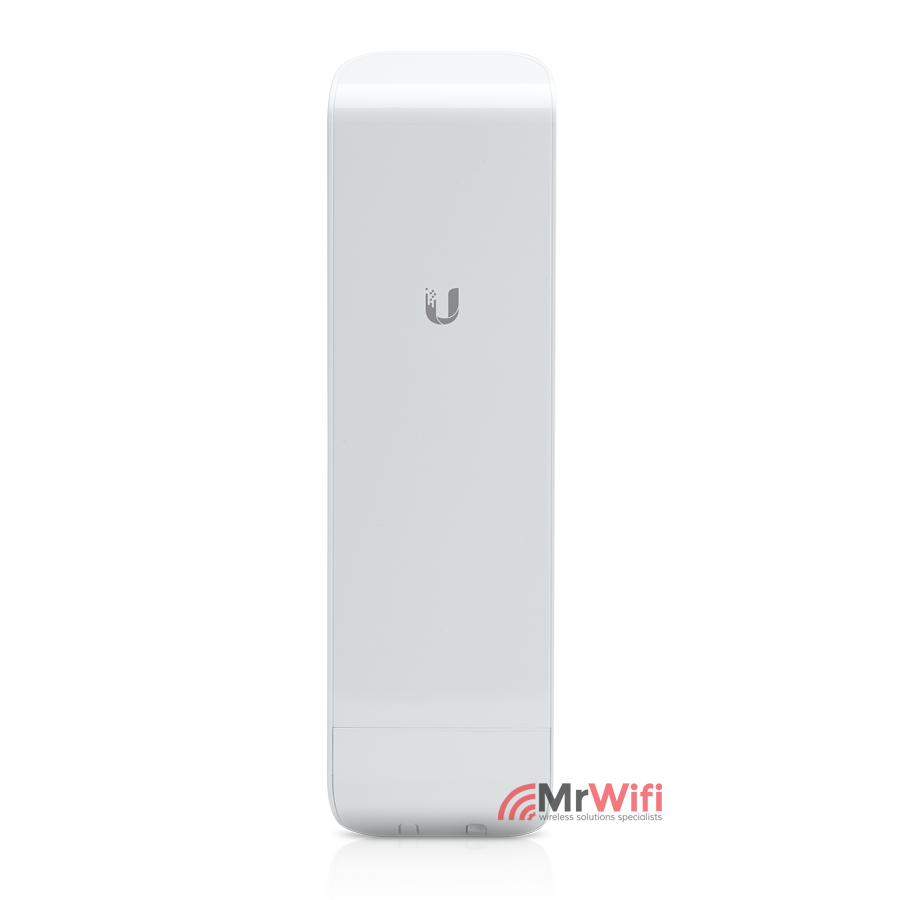

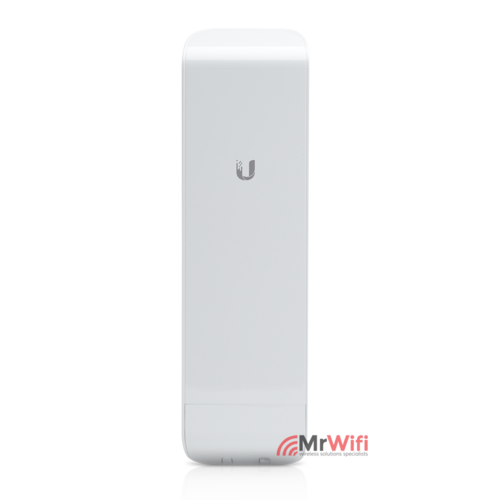

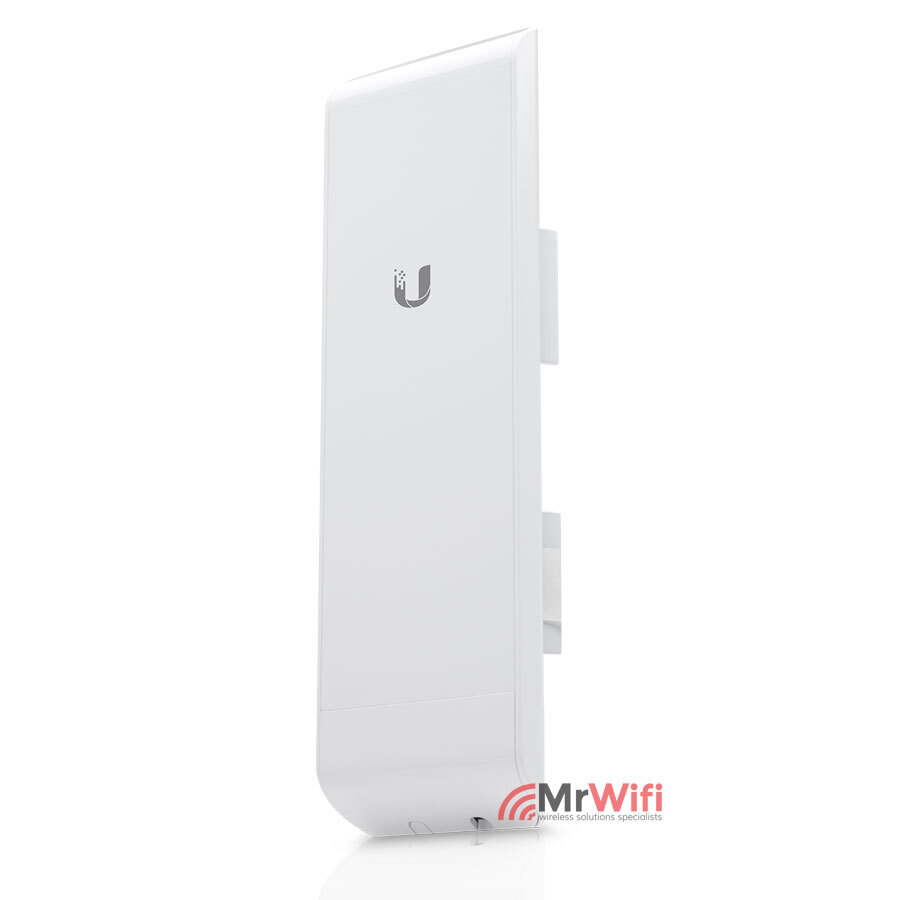

NanoStation M5
NSM5
Indoor/Outdoor airMAX® CPE
Leading-Edge Industrial Design
Ubiquiti Networks sets the bar for the world's first low-cost and efficient broadband Customer Premises Equipment (CPE) with the original NanoStation®. The NanoStationM and NanoStationlocoM take the same concept to the future with sleek and elegant form factors, along with integrated airMAX® (MIMO TDMA protocol) technology.
The low cost, high performance, and small form factor of NanoStationM and NanoStationlocoM make them extremely versatile and economical to deploy.
The radio and antenna are combined to create a more efficient and compact CPE. The NanoStation AC and NanoStation AC loco get maximum gain out of the smallest footprint. The low cost, high performance, and small form factor of the NanoStation AC and NanoStation AC loco make them extremely versatile and economical to deploy.
Dual Connectivity

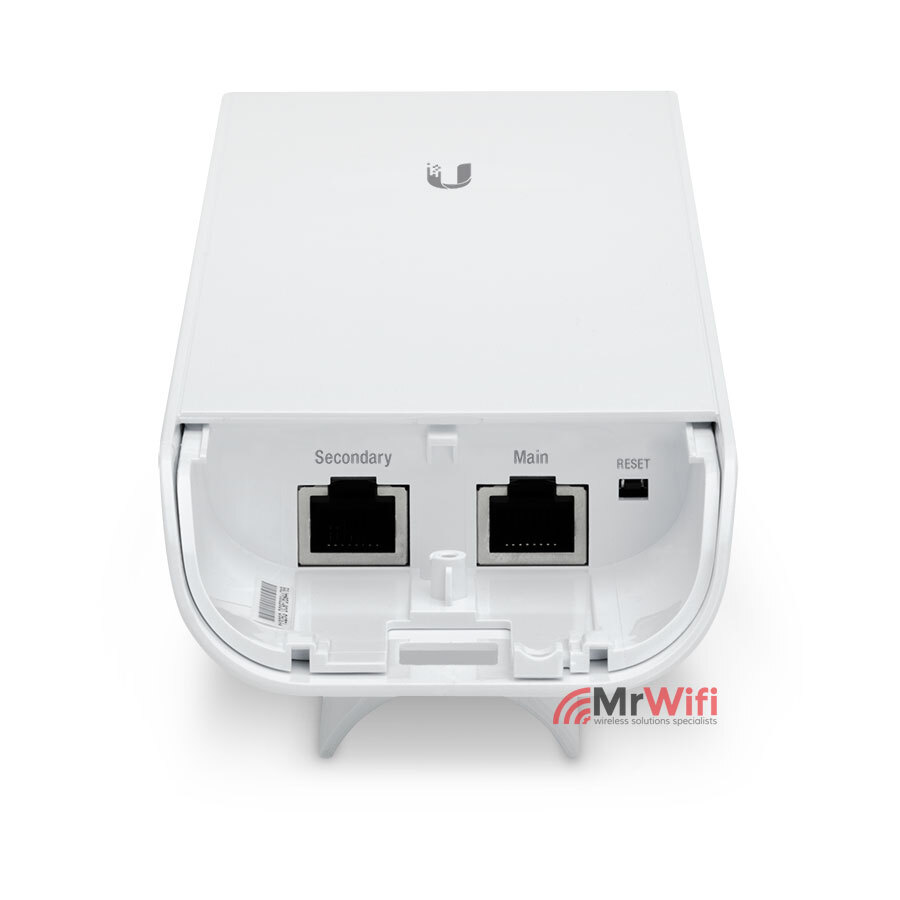

The NanoStation M provides a secondary Ethernet port with software-enabled PoE. Use this port to conveniently power an external device, such as a PoE security camera, for seamless IP video integration.
(NSM5)
NanoStation M5
Package Includes
- 1 x NanoStation M
- 1 x Cable Tie
- 1 x PoE Adapter (24V, 0.5A) with Mounting Bracket
- 1 x Power Cord
- Quick Start Guide
NanoStation M5 - Specifications
| NANOSTATION NS5M | |
|---|---|
| Dimensions | 294 x 30 x 80 mm (11.57 x 1.18 x 3.15") |
| Weight NSM2/NSM5 NSM3/NSM365 |
0.4 kg (14.11 oz) 0.5 kg (17.64 oz) |
| Gain NSM2 NSM3/NSM365 NSM5 |
11 dBi 13.7 dBi 16 dBi |
| Power Supply | 24V, 0.5A PoE Adapter (Included) |
| Max. Power Consumption | 8W |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |

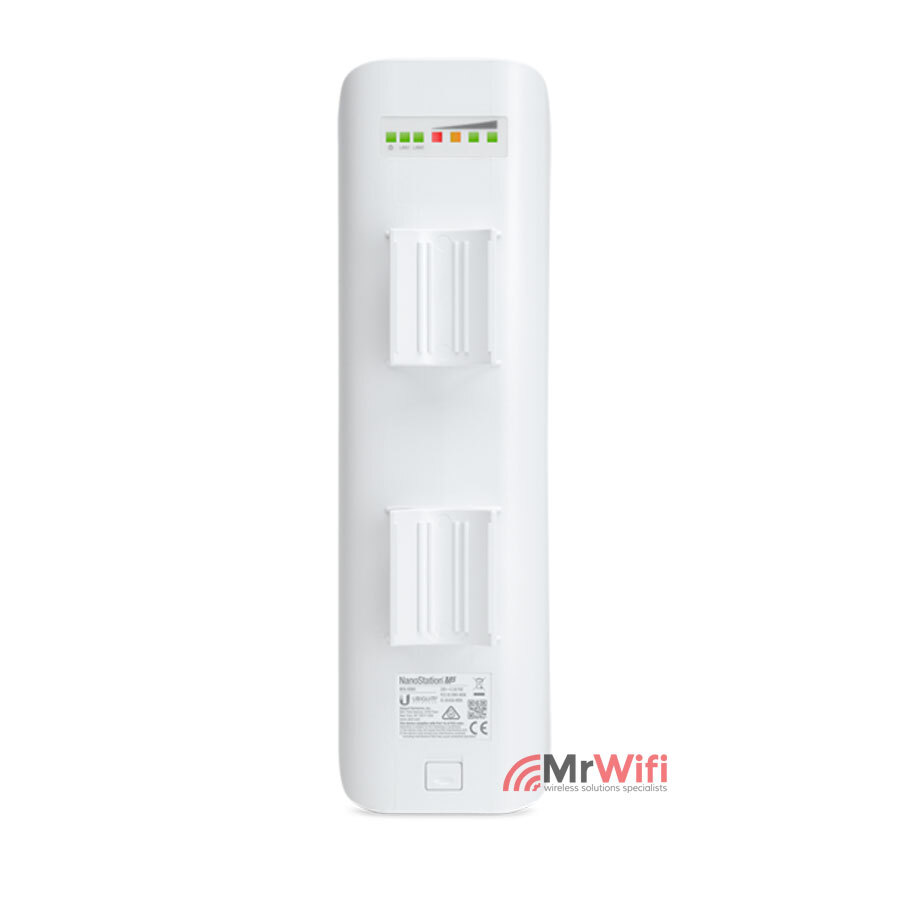

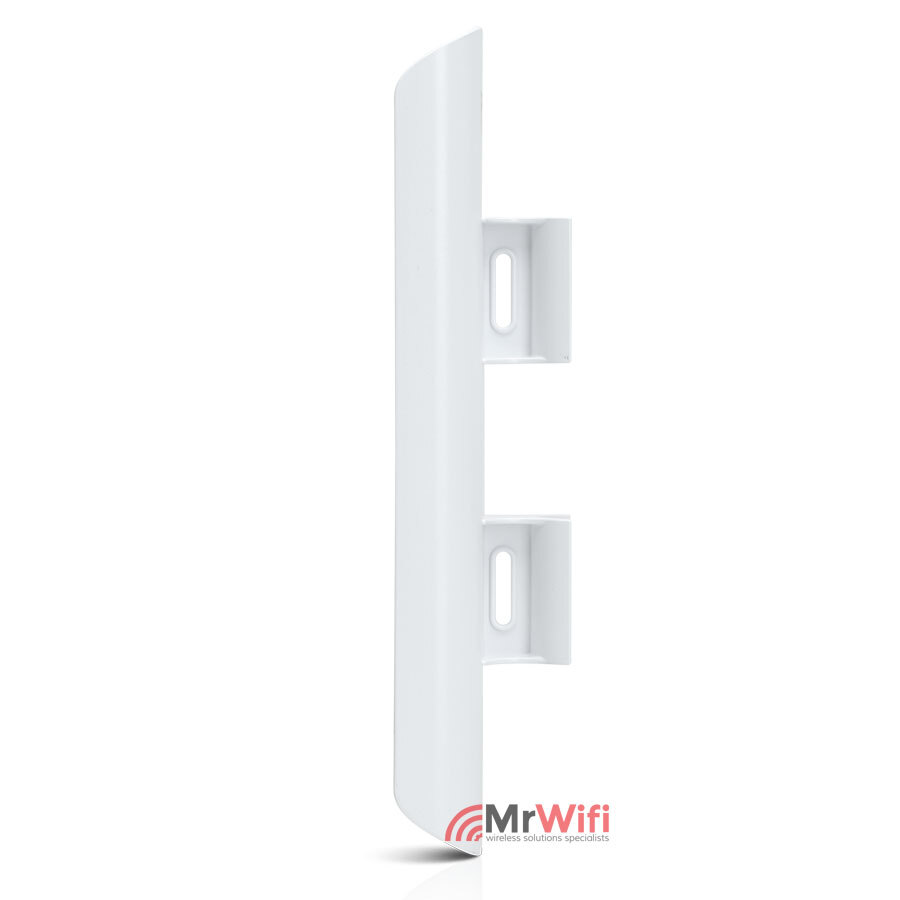

| Mounting | Pole-Mount (Kit Included) |
| Networking Interface | (2) 10/100 Mbps Ethernet Ports |
| Operating Temperature | -30 to 75° C (-22 to 167° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| NSM2/NSM3/NSM365 Operating Frequency (MHz) | |
| NSM2 | 2412 - 2462 |
| NSM3 | 3400 - 3700 |
| NSM365 | 3650 - 3675 |
| NSM5 Operating Frequency (MHz) | |
| Worldwide | 5150 - 5875 |
| EU | 5150 - 5350, 5470 - 5725, 5725 - 5875 |
| USA | U-NII-1: 5150 - 5250, U-NII-2A: 5250 - 5350, U-NII-2C: 5470 - 5725, U-NII-3: 5725 - 5850 |
| IC | 5470 - 5600, 5650 - 5725, 5725 - 5850 |
Shipping Specifications
| SKU | NSM5 |
| Model # | NSM5 |
| Barcode # | 817882023276 |
| Brand | Ubiquiti |
| Shipping Weight | 0.4300kg |
| Shipping Width | 0.098m |
| Shipping Height | 0.083m |
| Shipping Length | 0.292m |
| Shipping Cubic | 0.002375000m3 |
| Unit Of Measure | ea |
NanoStation M5 - Documents
NanoStation M DataSheetBe The First To Review This Product!
