Switch Enterprise 8 PoE with 2 10GB SFP
USW-ENTERPRISE-8-POE

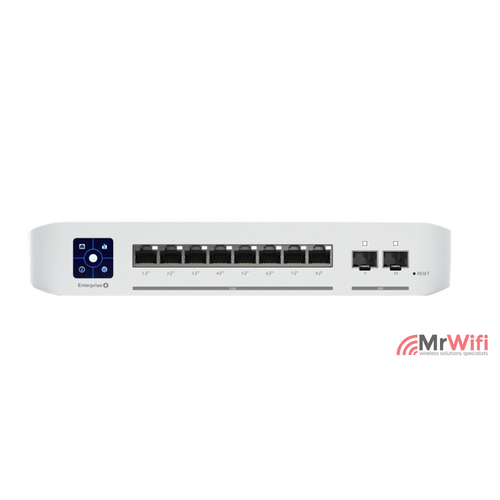

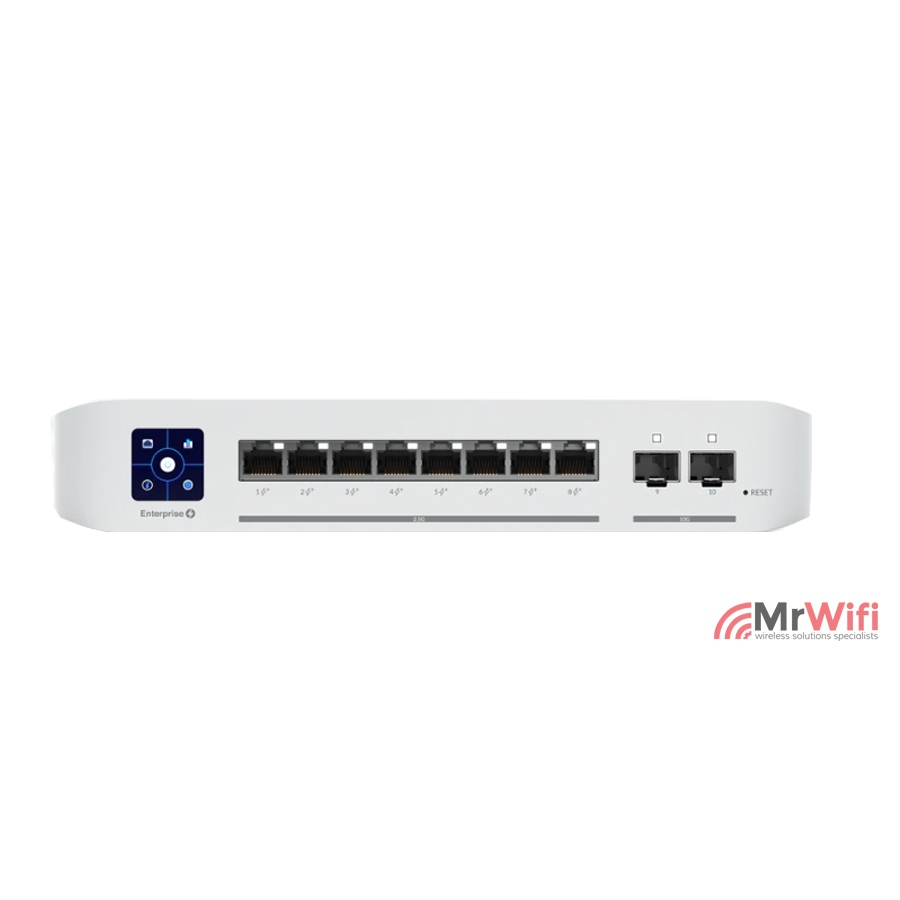

Switch Enterprise 8 PoE
Layer 3, PoE switch with (8) 2.5GbE, 802.3at PoE+ RJ45 ports and (2) 10G SFP+ ports.
The Switch Enterprise 8 PoE (USW Enterprise 8 PoE) is a fully managed, Layer 3 switch with (8) 2.5GbE, 802.3at PoE+ RJ45 ports and (2) 10G SFP+ ports.The USW Enterprise 8 PoE also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights. This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features
(1) 1.3" LCM color touchscreen with AR switch management
(8) 2.5GbE, 802.3at PoE+ RJ45 ports
(2) 10G SFP+ ports
120W total PoE supply Wall-mountable (kit included)
(USW-Enterprise-8-PoE)
Switch Enterprise 8 PoE
Package Includes
- 1 x USW-ENT-8-POE
- 1 x Wall Mount
- 1 x Wall Mount Cover
- 4 x Mounting Screws
- 4 x Screw Anchors
- Power Cable
- Quick Installation Guide
Switch Enterprise 8 PoE - Specifications
| USW-ENTERPRISE-8-POE | |
| Mechanical | |
|---|---|
| Dimensions | 200 x 248 x 44 mm (7.9 x 9.8 x 1.7") |
| Weight | 2.4 kg (5.29 lb) |
| Enclosure Materials | Polycarbonate |
| Mount Material | Polycarbonate |
| Hardware | |
| Total Non-Blocking Throughput | 40 Gbps |
| Switching Capacity | 80 Gbps |
| Forwarding Rate | 59.52 Mpps |
| Max PoE Power | 120W |
| Power Method | (1) 100-240VAC, 2A Max., 50/60 Hz, Universal Input |
| Power Supply | AC/DC, Internal, 150W |
| Management Interface | Ethernet In-Band |
| Networking Interfaces | (8) 1/2.5 Gbps RJ45 Ethernet |
| SFP+ Interfaces | (2) 1/10 Gbps SFP+ |
| PoE Interfaces | (8) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) |
| Max. PoE+ Wattage per Port by PSE | 32W |
| Voltage Range 802.3af Mode | 44 to 57V |
| Voltage Range 802.3at Mode | 50 to 57V |
| Services | SMB Layer 3* PoE Gigabit Ethernet Switch * Layer 3 feature will be available in the future firmware release. |
| LCM Display | (1) 1.3" Touchscreen Bootup Animation: Bootup in Progress Firmware Upgrade Icon: Firmware Upgrading Steady White: Factory Defaults, Awaiting Adoption Steady Blue: Device is Adopted |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
| Operating Temperature | -5 to 45° C (23 to 113° F) |
| Operating Humidity | 10 - 90% Noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| Ethernet | White: Link or Activity |
| SFP+ | White: Link or Activity |
Shipping Specifications
| SKU | USW-Enterprise-8-PoE |
| Model # | USW-ENTERPRISE-8-POE |
| Barcode # | 810010074874 |
| Brand | Ubiquiti |
| Shipping Weight | 2.4000kg |
| Shipping Width | 0.200m |
| Shipping Height | 0.044m |
| Shipping Length | 0.248m |
| Shipping Cubic | 0.002182000m3 |
| Unit Of Measure | ea |
Switch Enterprise 8 PoE - Documents
USW-ENT-8-PoE DatasheetBe The First To Review This Product!
