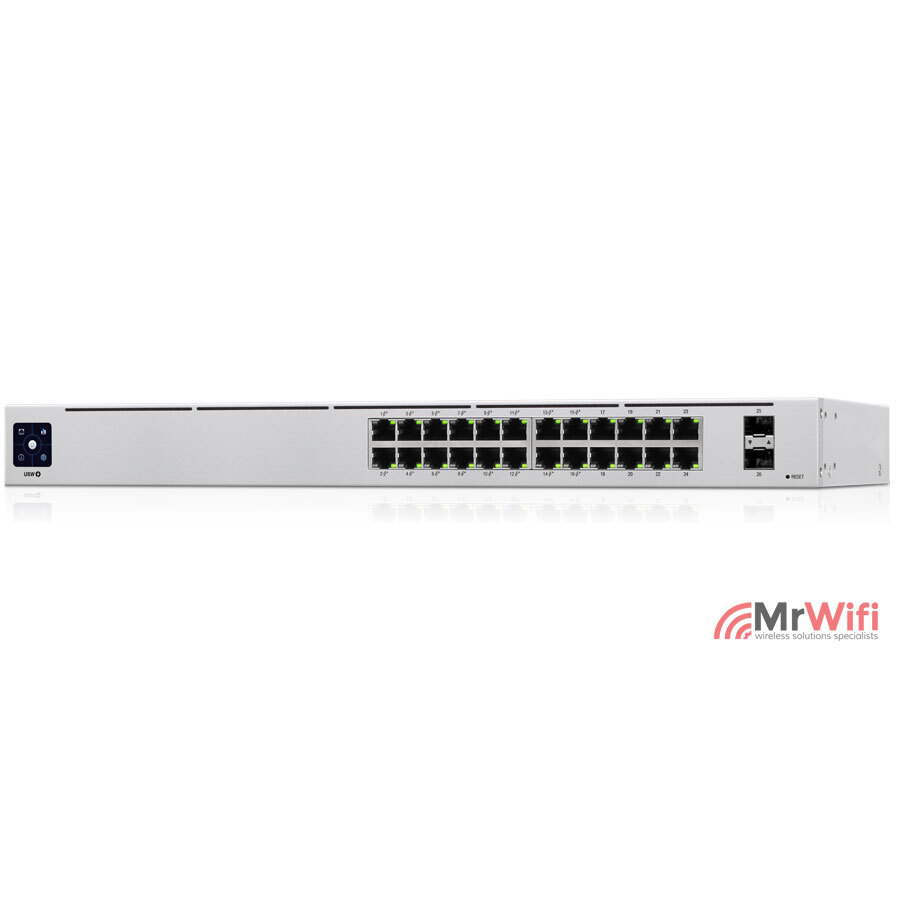

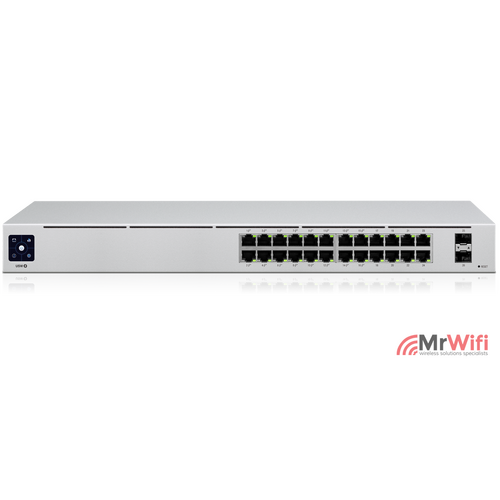

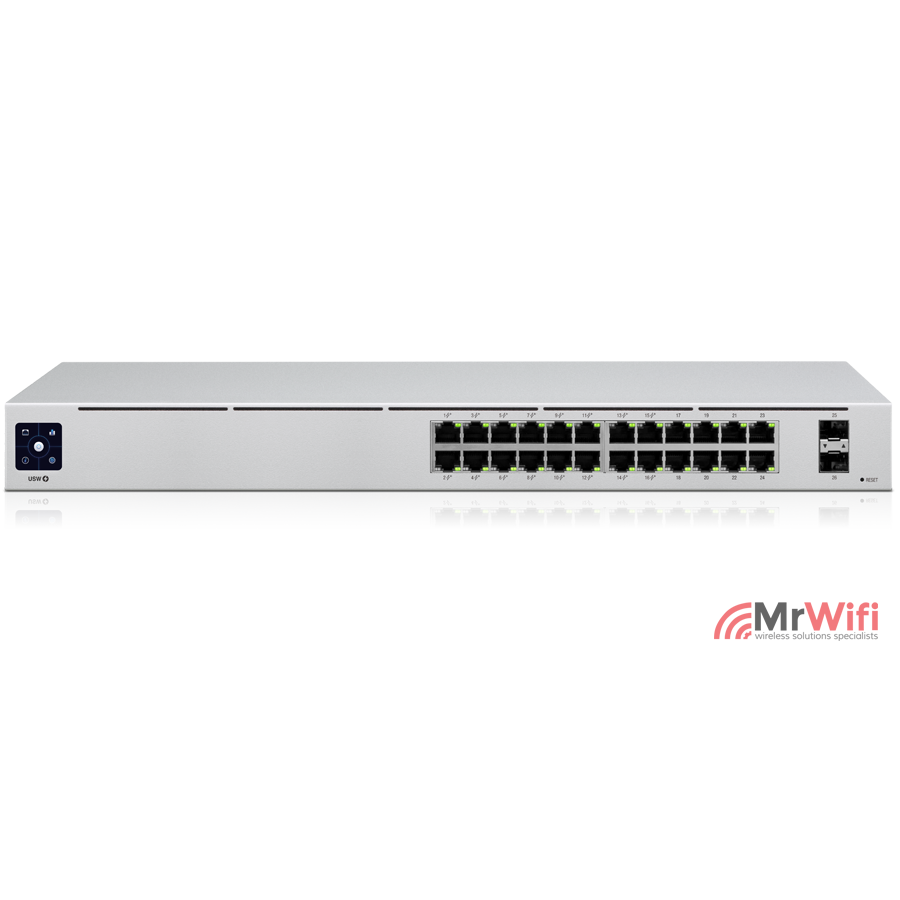

UniFi 24 Port Gigabit Switch Gen2 with SFP No PoE
USW-24
UniFi 24 Port Gigabit Switch Gen2, with SFP No PoE
USW-24 is a managed Layer 2 switch with (24) Gigabit Ethernet ports a nd (2) SFP ports. Its compact 7.9" depth a nd fanless design allow it to be placed in any workspace, and the 1.3" touchscreen provides current switch states and the necessary information you need for quick diagnosis.
The USW-24 is a configurable Layer 2 switch with 24 Gigabit Ethernet ports and 2 SFP ports. The SFP ports provide 1 Gbps fiber uplink options to your enterprise network. The USW-24 features a 1.3" touchscreen, compact size, and fanless design. The touchscreen displays the current switch state and information for quick diagnosis. Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-24 switch offers an extensive suite of advanced Layer 2 switching protocols and features, including operating mode (switching, mirroring, or aggregate) per port.
Features:
- (24) Gigabit Ethernet Ports
- (2) Gigabit SFP Ports
- 1.3" color touchscreen for status information
- Managed by UniFi Network Controller
- 1U rackmountable (kit included)
- Managed by UniFi Network Controller version: 5.12.32 or higher
(USW-24)
UniFi 24 Port Gigabit Switch Gen2 with SFP No PoE
Package Includes
- 1 x USW-24
- 2 x Rack-Mount Brackets (Qty. 2)
- 8 x Bracket Screws
- 4 x Mounting Screws
- 4 x Cage Nuts
- 1 x Power Cord
- Quick Start Guide
UniFi 24 Port Gigabit Switch Gen2 with SFP No PoE - Specifications
| USW-24
|
|
|
Dimensions |
442.4 x 200 x 43.7 mm |
|---|---|
|
Weight |
2.70 kg (5.95 lb) 2.79 kg (6.15 lb) |
|
Interfaces |
|
| Networking | (24) 10/100/1000 RJ45 Ports (2) 1G SFP Ethernet Ports |
| Management | Ethernet In-Band |
|
Power Method |
100-240VAC, 50/60 Hz, Universal Input |
|
Power Supply |
AC/DC, Internal, 36W |
|
Supported Voltage Range |
100 to 240VAC |
|
Max. Power Consumption |
25W |
|
LEDs |
|
| RJ45 Data Ports | Speed/Link/Activity |
| SFP Data Ports | Link/Activity |
|
ESD/EMP Protection |
Air: ± 16 kV, Contact: ± 12 kV |
|
Shock and Vibration |
ETSI300-019-1.4 Standard |
|
Operating Temperature |
-5 to 45° C (23 to 113° F) |
|
Operating Humidity |
10 to 90% Noncondensing |
|
Certifications |
CE, FCC, IC |
Shipping Specifications
| SKU | USW-24 |
| Model # | USW-24 |
| Barcode # | 810010071415 |
| Brand | Ubiquiti |
| Shipping Weight | 3.0900kg |
| Shipping Width | 0.443m |
| Shipping Height | 0.044m |
| Shipping Length | 0.200m |
| Shipping Cubic | 0.003898000m3 |
| Unit Of Measure | ea |
UniFi 24 Port Gigabit Switch Gen2 with SFP No PoE - Documents
