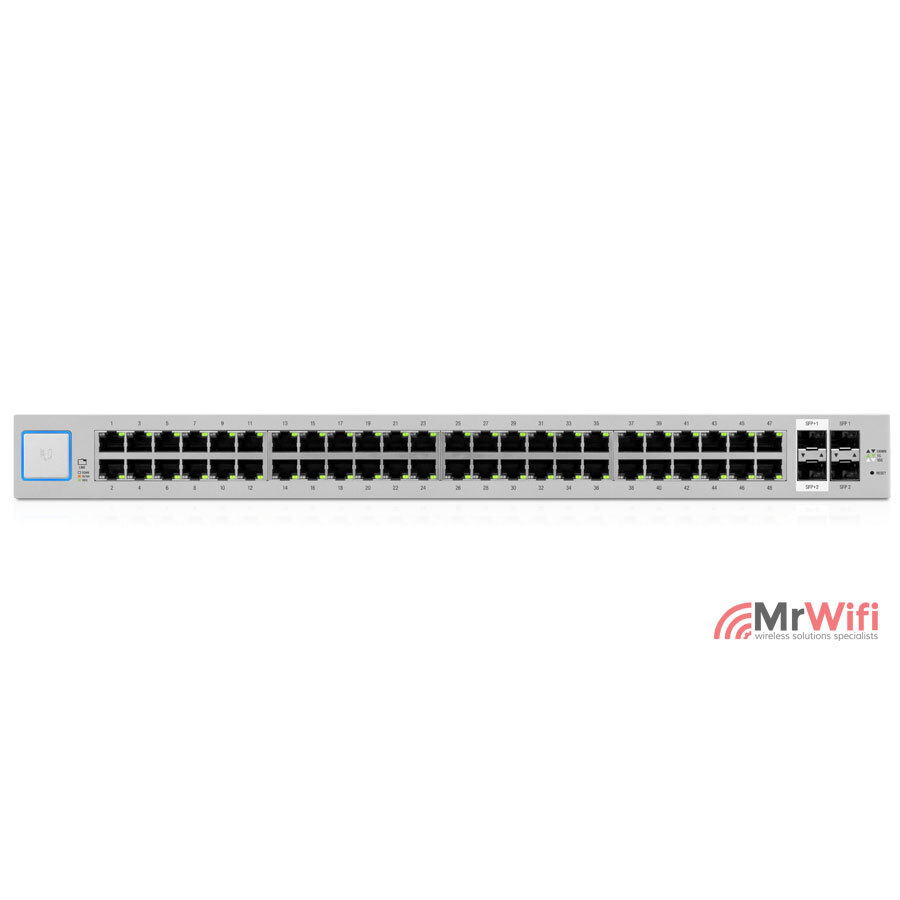

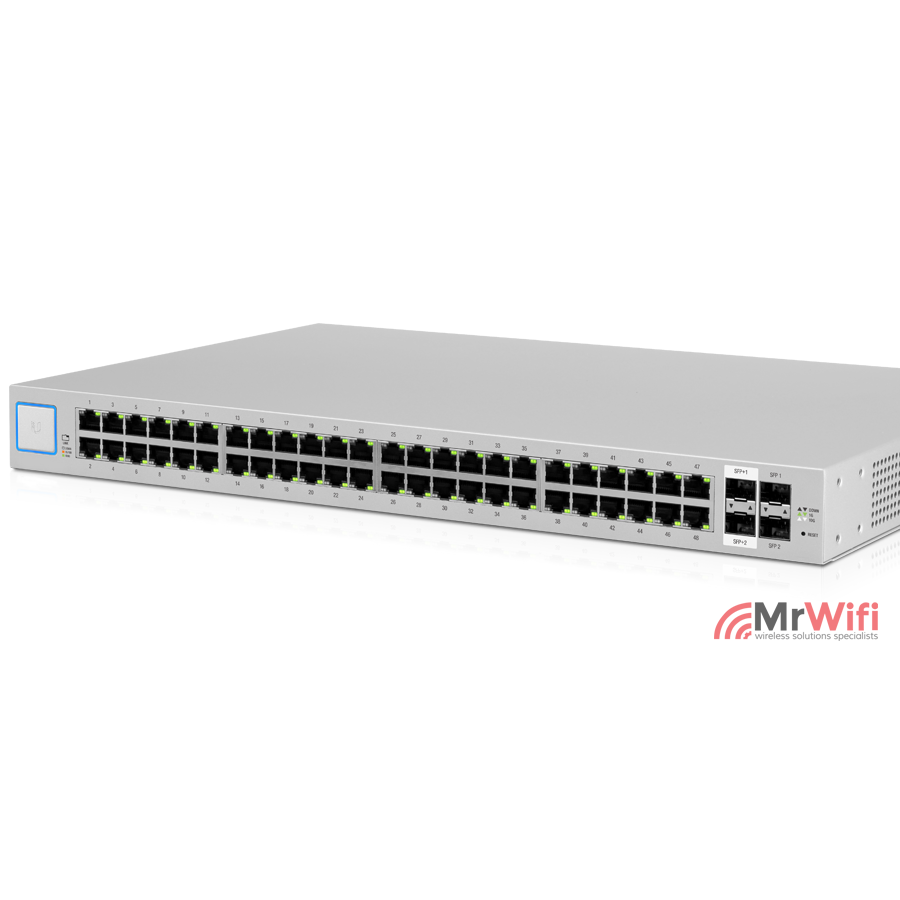

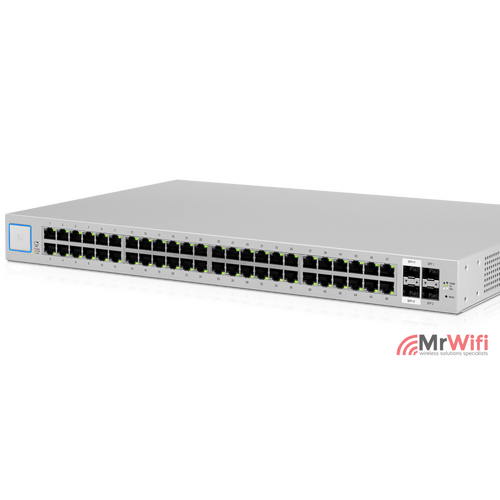

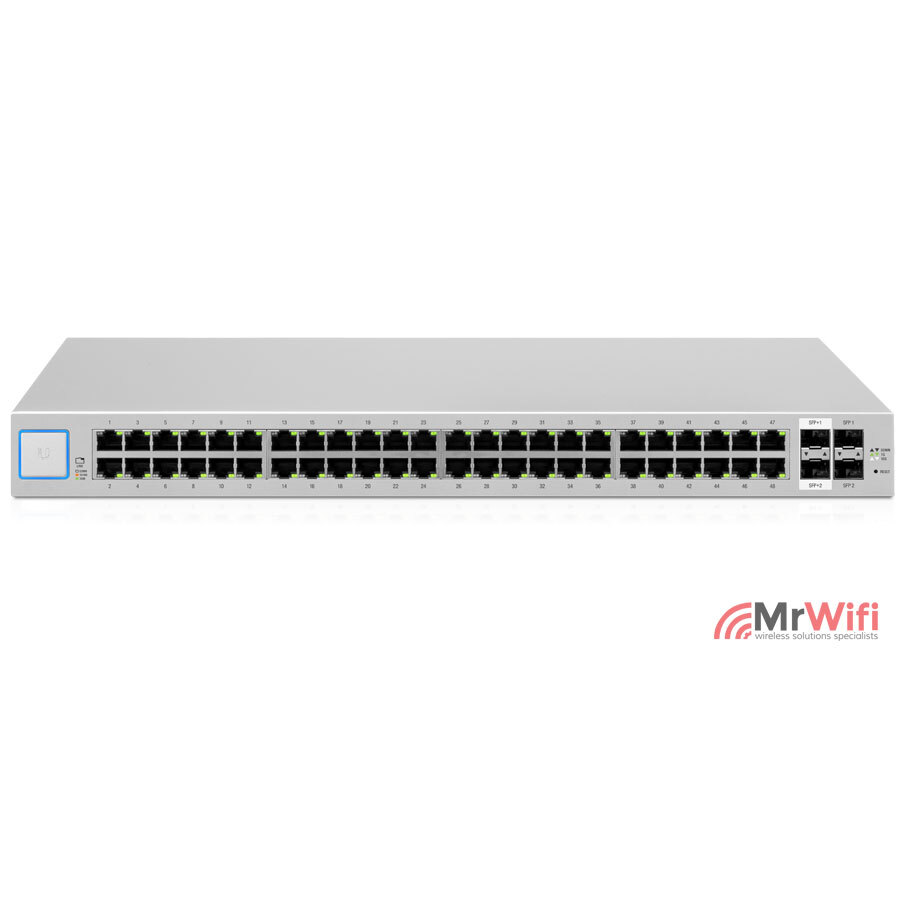

UniFi 48-Port Managed Gigabit Switch (No POE)

US-48

$753.50
Sold Out

Managed Gigabit Switches with SFP



Build and expand your network with Ubiquiti Networks® UniFi® Switch, part of the UniFi line of products. Available with 24 or 48 RJ45 Gigabit ports, the UniFi Switch is a fully managed Gigabit switch, delivering robust performance and intelligent switching for your growing networks.

Switching Performance
The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non‑blocking throughput, the 24‑port model supports up to 26 Gbps, while the 48-port model supports up to 70 Gbps.

Fiber Connectivity
Each model includes two SFP ports for uplinks of up to 1 Gbps. The 48‑port model adds two SFP+ ports for high-capacity uplinks of up to 10 Gbps, so you can directly connect to a high‑performance storage server or deploy a long‑distance uplink to another switch.

(US-48)

UniFi Switch 48 Port No PoE

Package Includes

  • 1 x UniFi Switch 48
  • 2 x Mounting Brackets
  • 8 x Bracket Screws
  • 4 x Mounting Screws (#10-32 x 5/8")
  • 4 x Cage Nuts (#10-32 x 5/8")
  • 4 x Rubber Feet
  • 1 x Power Cord
  • Quick Start Guide

UniFi Switch 48 Port No PoE - Specifications

UNIFI SWITCH 48 (No PoE)
Dimensions 443 x 43 x 286 mm (17.44 x 1.69 x 11.26")
Weight 3.56 kg (7.85 lb), 3.65 kg (8.06 lb) with rack-mount bracket
Networking Interface (48) 10/100/1000 Mbps RJ45 Ethernet Ports(2), 1/10 Gbps SFP+ Ethernet Ports(2), 1 Gbps SFP Ethernet Ports
Management Interface (1) RJ45 Serial Port Out‑of‑Band (Reserved for Future Use), Ethernet In‑Band
Total Non-Blocking Throughput 70 Gbps
Switching Capacity 140 Gbps
Forwarding Rate 104.16 Mpps
Power Method 100‑240VAC/50‑60 Hz, Universal Input
Power Supply AC/DC, Internal, 56W DC
Max. Power Consumption 56W
Sound Level Fan Level 0: 34 dBa; Fan Level 1: 37 dBa
Mounting Yes, 1U High
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC

Shipping Specifications

SKU US-48
Model # US-48
Barcode # 8.18E+11
Brand Ubiquiti
Shipping Weight 3.8000kg
Shipping Width 0.335m
Shipping Height 0.075m
Shipping Length 0.547m
Shipping Cubic 0.013743000m3
Unit Of Measure ea

UniFi Switch 48 Port No PoE - Documents
