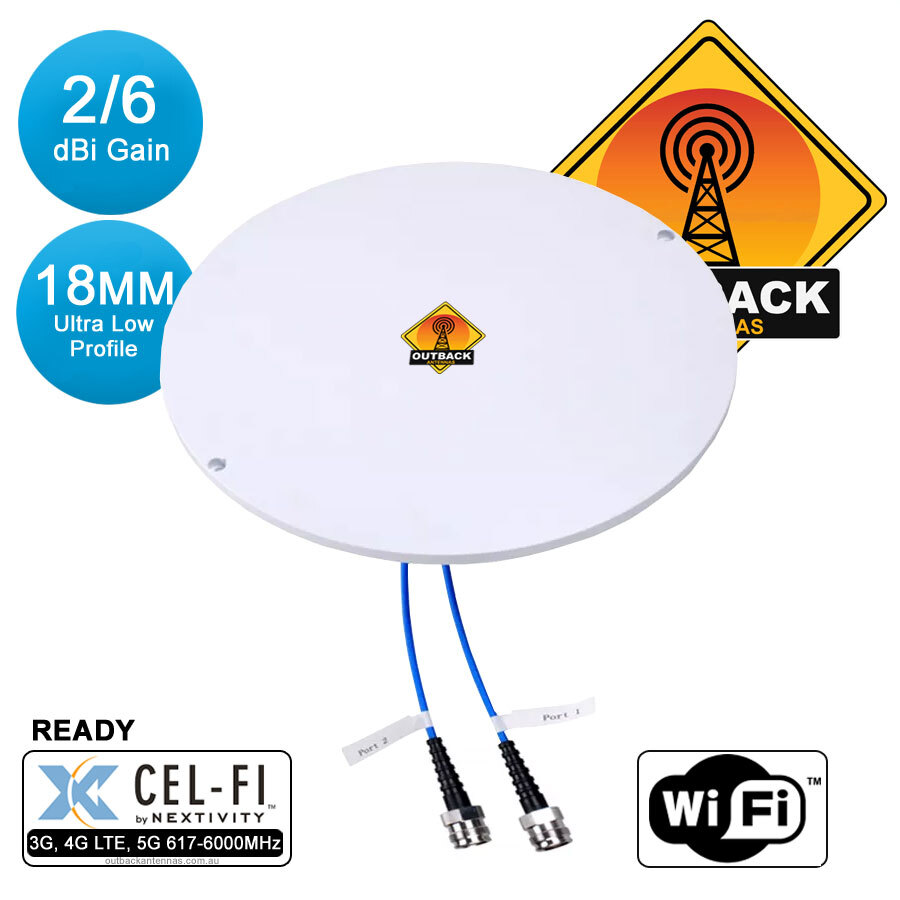

The "PIKLET" Ultra-Thin MIMO Ceiling Antenna 617-6000MHz 2 x N Female Connectors
ANT-OA-PIKLET-M-NF
ALTERNATE PRODUCT:
ANT-OA-PIKLET-NF-The "PIKLET" Omni Antenna Ultra Low Profile INDOOR 3G, 4G, LTE, 5G 698-960/1710-4000MHz or 2.4Ghz WiFi 5dBi,
In Stock: YES
CEILING ANTENNA 360° OMNI Ultra Low Profile MIMO DAS INDOOR 5dBi, 617-960/1710-6000MHz for 3G, 4G, LTE, 5G CEL-FI Mobile Networks or 2.4GHz 5GHz WiFi
The "PIKLET" INDOOR Omni Directional antenna is designed to operate over a broad range of networks including cellular network with all mobile carriers, regardless of what frequency they operate on. This Ultra Low Profile ceiling mountable antenna offers up to 6dBi gain and is the perfect indoor antenna for Home, Office, Caravans, Motorhomes & Boats Marine applications. No longer do you have to buy a new antenna when you switch carriers or network or be concerned what frequency your antenna supports. Perfect for indoor mobile repeater applications.
The "PIKLET MIMO" Outback Antenna will provide the perfect solution for voice and data applications. Perfect for repeater applications that require beam width for complete indoor ;coverage.
Features
- Suitable for all mobile carriers
- Ultra Low Profile Antenna
- Provides a 2dbi gain for 698-960 MHz
- Provides a 6dbi gain for 1710-6000 MHZ
- Includes 2 x RG58 cable x 300mm Long
- 2 x N female connectors
- Ceiling or Wall Mountable
- Ideal for Cel-Fi GO repeater applications for Home. Office, Marine and Caravan
- or WiFi 2.4GHZ and 5GHz IoT Applications
Dimensions: 18Dx266Wx266L mm
Weight: 500g
(ANT-OA-PIKLET-M-NF)
The "PIKLET" Ultra-Thin MIMO Ceiling Antenna 617-6000MHz 2 x N Female Connectors
Pack Includes:
- 1 x The "PIKLET" Ultra-Thin MIMO Ceiling Antenna 617-6000MHz 2 x N Female Connectors
The "PIKLET" Ultra-Thin MIMO Ceiling Antenna 617-6000MHz - SPECIFICATIONS
| Electrical Characteristics | |
| Frequency Range (MHz) | 617-960/1710-6000MHz |
| Polarization | Omni |
| Gain (dBi) | 2/6 |
| Horizontal 3dB Beamwidth | 360° |
| Verticalal 3dB Beamwidth | 95/35° |
| VSWR | ≤1.8/≤1.5 |
| Input Impedance (Ω) | 50 |
| Maximum Power (W) | 100 |
| Lightning Protection | DC grounding |
| Mechanical Characteristics | |
| Connector type | 2 x Type N Female |
| Mount Type | Ceiling Mount |
| Cable length (Meter) | 2 x 30cm Tail |
| Radome material | UV-ABS |
| Mount way | Ceiling or Wall |
| Reflector material | Brass |
| Dimensions (mm) | 266x266x18 |
| Weight (g) | 500 |
| Environmental Characteristics | |
| Noise Factor (dBi) | ≤1.5 |
| Waterproof | NA |
| Operating Temperature (℃) | -40-+60°C |
| Relative Humidity | Up to 95% |
| ROHS Compliant | yes |
SHIPPING SPECIFICATIONS
| SKU | ANT-OA-PIKLET-M-NF |
| Model # | ANT-OA-PIKLET-M-NF |
| Barcode # | 4.81E+11 |
| Brand | OUTBACK ANTENNAS |
| Shipping Weight | 0.5000kg |
| Shipping Width | 0.266m |
| Shipping Height | 0.018m |
| Shipping Length | 0.266m |
| Shipping Cubic | 0.001274000m3 |
| Unit Of Measure | ea |
TThe "PIKLET" Ultra-Thin MIMO Ceiling Antenna 617-6000MHz - Documents
Datasheet The "PIKLET MIMO" Omni Antenna OUTDOOR 5dBi, 698-6000MHzBe The First To Review This Product!
