Antenna "RIPPA" Marine Antenna Omni Waterproof 4G and WiFi 2.4Ghz, 698-2700 MHz 7-10dBi
ANT-OA-RIPPA
ALTERNATE PRODUCT:
ANT-OA-BIG-O4G-MIMO-NF-Omni Antenna MIMO OUTDOOR 3G, 4G/LTE & 2.4Ghz Wi-Fi 12dBi 698-2700MHz ,The "BIG BOY" Online Australia
In Stock: YES

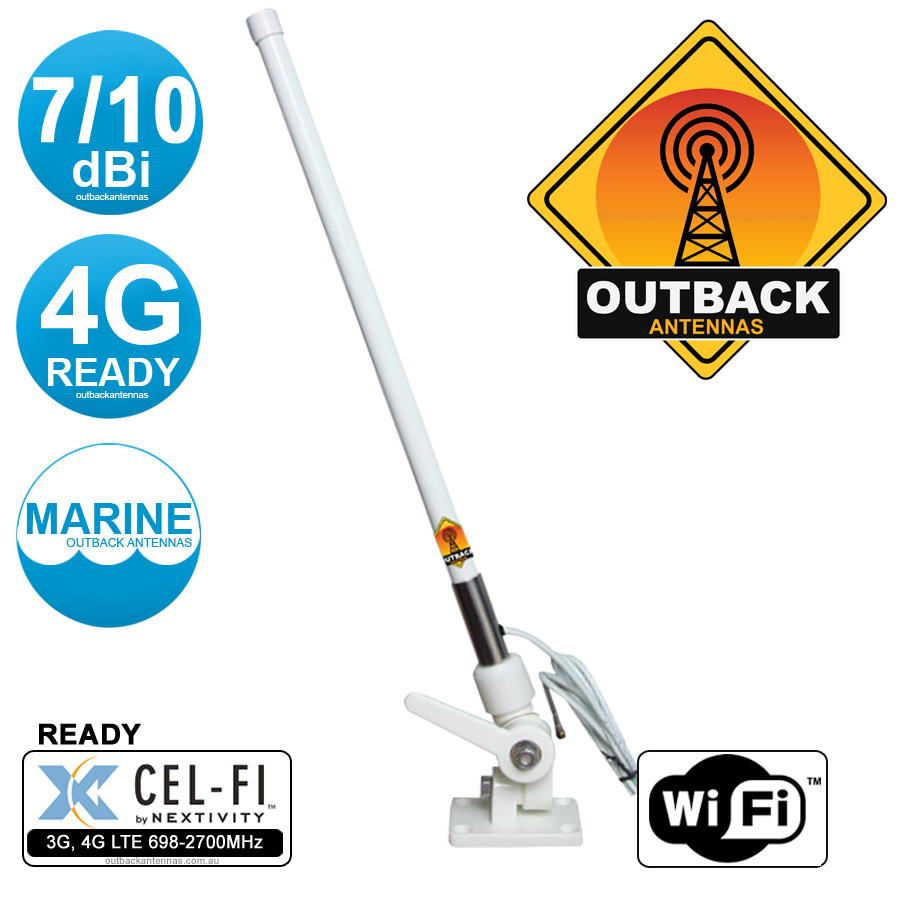

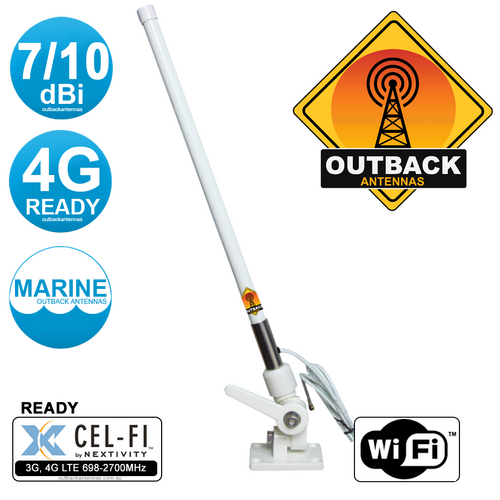

The "RIPPA" Marine Antenna Omni Waterproof 4G and WiFi 2.4Ghz, 698-2700 MHz 7-10dBi. The "RIPPA". Suits Adjustable "WET-SPOT" Mounts by Outback Antennas
Ideal for Telstra Next-G and 4GX networks, Optus, and Vodafone 3G/4G.
The RIPPA Omni Marine Antenna is designed for versatility, for use in a variety of environments, in low to high signal areas and mounted in a marine environment
The RIPPA Omni Marine Antenna will operate with all mobile carriers across Australia, New Zealand and Internationally within the wide band frequency ranges 698-960 and 1710-2700 MHz. With a high 7 - 10 dBi gain and supporting all bands, this antenna will provide the perfect solution for voice and data applications where high gain marine antennas are required.
The antennas do not require a level mounting surface and are supplied with your choice of suitable marine antenna mount (PVC deck mount, stainless steel deck mount) which allows the antenna to be mounted vertically regardless of the mounting surface used. All mounts allow the marine antennas to be laid down when not in use. The RIPPA Omni Marine Antenna offers superior performance, maximum range and reliability - it is perfect for fixed wireless terminals, mobile broadband internet applications and smart repeater applications to improve mobile signal coverage.
Features
- 7 dBi gain across lower bands 698-960 MHz
- 10 dBi gain across upper bands 1710-2700 MHz
- Suitable for all 3G/4G/4GX bandwidths across all mobile carriers
- Comes with base marine mount choice of deck/stainless steel deck
- 5m pre-terminated N Female connector
- Ruggedised construction built especially for the harsh marine environment
- Suitable for marine, caravans, motor homes and freight vehicles
- Mounting Options: (Sold Separately)
- Nylon Adjustable Mount "WET-SPOT-NYLON"
- Stainless Steel Adjustable Mount "WET-SPOT-SS"
- Stainless Steel Fixed Mount "WET-SPOT"
Note: Mount Sold Separately.
(ANT-OA-RIPPA)
The "RIPPA" Marine Antenna Omni Waterproof 4G 698-2700 MHz 7-10dBi
Pack Includes:
- 1 x "RIPPA" Marine Antenna Omni Waterproof 4G 698-2700 MHz 7-10dBi
- 1 x Mounting Option (Sold Separately)
- "WET-SPOT" NYLON adjustable marine antenna mount
- "WET-SPOT" STAINLESS STEEL adjustable marine antenna mount
- "WET-SPOT" STAINLESS STEEL FIXED marine antenna mount
- "WET-SPOT" STAINLESS STEEL RAIL marine antenna mount
The "RIPPA" Marine Antenna Omni Waterproof 4G 698-2700 MHz 7-10dBi
INDIVIDUAL SKU:
SPECIFICATIONS | |
Frequency Range | 698-2700MHz 4g outdoor marine antenna |
Input Impedance | 50 Ω |
Gain | 6-10dBi |
VSWR | ≤3.0 |
Polarisation | Vertical |
Radiation | Omni |
Horizontal Beam Width | 360º |
Radiation Direction | 360° (omnidirectional) |
Maximum Input Power | 50 W |
MECHANICAL SPECIFICATIONS | |
Antenna Length | 650x21x21mm |
Cable | 5m |
Connector Type | N-Type Female |
Mounting | Deck, Rail |
Radome Color | White |
Cable | RG58U |
Attachment | Welding |
SHIPPING SPECIFICATIONS
SKU | ANT-OA-RIPPA |
Model # | ANT-OA-RIPPA |
Brand | OUTBACK ANTENNAS |
Shipping Weight | 0.4700kg |
Shipping Width | 0.070m |
Shipping Height | 0.050m |
Shipping Length | 0.800m |
Shipping Cubic | 0.002800000m3 |
Unit Of Measure | ea |
The "RIPPA" Marine Antenna Omni Waterproof 4G 698-2700 MHz 7-10dBi - Documents
