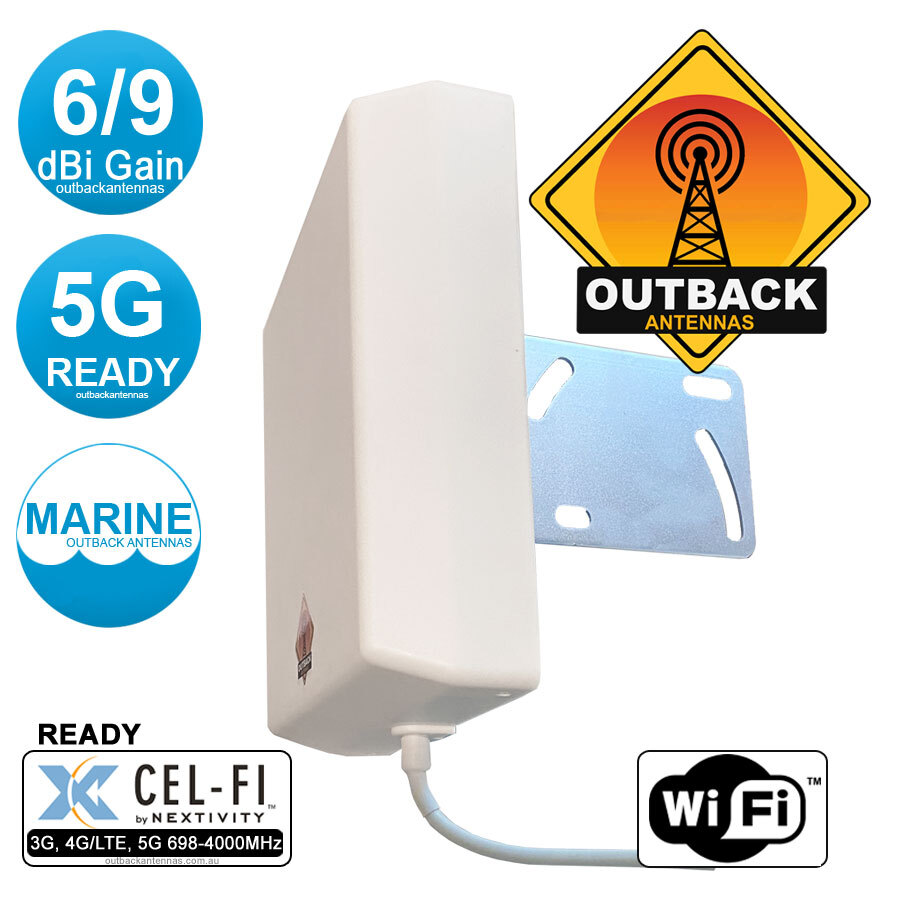

The"OD WALLY" Pole Mount Panel Antenna OUTDOOR 6/9dBi, 698-4000MHz
ANT-OA-WALLY-OD
ALTERNATE PRODUCT:
ANT-OA-NUB-The "NUB" Omni Antenna OUTDOOR 3G, 4G, LTE, 5G or 2.4Ghz WiFi 5dBi, 698-4000MHz
In Stock: YES
The "OD WALLY" Pole Mount Panel Antenna OUTDOOR 6/9dBi, 698-4000MHz for 3G & 4G and 5G Mobile Networks
The "OD WALLY" Outdoor Pole Mount Antenna is designed to operate with all mobile carriers, regardless of what frequency they operate on. This side mount antenna offers a 6 or 9dBi gain depending on MHz range and is suitable as an indoor panel antenna. No longer do you have to buy a new antenna when you switch carriers or be concerned what frequency your antenna supports. Perfect for indoor mobile repeater applications.
The "OD WALLY" Wall Mount Antenna by Outback Antennas will provide the perfect solution for voice and data applications. Perfect for repeater applications that require beamwidth for complete internal coverage.
Features
- Suitable for all mobile carriers
- Provides a 6dbi gain for 698-960 MHz
- Provides a 9dbi gain for 1710-2700MHz
- Provides a 6dbi gain for 3400-4000MHz
- Includes RG58 cable x 300mm Long
- Short cable tail with N female connector
- Sealed design offering strong protection and weather resistance
- Ideal for Cel-Fi GO repeater applications for marine and caravan
(ANT-OA-WALLY-OD)
The"OD WALLY" Pole Mount Panel Antenna OUTDOOR 6/9dBi, 698-4000MHz

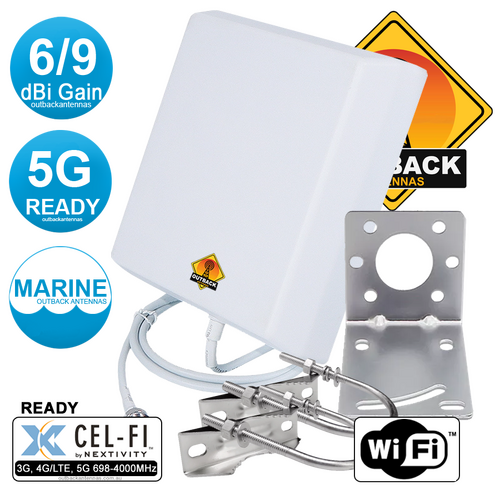

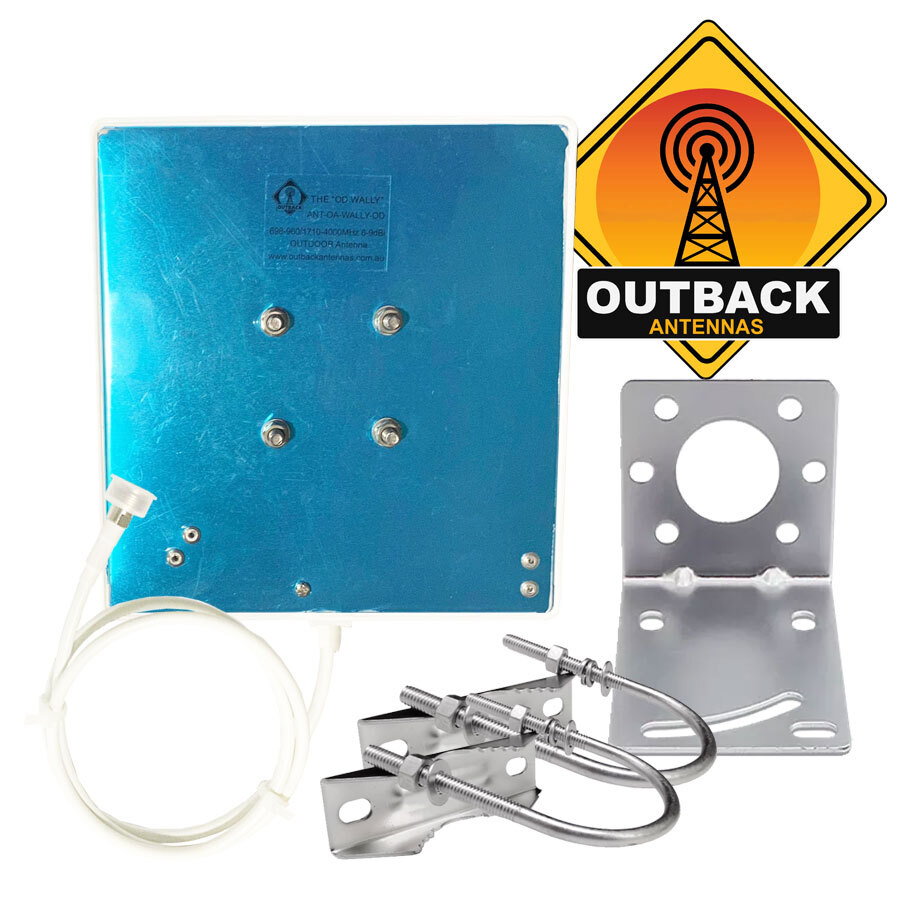

Pack Includes:
- 1 x The"OD WALLY" Pole Mount Panel Antenna OUTDOOR 6/9dBi, 698-4000MHz

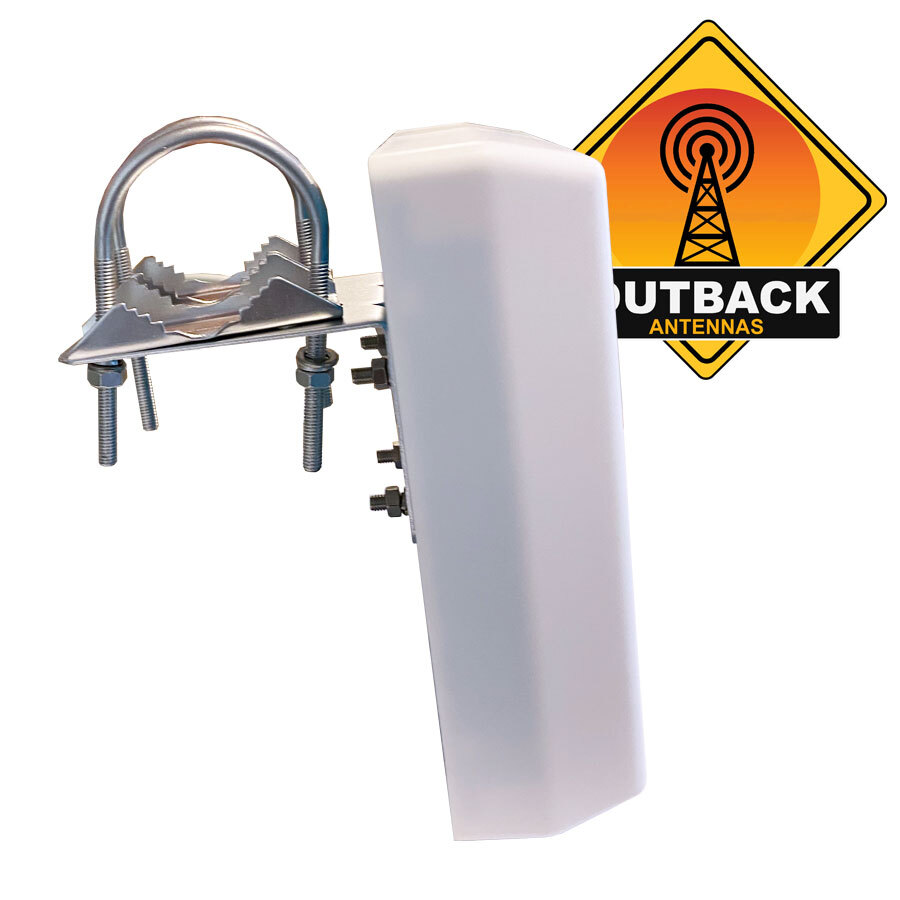

- 1 x Pole Mount Assembly L Bracket
- 2 x U Bolts
- 2 x Nuts
- 4 x Split Washers
- 4 x Flat Washers
The"OD WALLY" Pole Mount Panel Antenna OUTDOOR 6/9dBi, 698-4000MHz - SPECIFICATIONS
|
|
||
|
Electrical Specifications |
||
|
Frequency Range |
698-960 / 1710-2700MHz/3400-4000MHz |
|
|
Gain |
> 6 dBi / 9 dBi / 6dBi |
|
|
VSWR |
≤2.0 |
|
|
Polarization |
Vertical |
|
|
Horizontal Beamwidth |
65° |
|
|
Vertical Beamwidth |
55° |
|
|
Input Impedance |
50Ω |
|
|
Max. Power |
100W |
|
|
Lightning protection |
DC Ground |
|
|
|
|
|
|
Mechanical Specifications |
||
|
Connector |
N-Female, (.3m cable length) |
|
|
Mount Type |
Pole Mount Assembly |
|
|
Dimensions |
165x155x50mm |
|
|
Weight |
0.3 kg |
|
|
Reflector Material |
Copper |
|
|
Radome Material |
ABS |
|
|
Radome Color |
White |
|
|
Relative Humidity |
Up to 100% |
|
|
Operating Temperature |
-40℃ to +60℃ |
|
SHIPPING SPECIFICATIONS
| SKU | ANT-OA-WALLY-OD |
| Model # | ANT-OA-WALLY-OD |
| Barcode # | 4.81E+11 |
| Brand | OUTBACK ANTENNAS |
| Shipping Weight | 0.2900kg |
| Shipping Width | 0.180m |
| Shipping Height | 0.055m |
| Shipping Length | 0.220m |
| Shipping Cubic | 0.002178000m3 |
| Unit Of Measure | ea |
The"OD WALLY" Pole ;Mount Panel Antenna OUTDOOR 6/9dBi, 698-4000MHz - Documents
Datasheet The "OD WALLY" Pole Mount Panel Antenna OUTDOOR.Be The First To Review This Product!
