Portable Fiber Optic Visual Fault Locator 10MW (8-10km)
FS-VFL-10MW
Designed to finding breakpoint, poor connection, dead zone, bending or cracking and End-to-End visual fibre identification in an optical network.
FS-VFL-205 Pen Shape Visual Fault Locator is a compact but powerful fibre optical cable test tool, with an output power up to 10mW, which can be used to locate sharp bends & breaks in jacked or bare fibre within 10km. It can also be applied to identify the connectors in patch panels and identify the fibres during splicing operation. The choice of a continuous wave output mode for steady fault illumination or a flashing output mode makes for easier fault location.
Product Details
| Wavelength | 650nm ± 20nm | Output Power | 10mW |
| Dynamic Distance | 8-10km | Housing Material | Metal |
| Connector | 2.5mm or 1.25mm Universal connector | Operation Mode | Pulsed (2Hz) and CW |
| Operation Temperature | -10~+50°C (<90%RH) | Storage Temperature | -20~+60°C (<90%RH) |
| Dimensions | 175x26x26mm | Weight | 50g |
Easy Operated and Cost-Effective Visual Fault Locator

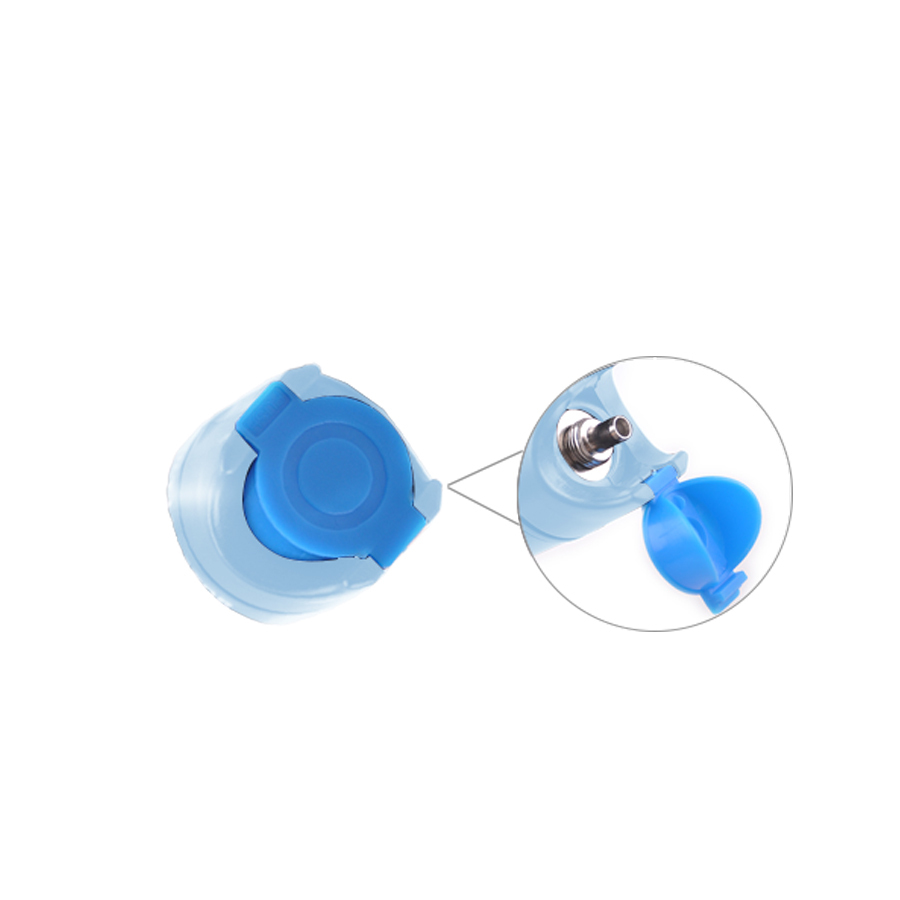

Single shot shaping technique, prevent the fiber connector from pollution.
High fiber concentration and little divergence, easily penetrate through a 8~10km fiber.

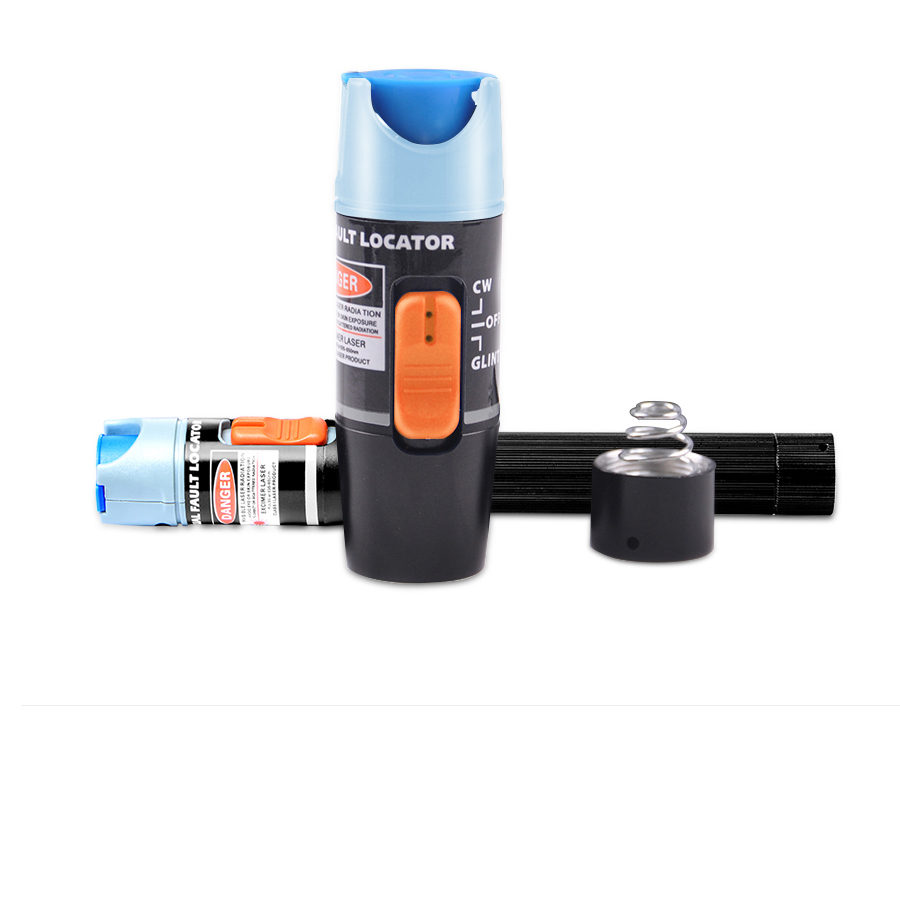

Well-proportioned metal sandblasting with matte paint design, bring good hand feelings to users.

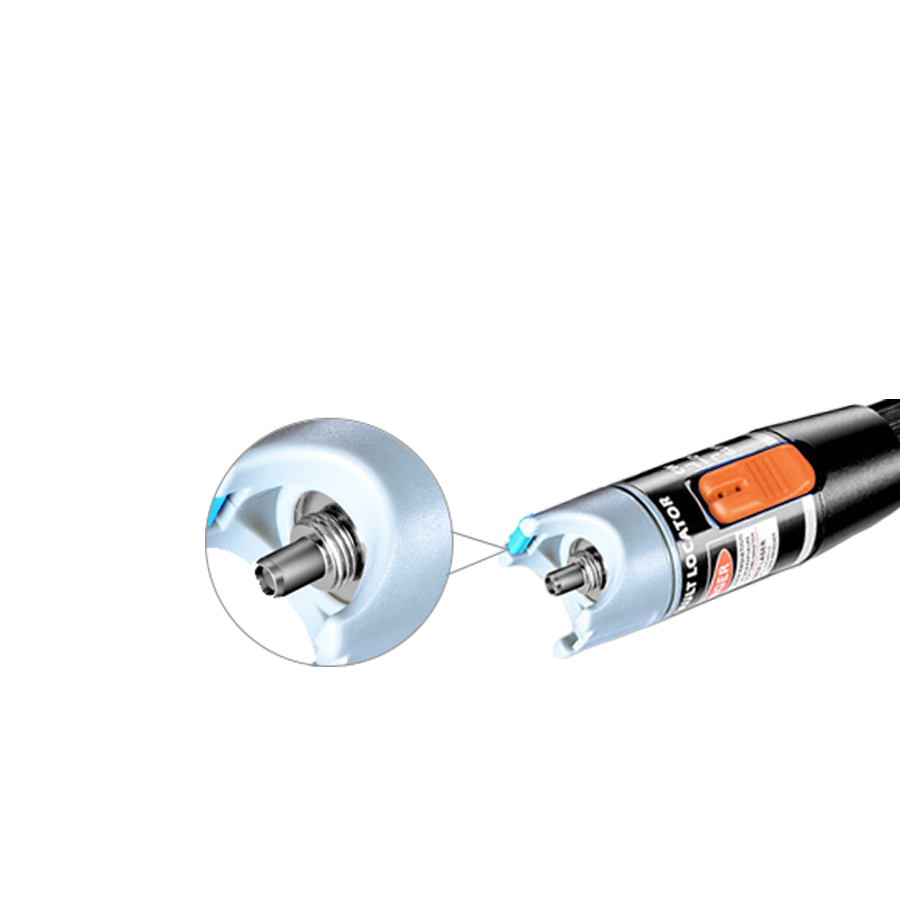

The integrated universal 2.5mm adapter makes for easy connection to SC, ST and FC connectors. While for LC and MU connectors, a 2.5mm to 1.25mm adapter is needed.

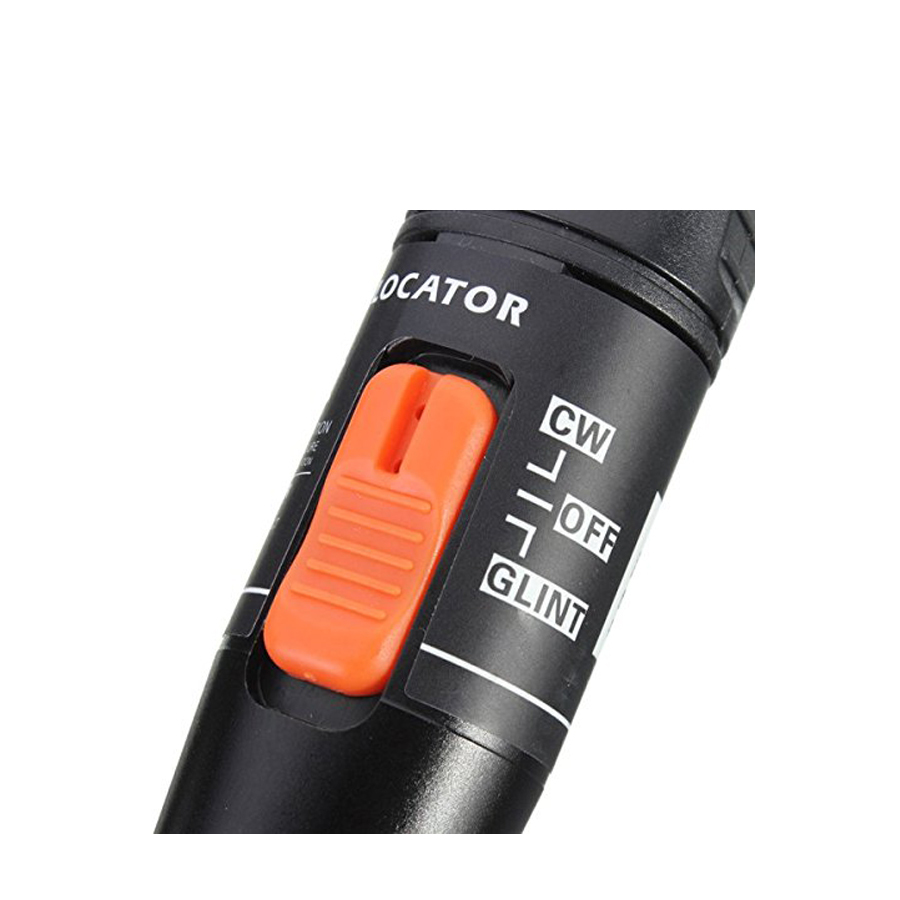

You can choose a continuous wave output mode for steady fault illumination or a flashing output mode makes for easier fault location

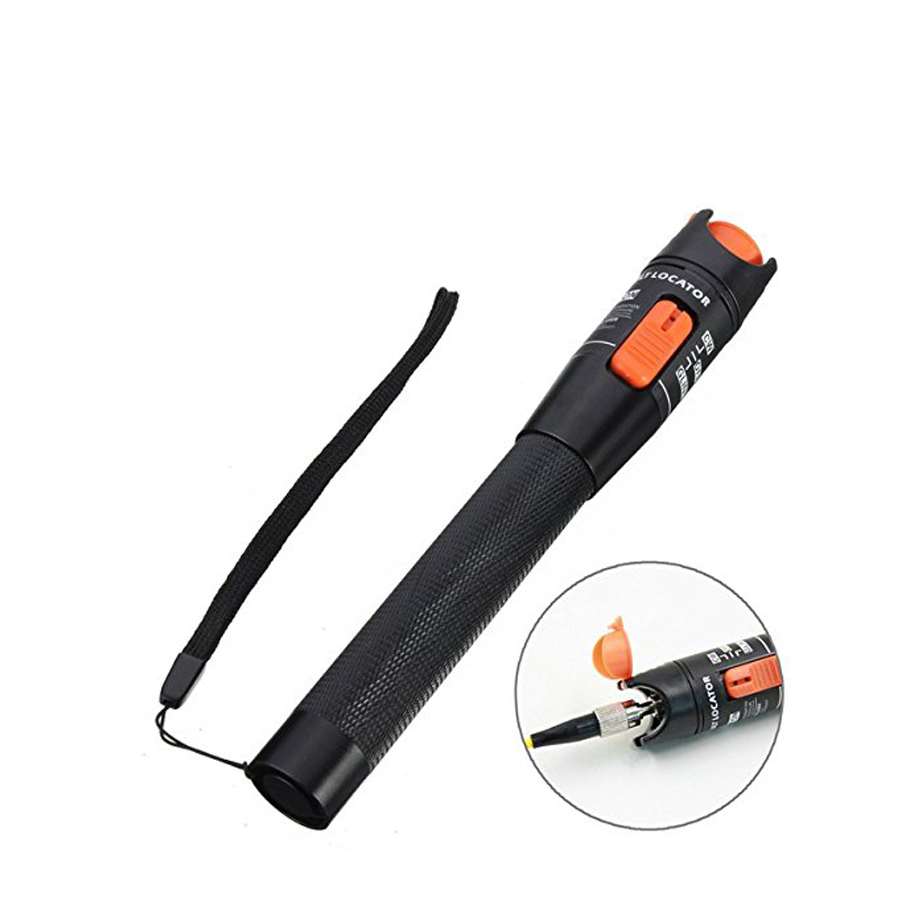

Compact and intelligent design makes it a good assistance in locating breakpoints of a fiber
(FS-VFL-10MW)
Portable Fiber Optic Visual Fault Locator (8-10km)

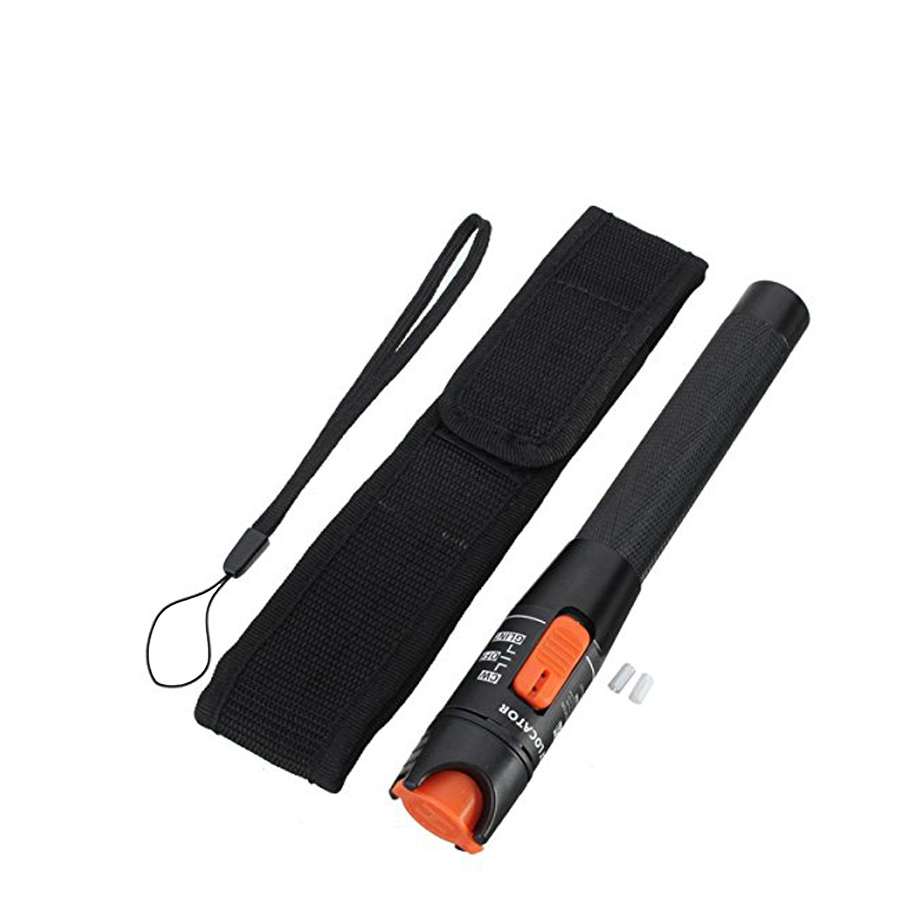

Pack Includes:
- 1 x FS-VFL-205
- 1 x Protective Case
- 1 x Lanyard
Portable Fiber Optic Visual Fault Locator (8-10km) - Specifications
| Wavelength | 650nm ± 20nm |
| Output Power | 10mW |
| Dynamic Distance | 8-10km |
| Housing Material | Metal |
| Connector | 2.5mm or 1.25mm Universal connector |
| Operation Mode | Pulsed (2Hz) and CW |
| Operation Temperature | -10~+50°C (<90%RH) |
| Storage Temperature | -20~+60°C (<90%RH) |
| Dimensions | 175x26x26mm |
| Weight | 50g |
Shipping Specifications
| SKU | FS-VFL-10MW |
| Model # | FS-VFL-10MW |
| Barcode # | 4.81E+11 |
| Brand | FibreShop |
| Shipping Weight | 0.0800kg |
| Shipping Width | 0.026m |
| Shipping Height | 0.026m |
| Shipping Length | 0.175m |
| Shipping Cubic | 0.000118000m3 |
| Unit Of Measure | ea |
Portable Fiber Optic Visual Fault Locator (8-10km) - Documents
FS-VFL-205 User ManaulBe The First To Review This Product!
