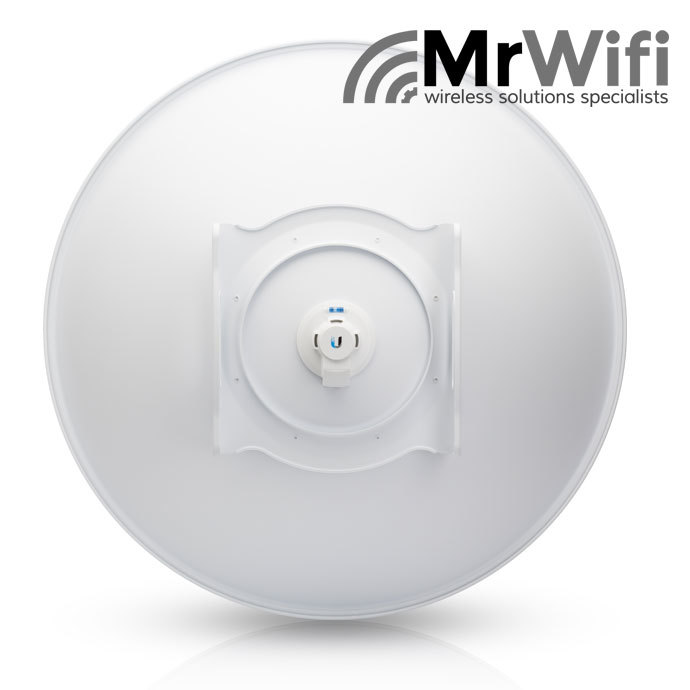

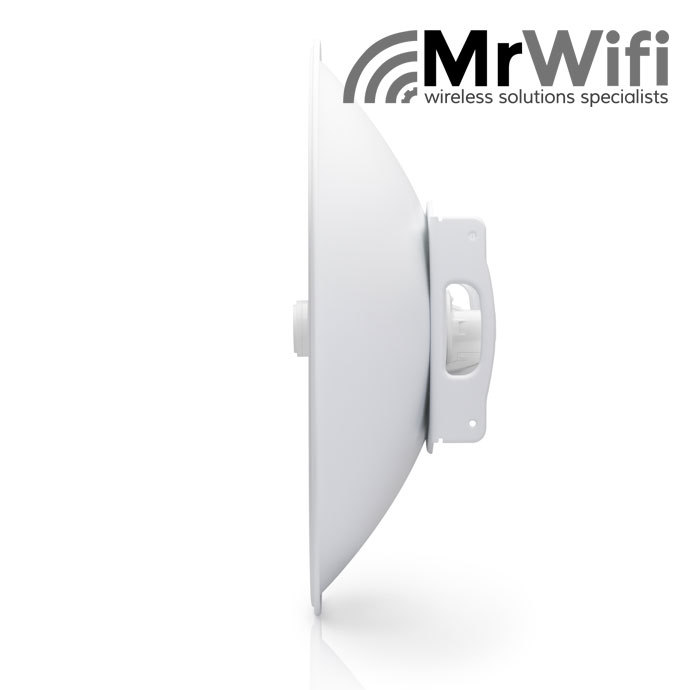

PowerBeam 5AC 500 27dBi Gain 500mm With Radome
PBE-5AC-500
High-Performance airMAX® ac Bridge
Incorporating a dish reflector design with proprietary airMAX® ac technology, the PowerBeam™ ac is ideal for CPE deployments requiring maximum performance.

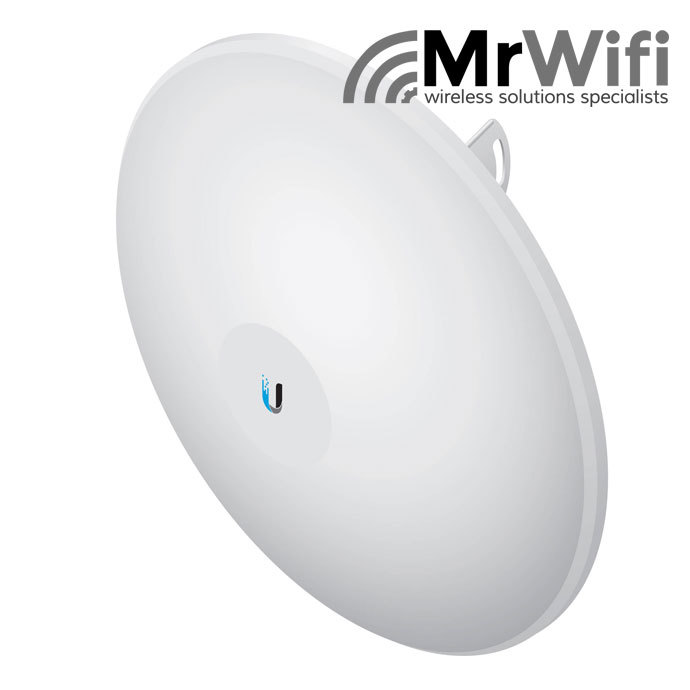

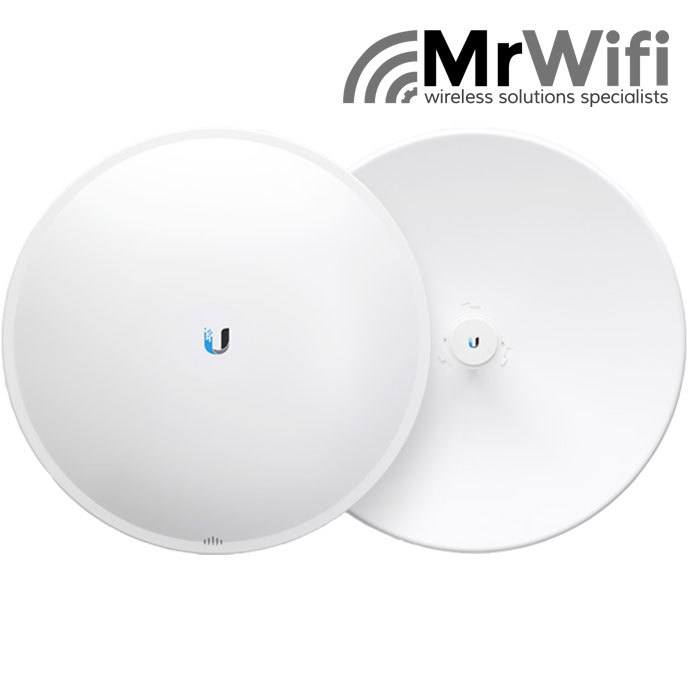

Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses. The PowerBeam™ ac PBE-5AC-500 includes a protective radome to shield the radio from nature's harshest elements.
Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.
Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
(PBE-5AC-500)
PowerBeam 5AC 500
Package Includes
- 1 x Dish Reflector
- 1 x Radome
- 1 x Antenna Feed
- 1 x Rear Housing
- 1 x Adjustment Bracket
- 1 x Mounting Bracket
- 4 x Hex Bolts with Washers (M8x20)
- 2 x Pole Clamp
- 4 x Long Carriage Bolts (M8x135)
- 4 x Flange Nuts
- 4 x Screws with Washers (M4x12)
- 4 x Washers (M4)
- 4 x Nylon Insert Lock Nuts (M4)
- 1 x Gigabit PoE (24V, 0.5A) with Mounting Bracket
- 1 x Power Cord
- Quick Start Guide
PowerBeam 5AC 500 - Specifications
| POWERBEAM PBE-5AC-500 | |
|---|---|
| Dimensions Radome Excluded Radome Included |
520 x 520 x 308 mm (20.47 x 20.47 x 12.13") 525 x 525 x 315 mm (20.67 x 20.67 x 12.40") |
| Weight Radome Excluded Radome Included |
2.35 kg (5.18 lb) 3.15 kg (6.95 lb) |
| Operating Frequency | Worldwide: 5150-5875 MHz USA: 5725-5850 MHz |
| Gain | 27 dBi |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Processor | MIPS 74Kc |
| Enclosure Characteristics | Outdoor UV Stabilized Plastic |
| Max. Power Consumption | 8W |
| Power Supply | 24V, 0.5A Gigabit PoE Supply (Included) |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Shock and Vibrations | ETSI300-019-1.4 |
| Wind Loading | 264.6 N @ 96 km/h (60 lbf @ 60 mph) |
| Wind Survivability | 96 km/h (60 mph) |
| Certifications | CE, FCC, IC |
| Mounting | Pole-Mount (Kit Included) |
| Operating Temperature | -40 to 70 C (-40 to 158 F) |
| Operating Humidity | 5 to 95% Noncondensing |
Shipping Specifications
| SKU | PBE-5AC-500 |
| Model # | PBE-5AC-500 |
| Barcode # | 817882026451 |
| Brand | Ubiquiti |
| Shipping Weight | 4.0000kg |
| Shipping Width | 0.320m |
| Shipping Height | 0.530m |
| Shipping Length | 0.530m |
| Shipping Cubic | 0.089888000m3 |
| Unit Of Measure | ea |
PowerBeam 5AC 500 - Documents
