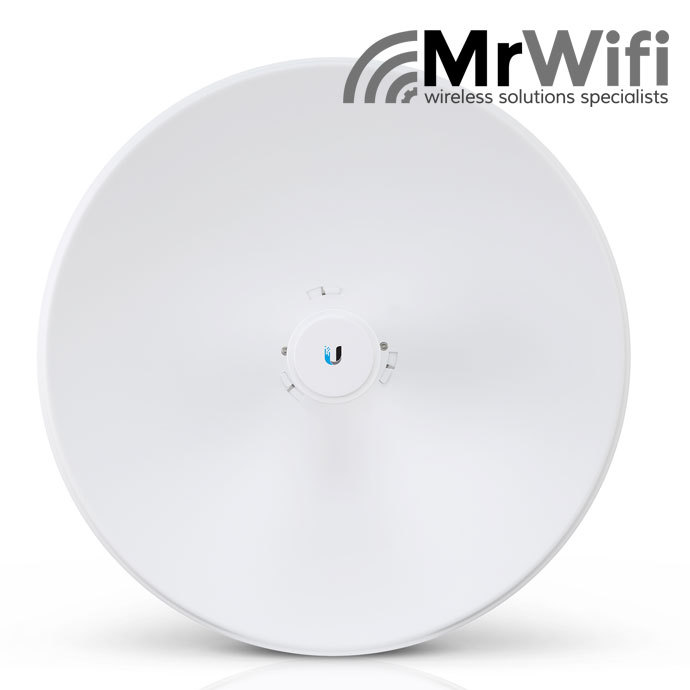

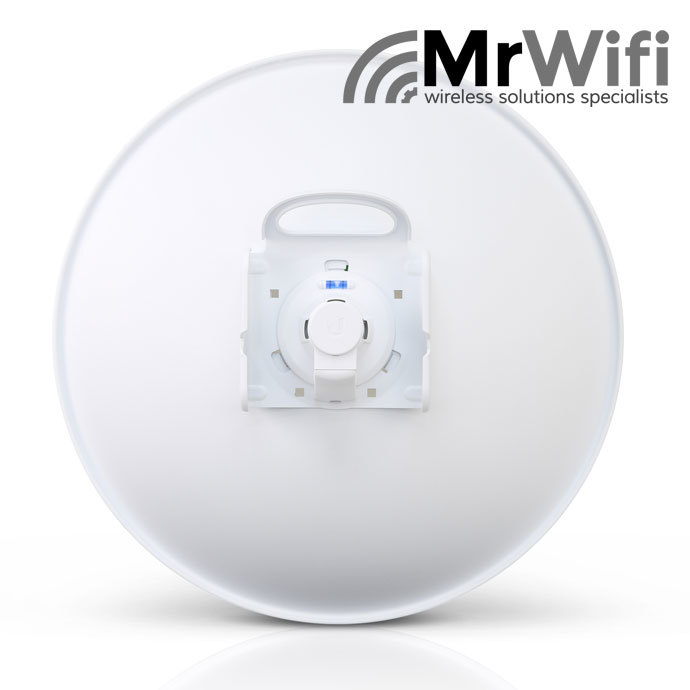

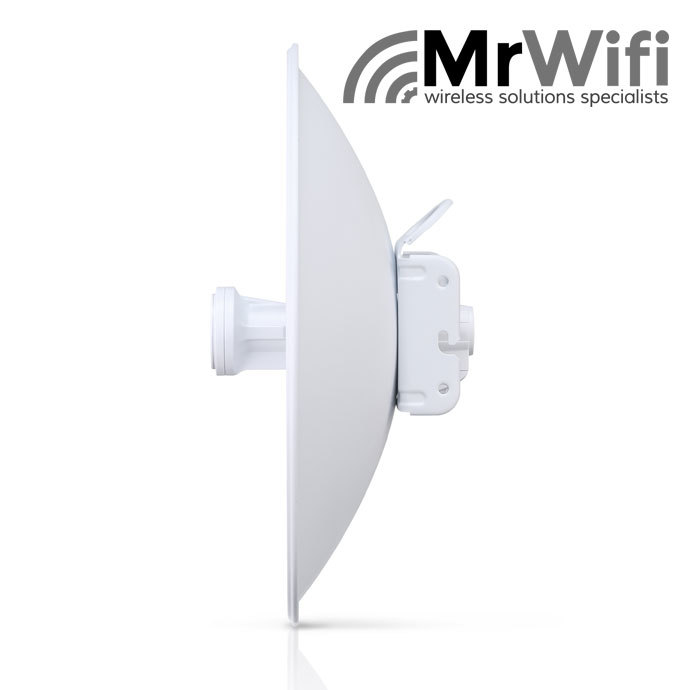

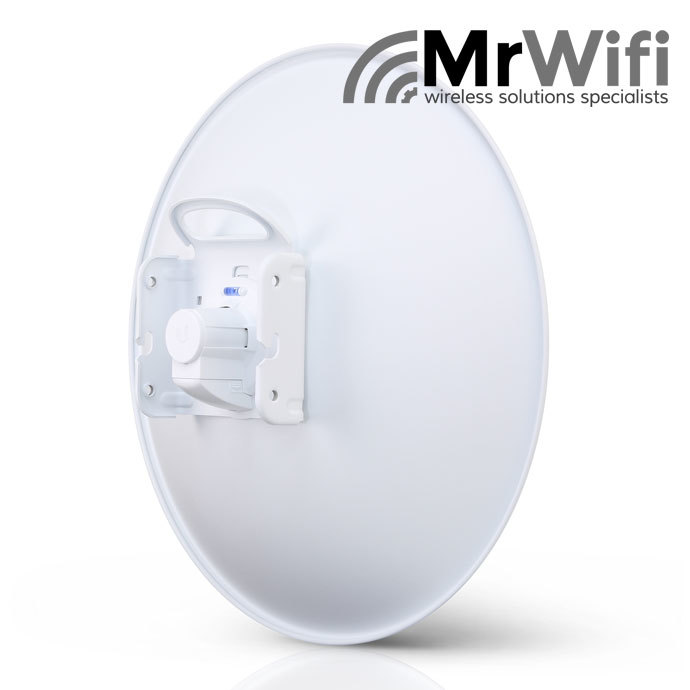

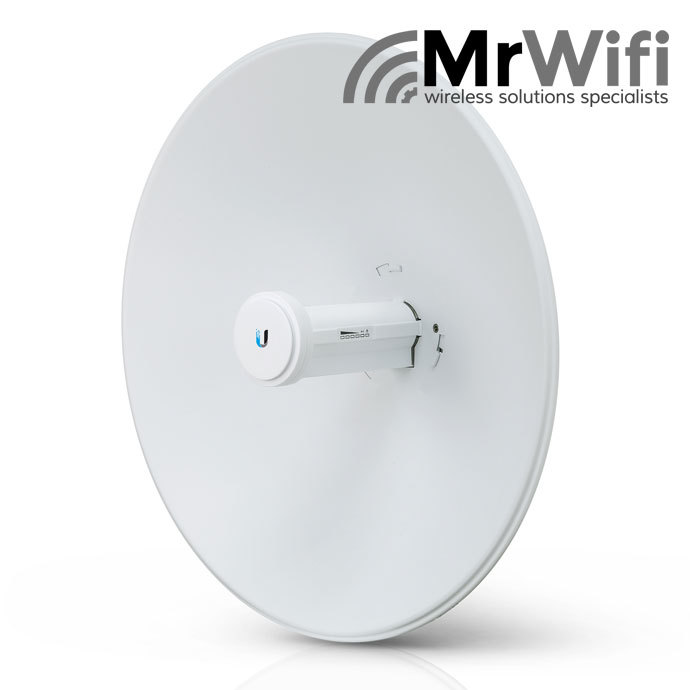

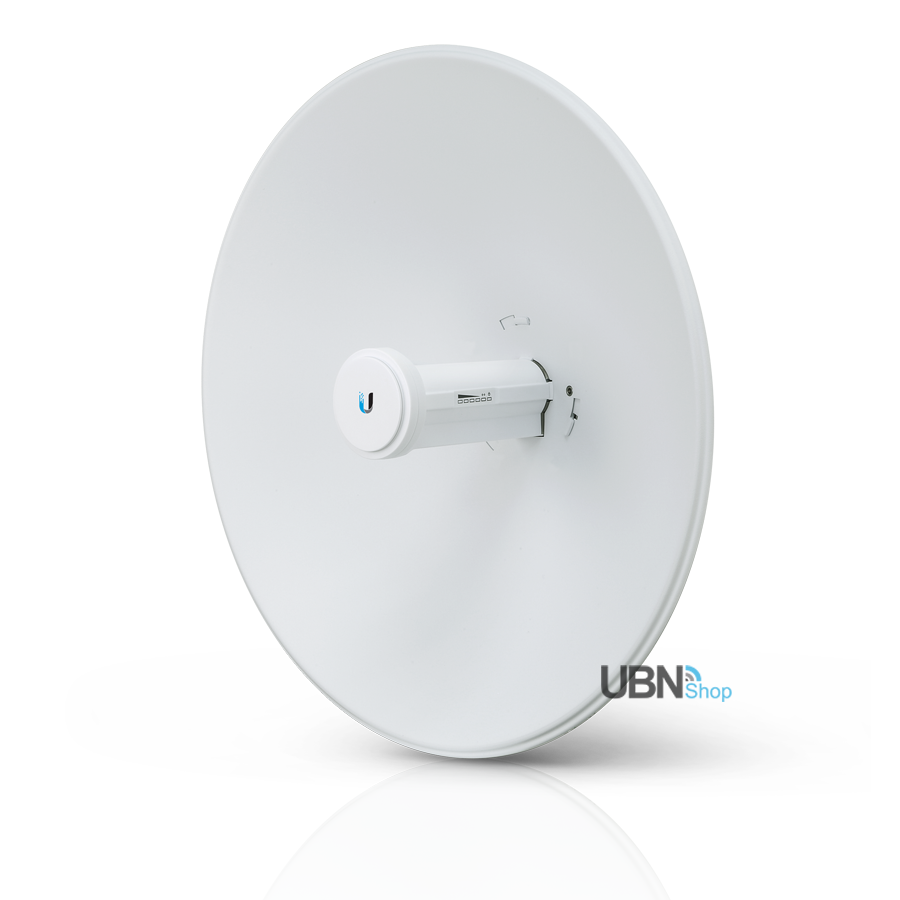

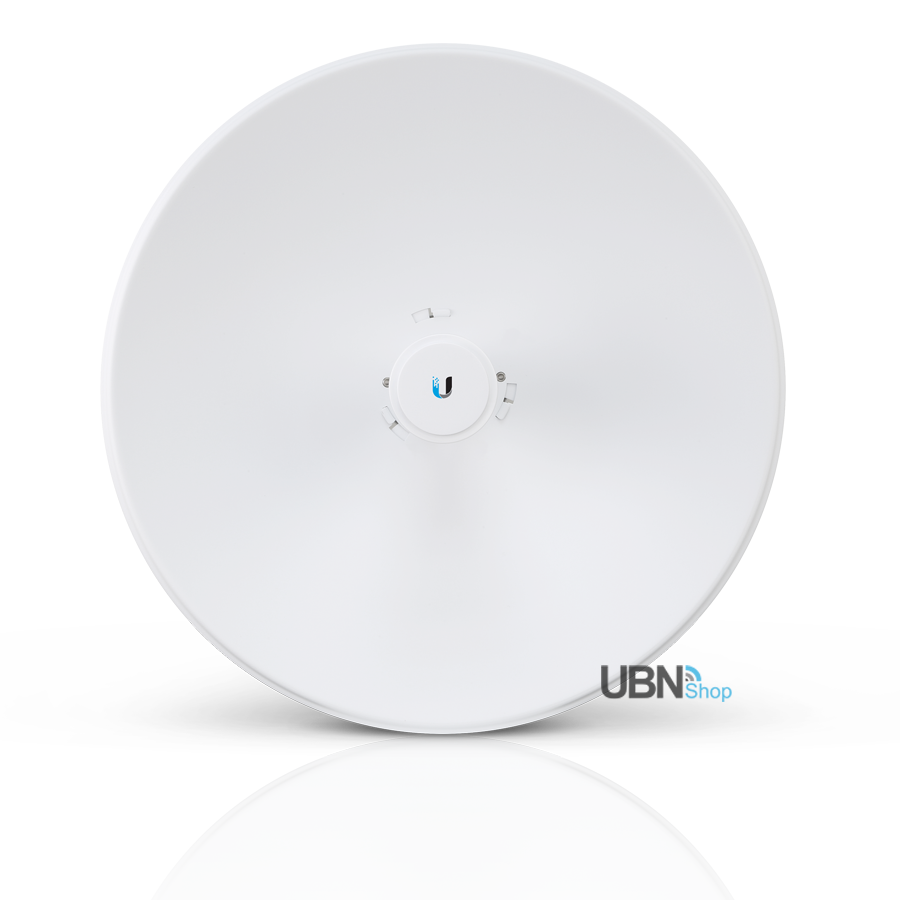

PowerBeam 5AC Gen2
PBE‑5AC‑Gen2
High-Performance airMAX® ac Bridge
Incorporating innovative industrial design with proprietary airMAX® ac technology, the PowerBeam® AC is ideal for CPE deployments requiring maximum performance.
Powerful dish reflector design with proprietary airMAX ac chipset and dedicated management Wi-Fi for easy U Mobile app support and fast setup. Excellent beam directivity provides the best performance for PtP or PtMP links located in high-noise environments.
- Improved Radio Design
- Improved Mounting
- Improved Surge Protection
- Management WiFi Radio/U-Mobile App
- AirOS v8.1 New UI
Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses. The PowerBeam® AC requires no tools for assembly; only a single wrench is required for pole-mounting.
(PBE-5AC-GEN2)
PowerBeam 5AC GEN2
Package Includes
- 1 x Dish Reflector
- 1 x Antenna Feed
- 1 x Rear Housing
- 1 x Adjustment Bracket
- 1 x Mounting Bracket
- 4 x Hex Bolts with Washers
- 1 x Pole Clamp
- 2 x Long Carriage Bolts
- 2 x Flange Nuts
- 1 x Gigabit PoE (24V, 0.5A) with Mounting Bracket
- 1 x Power Cord
- Quick Start Guide
PowerBeam 5AC GEN2 - Specifications
| POWERBEAM PBE-5AC-GEN2 | |
|---|---|
| Dimensions | 420 x 420 x 230mm (16.54 x 16.54 x 9.06") |
| Weight | 2.22 kg (4.89 lb) |
| Gain | 25 dBi |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Processor | MIPS 74Kc |
| Enclosure Characteristics | Antenna Feed: Outdoor UV Stabilized Plastic Dish Reflector: Powder-Coated SPCC |
| Max. Power Consumption | 8.5W |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Supported Voltage Range | 20 to 26VDC |
| Wind Loading | 380 N @ 200 km/h (85.4lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Certifications | CE, FCC, IC |
| Mounting | Pole-Mount (Kit Included) |
| Operating Temperature | -40 to 70 C (-40 to 158 F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Operating Frequency | Worldwide: 5150-5875 MHz USA: U-NII-1: 5150-5250 MHz, U-NII-2-A: 5250-5350 MHz, U-NII-2C: 5470-5725 MHz, U-NII-3: 5725-5850 MHz |
Shipping Specifications
| SKU | PBE-5AC-GEN2 |
| Model # | PBE‑5AC‑Gen2 |
| Barcode # | 817882024488 |
| Brand | Ubiquiti |
| Shipping Weight | 3.8000kg |
| Shipping Width | 0.490m |
| Shipping Height | 0.145m |
| Shipping Length | 0.500m |
| Shipping Cubic | 0.035525000m3 |
| Unit Of Measure | ea |
PowerBeam 5AC GEN2 - Documents
Datasheet PowerBeam AC Gen2Be The First To Review This Product!
