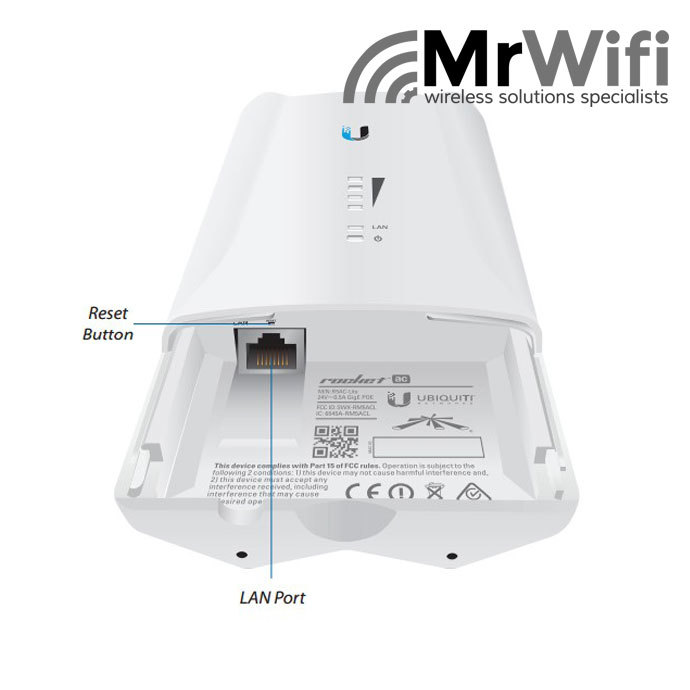

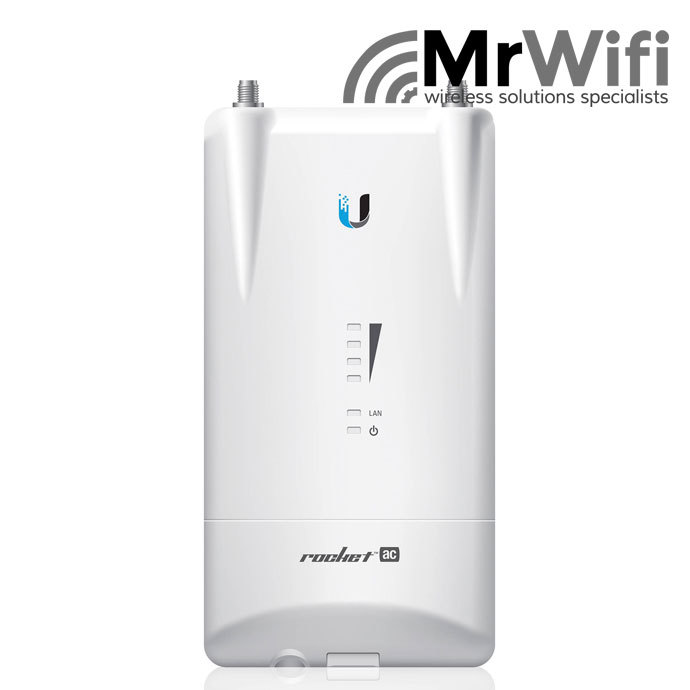

Rocket 5AC Lite PTP
R5AC-Lite
airMAX®ac BaseStation
Ubiquiti Networks has designed the first airMAX® ac radios for high performance and ease of installation. You have the freedom to deploy the Rocket® ac anywhere in the world, and it allows for a high degree of flexibility in configuring channel bandwidths (subject to local country regulations). Pair the Rocket5ac Lite with airMAX ac antennas for optimal performance:
- PtP backhaul Rocket5ac Lite with the RocketDish™ ac
- PtMP links Rocket5ac Lite* with the airMAX ac Sector
Available in three models, the Rocket® ac features airMAX® ac technology for maximum performance in wireless links. The PtP (Point-to-Point) and PtMP (Point-to-MultiPoint) models also feature airPrism™ technology to further enhance 5 GHz performance in high-density areas.
airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.
(R5AC-Lite)
Rocket 5AC LITE PTP
Package Includes
- 1 x Rocket 5ac Lite
- 1 x Gigabit PoE Adapter (24V, 0.5A)
- 1 x Power Cord
- Quick Start Guide
Rocket 5AC LITE PTP - Specifications
| Rocket AC LITE PTP R5AC-LITE | |
|---|---|
| Dimensions | 162 x 84 x 37 mm (6.38 x 3.31 x 1.46”) |
| Weight | 250 g (8.81 oz) |
| Max. Power Consumption | 8.5W |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Operating Frequency | Worldwide: 5150-5875 MHz USA: U-NII-1: 5150-5250 MHz, U-NII-2-A: 5250-5350 MHz, U-NII-2C: 5470-5725 MHz, U-NII-3: 5725-5850 MHz |
| Processor | Atheros MIPS 74Kc, 720 MHz |
| Memory | 128 MB DDR2 SDRAM, 16 MB NOR FLASH |
| Networking Interface | (1) 10/100/1000 Mbps |
| RF Connections | (2) RP-SMA (Waterproof ) |
| LEDs | Power, LAN, (4) Signal Strength |
| Channel Sizes PtP Mode PtMP Mode |
10/20/30/40/50/60/80 MHz 10/20/30/40 MHz |
| Enclosure Characteristics | Outdoor UV Stabilized Plastic |
| Supported Voltage Range | 20 to 26VDC |
| ESD/EMP Protection | ± 24KV Air / Contact |
| Operating Temperature | -40 to 80° C (-40 to 176° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Shock and Vibration | ETSI300-019-1.4 |
| Wireless Approvals | FCC, IC, CE |
| RoHS Compliance | Yes |
| Modes | Access Point, Station |
| Services | Web Server, SNMP, SSH Server, Telnet , Ping Watchdog, DHCP, NAT, Bridging, Routing |
| Mounting | Pole-Mount (Kit Included) |
| Utilities | Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test |
| Distance Adjustment | Dynamic Ack and Ackless Mode |
| Power Adjustment | Software Adjustable UI or CL |
| Security | WPA2 AES Only |
| QoS | Supports Packet Level Classification WMM and User Customer Level: High/Medium/Low |
| Statistical Reporting | Up Time, Packet Errors, Data Rates, Wireless Distance, Ethernet Link Rate |
| Other | Remote Reset Support, Software Enabled/Disabled, VLAN Support, 256QAM |
| Ubiquiti Specific Features | 30/50/60 MHz Channels, airMAX ac Mode, Traffic Shaping with Burst Support, Discovery Protocol, Frequency Band Offset, Ackless Mode |
Shipping Specifications
| SKU | R5AC-Lite |
| Barcode # | 810354025174 |
| Brand | Ubiquiti |
| Shipping Weight | 0.4300kg |
| Shipping Width | 0.127m |
| Shipping Height | 0.088m |
| Shipping Length | 0.216m |
| Shipping Cubic | 0.002414000m3 |
| Unit Of Measure | ea |
Rocket 5AC LITE PTP - Documents
