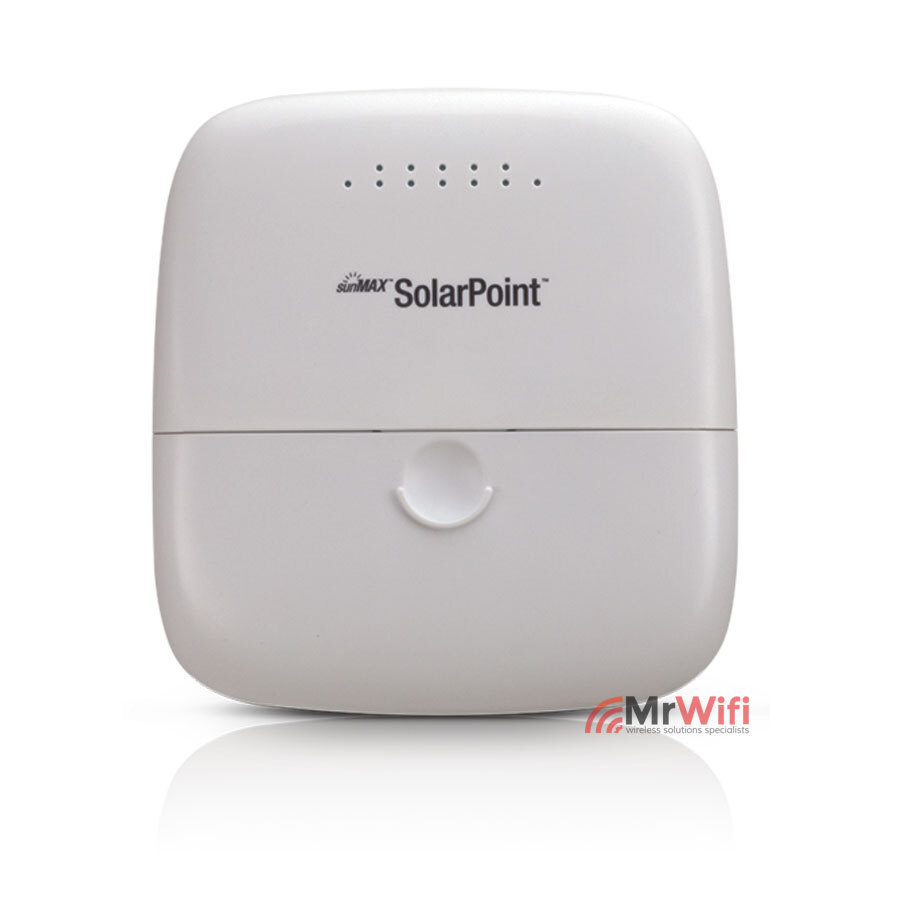

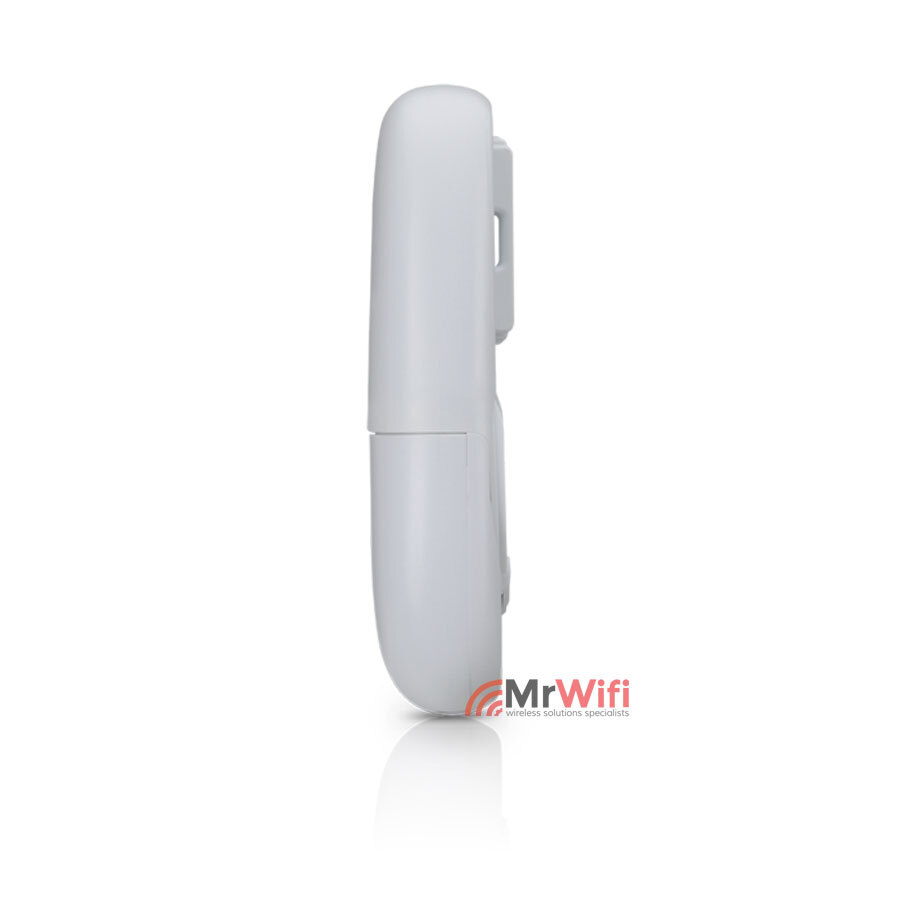

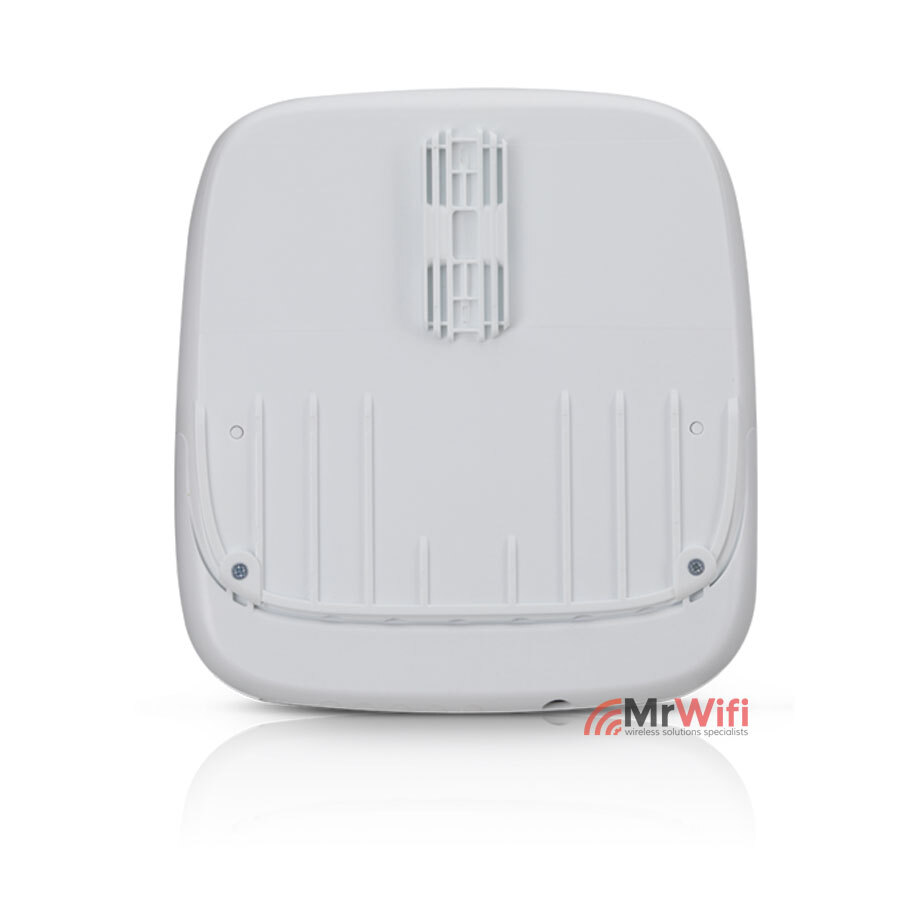

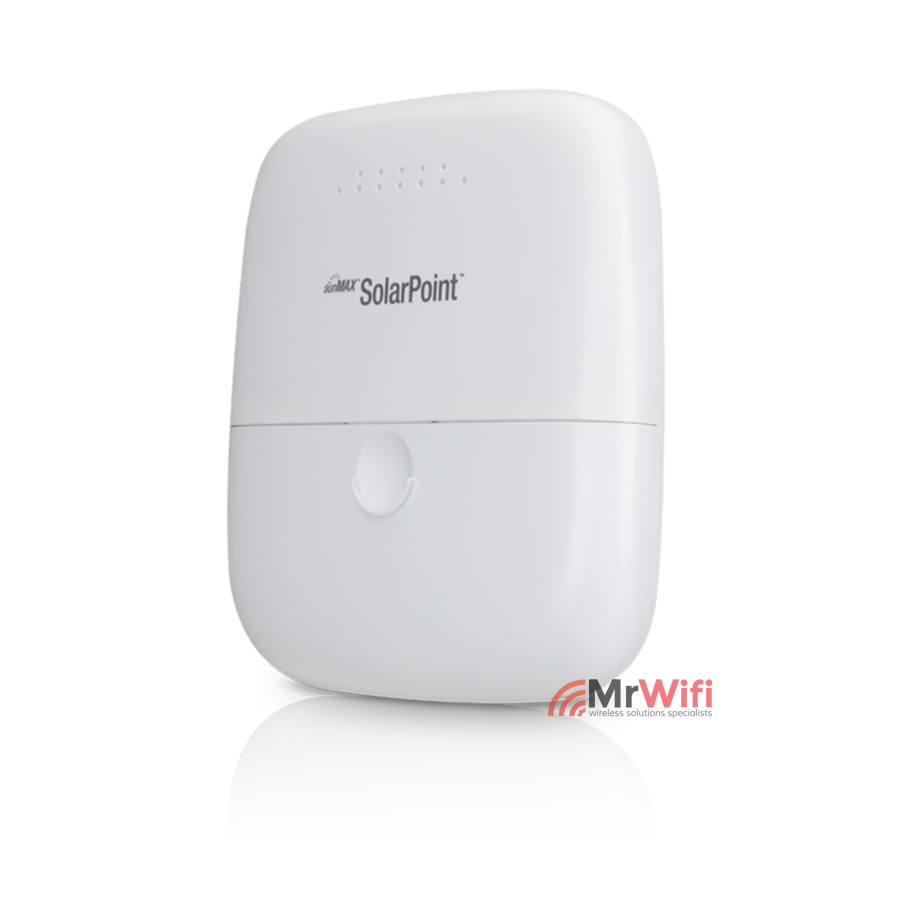

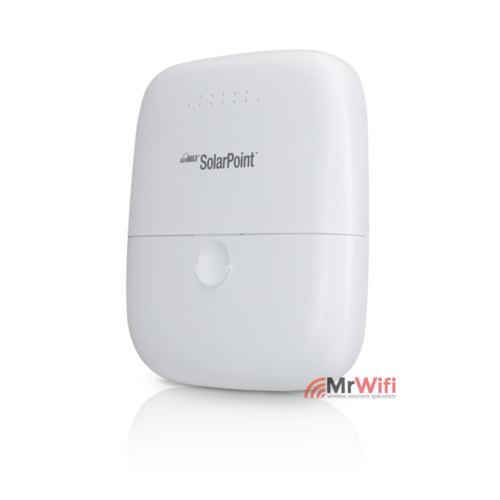

SunMAX SolarPoint Controller Outdoor

SunMAX™ SolarPoint™ is a remote managed MPPT 24V 7A charge controller with a built-in 4 port 24V PoE 10/100Mbps switch and one DC output delivering up to 40W. It comes with built-in weather prediction service, which together with AI algorithms will provide you with critical information about your solar site's existing and future performance.

Features

Indoor and Outdoor use
PV Panel Input 10 – 60V
4-port 24V PoE output 10/100 switch
24V DC-Out Terminal
Max output power 40W
External 24V Battery Charging up to 7Amps (supports SLA, AGL, AGM)

* Batteries and solar panels are not included
* UNMS connectivity coming soon in UNMS version 0.14.0

Ubiquiti introduces two managed solar charge controller options, the SolarPoint and SolarSwitch. Remotely Managed Maximum Power Point Tracking (MPPT) 24V, 7A Built-In 4-Port 24V PoE Switch DC Output up to 40W Weather Prediction Service

The SolarSwitch or SolarPoint are easy to set up for almost any device combination.

This service forecasts your systems ability to keep running during cloudy periods.

(SM-SP-40)

SunMAX Solar Point Controller Outdoor

Package Includes

1 x SolarPoint Outdoor
1 x NTC Thermistor
6 x Ferrules
1 x Metal Strap
6 x Wall Mount Kit
1 x Screw Kit
1 x H4 Connector Removal Tool
1 x Zip Tie
Quick Start Guide

SunMAX Solar Point Controller Outdoor - Specifications

SM-SP-40
Dimensions	202 x 186 x 50 mm (7.95 x 7.32 x 1.97")
Weight	650 g (1.43 lb)
Enclosure Characteristics	UV-Resistant Polycarbonate, Outdoor Use
Max. Power Consumption	2W
Networking Interface	(4) 10/100 Fast Ethernet Ports
Management Interface	Ethernet Wi-Fi (2.4 GHz)
Button	Reset
LEDs	System, Output
Power Source	PV Panel (H4 Connectors)
PV Input Voltage Range	10 - 60V (Reverse Protection, Surge Protection) Maximum Open Circuit Voltage 60V
PV Maximum Current	10A
PV Power Control	MPPT

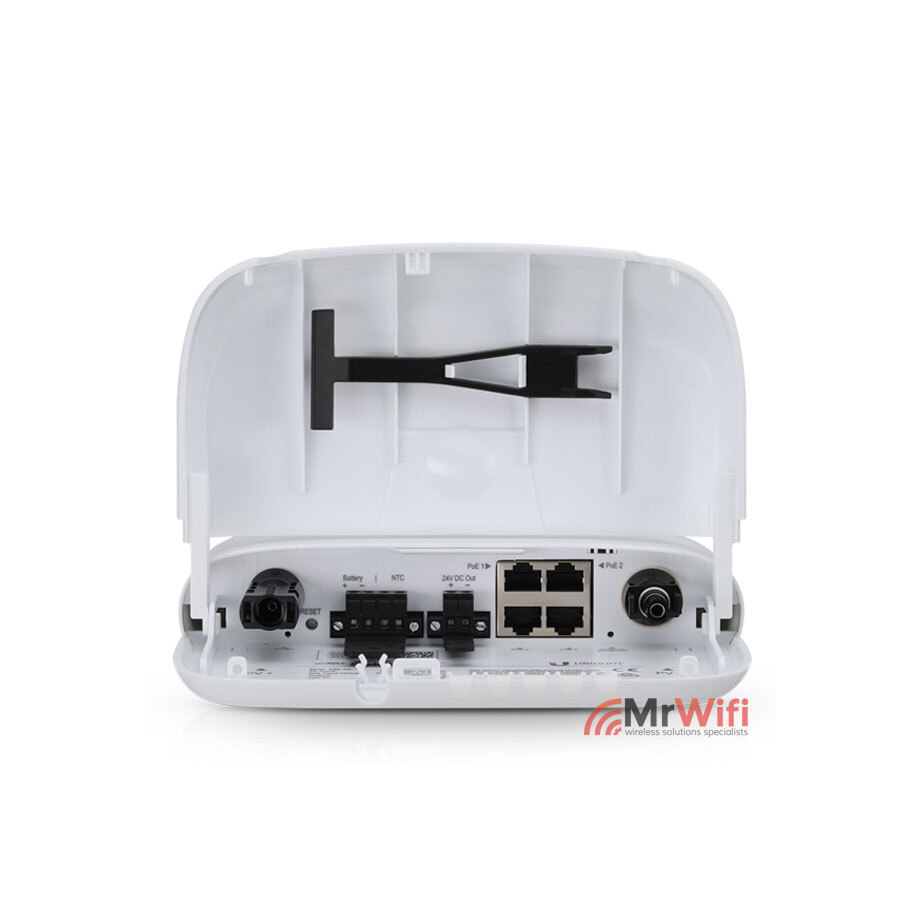

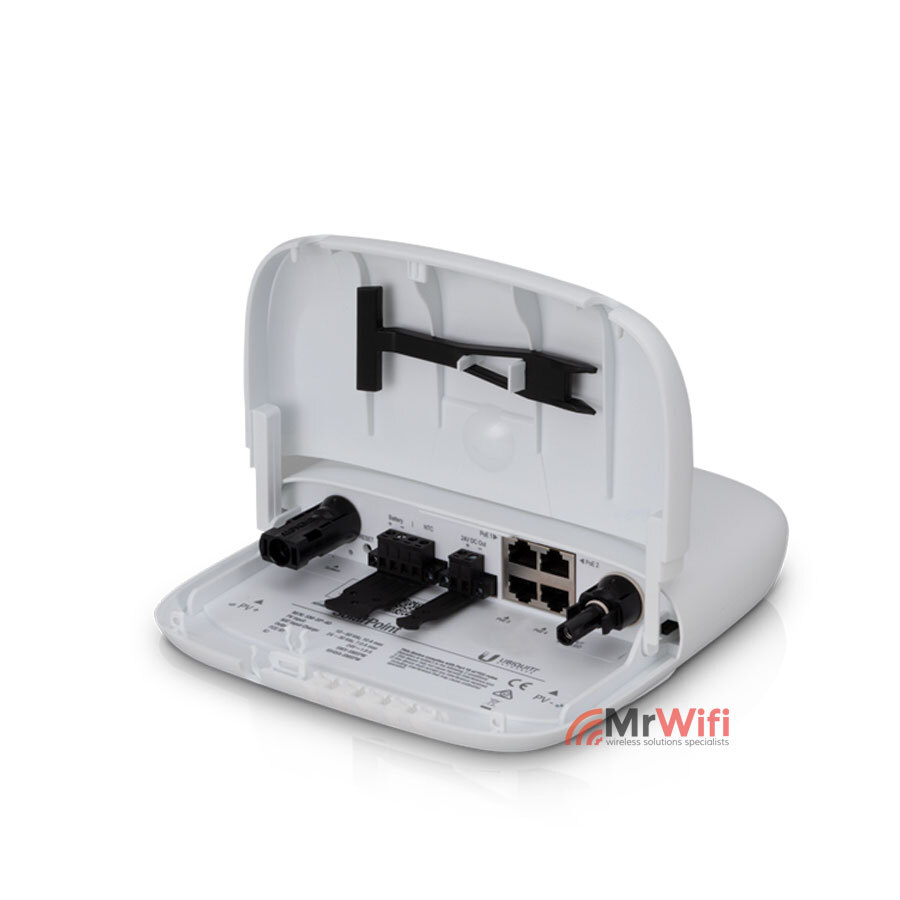

Output Interfaces	24VDC Passive PoE (Pins 4, 5+; 7, 8-) 24VDC Terminal Block
Output Voltage	Battery Voltage Limited to 24V (Surge Protection)
Maximum Power Output	PoE: 17W DC Out: 24W Total: 40W Max.
Battery Type	24V SLA, AGM, Gel lead battery
Absorption Voltage Steps	27.4V, 28.2V, 29.1V, 30V
Float Charge Voltage	95% of Absorption Voltage
Max. Charge Current	7A
Under Voltage Protection	22 – 23.6V Software Configurable 22V Hardware Protection Two Priority Levels for Output Disable
Operating Temperature	-20 to 50° C (-4 to 122° F)
Operating Humidity	IPx4
Certifications	FCC, IC, CE

Shipping Specifications

SKU	SM-SP-40
Model #	SM-SP-40
Barcode #	817882028301
Brand	Ubiquiti
Shipping Weight	0.6500kg
Shipping Width	0.050m
Shipping Height	0.186m
Shipping Length	0.202m
Shipping Cubic	0.001879000m3
Unit Of Measure	ea
