Antenna "GUMMY" Antenna, Cellular Antenna Cel-Fi 3G, 4G, LTE & WiFi 2.4Ghz - 700-2700MHz Adhesive Mount Outback Antennas
ANT-OA-GUMMY

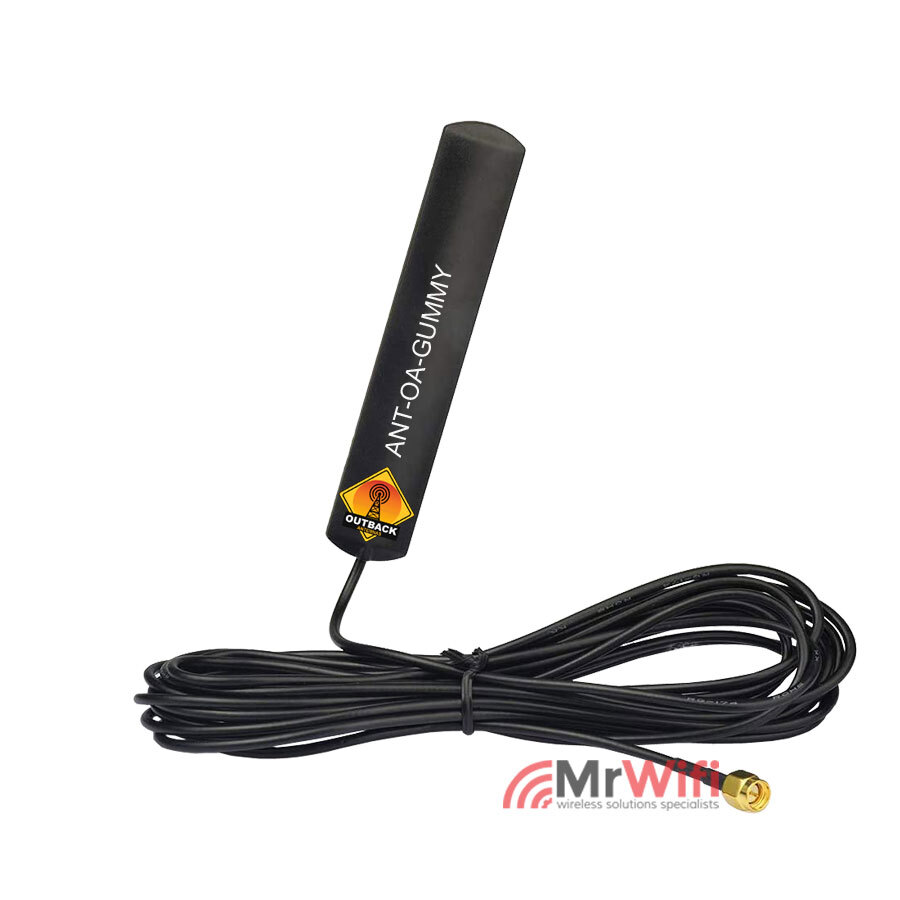

The "GUMMY" Adhesive Mount Vehicle Cellular Cel-Fi Antenna Indoor - 700-2700MHZ 2.4Ghz WiFi, 3G & 4G LTE Mobile Networks
The "GUMMY" Antennas by Outback Antennas is ideal for boosting 3G and 4G LTE signals where mounting access is limited. Ideal for Telstra Next-G and 4GX networks, Optus, and Vodafone 3G/4G. Compatible with all carrier networks utilising frequency range: 698-960 MHz, 1710-2170 MHz, 2300-2700. The "GUMMY" Cellular Antenna is Ultra Low Profile design making it ideal for Cel-Fi Mobile Phone Repeater installations in vehicles including Cars, Trucks, RV's, Buses, Caravans, Boats and more. Also suitable for devices on the 2.4GHz Wi-Fi networks including solar Wi-Fi installations.
FEATURES
- 3.5 dBi gain across lower bands 698-960 MHz
- 3.5 dBi gain across upper bands 1710-2700 MHz

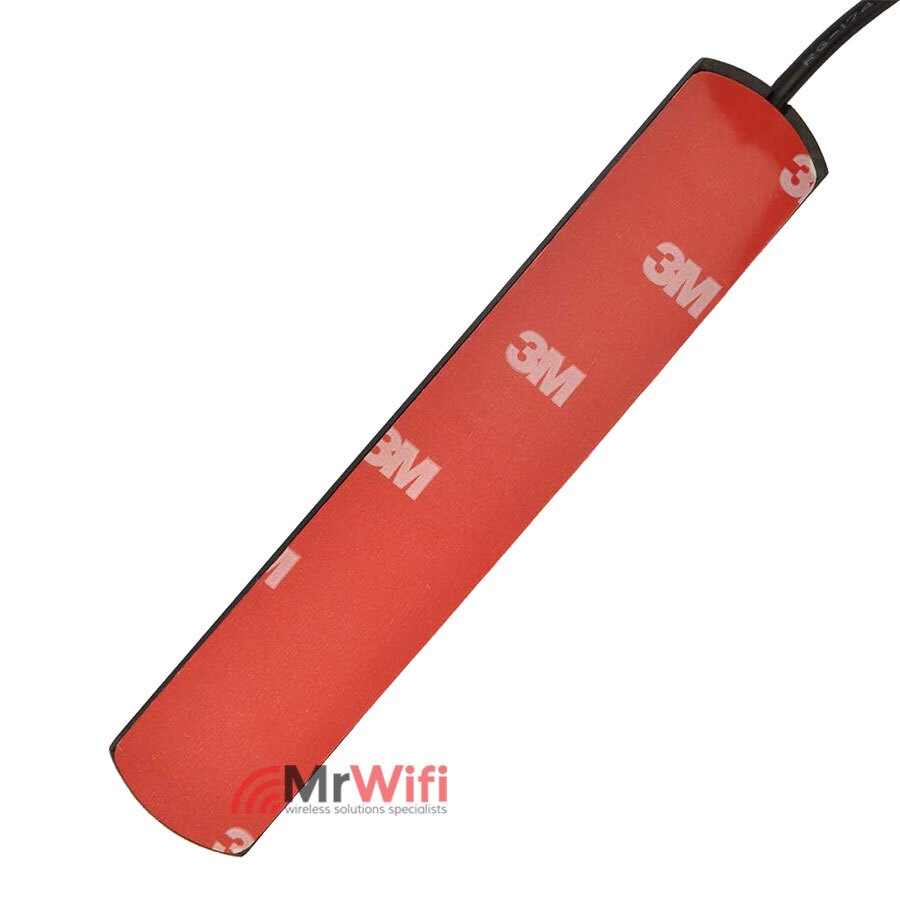

- Mounting by 3M sticker

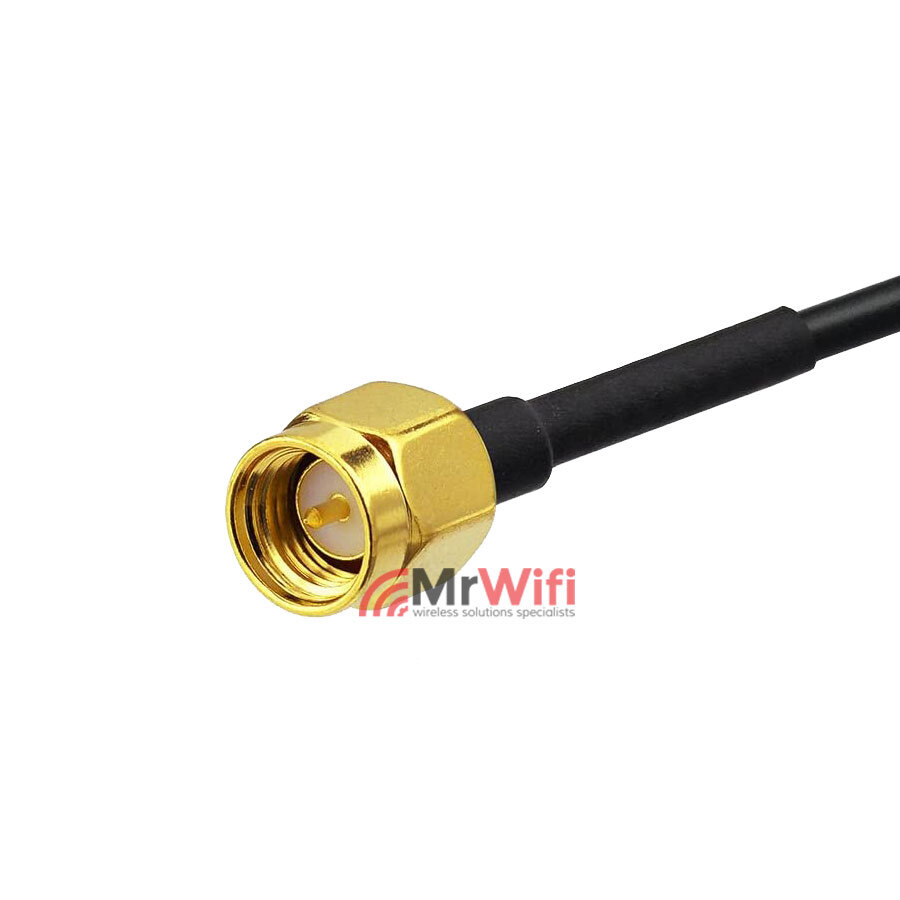

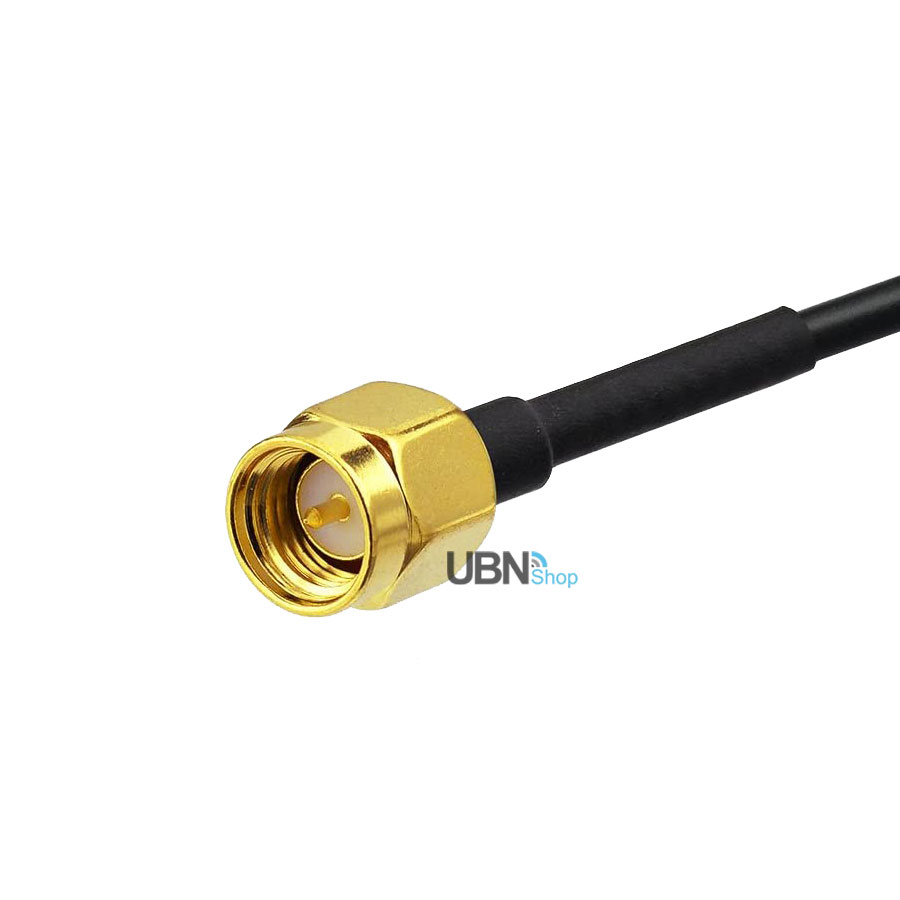

- Connector Type SMA Male
- Cable length 3 Meters
Dimensions: 22×115mm
Weight: 45g
Compatibility:
2.4Ghz Wi-Fi Antenna
4G LTE Mobile Routers
Mobile Broadband Modem Hotspots
CPE Router and Cellular Gateways
Phone Signal Booster Repeaters including Cel-Fi
Mobile Cellular Amplifier
4G LTE Cellulars
Vehicle 4G LTE Tracker, Real Time Monitor, Mobile Vehicle Car DVR MDVR Video Recorder
Cellular IoT Gateway
4G LTE M2M RTU DTU Terminal
Cellular Embedded Module
Remote Metering and SMS Alarm
Remote SCADA DAQ Module
Remote Relay Gate Opener Switch
Vending Machine & Digital Signage
ATM Cellular Wi-Fi
Cellular Temperature Humidity Sensor Monitoring System
(ANT-OA-GUMMY)
The "GUMMY" Adhesive Mount Vehicle Cellular Antenna Indoor - 700-2700MHZ 3G & 4G LTE and 2.4Ghz WiFi

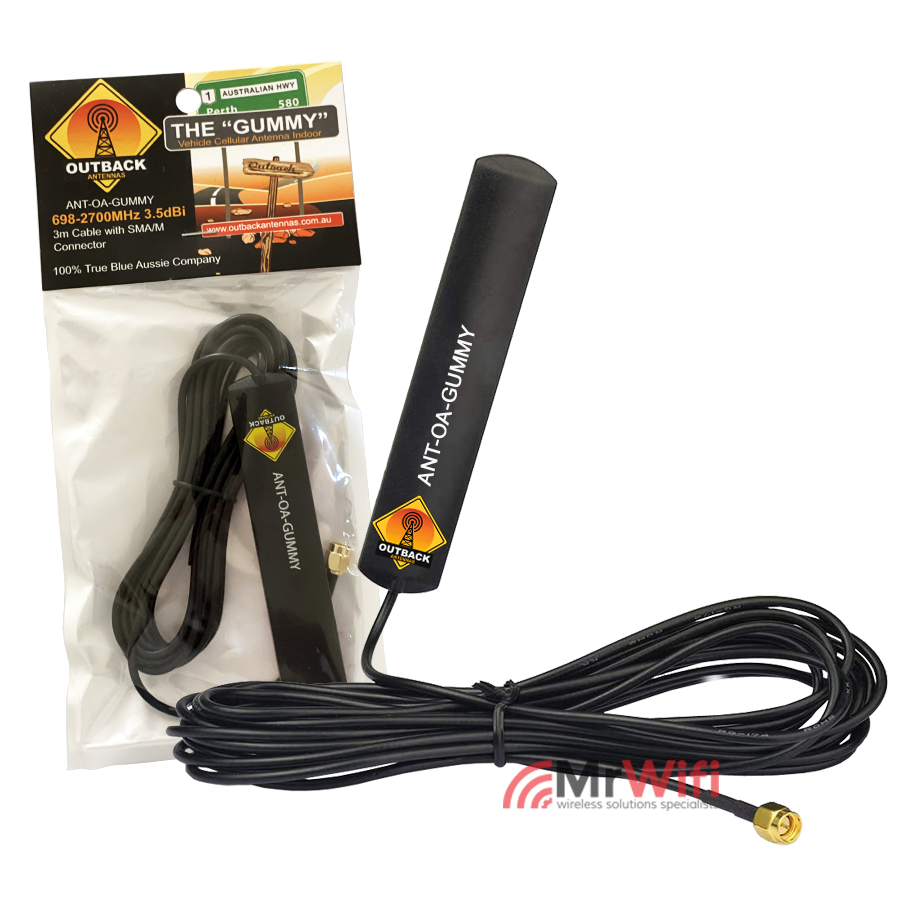

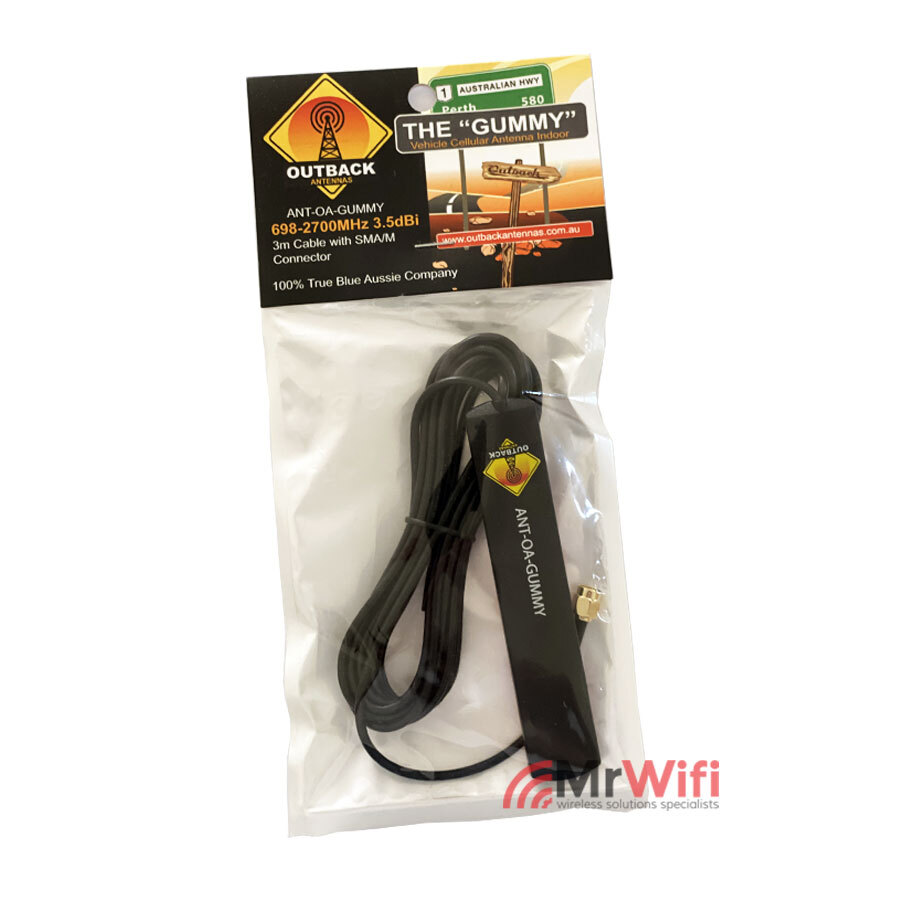

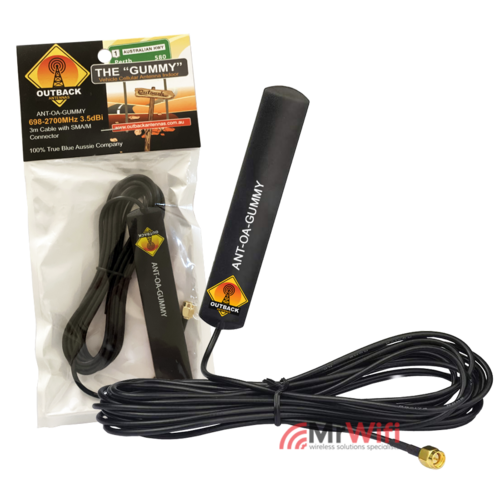

Pack Includes:
- 1 x The "GUMMY" Adhesive Mount Vehicle Cellular Antenna Indoor - 700-2700MHZ 3G & 4G LTE
The "GUMMY" Antenna, Cellular Antenna 3G & 4G LTE and 2.4Ghz WiFi - 700-2700MHZ
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | 698-960 MHz / 1710-2170 MHz |
| Input Impedance | 50 Ω |
| Gain | 3.5 dBi |
| VSWR | ≤3.0 |
| Polarisation | Vertical |
| Radiation Direction | 360° (omnidirectional) |
| Maximum Input Power | 50 W |
| Operating Temperature | -40°C ~ +80°C |
| Storing temperature | -20°C ~ +60°C |
| MECHANICAL SPECIFICATIONS | |
| Antenna Length | 115x21x3mm |
| Cable | 3m |
| Connector Type | SMA Male |
| Mounting | 3M Sticker |
| Radome Color | Black |
| Cable | RG174 |
| Suction | 07kg |
| Attachment | Welding |
| Material | PPE |
| Waterproof | IP65 |
SHIPPING SPECIFICATIONS
| SKU | ANT-OA-GUMMY |
| Model # | ANT-OA-GUMMY |
| Barcode # | 4.81E+11 |
| Brand | OUTBACK ANTENNAS |
| Shipping Weight | 0.3000kg |
| Shipping Width | 0.050m |
| Shipping Height | 0.030m |
| Shipping Length | 0.200m |
| Shipping Cubic | 0.000300000m3 |
| Unit Of Measure | ea |
