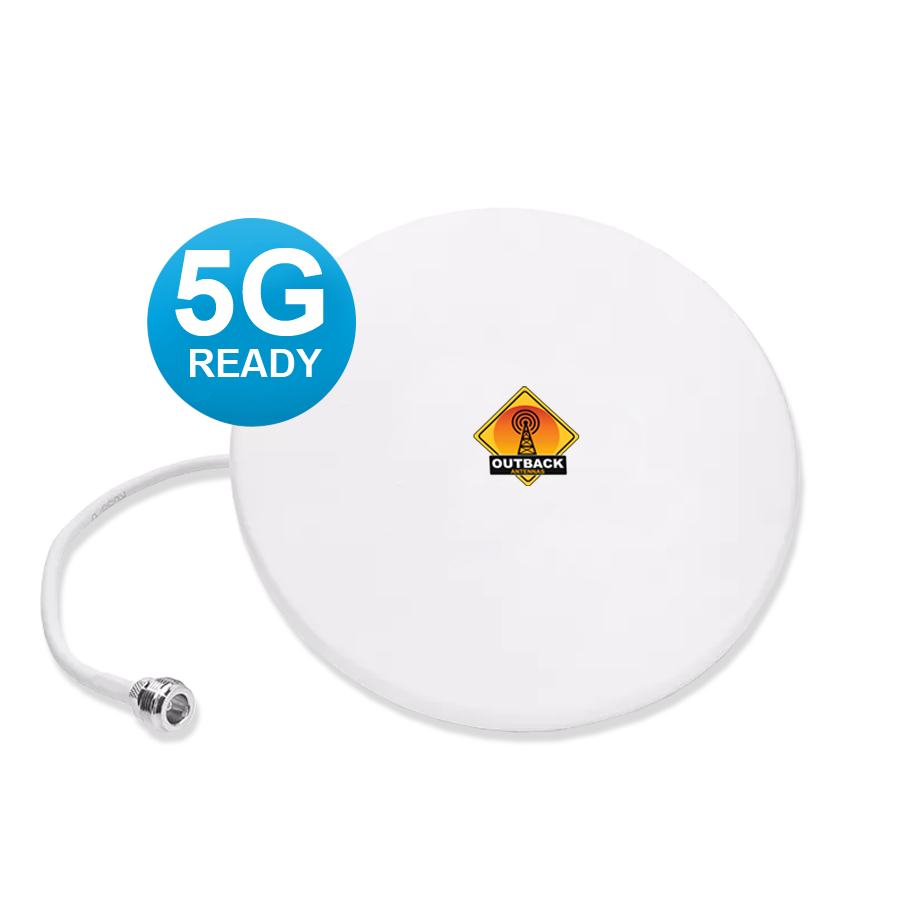

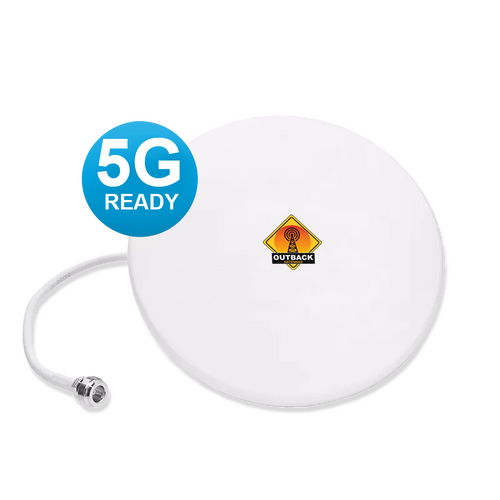

The "PIKLET" Omni Antenna Ultra Low Profile INDOOR 3G, 4G, LTE, 5G 698-960/1710-4000MHz or 2.4Ghz WiFi 5dBi,
ANT-OA-PIKLET-NF
ALTERNATE PRODUCT:
ANT-OA-PIKLET-M-NF-The "PIKLET" Ultra-Thin MIMO Ceiling Antenna 617-6000MHz 2 x N Female Connectors
In Stock: YES
CEILING ANTENNA 360° OMNI Ultra Low Profile INDOOR 5dBi, 698-960/1710-4000MHz for 3G, 4G, LTE, 5G Mobile Networks or 2.4Ghz WiFi
The "PIKLET" INDOOR directional antenna is designed to operate on the cellular network with all mobile carriers, regardless of what frequency they operate on. This very low profile ceiling mountable antenna offers a 5dBi gain and is the perfect indoor antenna for Caravans, Motorhomes, Boats or even in the home office environment. No longer do you have to buy a new antenna when you switch carriers or be concerned what frequency your antenna supports. Perfect for indoor mobile repeater applications.
The "PIKLET" Outback Antenna will provide the perfect solution for voice and data applications. Perfect for repeater applications that require beam width for complete indoor coverage.
Features
- Suitable for all mobile carriers

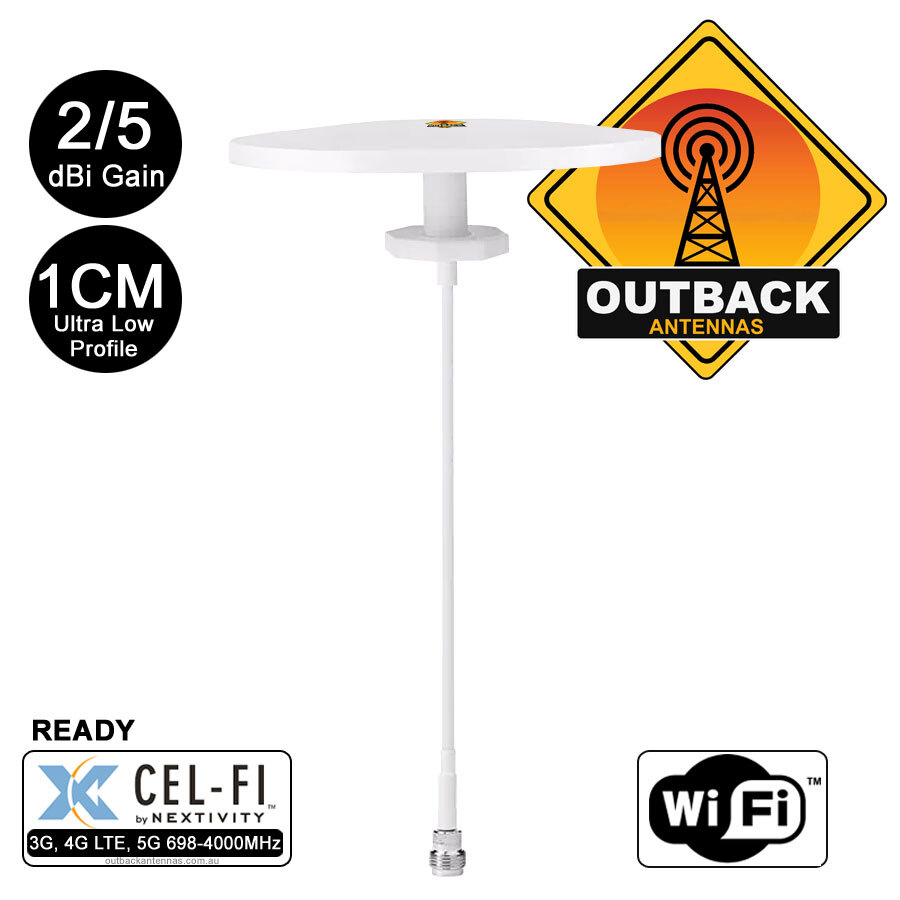

- Ultra Low Profile Antenna
- Provides a 2dbi gain for 698-960 MHz
- Provides a 5dbi gain for 1710-4000 MHz
- Includes RG58 cable x 300mm Long

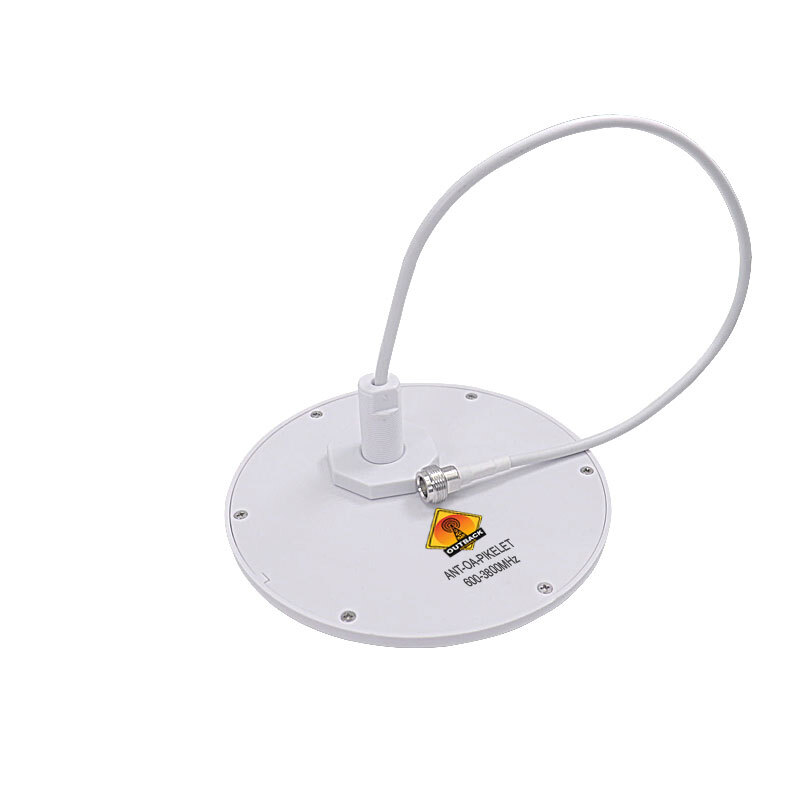

- Short cable tail with N female connector
- Ceiling or Wall Mountable
- Ideal for Cel-Fi GO repeater applications for Home. Office, Marine and Caravan
- or 2.4Ghz WiFi Applications
Dimensions: 170Dx170Wx10L mm
Weight: 500g
(ANT-OA-PIKLET-NF)
The "PIKLET" Ceiling Mount Omni Antenna INDOOR 5dBi, 698-960/1710-4000MHz 3G, 4G & 5G
Pack Includes:
- 1 x The "PIKLET" Omni Ceiling Antenna Indoor 5dBi, 698-960/1710-4000MHz
The "PIKLET" Omni Ceiling Antenna INTDOOR 5dBi, 698-4000MHz - SPECIFICATIONS
| Electrical Characteristics | |
| Frequency Range (MHz) | 698-960/1710-4000MHz |
| Polarization | Omni |
| Gain (dBi) | 2/5 |
| Horizontal 3dB Beamwidth | 360° |
| Verticalal 3dB Beamwidth | 95/35° |
| VSWR | ≤1.8/≤1.5 |
| Input Impedance (Ω) | 50 |
| Maximum Power (W) | 100 |
| Lightning Protection | DC grounding |
| Mechanical Characteristics | |
| Connector type | Type N Female |
| Mount Type | Ceiling Mount |
| Cable length (Meter) | 3 (customizable) |
| Radome material | UV-ABS |
| Mount way | Ceiling or Wall |
| Reflector material | Brass |
| Dimensions (mm) | 170x170x10 |
| Weight (g) | 500 |
| Environmental Characteristics | |
| Noise Factor (dBi) | ≤1.5 |
| Waterproof | NA |
| Operating Temperature (℃) | -40-+60°C |
| Relative Humidity | Up to 95% |
| ROHS Compliant | yes |
SHIPPING SPECIFICATIONS
| SKU | ANT-OA-PIKLET-NF |
| Model # | ANT-OA-PIKLET-NF |
| Barcode # | 4.81E+11 |
| Brand | OUTBACK ANTENNAS |
| Shipping Weight | 0.5000kg |
| Shipping Width | 0.170m |
| Shipping Height | 0.010m |
| Shipping Length | 0.170m |
| Shipping Cubic | 0.000289000m3 |
| Unit Of Measure | ea |
The "PIKLET" Omni Ceiling Antenna INDOOR 5dBi, 698-4000MHz - Documents
