U Fiber Nano G
UF-Nano
GPON Optical Network Unit

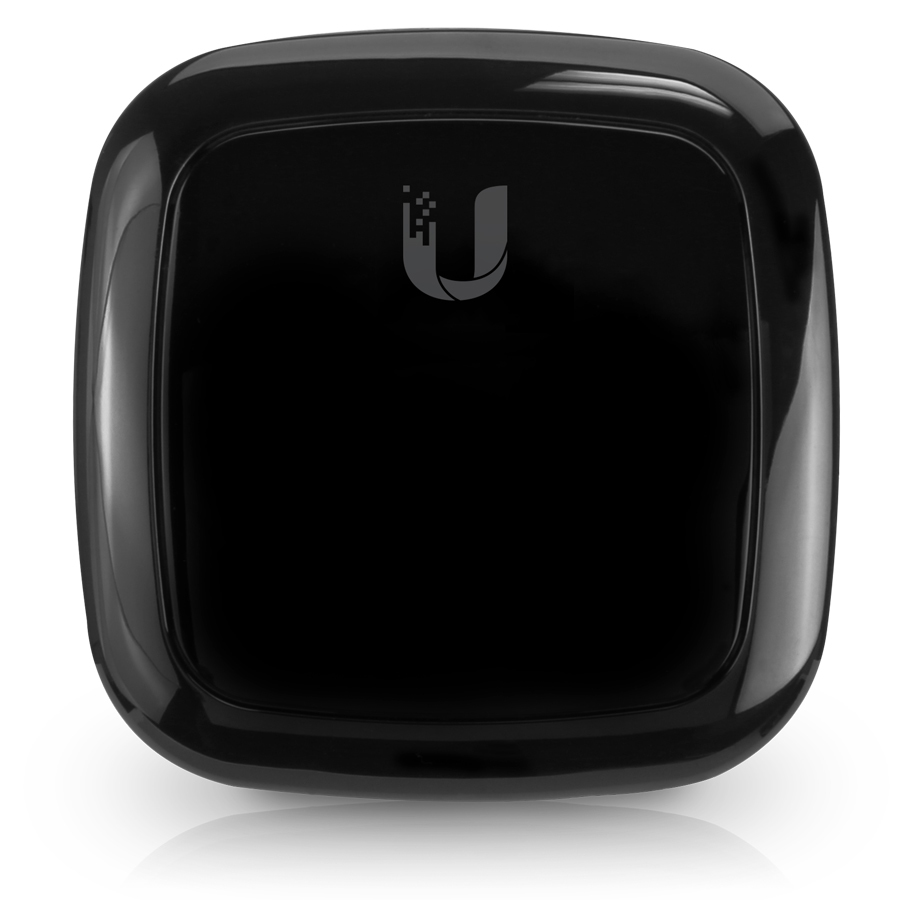

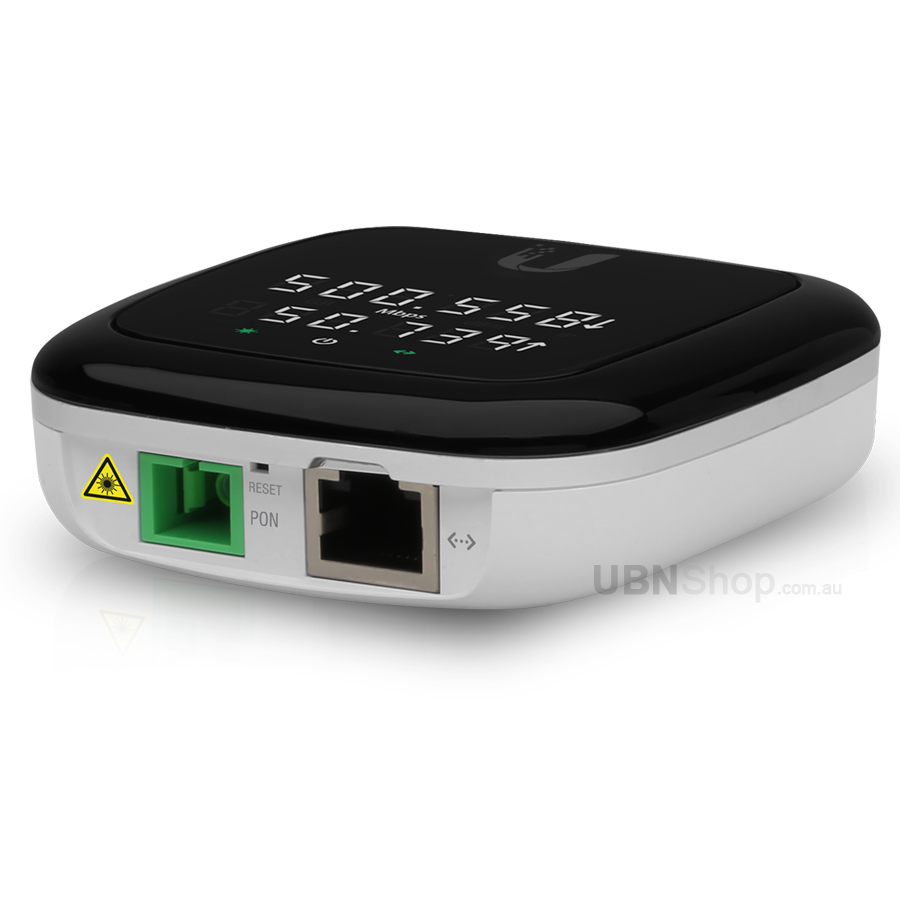

The UFiber Nano G is a robust, high-performance GPON CPE that features an informational LED display and a sleek, sophisticated industrial design.
Up to 128 Nano G devices can be connected to a single GPON port. Supporting GPON links of up to 20 km, the Nano G integrates with the UFiber OLT and other third-party OLT devices. The Nano G is powered by 24V passive PoE (included) – a single cable to carry both power and data.
Gigabit Passive Optical Network CPE
- High-Performance GPON CPE
- Up to 2.4 Gbps Downstream and 1.2 Gbps Upstream
- Supports up to 20 km GPON Links
- Powerful Layer 2/3 Management Features
- GPON WAN Port
- RJ45 Gigabit LAN Port

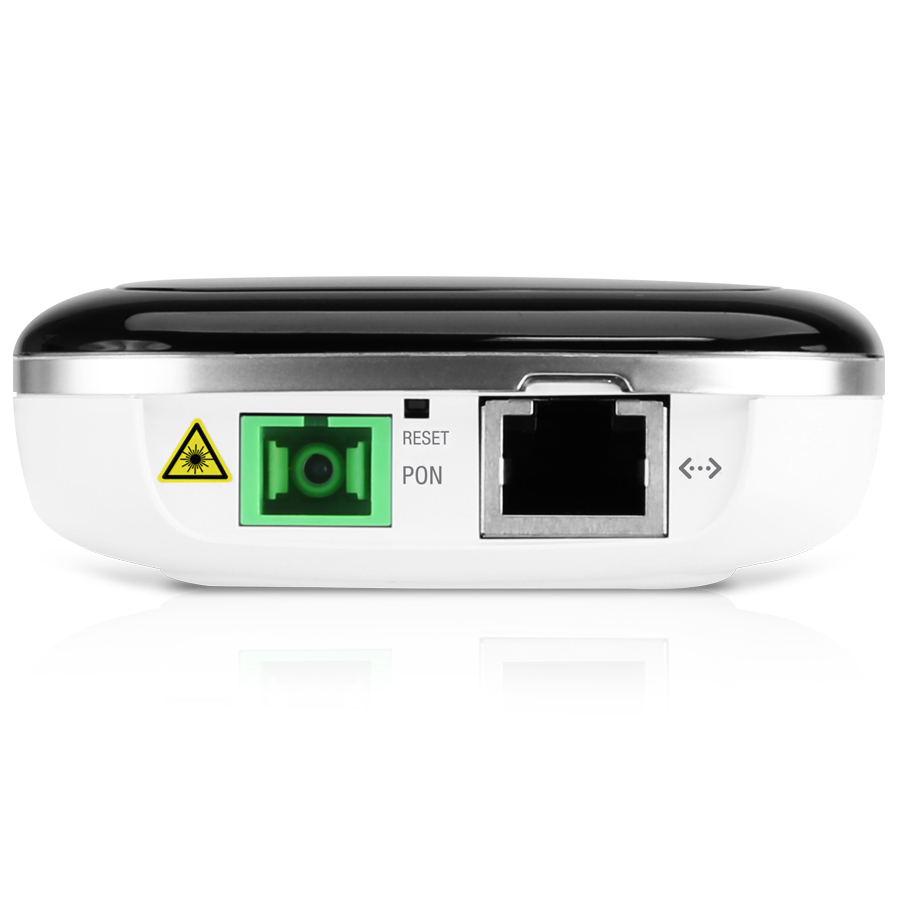

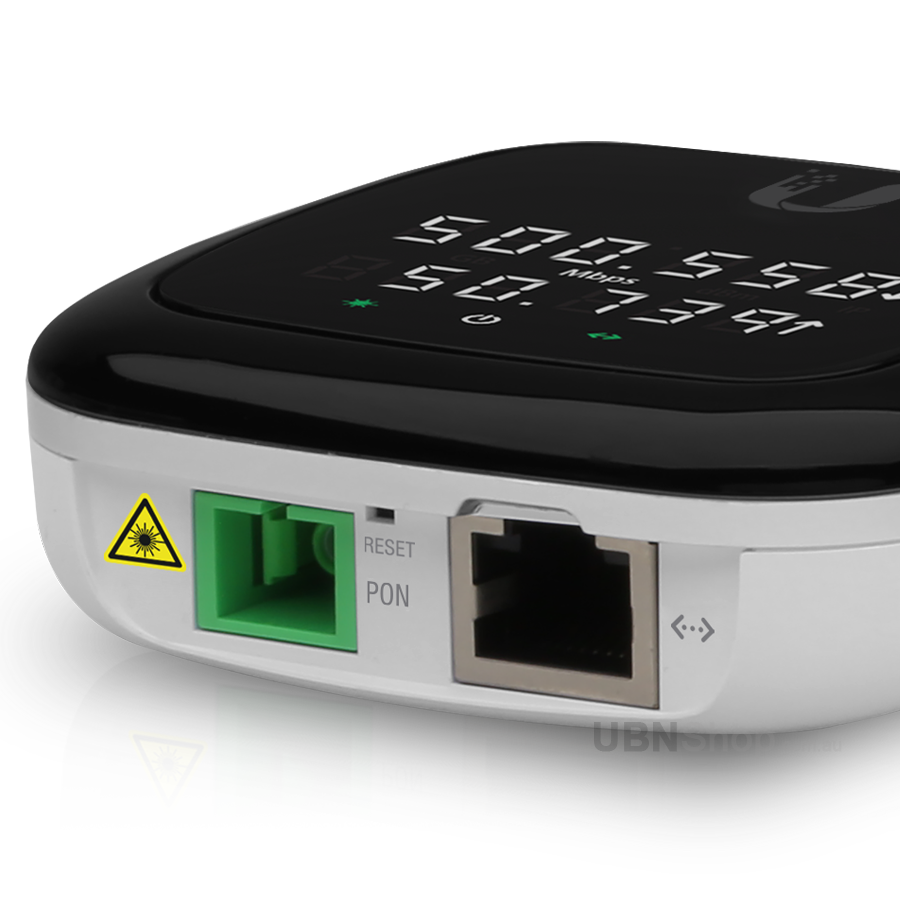

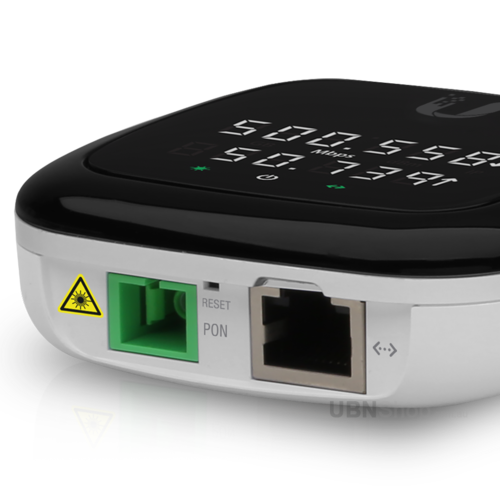

- SC/APC Fiber Connector
List of Supported 3rd Party OLT's - Click Here
(UF-Nano)
U Fiber Nano G
Pack Includes:
- 1 x Ubiquiti Fiber Nano G
- 1 x Wall Mount Bracket
- 4 x Screws
- 4 x Screw Anchors
- 1 x Gigabit PoE (24V, 0.3A) with Mount Bracket
- 1 x Power Cord
- Quick Start Guide
U Fiber Nano G - Specifications
| MECHANICAL | |
|---|---|
| Dimensions | 77 x 77 x 28mm |
| Weight | 110g |
| Enclosure Characteristics | UV resistant polycarbonate |
| HARDWARE | |
| Processor | MIPS-32, 240MHz |
| Memory | DDR3 128Mbyte |
| Management Interface | In-Band Ethernet/PON |

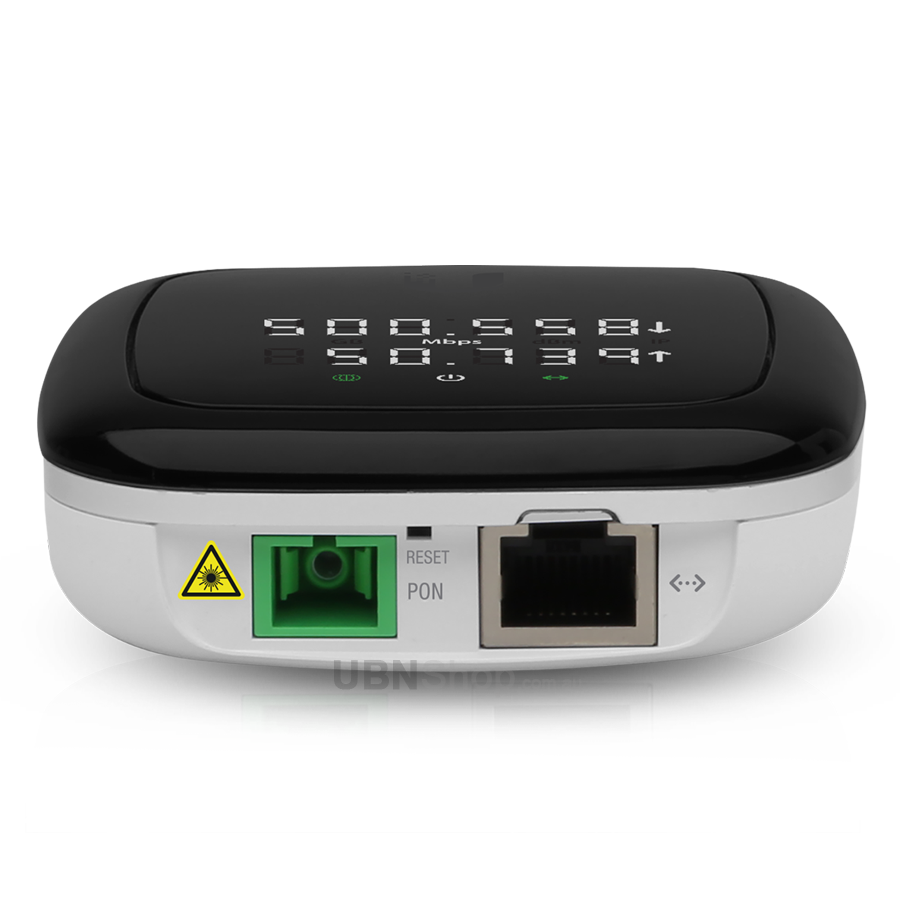

| Networking Interfaces | (1) SC/PC, GPON WAN (1) RJ45, Ethernet LAN |
| Networking Interface Speeds | (1) GPON WAN, ITU G.984 , 2.488Gbps downstream/1.244Gbps upstream (1) GbE LAN, 10/100/1000Mbps Ethernet |
| Buttons | (1) Information button (1) Reset to factory |

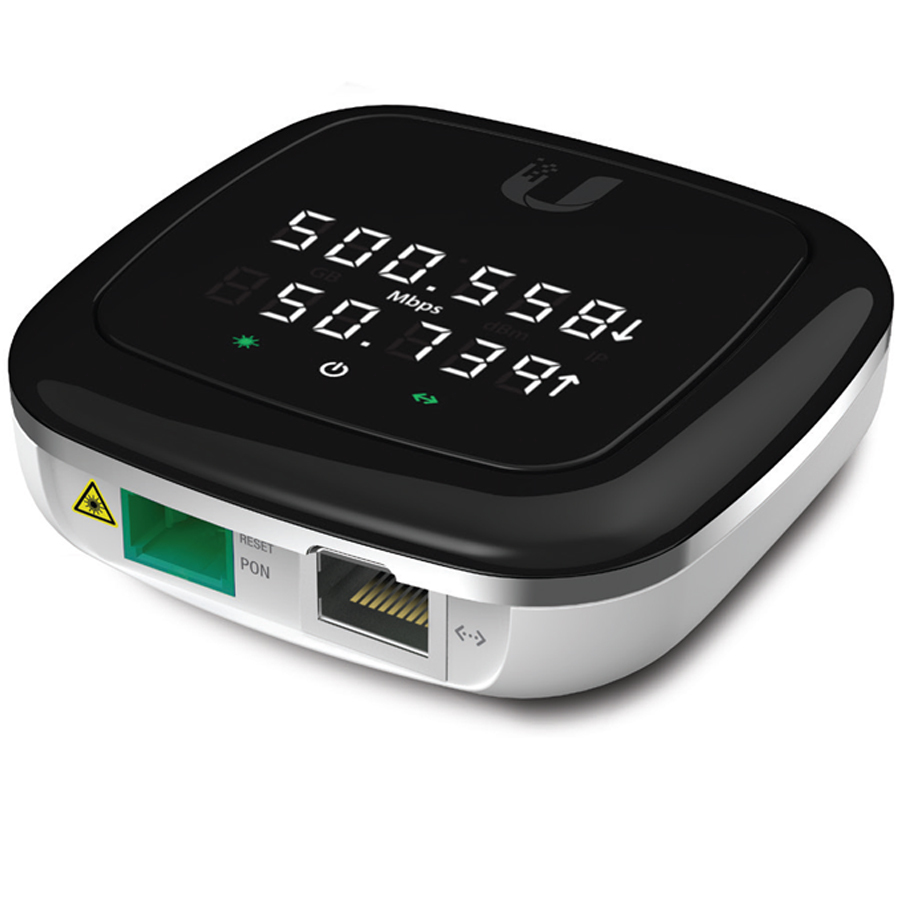

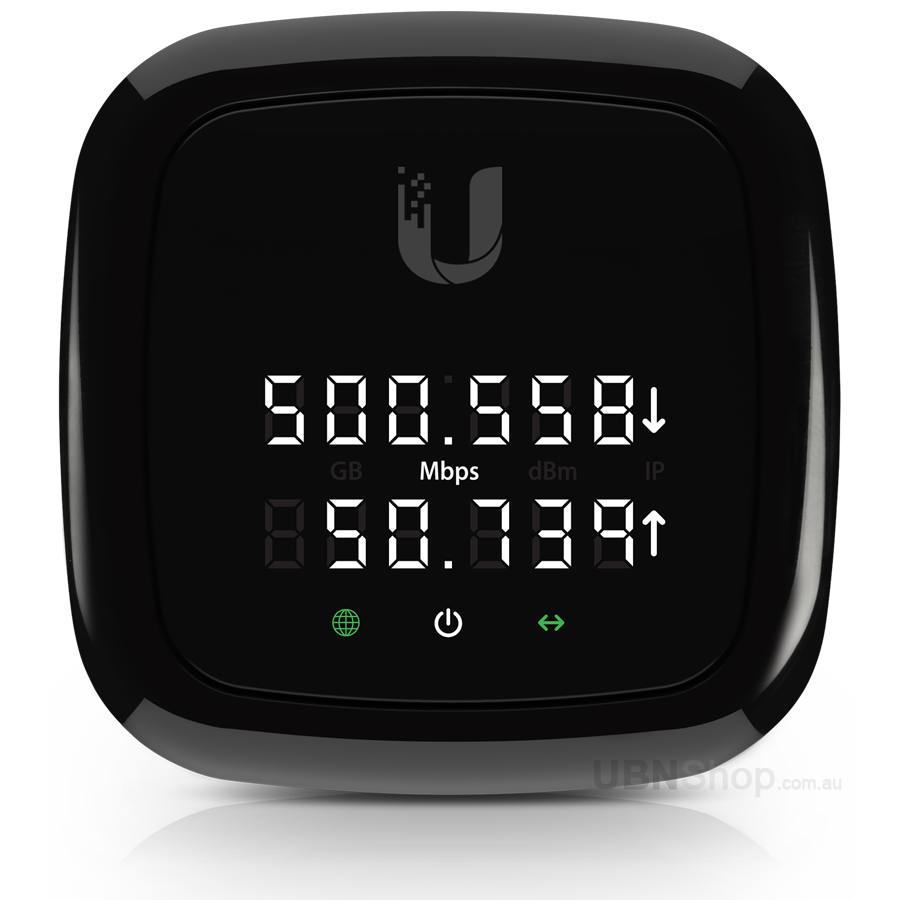

| LEDs/Display | (1) LED screen: WAN IP address, TX/RX rate, TX/RX power, and below information: (1) Power status: White, ON: powered up (1) Ethernet Link, White, ON: link up, Blinking: activity, OFF: link down (1) PON Link, White, ON: PON link is up, OFF: link down (1) PON Alarm, Red, ON: no optical receive power, loss of signal |
| Power Method | RJ45 PoE input, 24V/0.3A, pin 4,5+; 7,8- |
| Power Supply | PoE 24V/0.3A, pin 4,5+; 7,8- |
| Supported Voltage Range | 28V TO 16V |
| Max. Power Consumption | 7W |
| Operating Temperature | -10 to 45°C |
| Operating Humidity | 5% to 95% Non-Condensing |
| Normal TX range of optical module | 1,5dBm to 5dBm |
| Normal RX range of optical module | -8dBm to -28dBm |
| SOFTWARE | |
| OS | U Fiber 4.16L.04 |
| Mode | ONU/ONT Layer 2/3 Ethernet Switch |
| Services | Web Server, TR-069, Telnet, NAT, Bridging and Routing, Firewall Features and Application Pass-throught Features |
| Utilities | Dashboard, Monitoring, Alarms and Logs |
| Security | GEM Port Encryption |
| QoS | Support 8 priority queues per user port and traffic classification |
| Other | Remote Reset, Remote Reboot, Remote Firmware Upgrade, VLAN Support |
| Ubiquiti Specific Features | UBNT Discovery and UBNT mcagent |
| Minimum Software Requirements | Any Modern Web Browser |
| FIBER | |
| Operating wavelenght | 1310nmTX/1490nmRX |
| Line Code | Scrambled NRZ |
| Optical interface downstream nominal bit rate | 2488.32 Mbit/s |
| Optical interface upstream nominal bit rate | 1244.16 Mbit/s |
| Physical reach | 20 km |
| Logical reach | 60 km |
| Maximum differential fibre distance | 20 km |
Shipping Specifications
| SKU | UF-Nano |
| Model # | UF-Nano |
| Barcode # | 810354025747 |
| Brand | Ubiquiti |
| Shipping Weight | 0.2000kg |
| Shipping Width | 0.080m |
| Shipping Height | 0.030m |
| Shipping Length | 0.080m |
| Shipping Cubic | 0.000192000m3 |
| Unit Of Measure | ea |
