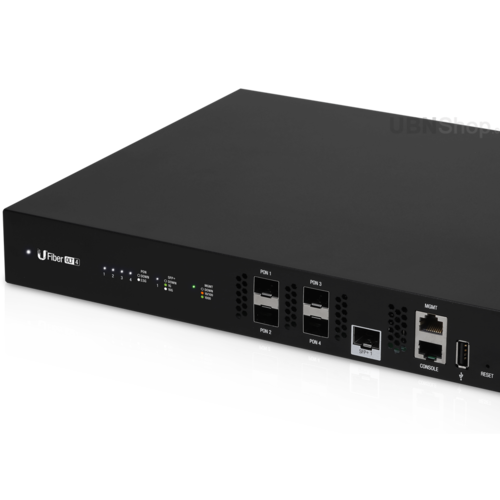

U Fiber Optical Line Terminal (OLT) 4

UF-OLT-4

$2,073.50

In Stock

ALTERNATE PRODUCT:

UF-OLT-
U Fiber Optical Line Terminal (OLT)
In Stock: YES

4-Port Optical Line Terminal

Configuring a fiber network just became as easy as setting up a smartphone. Say goodbye to command lines, manuals, and paid support licenses. Introducing the UFiber OLT 4 – a fiber solution that anyone can deploy.

Features

4-Port GPON Optical Line Terminal
4 Gigabit Passive Optical Network Ports
Supports up to 512 Clients (128 per PON Port)
Up to 2.488 Gbps TX and 1.244 Gbps RX
One 1G/10G SFP+ Ethernet Ports
Flexible Layer 2/3 Management Features
Ethernet port for management
Console serial port for management
24V DC Input Option (Redundant or Stand-Alone)

(UF-OLT-4)

U Fiber Optical Line Terminal (OLT) 4

Pack Includes:

1 x Ubiquiti Fiber Optical Line Terminal (OLT) 4

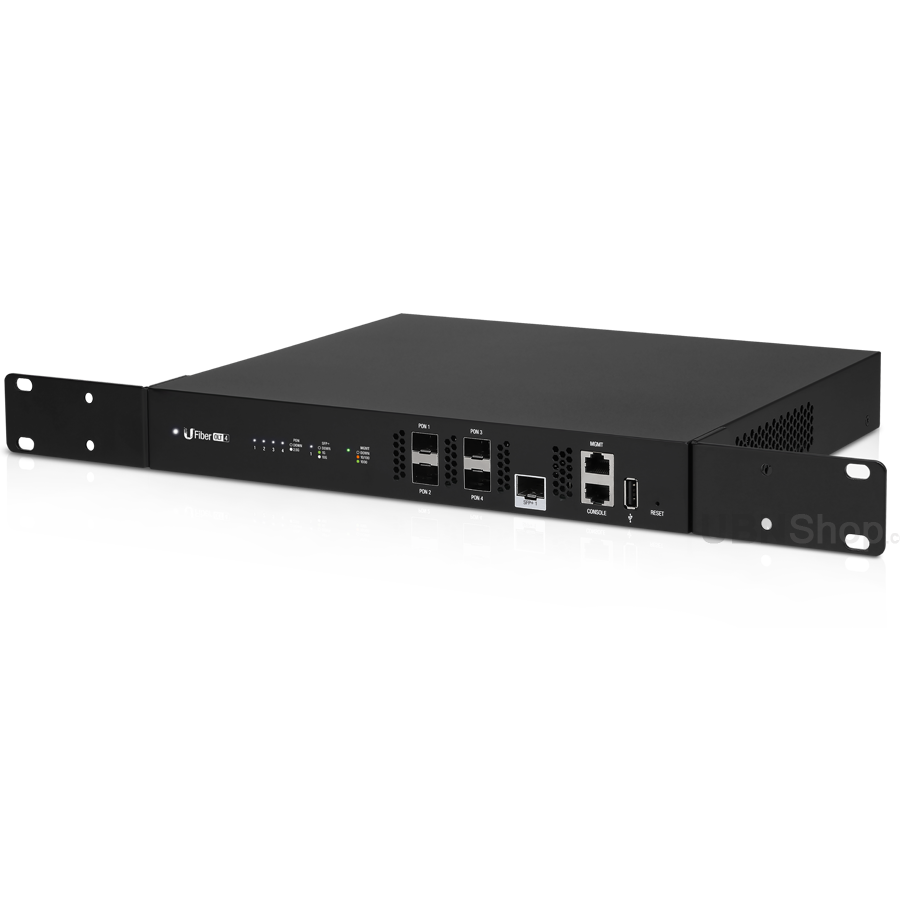

2 x Rack Mounting Brackets
8 x Bracket Screws
4 x Screws
4 x Cage Nuts
1 x SC/UPC GPON SFP Transceiver (UF-GP-B+)
1 x Power Cord
4 x Rubber Feet
Quick Start Guide

U Fiber Optical Line Terminal (OLT) 4 - Specifications


Dimensions	299.8 X 258.95 X 42.55 mm
Weight	1930g (without hangers) 2130g (with hangers)
Enclosure Characteristics	SGCC steel
HARDWARE
Processor	MIPS 1004Kc 880 Mhz dual core
Memory	512 Mbyte DDR3, 512M Byte NAND
Management Interface	(1) Ethernet out-of-band management (1) Ethernet in-band management (1) RJ45 Serial Console Port
Networking Interface	(4) GPON OLT SFP (1) 10 Gbps SFP+
Buttons	(1) Reset, Press 5 seconds - Reset to default
LEDs/Display	(1) Power: Blue/White Blinking Blue: reset to default Steady Blue: system is booting Steady White: service is ready (4) GPON OLT SFP Steady/Blinking white : GPON link/activity (1) SFP+ Ethernet: White(10G) Green(1G), steady on after link is up, blinking while activity (1) Ethernet RJ45 Out-of-band Management: Green(1G), steady on after link is up, blinking while activity
Power Method	100-240VAC/50-60 Hz universal input / 25VDC
Power Supply	AC/DC internal 56W DC / DC barrel jack connector
Supported Voltage Range	AC input: 100 to 240 VAC / 25 to 16VDC
Max. Power Consumption	35W (Excluding SFP modules)
Operating Temperature	-10 to 45°C (14 to 113°F)
Operating Humidity	10% to 90% Non-Condensing
SOFTWARE
Mode	OLT 2/3 Ethertnet Switch and GPON Core
Advanced QoS	Support 8 priority queues per user port and traffic classification
Concurrent Clients	512 ONUs/ONTs registered
Ubiquiti Specific Features	UBNT Discovery and UBNT mcagent
Minimum Software Requirements	Any Modern Web Browser

Shipping Specifications

SKU	UF-OLT-4
Model #	UF-OLT-4
Barcode #	817882023672
Brand	Ubiquiti
Shipping Weight	4.9000kg
Shipping Width	0.390m
Shipping Height	0.098m
Shipping Length	0.585m
Shipping Cubic	0.022359000m3
Unit Of Measure	ea
