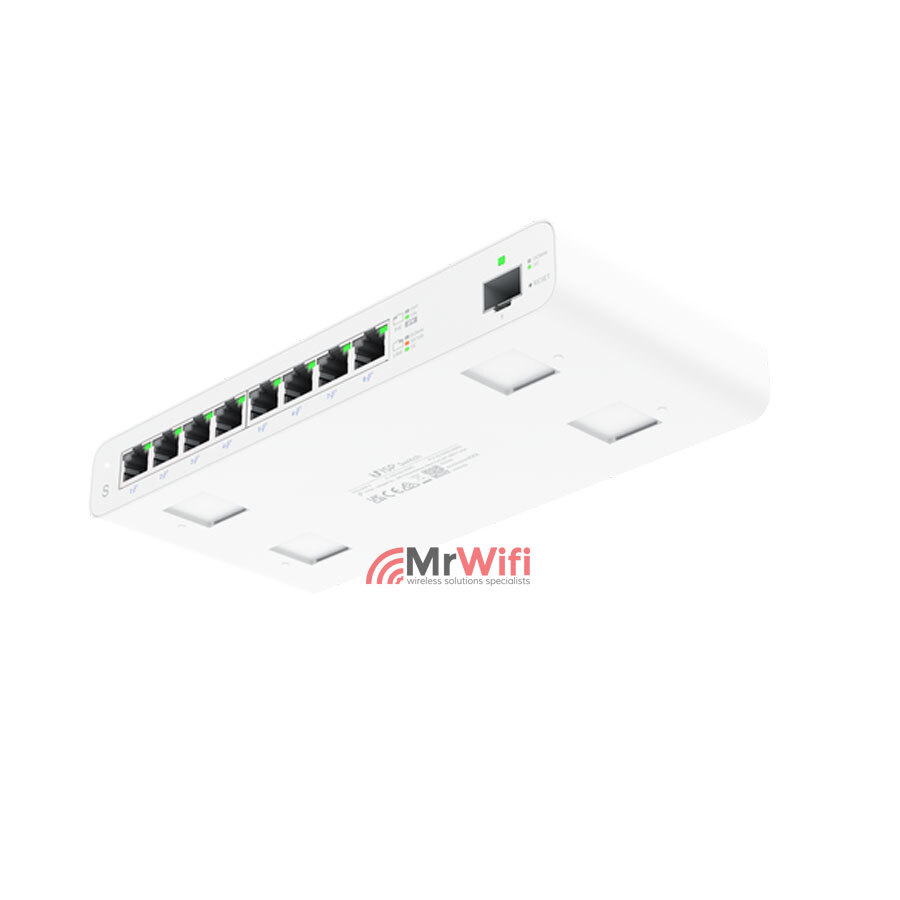

UISP Switch Gigabit PoE switch for MicroPoP applications
UISP-S
ALTERNATE PRODUCT:
UISP-R-UISP Router, 8-Port GbE Ports w/ 27V Passive PoE, For MicroPoP Applications, 110W PoE Budget, Fanless
In Stock: YES
UISP Switch Gigabit PoE switch for MicroPoP applications.

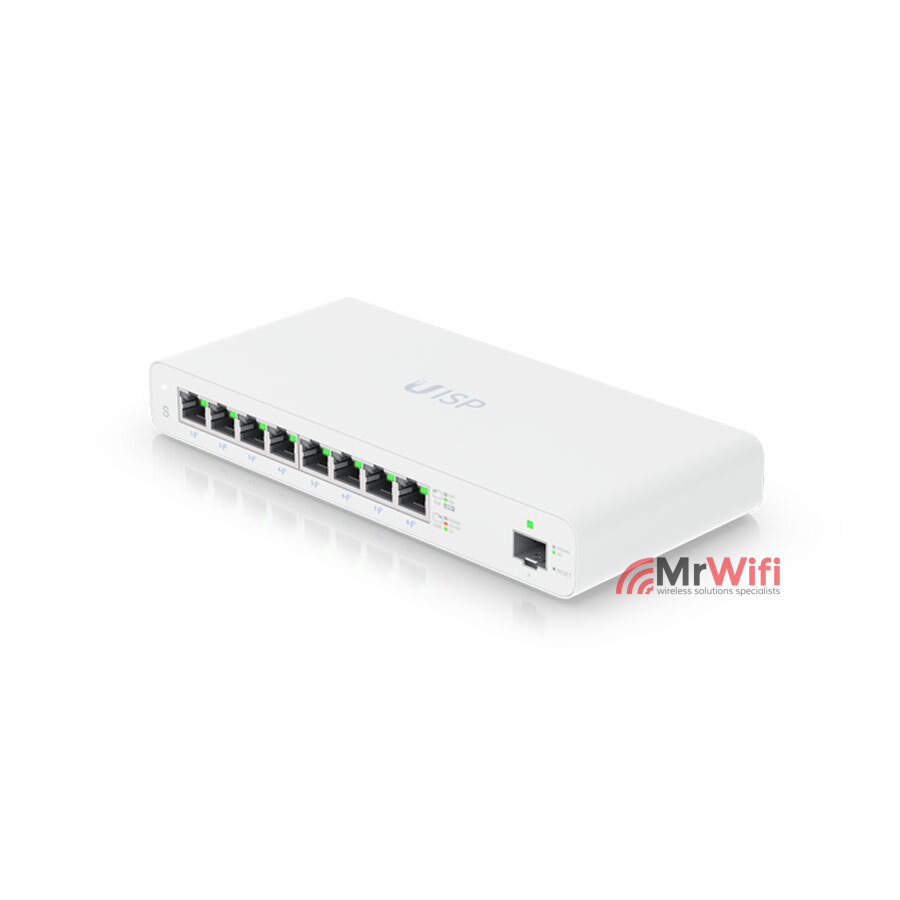

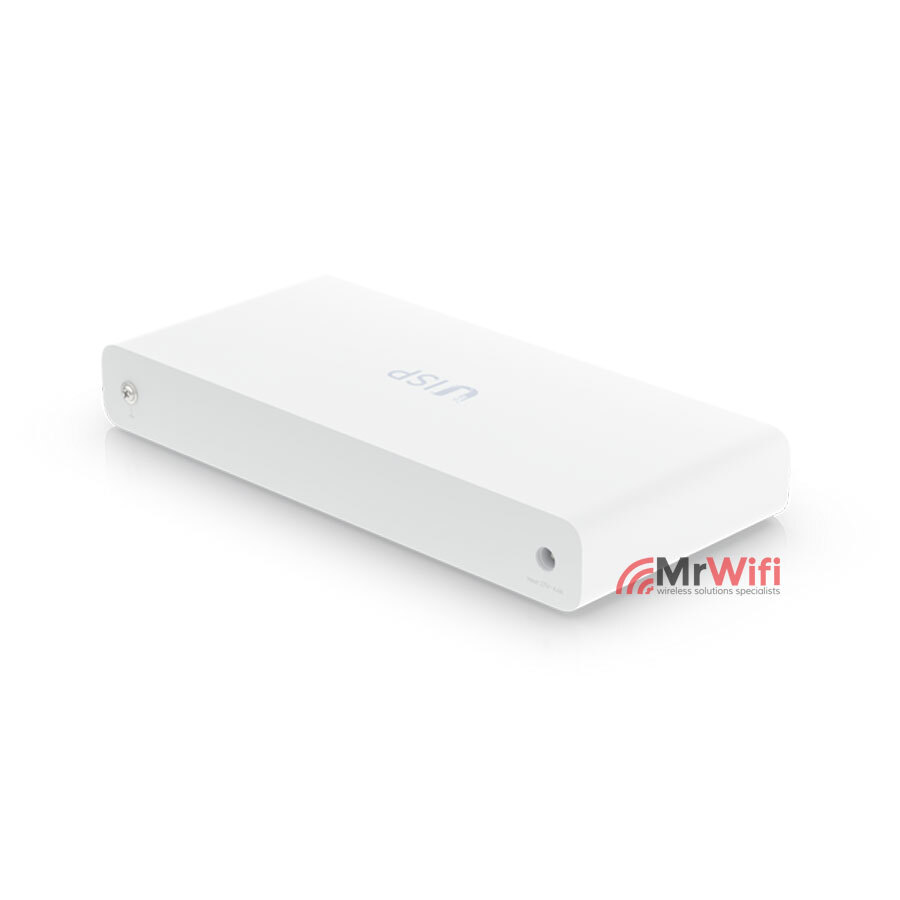

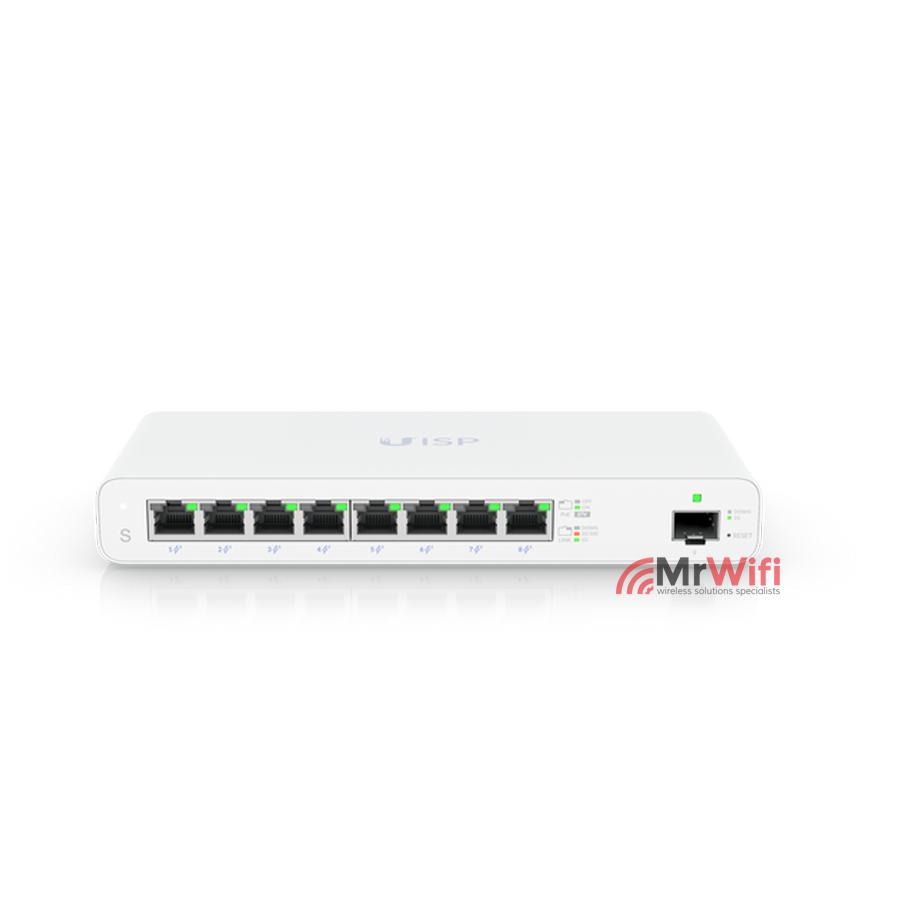

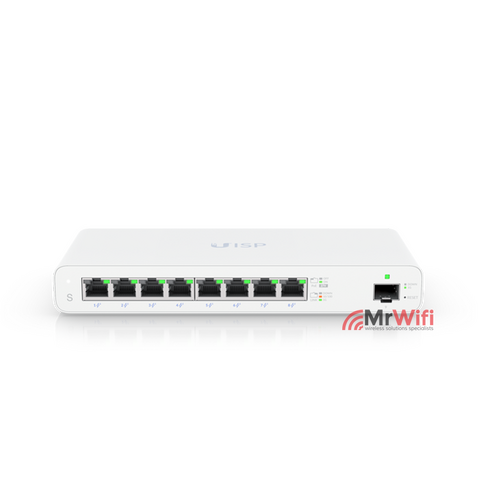

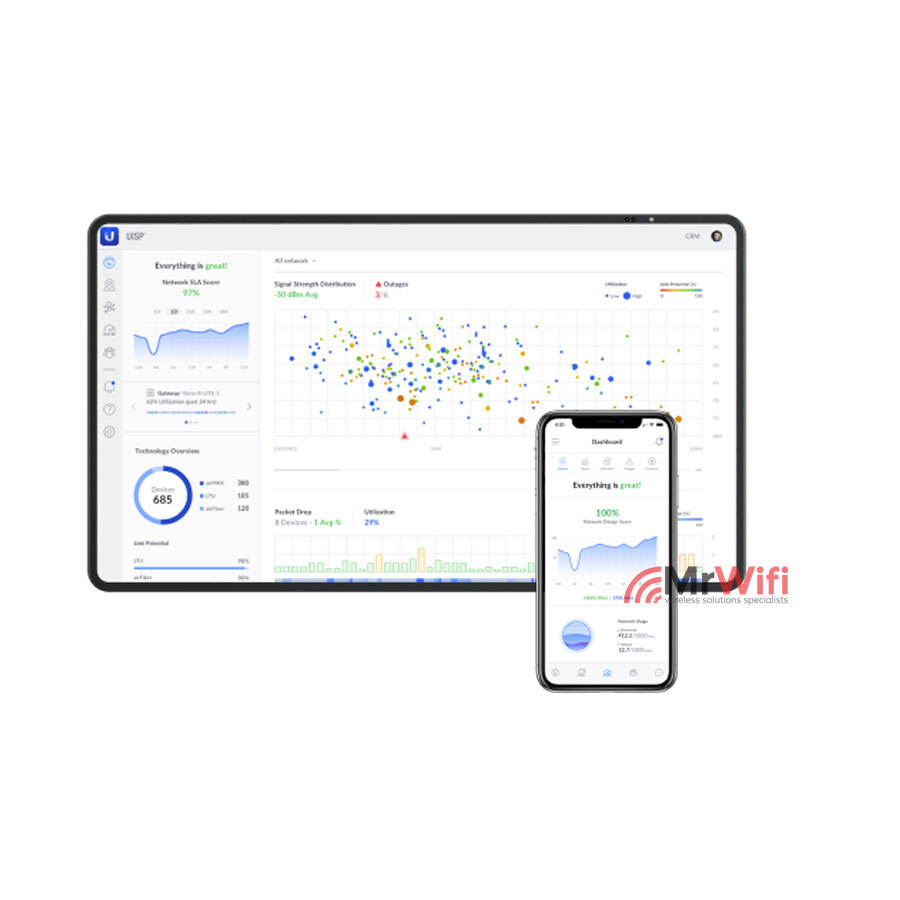

Ideal for wireless ISP (WISP) deployments, the UISP® Switch is a fanless, Layer 2 PoE switch with (8) GbE RJ45 ports and (1) 1G SFP port for an additional fiber uplink option. The UISP Switch is a cost-effective solution for WISPs looking to quickly and inexpensively deliver Gigabit wireless speeds to their customers. With its hefty 110W total PoE supply, the UISP Switch delivers substantial power to every radio in your service network. For larger deployments, pair it with the UISP Console to create a cohesive routing and switching hub. The UISP Switch is managed with the UISP application, a centralized platform where you can monitor and manage all of your UISP devices.
Features:

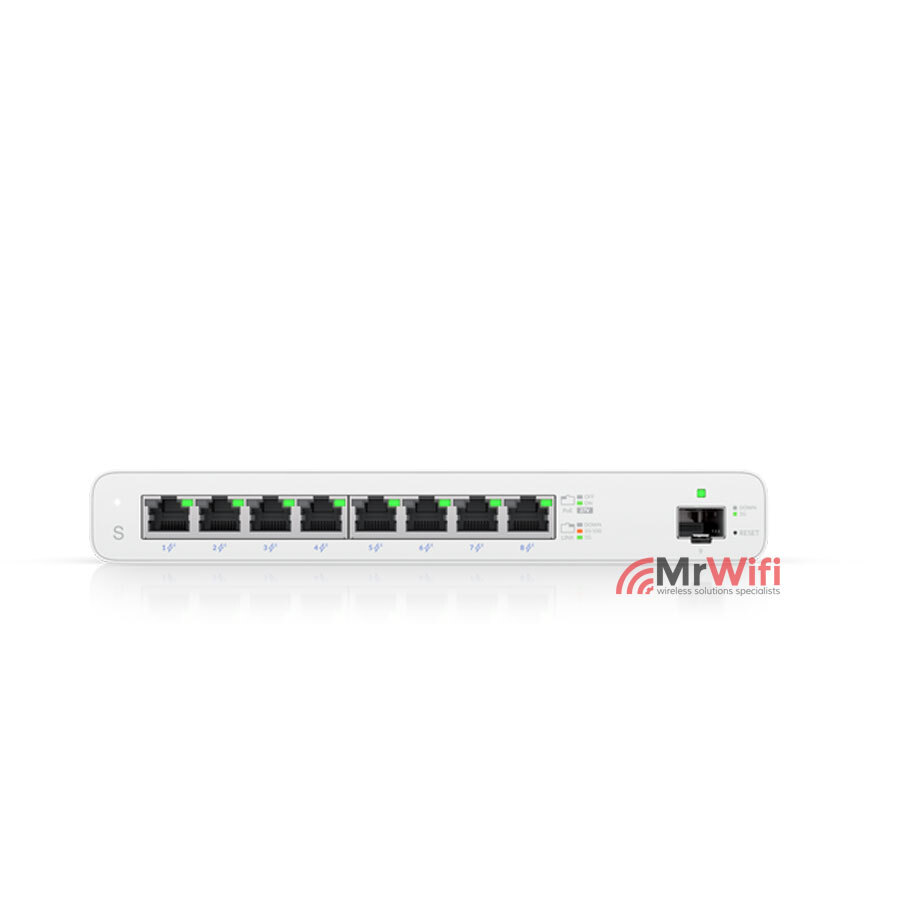

- (8) GbE RJ45 ports with 27V passive PoE that support 2-pair and 4-pair modes
- (1) 1G SFP port
- 110W PoE supply when powered with the included AC/DC adapter
- Fanless, thermal cooling for silent operation

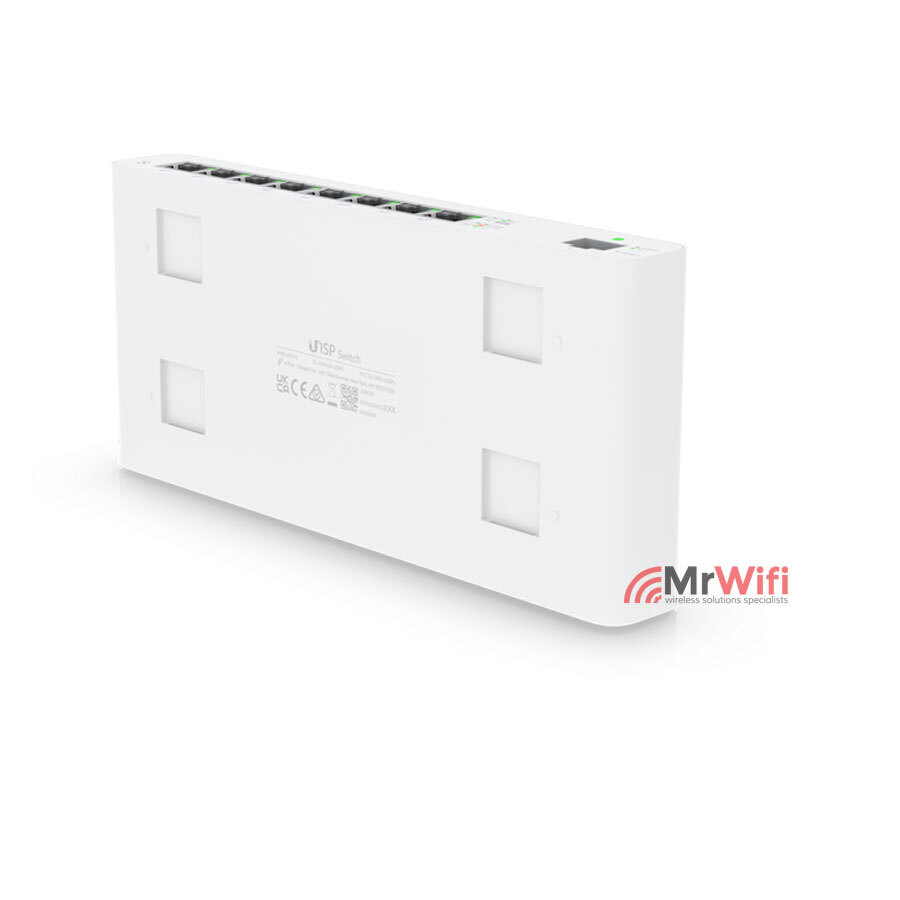

- Wall-mountable (kit included)
- Layer 2 switching features
- Easy, Bluetooth-powered setup via the UISP Mobile app
(UISP-S)
UISP Switch Gigabit PoE switch
Package Includes
- 1 x UISP Switch Gigabit PoE switch
- 1 x Power Adapter
- 1 x Power Cable
- 1 x Wall Mount
- 4 x Mounting Screws
- 4 x Screw Anchors
- Quick Installation Guide
UISP Switch Gigabit PoE switch- Specifications
| Mechanical | |
|---|---|
| Dimensions |
210.4 x 95 x 29 mm (8.28 x 3.74 x 1.14") |
| Weight |
610 g (1.34 lb) |
| Enclosure material |
Polycarbonate |
| Hardware | |
| Total non-blocking throughput |
9 Gbps |
| Switching capacity |
18 Gbps |
| Forwarding rate |
13.392 Mpps |
| Networking interface |
(8) 10/100/1,000 MbE RJ45 ports |
| Management interface |
Ethernet In-Band Bluetooth BLE |

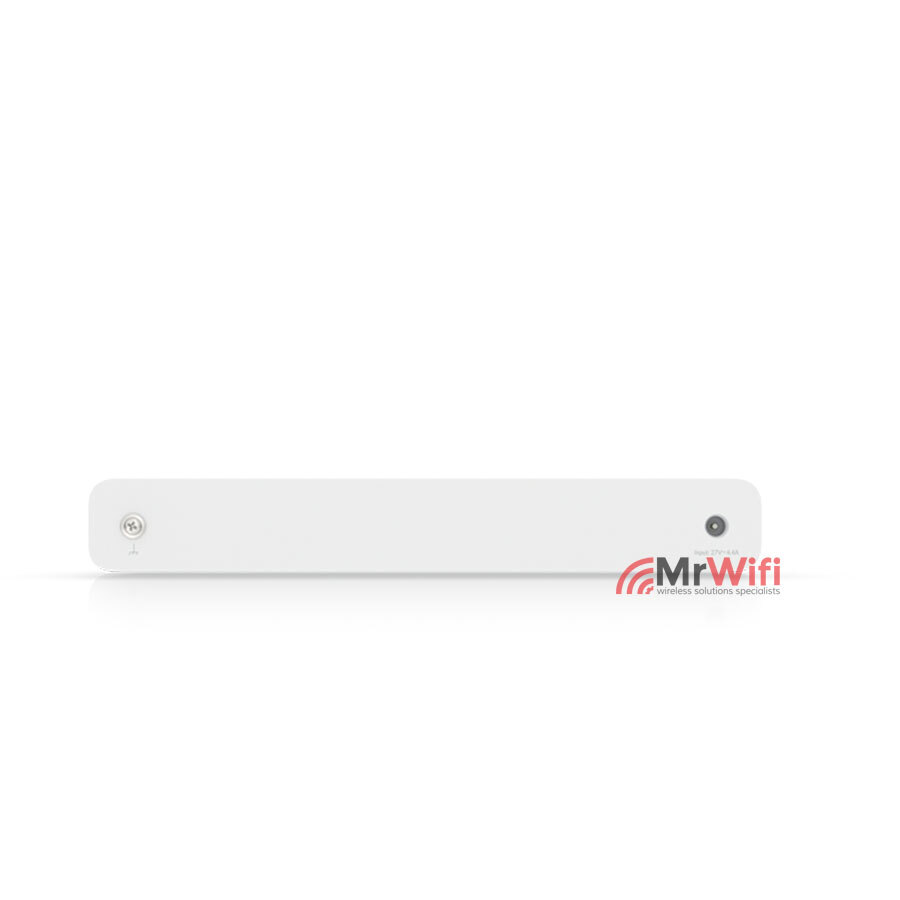

| Power method |
External AC/DC adapter |
| Power supply |
27V DC, 4.4A power adapter (included) |
| Supported voltage range |
24—28V DC |
| Max. power consumption |
8W (excludes PoE output) |
| ESD/EMP protection |
Air: ± 15 kV, contact: ± 8 kV |
| Operating temperature |
-10 to 50° C (14 to 122° F) |
| Operating humidity |
5 to 95% non-condensing |
| Certifications |
CE, FCC, IC |
| PoE | |
| PoE interface |
(8) 27V passive PoE: 2-pair (pins 4, 5+/7, 8-) or 4-pair (pins 1, 2, 4, 5+/3, 6, 7, 8-) |
| Max. Passive PoE wattage per port |
30W/27V DC |
| Passive PoE voltage range |
27V DC |
| LEDs | |
| System |
Status |
| RJ45 data ports |
PoE |
| SFP data ports |
Link/activity |
| SKU | UISP-S |
| Model # | UISP-S |
| Barcode # | 810010076564 |
| Brand | Ubiquiti |
| Shipping Weight | 0.5000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.032m |
| Shipping Length | 0.164m |
| Shipping Cubic | 0.000525000m3 |
| Unit Of Measure | ea |
h3>UISP Switch Gigabit PoE switch - Documents
