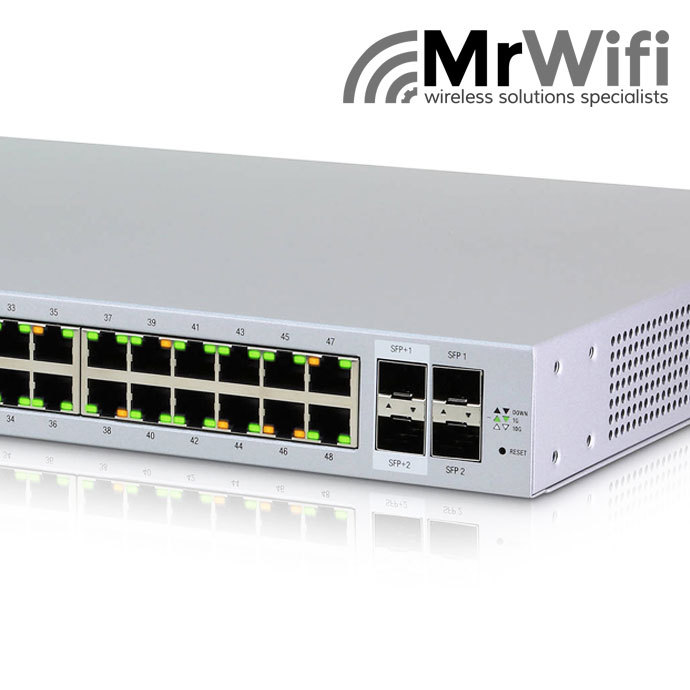

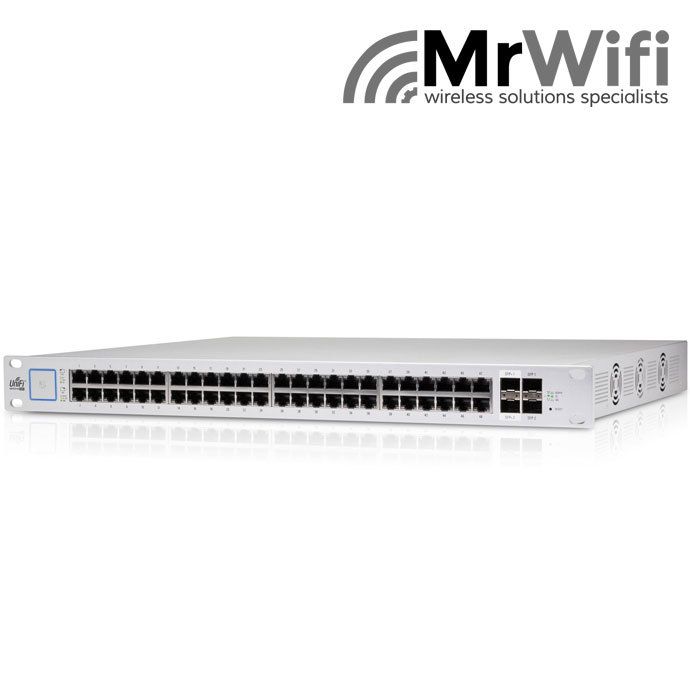

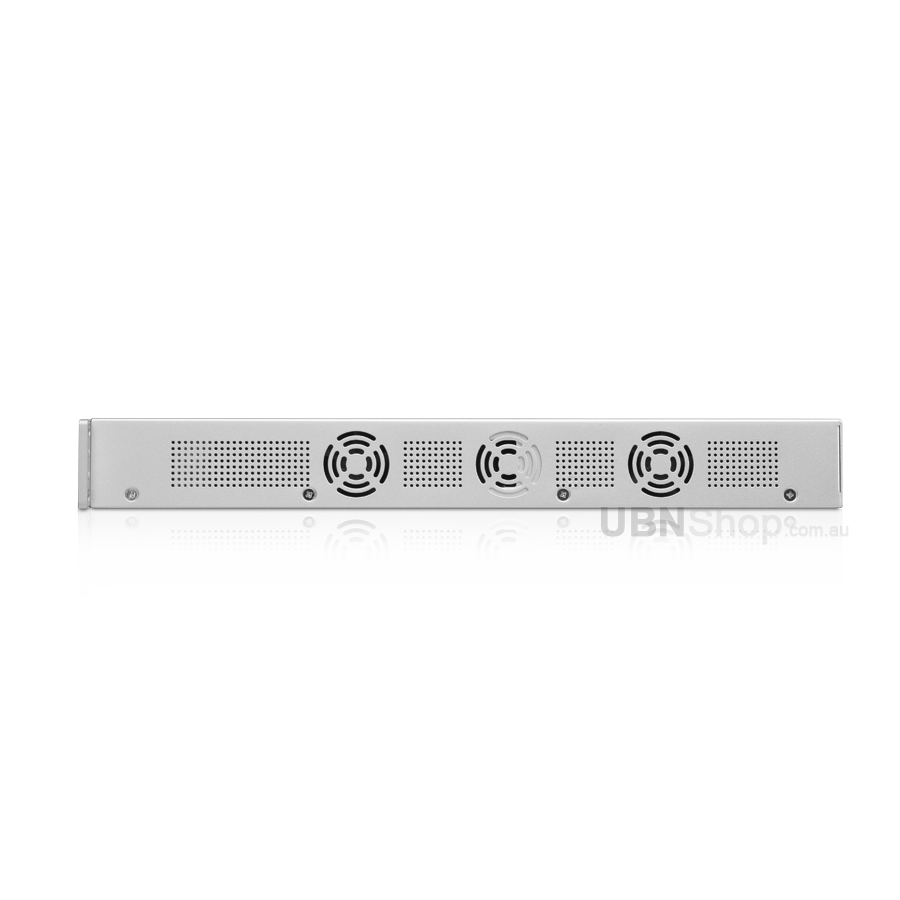

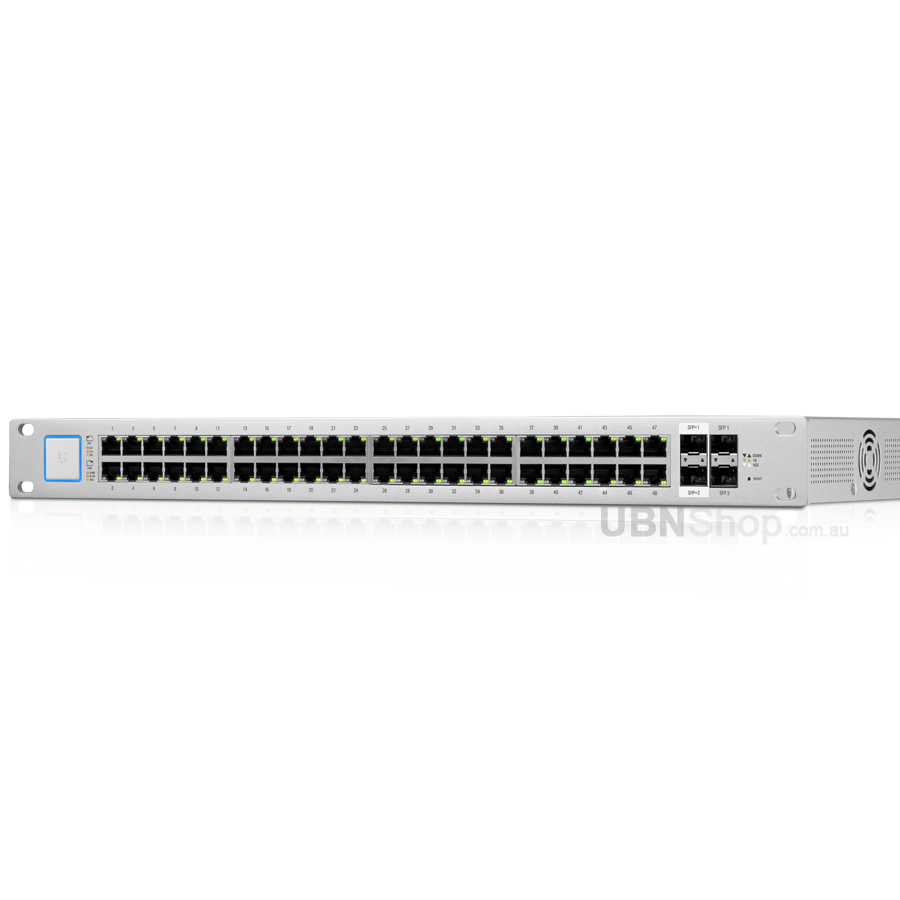

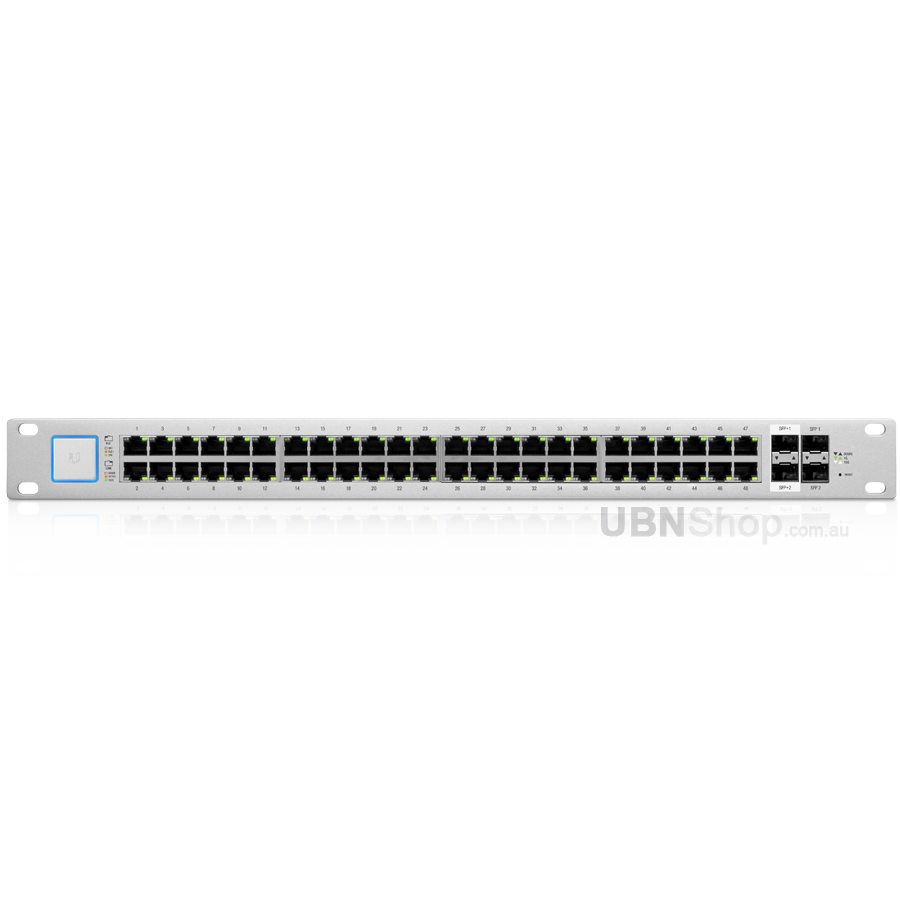

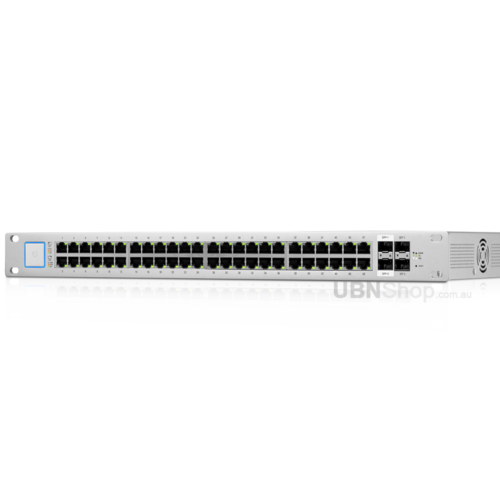

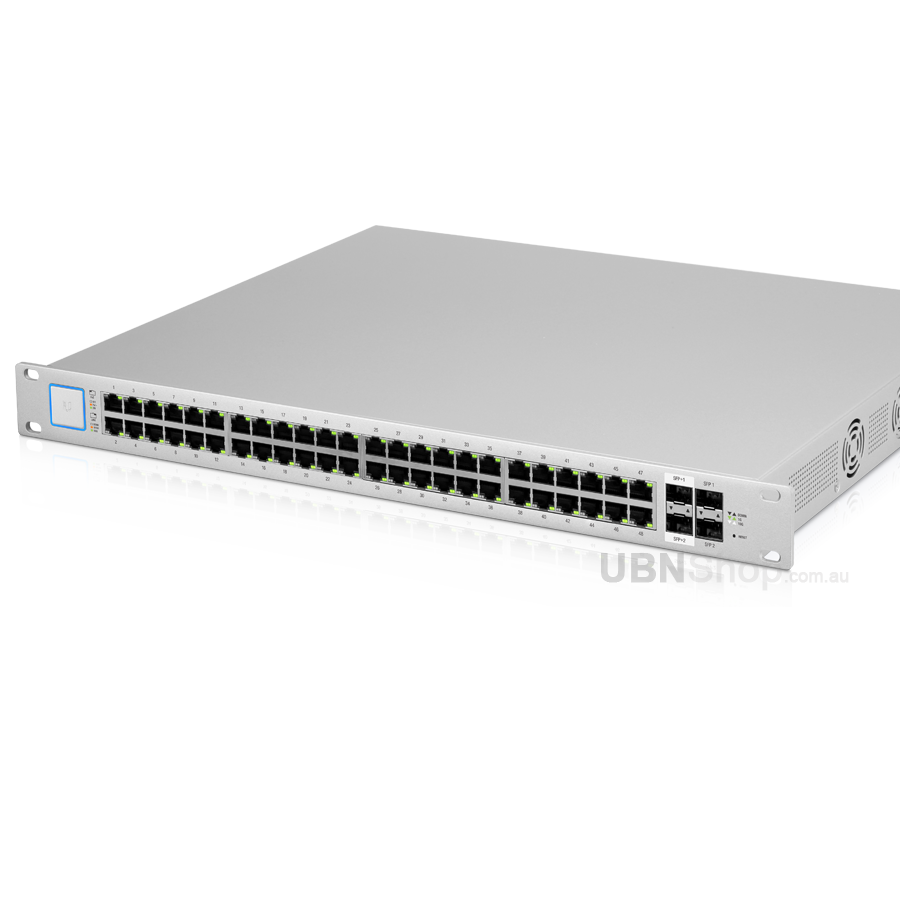

UniFi 48 Port 500W Managed Gigabit Switch PoE
US-48-500W
Managed PoE+ Gigabit Switch with SFP
The UniFi® Switch delivers robust performance with PoE+ support, and intelligent switching for growing networks. The UniFi® Switch delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss and non-blocking throughput: up to 70 Gbps for 48-port models.
Each switch port offers custom settings: port name, PoE, network/VLAN configuration, and operation mode (switching, mirroring, or aggregate) - as well as 802.1X Authentication and Radius VLAN support. Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.
(US-48-500W)
UniFi Switch 48 500W
Package Includes
- 1 x UniFi Switch 48 500W
- 4 x Mounting Screws
- 4 x Cage Nuts
- 1 x Power Cord
- Quick Start Guide
UniFi Switch 48 500W - Specifications
| UNIFI SWITCH 48 (500W) | |
|---|---|
| Dimensions | 485.04 x 44.45 x 347.6 mm (19.1 x 1.75 x 13.69") |
| Weight | 5.3 kg (11.68 lb) |
| Total Non-Blocking Throughput | 70 Gbps |
| Max. Power Consumption | 500W |
| Power Method | 100-240VAC/50-60 Hz, Universal Input |
| Power Supply | AC/DC, Internal, 500W DC |
| Networking Interface | (48) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1/10 Gbps SFP+ Ethernet Ports (2) 1 Gbps SFP Ethernet Ports |
| Management Interface | (1) RJ45 Serial Port (Reserved for Future Use), Ethernet In/Out Band |
| Certifications | CE, FCC, IC |
| Rackmount | Yes, 1U High |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 5 to 95% Noncondensing |
Shipping Specifications
| SKU | US-48-500W |
| Model # | US-48-500W |
| Barcode # | 817882023108 |
| Brand | Ubiquiti |
| Shipping Weight | 6.2000kg |
| Shipping Width | 0.420m |
| Shipping Height | 0.093m |
| Shipping Length | 0.570m |
| Shipping Cubic | 0.022264000m3 |
| Unit Of Measure | ea |
UniFi Switch 48 500W - Documents
