UniFi 8-Port Managed Gigabit Switch (No POE)
US-8
$200.10
Sold Out
Fully Managed 8-Port Gigabit Switch with PoP Passthrough
Expand and power your network with the UniFi® Switch 8, part of the Ubiquiti Networks® UniFi Enterprise System. The UniFi® Switch 8 is a compact, fully managed Gigabit switch, delivering robust performance and intelligent switching for enterprise networks.
The UniFi® Switch 8 features the flexibility of being powered by PoE or by the included AC/DC adapter. One PoE passthrough port provides up to 12W PoE output to power a UniFi access point or other PoE device. The US-8 offers (8) Gigabit Ethernet ports and supports up to 8 Gbps total, non-blocking line rate.
Features:

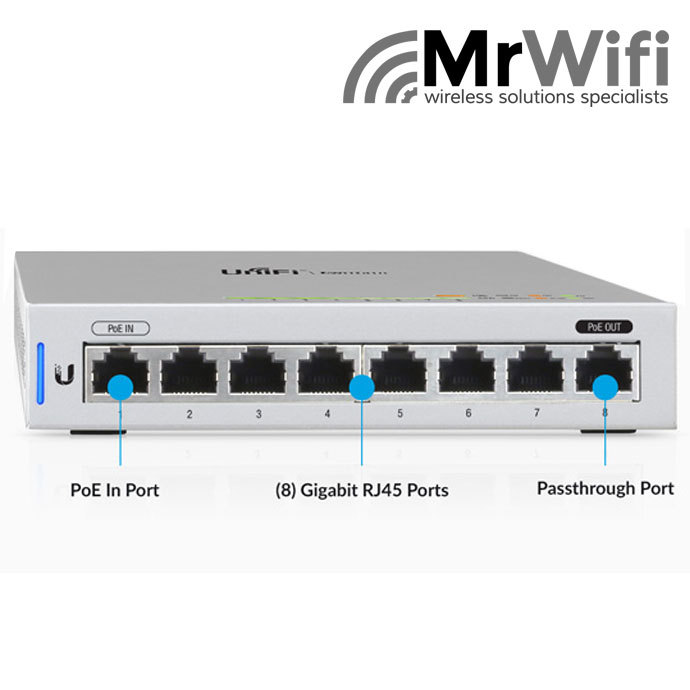

- (8) Gigabit Ethernet Ports
- (1) PoE Passthrough Port
- Powered by 802.3af/at PoE or DC Power
- 8 Gbps Total, Non-Blocking Line Rate
- 25W AC/DC Power Adapter Included
- Managed by UniFi Controller
(US-8)
UniFi Switch 8 (No PoE)
Package Includes
- 1 x UniFi Switch 8
- 2 x Mounting Screws
- 2 x Screw Anchors
- 1 x Power Adapter
- 1 x Power Cord
- Quick Start Guide
UniFi Switch 8 (No PoE) - Specifications
| UNIFI SWITCH US-8 | |
|---|---|
| Dimensions | 148.0 x 99.5 x 30.7 mm (5.83 x 3.92 x 1.21") |
| Weight | 432 g (15.24 oz) |
| Enclosure Characteristics | SGCC Steel |
| Total Non-Blocking Throughput | 8 Gbps |
| Switching Capacity | 16 Gbps |
| Forwarding Rate | 11.9 Mpps |
| Max. Power Consumption | 12W (Excluding PoE Output) |
| Max. Passive PoE Wattage per Port | PoE Mode 1: 12W @ 802.3at PoE Mode 2: 12W @ 48V DC Input Mode: 12W @ 48V |
| Passive PoE Voltage Range | Depends on Power Source |
| Power Method | (1) DC 48V, Max. 1.25A (1) PoE Input, 802.3 af/at (Pins +1, 2; -3, 6) |
| Supported Voltage Range | DC: 48V; 48V Mode: 56V to 40V |
| Power Supply | External AC/DC Adapter, 48V, 0.5A |
| LEDs | PoE (Port 8), Speed/Link/Activity (All Ports) |
| Networking Interfaces | (8) 10/100/1000 Mbps RJ45 Ports |
| PoE Interface (Port 1) | PoE Mode 1: 802.3af/at (Pins +1, 2; -3, 6) PoE Mode 2: 48V (2-Pair Pins +4, 5; -7, 8) |
| PoE Interface (Port 8) | PoE Mode 1: 48V (Pins +1, 2; -3, 6) PoE Mode 2: Passive 48V (2-Pair Pins +4, 5; -7, 8) DC Input Mode: DC Passthrough (Pins +1, 2; -3, 6) |
| Management Interface | Ethernet In-Band Management |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Operating Temperature | -5 to 45° C (23 to 113° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Certifications | CE, FCC, IC |
Shipping Specifications
| SKU | US-8 |
| Model # | US-8 |
| Barcode # | 8.10E+11 |
| Brand | Ubiquiti |
| Shipping Weight | 0.7500kg |
| Shipping Width | 0.135m |
| Shipping Height | 0.087m |
| Shipping Length | 0.221m |
| Shipping Cubic | 0.002596000m3 |
| Unit Of Measure | ea |
UniFi Switch 8 (No PoE) - Documents
UniFi Switch US-8 DatasheetBe The First To Review This Product!
