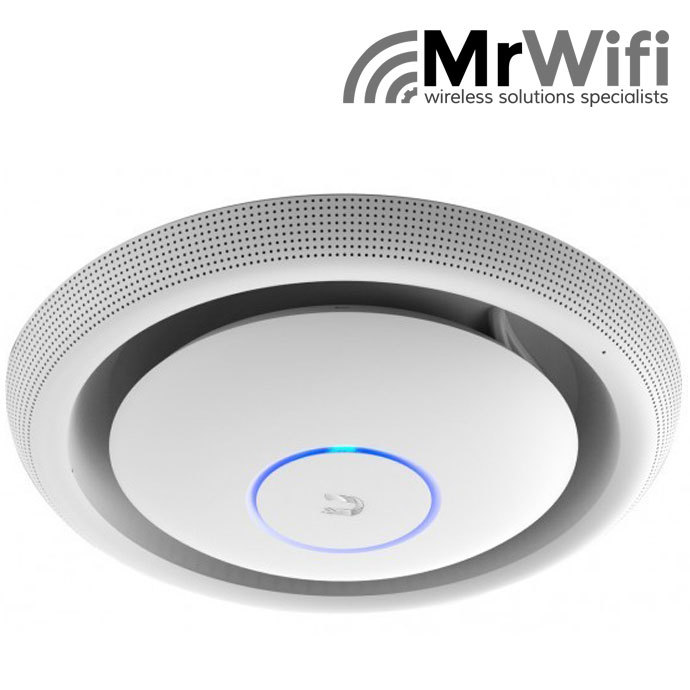

UniFi AC Education
UAP-AC-Education
802.11ac Dual-Radio AP with Public Address System
Featuring the latest Wi-Fi 802.11ac, 3x3 MIMO technology, the UniFi AC EDU AP conveniently integrates Wi-Fi and public address capabilities, making it ideal for campus-wide deployment.
The Highest Performance AP in the Industry Now Happens to Be the Best Value. 802.11ac Wave 2 MU‑MIMO (Multi‑User, Multiple Input, Multiple Output) technology allows a Wave 2 AP to communicate with multiple clients at the same time – significantly increasing multi‑user throughput and overall user experience.
UniFied Wi-Fi and Public Address System Integration -
Make announcements over Wi-Fi — no separate hardware needed.
Advanced Acoustic Performance -
The UniFi AC EDU AP provides high-quality sound with accurate voice reproduction.
Dual-Radio 3x3 MIMO -
The UniFi AC EDU AP supports simultaneous dual-band, 3x3 MIMO technology in the 2.4 and 5 GHz radio bands for up to 1750 Mbps.
Mobile Announcement App -
Broadcast announcements with clarity from your iOS or Android-based device using our mobile app.
(UAP-AC-EDU)
UniFi AC Education
Pack Includes:
- 1 x UniFi AC Education AP
- 1 x Mounting Plate
- 1 x Gigabit PoE* (48V, 0.5A) with Mounting Bracket
- 1 x Power Cord
- 1 x Quick Start Guide
* Included only in the single-pack UAP-AC-EDU.
UniFi AC Education -Specifications
| Dimensions | 287.5 x 287.5 x 125.9 mm (11.32 x 11.32 x 4.96") |
| Weight | 1.820 kg (4.012 lb) |
| Networking Interface | Dual-Band Wi-Fi / Gigabit Ethernet |
| Ports | (2) 10/100/1000 Ethernet Ports (1) USB 2.0 Port |
| Buttons | Reset |
| Antennas | (3) Dual-Band Antennas, 2.4 GHz: 3 dBi, 5 GHz: 3 dBi |
| Wi-Fi Standards | 802.11 a/b/g/n/ac |
| Power Method | Passive Power over Ethernet (48V), 803.2at Supported (Supported Voltage Range: 44 to 57VDC) |
| Power Supply | 48V, 0.5A PoE Gigabit Adapter* |
| Maximum Power Consumption | 20W |
| Max TX Power | 2.4 GHz: 22 dBm; 5 GHz: 22 dBm |
| BSSID | Up to Four per Radio |
| Power Save | Supported |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| Certifications | CE, FCC, IC |
| Mounting | Wall/Ceiling (Kits Included) |
| Operating Temperature | -10 to 70° C (14 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| ADVANCED TRAFFIC MANAGEMENT | |
|---|---|
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| WMM | Voice, Video, Best Effort, and Background |
| Concurrent Clients | 200+ |
| SUPPORTED DATA RATES (MBPS) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) |
| 802.11ac | 6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80) |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| LOUDSPEAKER ACOUSTICS | |
| Sensitivity | 94 dB (1W/1 m) |
| Maximum SPL | 103 dB @ 1 m |
| Frequency Response | 100 - 20,000 Hz |
| Type | Two-Way Speaker with Second-Order HP Filter |
Shipping Specifications
| SKU | UAP-AC-EDU |
| Model # | UAP-AC-EDU |
| Brand | Ubiquiti |
| Shipping Weight | 2.3000kg |
| Shipping Width | 0.357m |
| Shipping Height | 0.186m |
| Shipping Length | 0.362m |
| Shipping Cubic | 0.024038000m3 |
| Unit Of Measure | ea |
UniFi AC Education - Documents
Datasheet UAP AC EDUBe The First To Review This Product!
