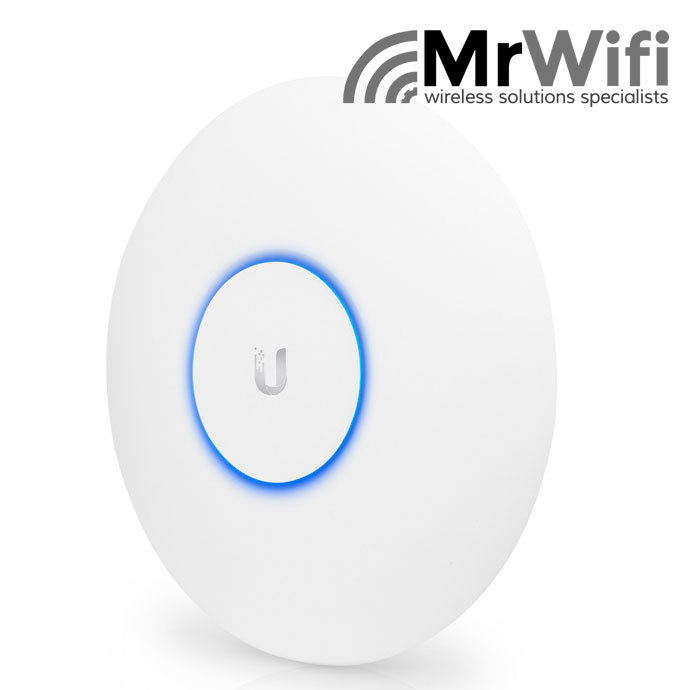

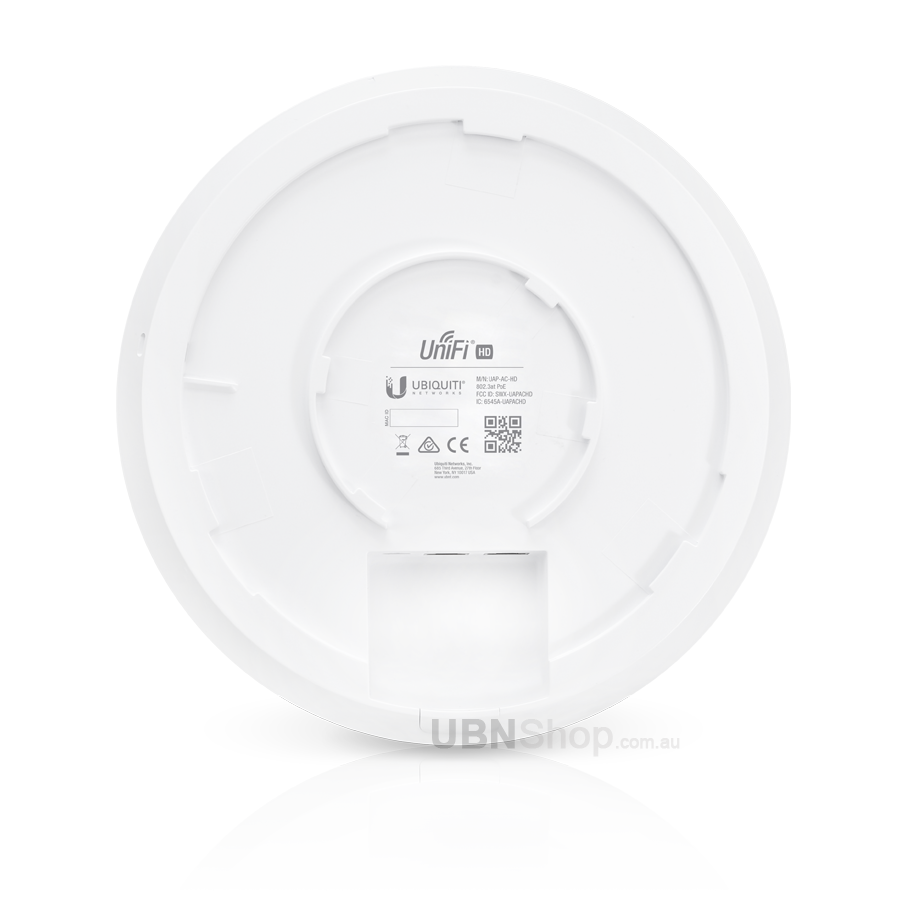

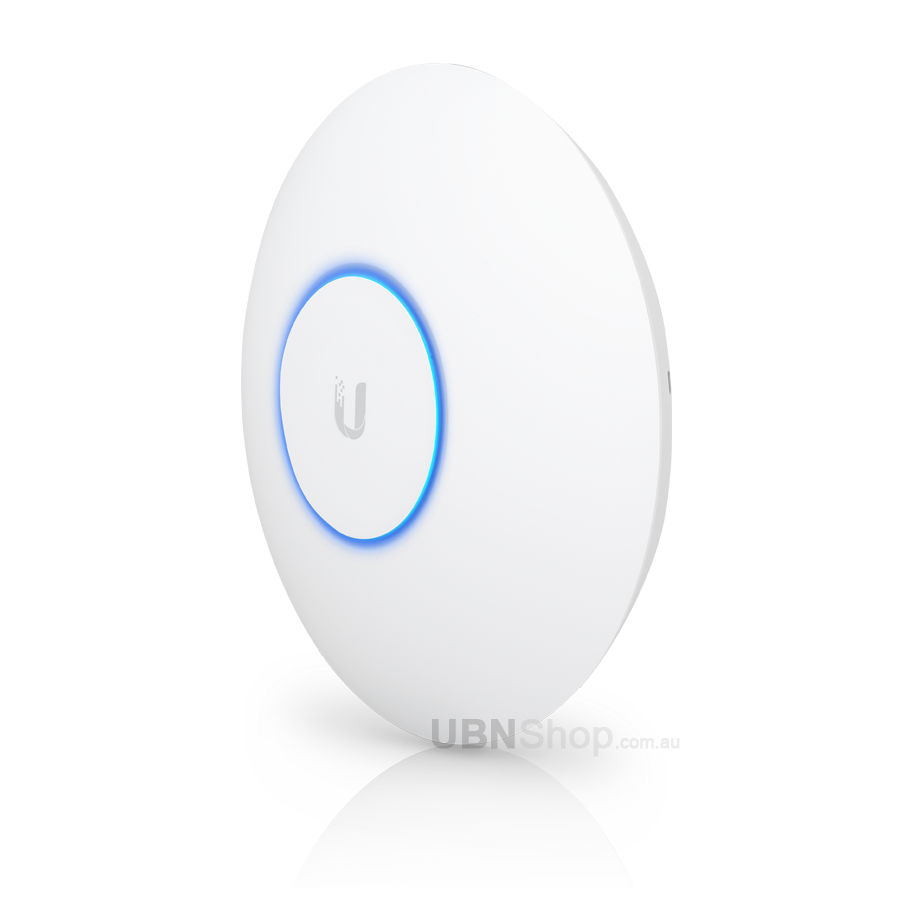

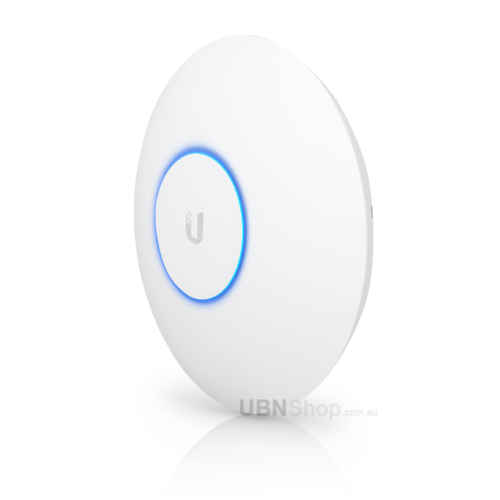

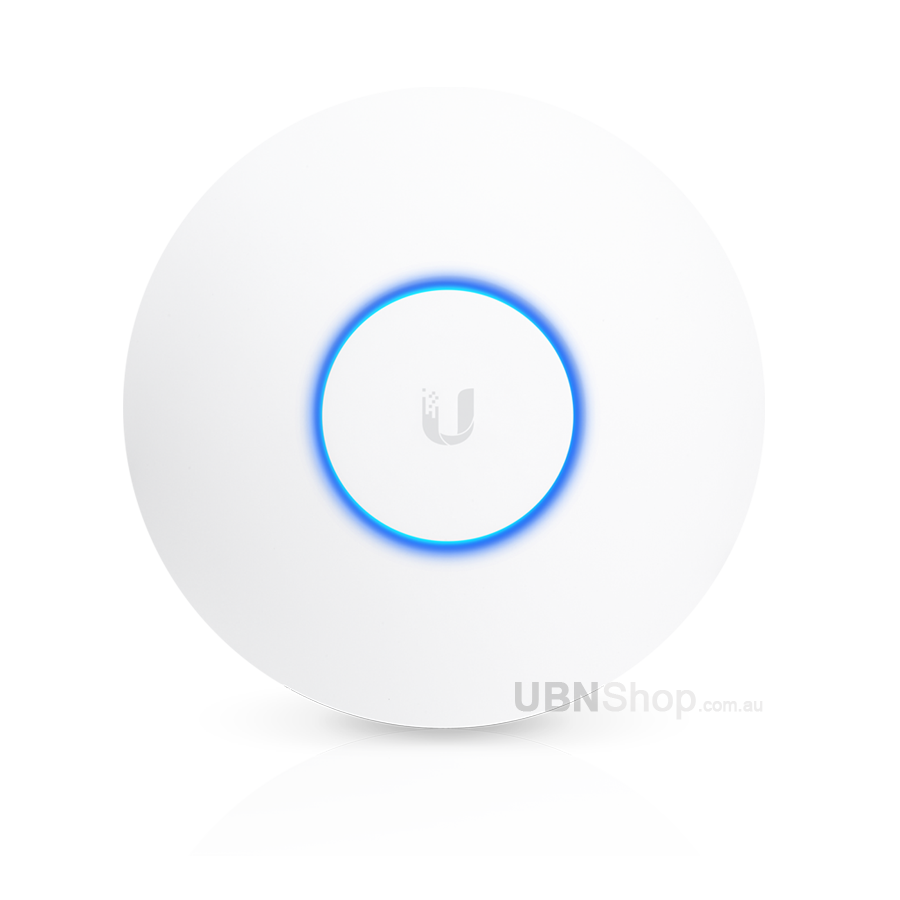

UniFi AC HD
UAP-AC-HD
High‑Density Applications Powered by MU‑MIMO Technology
UniFi® is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. The UniFi AC HD AP has a refined industrial design and can be easily installed using the included mounting hardware. Easily accessible through any standard web browser and the UniFi mobile app (iOS or Android), the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance.
The Highest Performance AP in the Industry Now Happens to Be the Best Value. 802.11ac Wave 2 MU‑MIMO (Multi‑User, Multiple Input, Multiple Output) technology allows a Wave 2 AP to communicate with multiple clients at the same time – significantly increasing multi‑user throughput and overall user experience.
Radio Hardware Acceleration -
Independent 2.4 GHz and 5 GHz dedicated hardware offload for maximized multi‑user throughput and reduced latency
CPU Hardware Acceleration -
Dedicated hardware offload for QoS, Guest Control, and Client Management
Optimized for MU‑MIMO -
Antenna System Optimized for 802.11ac Wave 2 MU-MIMO Beamforming
Beamforming -
Data is sent and received using multiple antennas to increase throughput and range.
(UAP-AC-HD)
UniFi AC HD
Pack Includes:
- 1 x UniFi AC HD Access Point
- 1 x Mounting Plate
- 1 x Ceiling Backing Plate
- 4 x Plate Ceiling Screws
- 4 x Keps Nuts
- 2 x T-Bar Mounts
- 2 x T-Bar Screws
- 1 x Allen Wrench
- 4 x Wall Screws
- 4 x Screw Anchors
- 1 x Release Tool
- 1 x Cable Feed Plug
- 1 x Gigabit PoE (48V, 0.5A)*
- 1 x Power Cord*
- Quick Start Guide
* Included only in the single-pack of the UAP-AC-HD
UniFi AC HD - Specifications

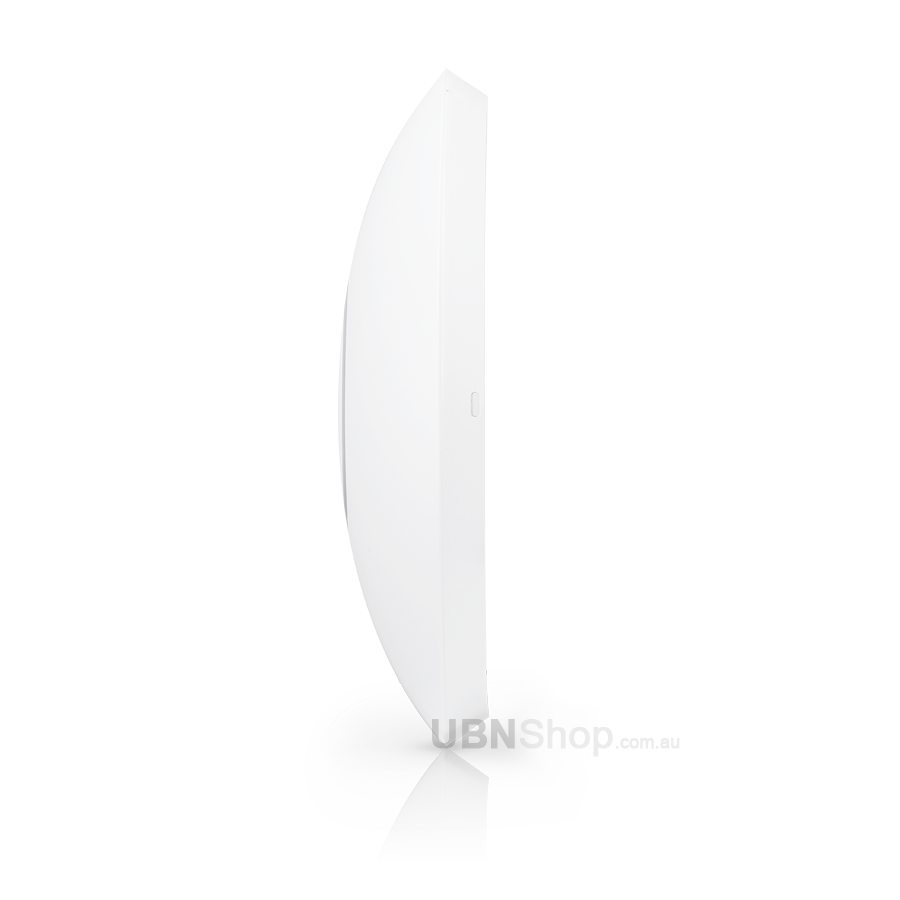

| Dimensions | 220 x 220 x 48.1 mm |
| Weight | 700 g (24.7 oz), 830 g (29.3 oz) with Mounting Kits |
| Networking Interface | (2) 10/100/1000 Ethernet Ports |

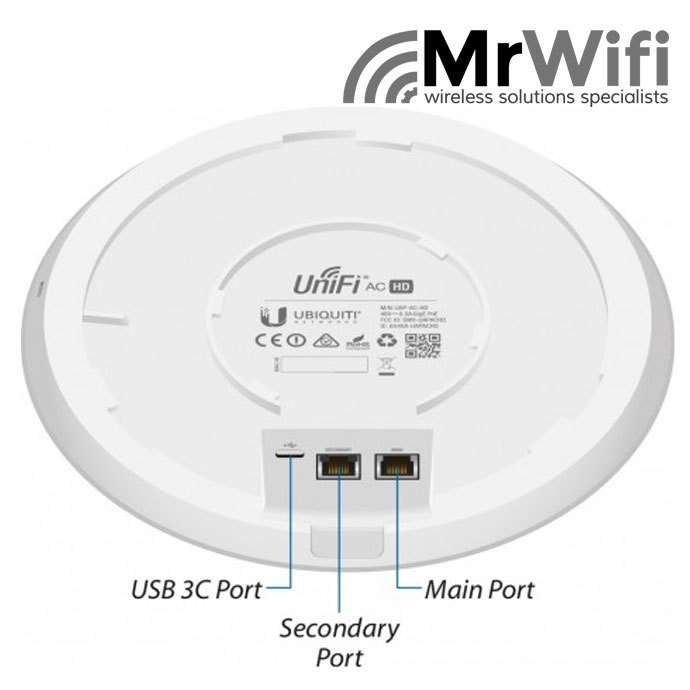

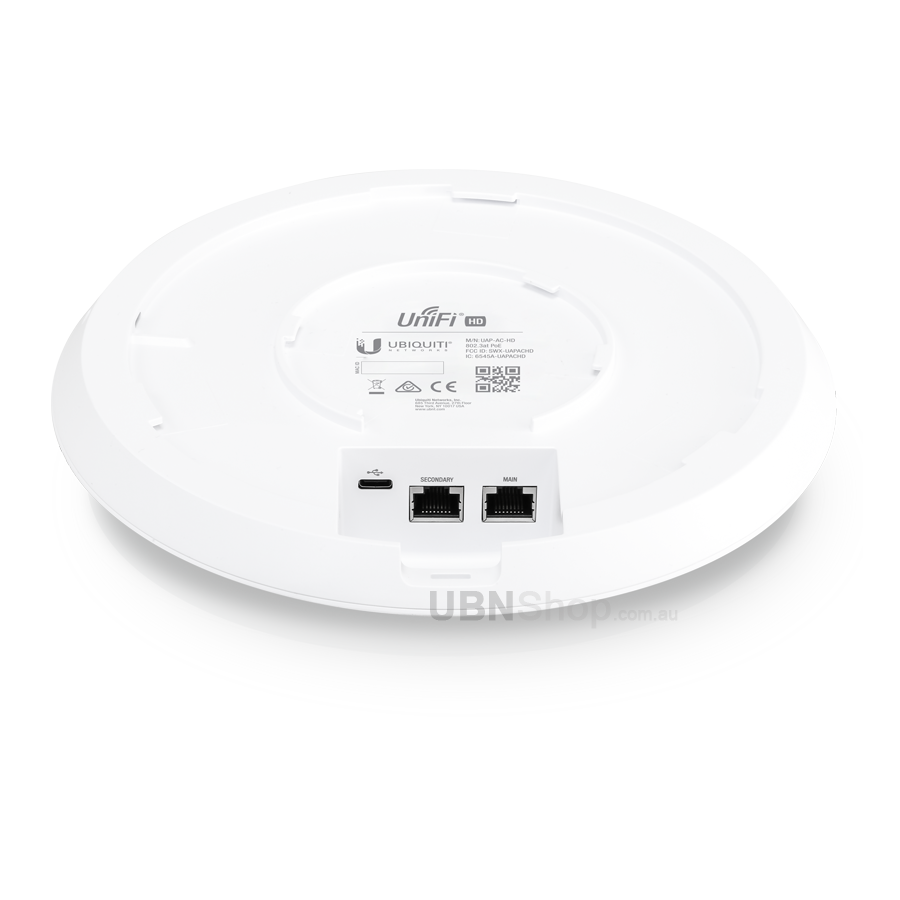

| Ports | (2) Ethernet RJ45, (1) USB Type C |
| Buttons | Reset |
| Antennas | (2) 2.4G internal single band antennas, dual polarity (2) 5G internal single band antennas, dual polarity |
| Wi-Fi Standards | 802.11a/b/g/n/ac/ac-wave2 |
| Power Method | PoE 802.3at |
| Power Supply | PoE Injector 48VDC -0.5A Gigabit |
| Maximum Power Consumption | 17W |
| Max TX Power | 25 dBm |
| BSSID | 4 Per Radio |
| Power Save | Supported |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| Certifications | CE, FCC, IC |

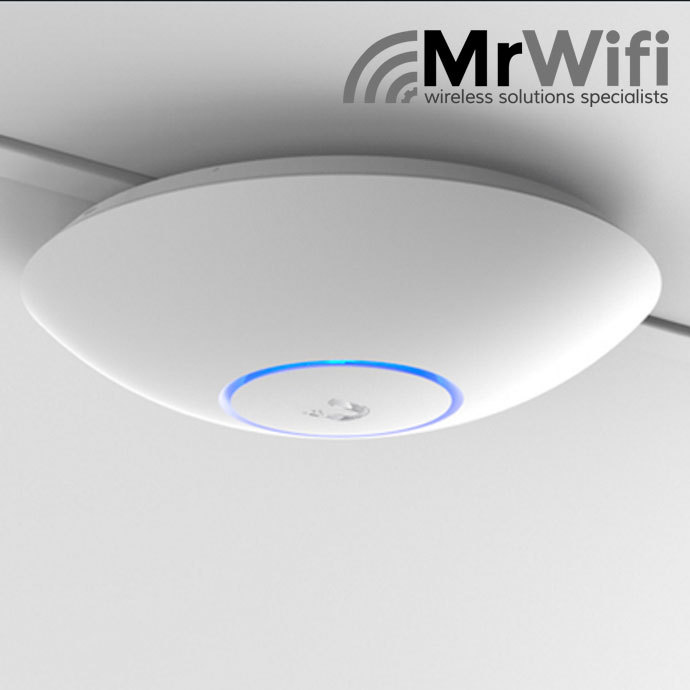

| Mounting | Wall/Ceiling (Kits Included) |
| Operating Temperature | -10 to 70° C (14 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| ADVANCED TRAFFIC MANAGEMENT | |
|---|---|
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| WMM | Supported |
| Concurrent Clients | 500+ |
| SUPPORTED DATA RATES (MBPS) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) |
| 802.11ac | 6.5 Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80) |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
Shipping Specifications
| SKU | UAP-AC-HD |
| Model # | UAP-AC-HD |
| Barcode # | 817882025171 |
| Brand | Ubiquiti |
| Shipping Weight | 1.2000kg |
| Shipping Width | 0.255m |
| Shipping Height | 0.108m |
| Shipping Length | 0.265m |
| Shipping Cubic | 0.007298000m3 |
| Unit Of Measure | ea |
UniFi AC HD - Documents
