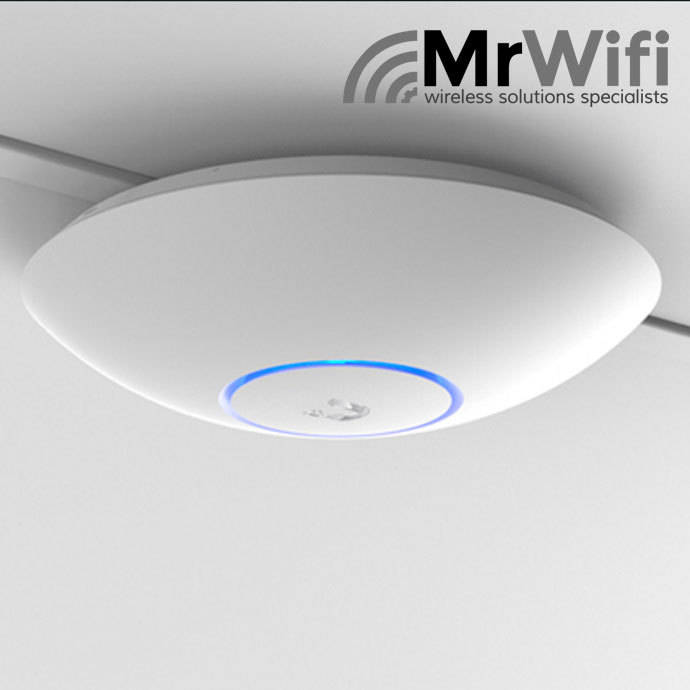

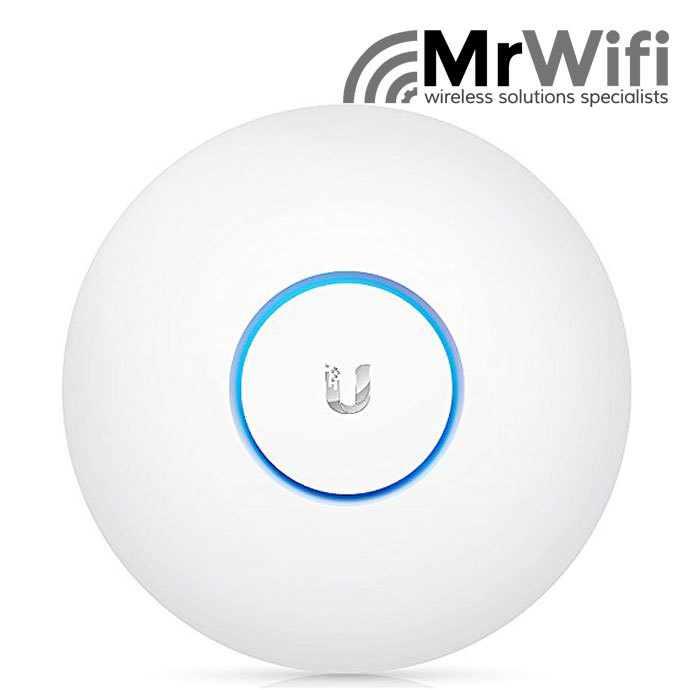

UniFi AC Long Range
UAP-AC-LR
$225.50
Sold Out
802.11ac Dual Radio Access Point Long Range
The UniFi AC Long Range AP features the latest Wi-Fi 802.11ac technology in a refined industrial design and is ideal for cost-effective deployment of high‑performance wireless networks. The UniFi AC LR AP delivers 5x the performance of the first-generation UniFi AP while still maintaining Ubiquiti’s disruptive pricing strategy. The innovative antenna design provides a long-range, symmetrical-link coverage area, and the antenna gain of the UniFi AC LR AP performs better than one-way, high transmit power does for connecting distant clients.
(UAP-AC-LR)
UniFi Access Point AC Long Range

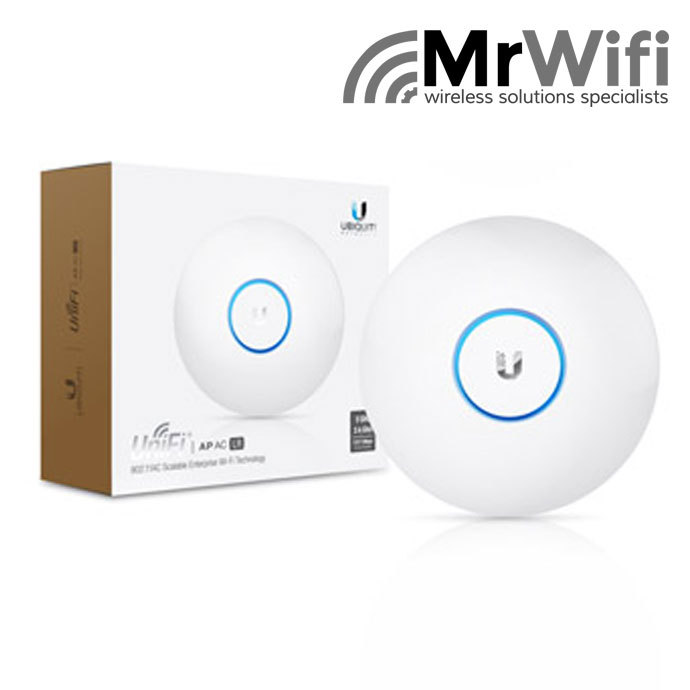

Pack Includes:
- 1 x UniFi AC Long Range Access Point
- 1 x Mounting Plate
- 1 x Ceiling Backing Plate
- 4 x Plate Ceiling Screws
- 4 x Keps Nuts
- 4 x Wall Screws
- 4 x Screw Anchors
- 1 x Gigabit PoE (24V, 0.5A)*
- 1 x Power Cord*
- Quick Start Guide
* Included only in the single-pack of the UAP-AC-LR
UniFi Access Point AC Long Range - Specifications
| UNIFI | |
|---|---|
| Dimensions | 175.7 x 175.7 x 43.2 mm (6.92 x 6.92 x 1.70") |
| Weight | 240 g (8.5 oz), 315 g (11.1 oz) with Mounting Kits |

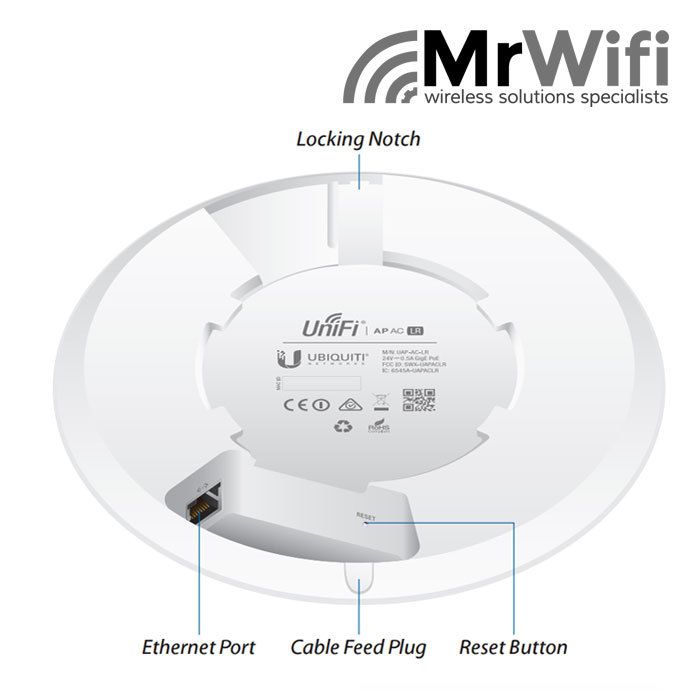

| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Ports | No |
| Buttons | Reset |
| Antennas | (1) Dual-Band Antenna, Tri-Polarity, 2.4 GHz: 3 dBi, 5 GHz: 6 dBi |
| Wi-Fi Standards | 802.11 a/b/g/n/ac |
| Power Method | Passive Power over Ethernet (24V), (Pairs 4, 5+; 7, 8 Return) |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter |
| Maximum Power Consumption | 6.5W |
| Max TX Power | 24 dBm |
| BSSID | Up to Four per Radio |
| Power Save | Supported |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| Certifications | CE, FCC, IC |
| Mounting | Wall/Ceiling (Kits Included) |
| Operating Temperature | -10 to 70° C (14 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| ADVANCED TRAFFIC MANAGEMENT | |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| WMM | Voice, Video, Best Effort, and Background |
| Concurrent Clients | 200+ |
| SUPPORTED DATA RATES (MBPS) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) |
| 802.11ac | 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
Shipping Specifications
| SKU | UAP-AC-LR |
| Model # | UAP-AC-LR |
| Barcode # | 817882022972 |
| Brand | Ubiquiti |
| Shipping Weight | 0.4550kg |
| Shipping Width | 0.212m |
| Shipping Height | 0.099m |
| Shipping Length | 0.230m |
| Shipping Cubic | 0.004827000m3 |
| Unit Of Measure | ea |
UniFi Access Point AC Long Range - Documents
Datasheet UAP AC Long RangeBe The First To Review This Product!
