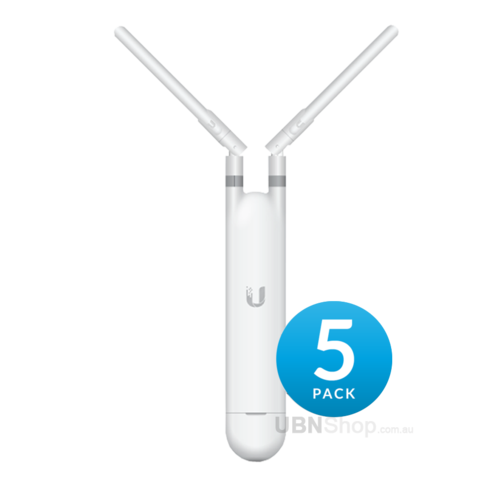

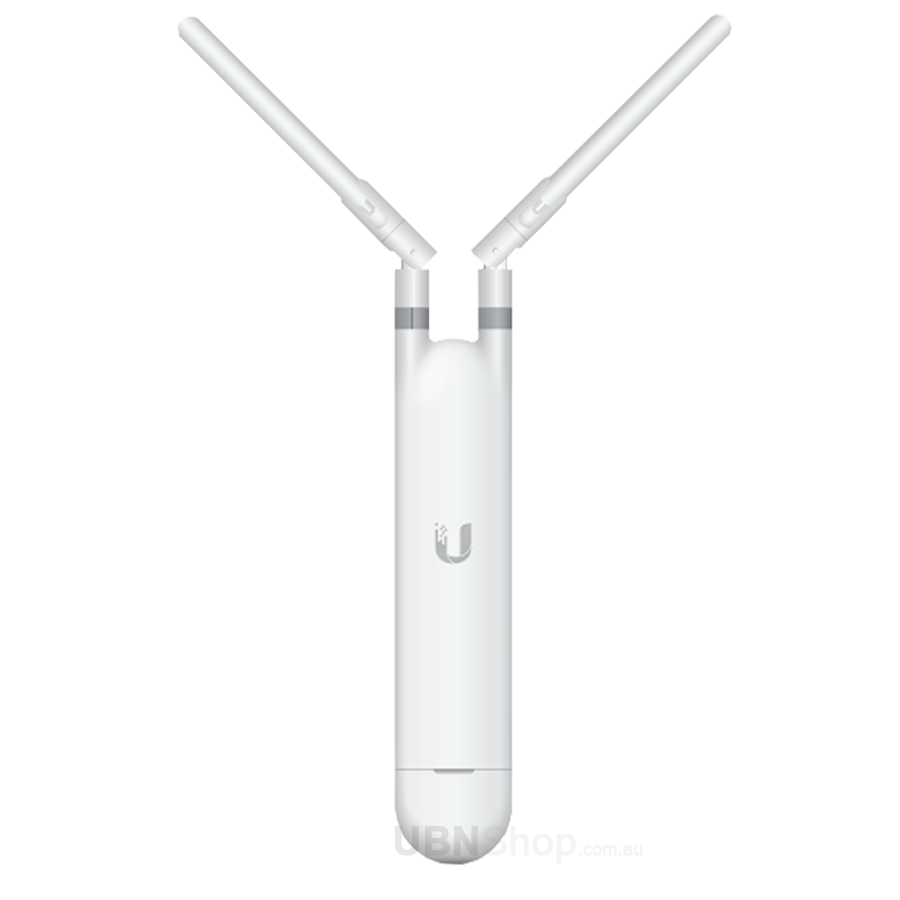

UniFi AC Outdoor Access Point Mesh 5 Pack
UAP-AC-M-5
802.11AC Indoor/Outdoor Wi-Fi Access Point with Plug & Play Mesh Technology
The UniFi AC Mesh AP's have a refined industrial design and can be easily installed using the included mounting hardware. Easily accessible through any standard web browser, the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance.

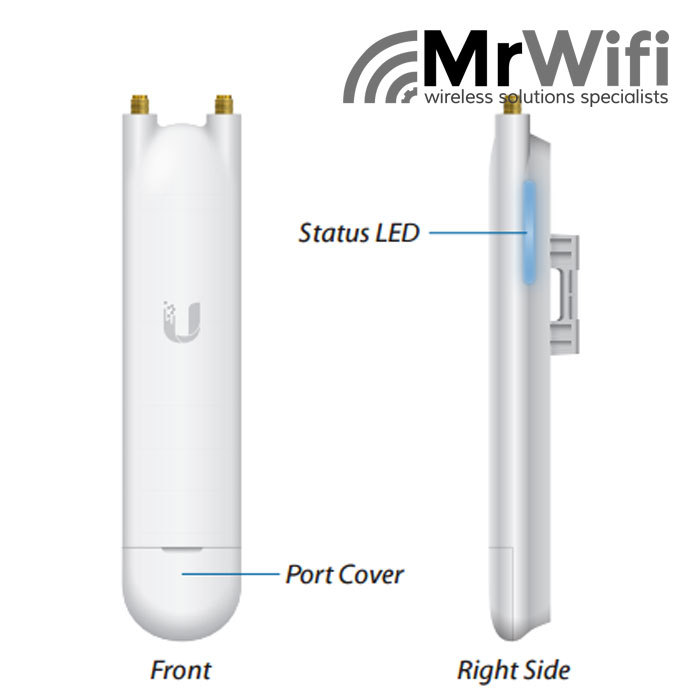

Compact Form Factor
The UAP-AC-M discreetly integrates into any environment. The UniFi AC Mesh base is just slightly larger than a standard pen, making it easy to deploy anywhere.
Dimensions: 354 x 46 x 34 mm (H x W x D)
Weather-Resistant Enclosure
The UAP-AC-M can be used indoors or outdoors.

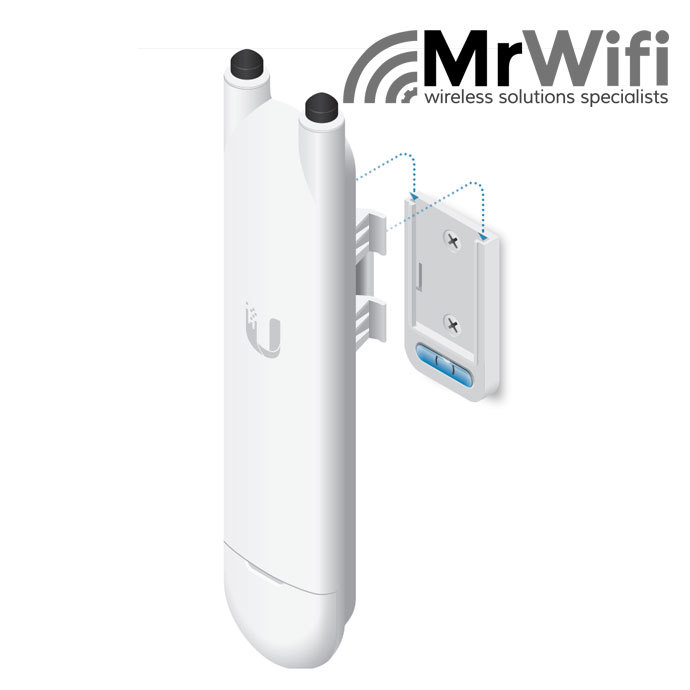

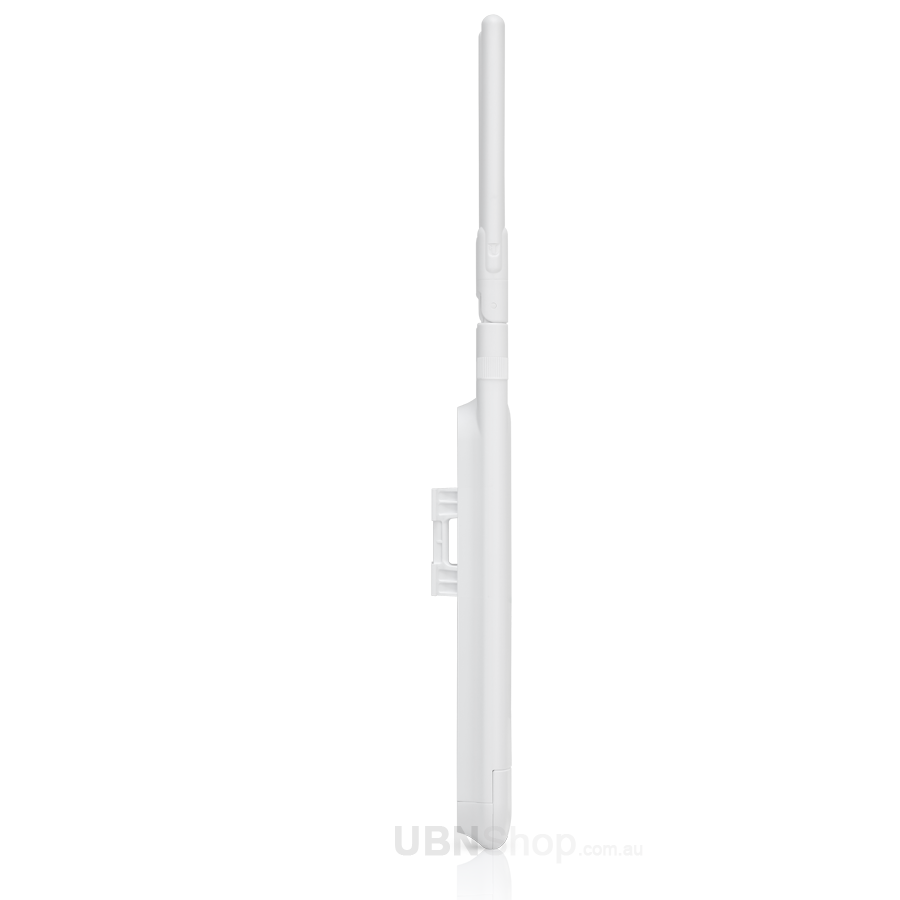

Versatile Mounting

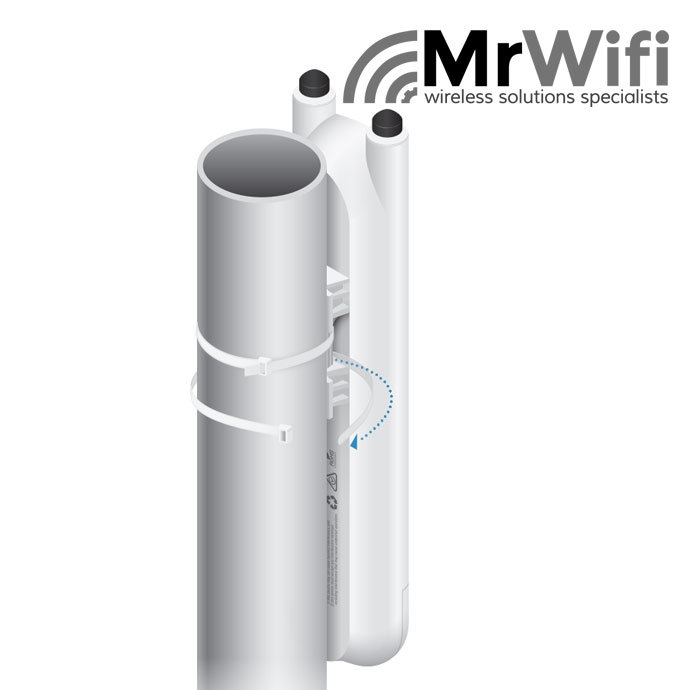

The UAP-AC-M can be mounted on a wall, pole, or fast-mount of an optional Ubiquiti® high-gain antenna2. (All accessories are included.)
Multiple Power Options
The UAP-AC-M is compatible with 802.3af PoE Alternative A and 24V passive PoE. You can power it with the included Gigabit PoE adapter1 or an 802.3af Alternative. A compatible switch, such as the UniFi PoE Switch or EdgePoint™ EP-R6. Antenna Options Use the included omni antennas, or use the included fast-mount adapter to install the AP on an optional connectorized antenna2 for expanded range coverage and customized pattern shaping.
(UAP-AC-M-5)

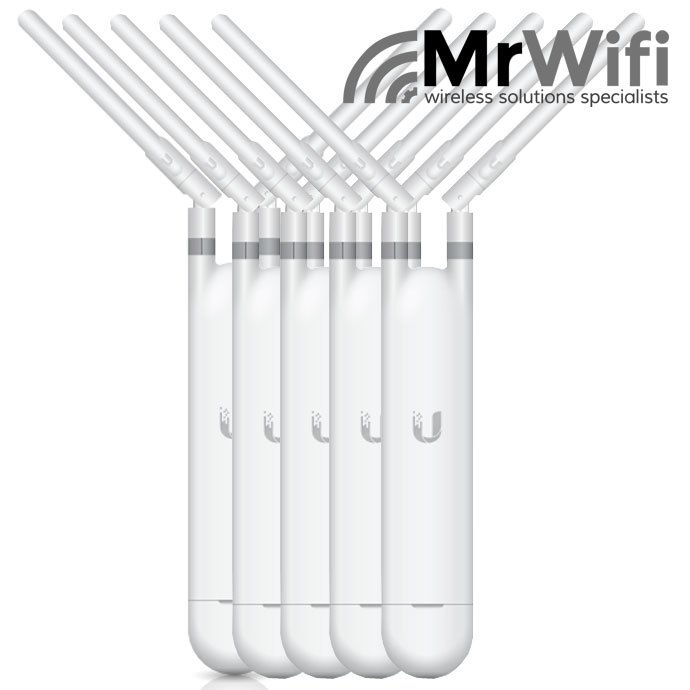

UniFi Outdoor Access Point Mesh 5 Pack
Pack Includes:
- 5 x Ubiquiti UniFi AC Mesh AP
- 5 x 2 Antennas
- 5 x 1 Wall Mount Bracket
- 5 x 2 Screws
- 5 x 2 Screw Anchors
- 5 x 2 Zip Ties

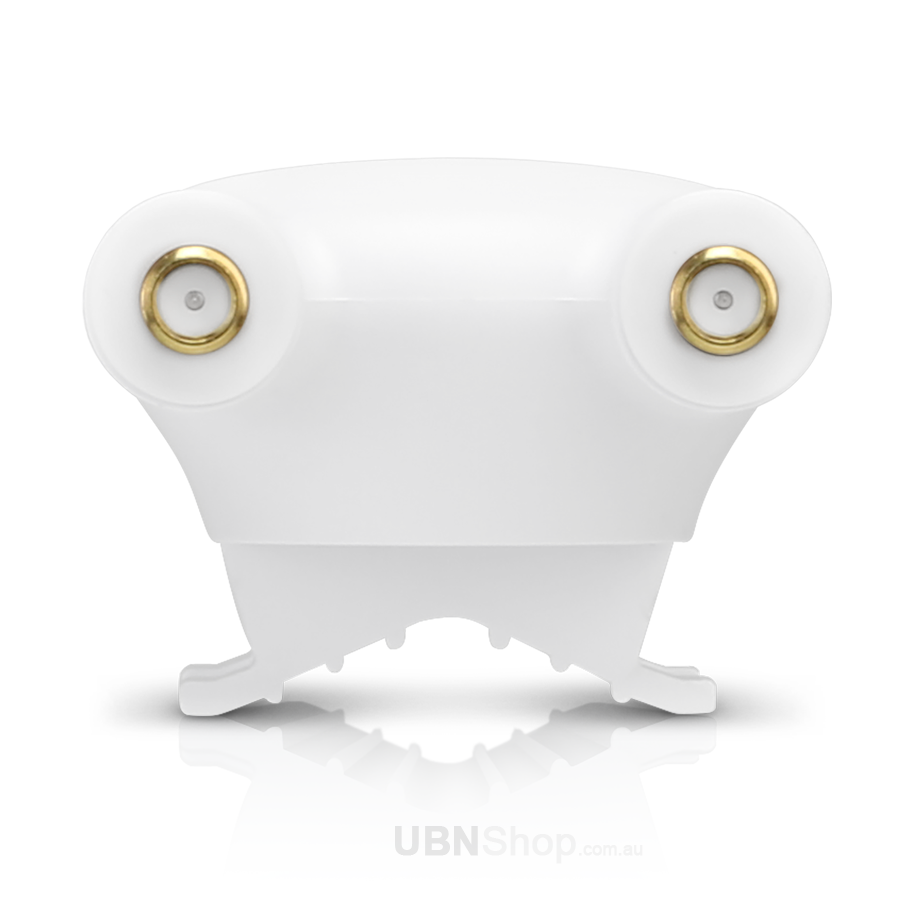

- 5 x 1 Fast-Mount Adapter
- Quick Start Guide
* Gigabit PoE and Power Cord are not included with UAP-AC-M 5-Pack
UniFi Outdoor Access Point Mesh 5 Pack - Specifications
| UniFi UAP AC Mesh | |
|---|---|
| Dimensions | 353 x 46 x 34.4 mm (13.9 x 1.81 x 1.35") |
| Weight | 152 g (5.36 oz) with Antennas |
| Networking Interface | 2x2 WiFi dual band / Ethernet Gigabit |

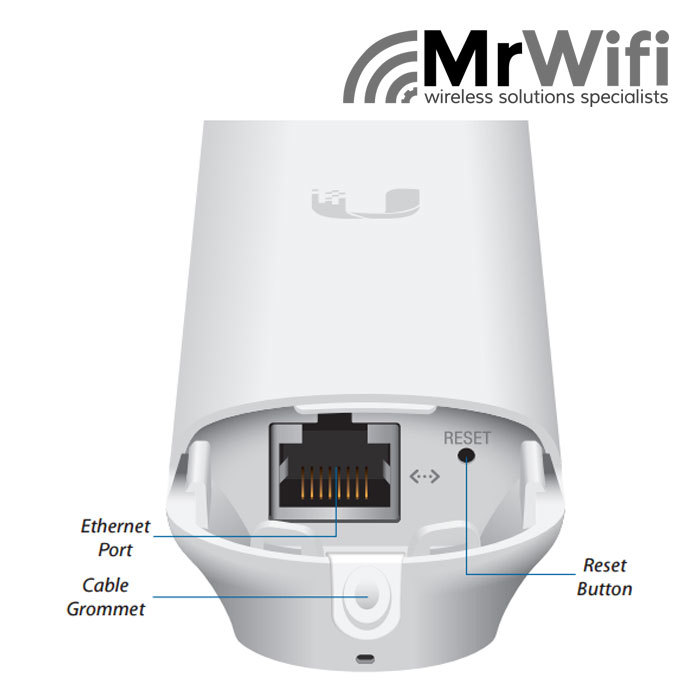

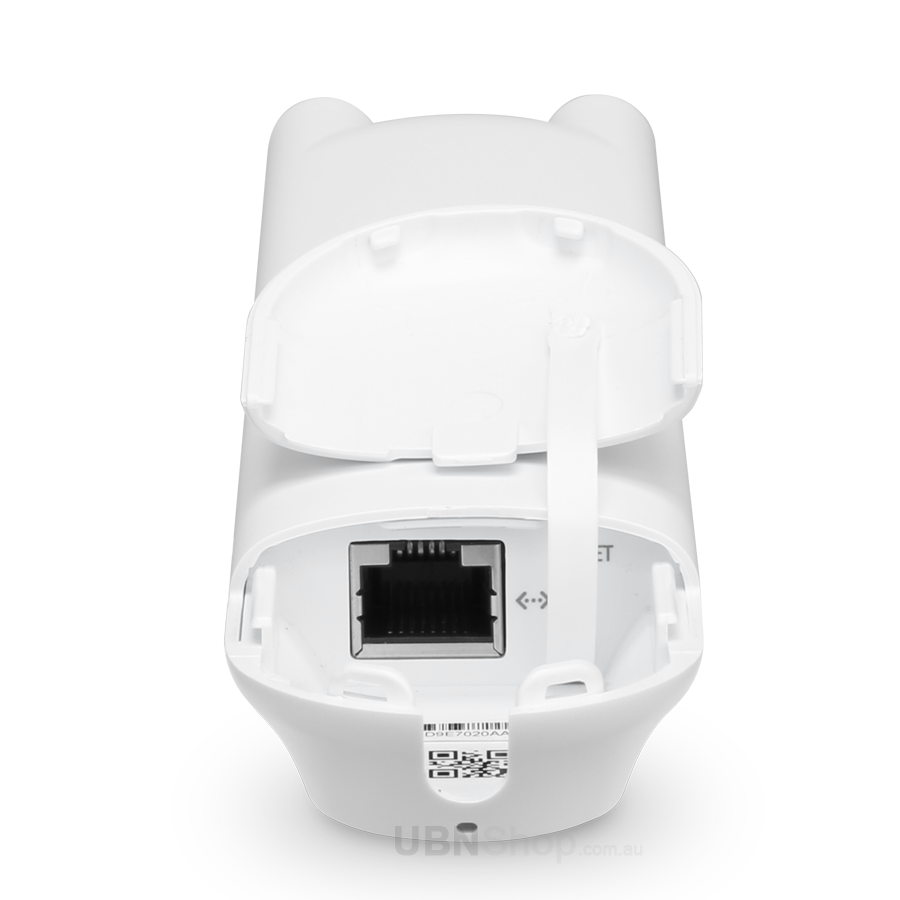

| Ports | (1) 10/100/1000 Ethernet |
| Buttons | Reset |
| Antennas | 2 Dualband antennas |
| Wi-Fi Standards | 802.11a/b/g/n/ac |
| Power Method | 24V Passive PoE (Pairs 4, 5+; 7, 8 Return);802.3af Alternative A (Pairs 1, 2+; 3, 6 Return)(Supported Voltage Range: 44 to 57VDC) |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter* |
| Maximum Power Consumption | 8.5W |
| Max TX Power | 20 dBm |
| BSSID | Up to Four per Radio |
| Power Save | Supported |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| Certifications | CE, FCC, IC |
| Mounting | Wall/Pole/Fast-Mount (Kits Included) |
| Operating Temperature | -30 to 70° C (-22 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Advanced Traffic Management | |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| WMM | Voice, Video, Best Effort, and Background |
| Concurrent Clients | 100+ |
| Supported Data Rates (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11ac | 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
SHIPPING SPECIFICATIONS
| SKU | UAP-AC-M-5 |
| Model # | UAP-AC-M-5 |
| Barcode # | 817882020565 |
| Brand | Ubiquiti |
| Shipping Weight | 1.0000kg |
| Shipping Width | 0.225m |
| Shipping Height | 0.140m |
| Shipping Length | 0.250m |
| Shipping Cubic | 0.007875000m3 |
| Unit Of Measure | ea |
UniFi Outdoor Access Point Mesh 5 Pack - Documents
