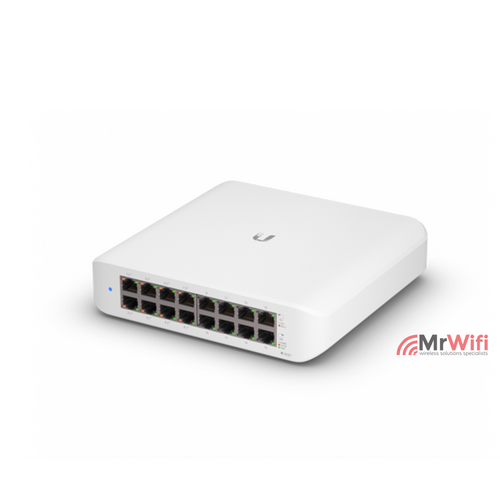

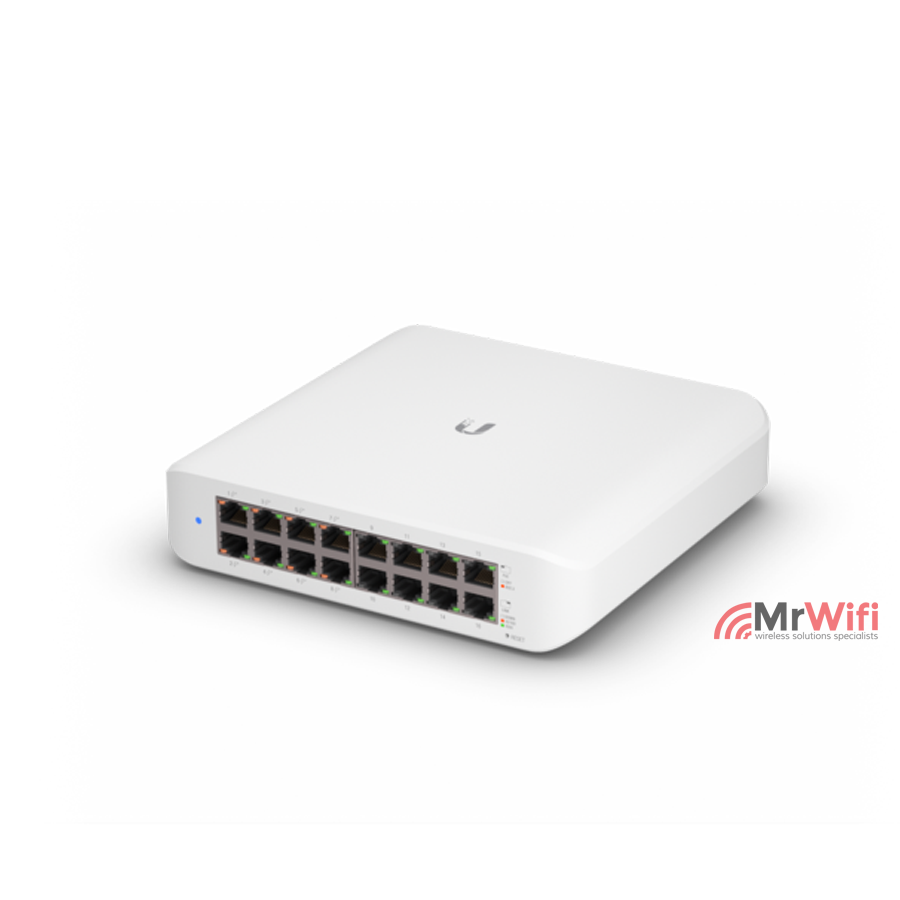

UniFi Switch Lite 16 PoE
USW-LITE-16-POE
ALTERNATE PRODUCT:
USW-PRO-48-POE-UniFi 48 Port Gigabit Switch Gen2, 802.3bt PoE, Layer3 Features and SFP+
In Stock: YES
The UniFi Switch Lite 16 PoE is a fully managed Layer 2 switch with sixteen Gigabit Ethernet ports for your RJ45 Ethernet devices.
Eight ports also offer auto-sensing 802.3at PoE+ that provide up to a total PoE wattage of 45W for UniFi Access Points or other PoE devices. Managed and configured by the UniFi Network Controller with UniFi mobile app support, the UniFi Switch Lite 16 PoE offers Layer 2 switching protocols and features. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
Features

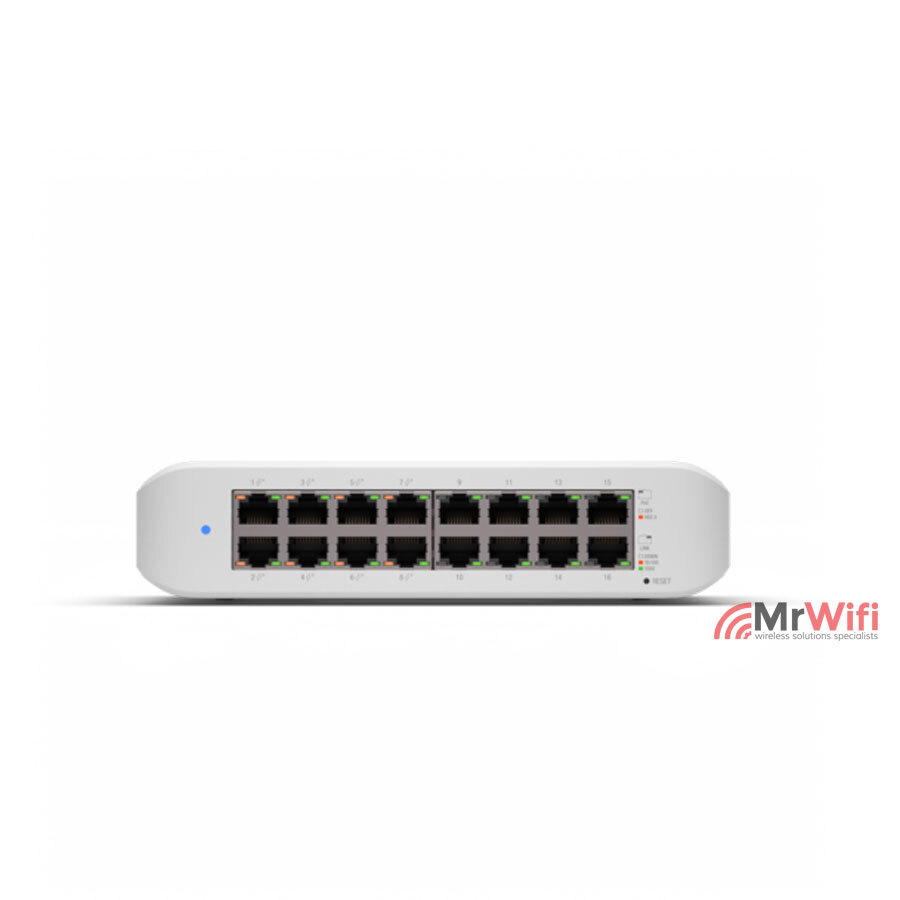

(16) Gigabit RJ45 ports including (8) 802.3at PoE+
Managed by UniFi Controller (5.13.5 or later)
External 60W power adapter

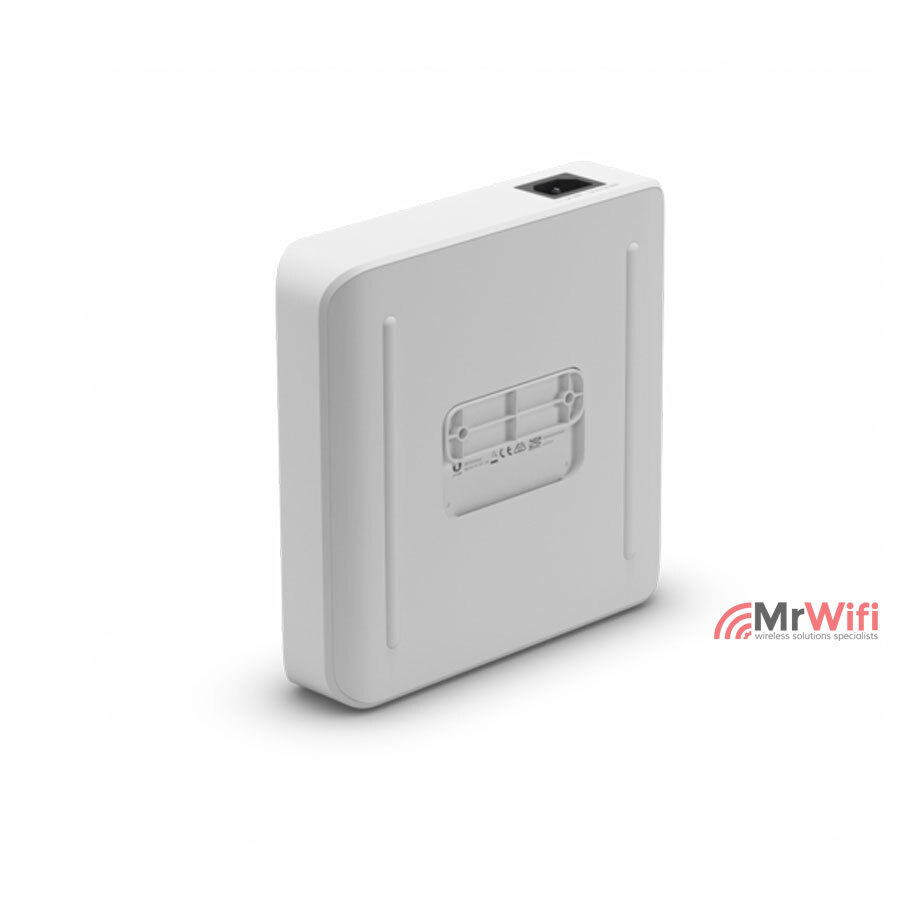

Wall-mountable (Kit included)
(USW-LITE-16-POE)
UniFi Switch Lite 16 PoE
Package Includes
- 1 x USW-LITE-16-POE

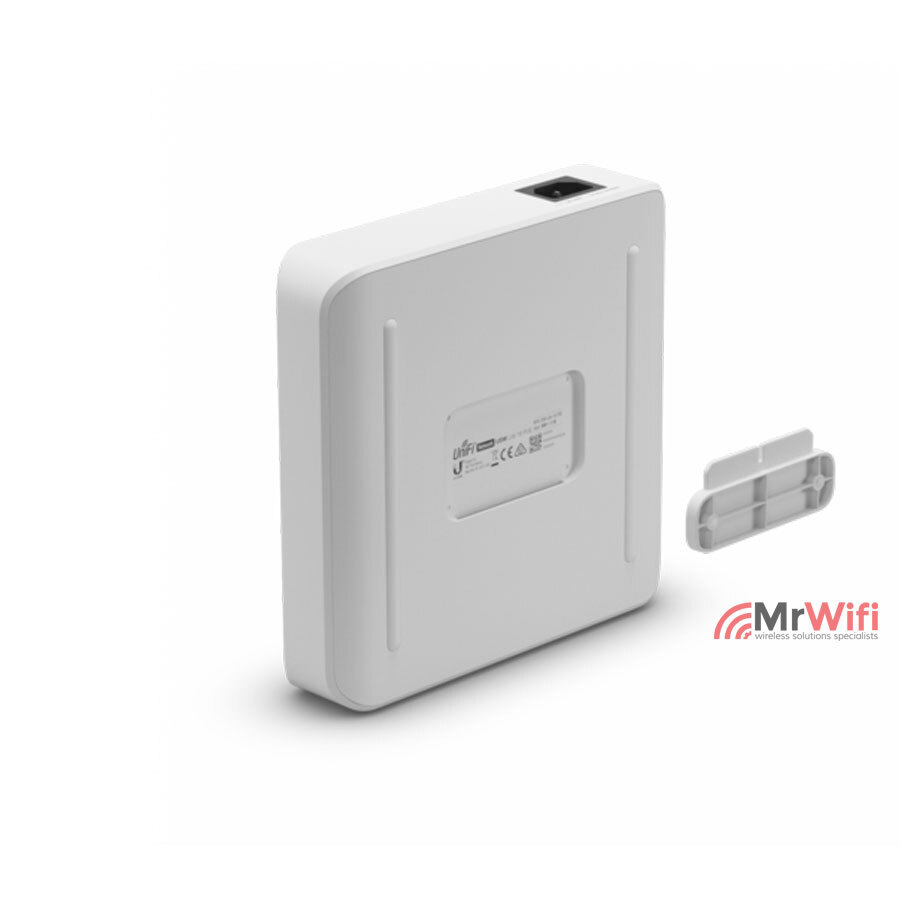

- 1 x Wall Mount
- 2 x Mounting Screws
- 2 x Screw Anchors
- Quick Installation Guide
UniFi Switch Lite 16 PoE- Specifications
| USW-LITE-16-POE | |
| MECHANICAL | |
| Dimensions | 191.7 x 185 x 43.7 mm (7.55 x 7.28 x 1.72") |
| Weight | 1.2 kg (2.65 lb) |
| HARDWARE | |
| Total Non-Blocking Line Rate | 16 Gbps |
| Max. Power Consumption | 15W |

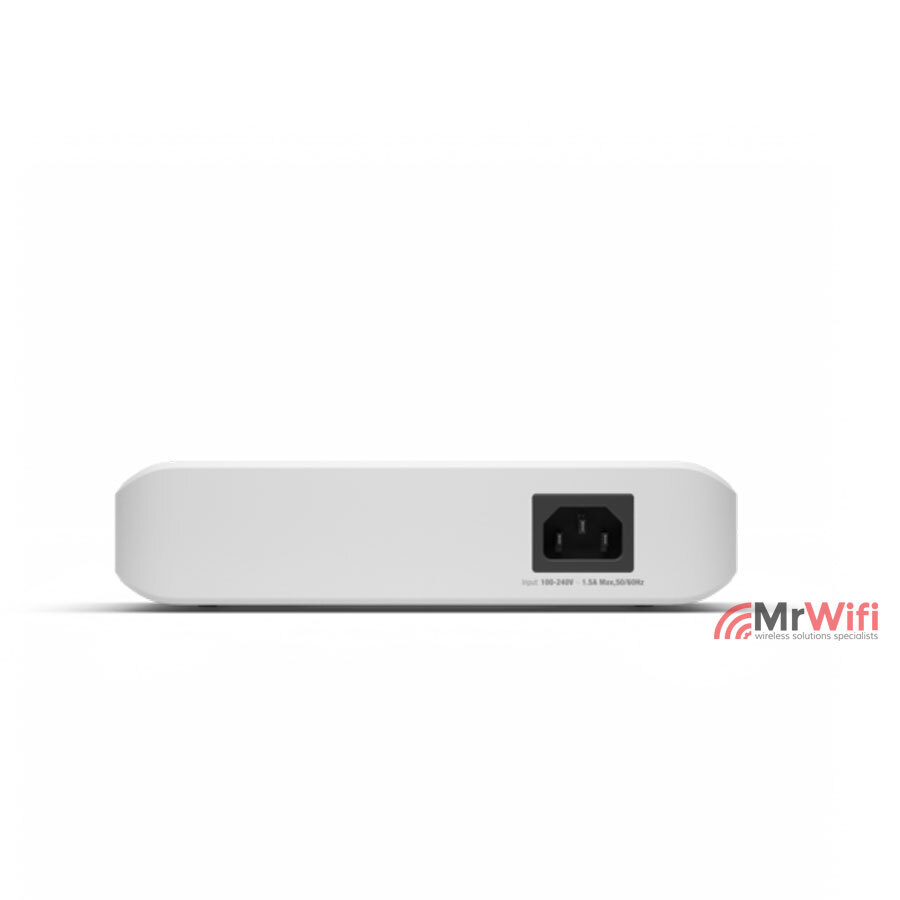

| Power Method | Universal AC Input: 100-240VAC |
| Power Supply | Internal 60W AC/DC Power Supply |
| Networking Interfaces | (16) 10/100/1000 Mbps Ethernet RJ45 |
| PoE Interfaces | (8) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) |
| Mangement Interface | Ethernet In-Band |
| Max PoE+ Wattage per Port by PSE | 30W |
| Modes | SMB Layer 2 PoE Gigabit Ethernet Switch |
| Operating Temperature | -15 to 40° C (5 to 104° F) |
| Operating Humidity | 10 - 90% Noncondensing |
| Certifcations | CE, FCC, IC |
| LEDS | |
| System | (1) Power, Blue/White Flashing White: Bootup in Progress Flashing Blue: Firmware Upgrading Steady White: Factory Defaults, Awaiting Adoption Steady Blue: Device is Adopted |
| Ethernet | Green: 1G, Amber: 10/100 Mbps |
| PoE | Amber: IEEE 802.3af/at |
Shipping Specifications
| SKU | USW-LITE-16-POE |
| Model # | USW-LITE-16-POE |
| Barcode # | 810010071316 |
| Brand | Ubiquiti |
| Shipping Weight | 1.2000kg |
| Shipping Width | 0.185m |
| Shipping Height | 0.044m |
| Shipping Length | 0.192m |
| Shipping Cubic | 0.001563000m3 |
| Unit Of Measure | ea |
UniFi Switch Lite 16 PoE - Documents
USW-LITE-16-PoE DatasheetBe The First To Review This Product!
