Network Video Recorder + Storage HDD, UniFi Protect (NVR)

UNVR+STORAGE

$717.46
Sold Out

Customise Your Purchase

UNVR

UniFi Protect Network Video Recorder (UNVR)

UniFi Protect Network Video Recorder (UNVR)

$640.95

QTY

UNVR HDDs

Western Digital Purple 3.5" Surveillance HDD

Western Digital Purple 3.5" Surveillance HDD

$132.00

QTY

UniFi Protect Network Video Recorder by Ubiquiti



Enterprise network video recorder, can provide up to 30 days of 4K video storage for 15 cameras or Full HD video storage for 50 cameras

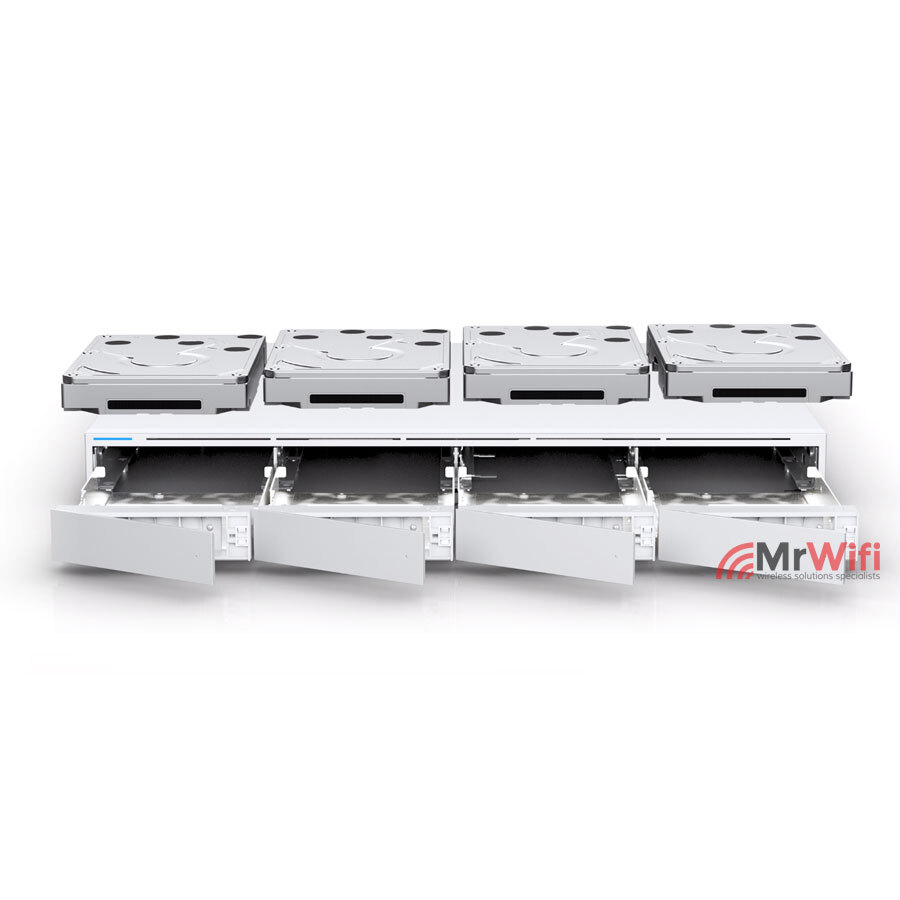

The UniFi® NVR is an enterprise network video recorder that integrates an NVR, the UniFi Protect software, and a 4-drive bay. UNVR unifies enterprise-class data protection and scalable storage with simple Plug and Play integration using the intuitive UniFi Protect software. From a desktop computer or mobile device, you can access your surveillance recordings from virtually anywhere using the intuitive graphical user interface. The mobile app is available for iOS and Android-based devices. The drive bays are easily accessed from the front panel, so hard drive mounting and maintenance are simple. Using four 8 TB drives in a RAID 5 configuration, the UNVR can provide up to 30 days of 4k video storage for 15 cameras or Full HD video storage for 50 cameras.



Features:
(4) 2.5"/3.5" Drive bays

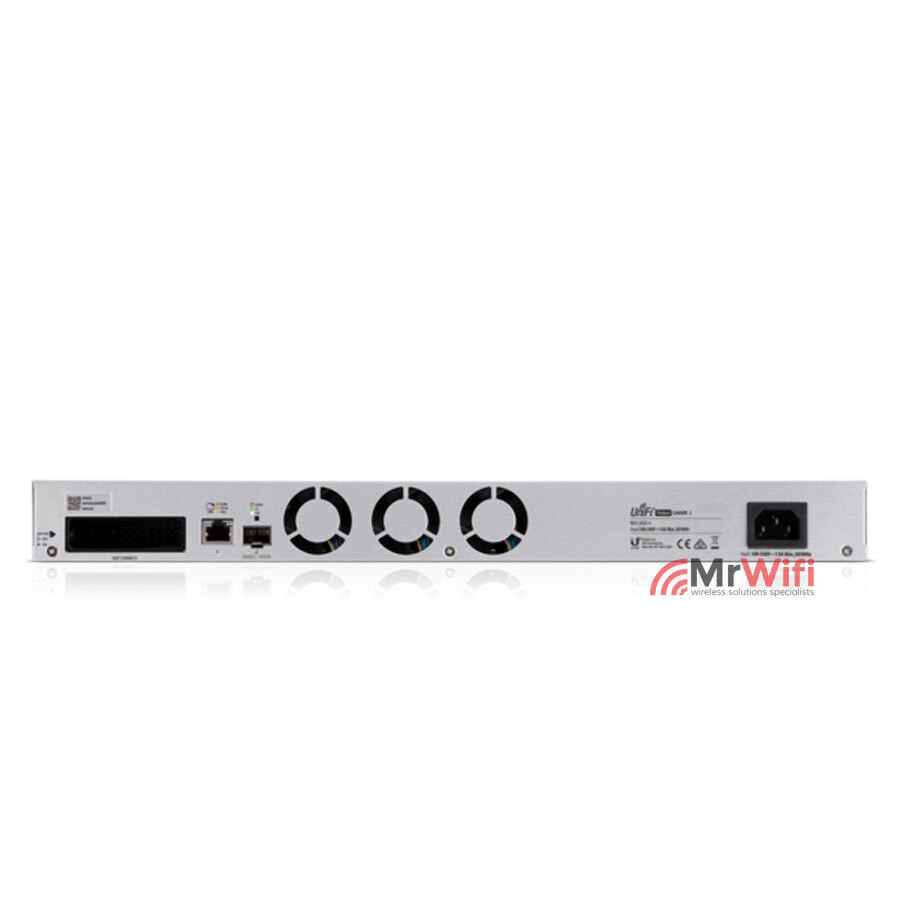

(1) 10G SFP+ port
(1) Gigabit RJ45 port
1U rackmountable (kit included)
Plug and Play UniFi Protect system with NVR
Automated secure RAID 1 or RAID 5 configuration
Supports USP-RPS for PSU failover





Note: Hard Drives Sold Separately



SEAMLESS NETWORK INTEGRATION

Easily incorporate UniFi cameras into a new or existing network.



UniFi PROTECT CAMERA COMPARISON
Compare all of UniFi cameras and choose the best for your needs

Bestsellers Size Indoor Outdoor Resolution FPS Zoom Night
vision
Enh. Low-light
sensitivity
Field of
View
G4 Pro
∅ 86x
153mm
Yes
Yes
4K
Resolution
24 FPS
Optical
Zoom
Yes
Yes
(H) 110° - 35°
(V) 60° - 20°
(D) 128° - 40°
G3 Flex
∅ 107.5x
48mm x 48mm
Yes
Yes
1080p
Resolution
25 FPS
Optical
Zoom
Yes
No
(H) 80°
(V) 46°
(D) 92°
G4 Bullet
∅ 86x
153mm

Yes

Yes
2K
Resolution
24 FPS
Optical
Zoom
Yes
No
(H) 86°
(V) 60°
(D) 111°
G3 Pro
∅ 86x
153mm
Yes
Yes
1080p
Resolution
30 FPS
Optical
Zoom
Yes
Yes
(H) 108° - 37°
(V) 58° - 20°
(D) 125° - 43°
G3 Bullet
∅ 75x
140mm
Yes
Yes
1080p
Resolution
30 FPS
Magic
Zoom
Yes
No
(H) 72°
(V) 43°
(D) 80°

(UNVR-KITS)

UniFi Protect Network Video Recorder by Ubiquiti



Pack Includes:

  • 1 x UniFi Protect Network Vrideo Recorder UNVR
  • 2 x Rack-Mount Brackets
  • 8 x Bracket Screws
  • 4 x Mounting Screws
  • 4 x Cage Nuts
  • 1 x Power Cord
  • 1 x Quick Start Guide

UniFi Protect Network Video Recorder by Ubiquiti - Specifications



UNVR
Dimensions 442.4 x 325 x 43.7 mm
(17.4 x 12.8 x 1.7")
Weight
Without Rackmount Brackets
With Rackmount Brackets

5.11 kg (11.27 lb)
5.20 kg (11.46 lb)
Enclosure Characteristics SGCC Steel
Processor Quad-Core ARM Cortex-A57 at 1.7 GHz
System Memory 4 GB DDR4
On-Board Flash Storage SPI NOR 32 MB, USB Flash 8 GB
Max. Power Consumption 100W
Max. Power Budget for Drives 75W
Power Method (1) Universal AC Input
(1) RPS DC Input
Power Supply 100-240VAC, 50/60 Hz, 2A
Networking Interfaces (1) 10/100/1000 Mbps RJ45 Ethernet
(1) 1/10 Gbps SFP+ Ethernet
Management Interface Ethernet In-Band Management
ESD/EMP Protection Air: ± 12kV, Contact: ± 8kV
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 5 - 95% Noncondensing
LEDs
System



Ethernet
SFP+ White
SFP+
HDD

(1) Power, Blue/White
Flashing White: Bootup in Progress
Flashing Blue: Firmware Upgrading
Steady White: Factory Defaults, Awaiting Adoption
Steady Blue: Device is Adopted
Green: 1000 Mbps, Amber: 10/100 Mbps
White: 10 Gbps, Green: 1 Gbps
Amber: Disk Error, White: Disk Detected

Shipping Specifications

SKU UNVR-KITS
Model # UNVR
Brand Ubiquiti
