UniFi Outdoor Access Point Mesh Pro 5 Pack
UAP-AC-M-PRO-5
802.11AC Indoor/Outdoor Wi-Fi Access Point with Plug & Play Mesh Technology
Simultaneous, dual-band, 3x3 MIMO technology, 802.11AC dual-band access point, capable of speeds of up to 1750 Mbps. Expand your Wi-Fi network outdoors with the UniFi® AC Mesh Pro Access Point, part of the Ubiquiti Networks® UniFi Enterprise Wi-Fi System. The UAP-AC-M-PRO is a high-performance, outdoor, 3x3 MIMO, 802.11AC dual-band access point, capable of speeds of up to 1750 Mbps. It features a propietary, MIMO-optimized, omni-directional Super Antenna for exceptional 360° coverage, providing symmetrical long-range communications of up to 183 meters.
Compact Form Factor
The UAP-AC-M discreetly integrates into any environment.
Powerful Coverage
Built-in dual-band omnidirectional antennas deliver expanded range coverage outdoors.
Weather-Resistant Form Factor
The enclosure of the UniFi AC Mesh Pro AP is designed to withstand the elements, making it ideal for outdoor deployment.
Mounting Flexibility
The UAP-AC-M-PRO can be mounted on a wall, pole, or fast-mount of an optional Ubiquiti® high-gain antenna2. (All accessories are included.)

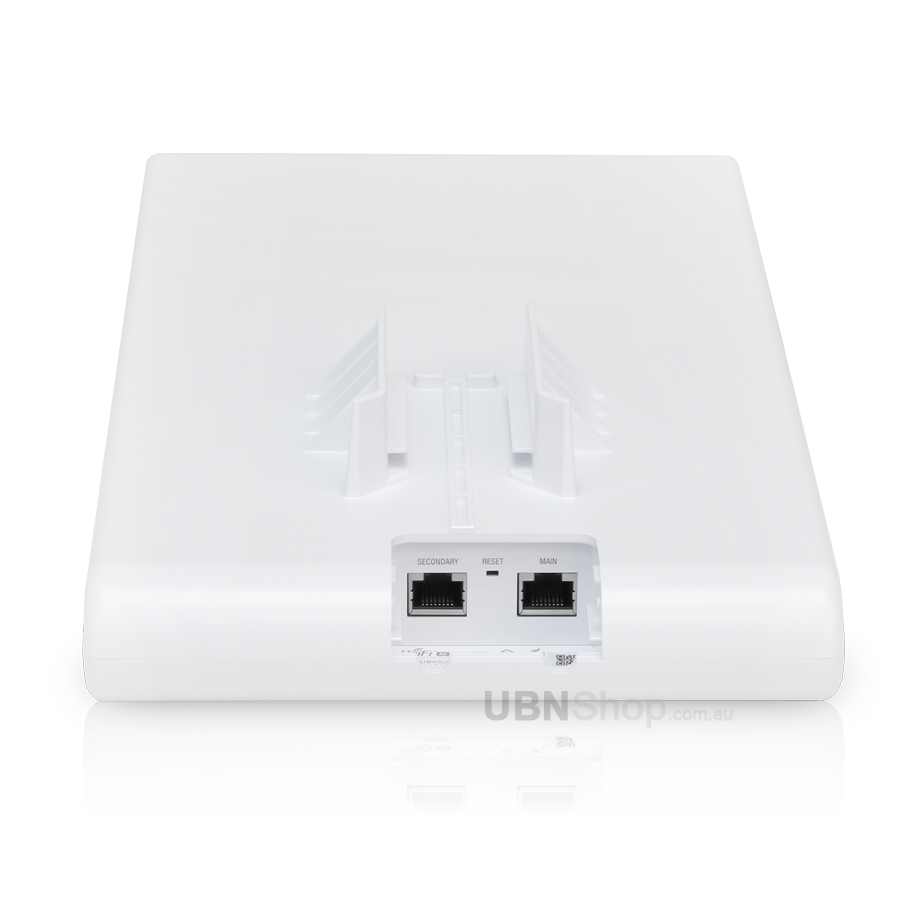

Dual Gigabit Ethernet Ports
The primary port is for data and PoE; the secondary port is for bridging.
Multiple Power Options
You can power the UniFi AC Mesh Pro AP with an 802.3af compatible switch, UniFi PoE Switch, or a Gigabit PoE (48V, 0.5A) adapter*.
(UAP-AC-M-PRO-5)
UniFI AC Mesh PRO 5 Pack
Pack Includes:
- 5 x UniFi AC Mesh PRO Access Point
- 5 x Mounting Bracket
- 10 x Pole Clamps
- 20 x Carriage Bolts
- 20 x Flange Nuts
- 20 x Screw
- 20 x Screw Anchors
- Quick Start Guide
Note: PoE Adapter is not included. Sold Separately
UniFI AC Mesh PRO - Specifications
| UNIFI | |
|---|---|
| Dimensions | 343.2 x 181.2 x 60.2 mm (13.51 x 7.13 x 2.37") |
| Weight | 633 g (1.40 lb) |
| Networking Interface | (2) 10/100/1000 Ethernet Ports |
| Ports | (2) 10/100/1000 Ethernet |
| Buttons | Reset |
| Antennas | 3 Dualband antennas |
| Wi-Fi Standards | 802.11a/b/g/n/ac |
| Power Method | 802.3af PoE |
| Power Supply | PoE Injector 48VDC -0.5A Gigabit |
| Maximum Power Consumption | 9W |
| Max TX Power | 22 dBm |
| BSSID | Up to Four per Radio |
| Power Save | Supported |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| Certifications | CE, FCC, IC |
| Mounting | Wall/Pole (Pole Kit Included) |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| ADVANCED TRAFFIC MANAGEMENT | |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| WMM | Voice, Video, Best Effort, and Background |
| Concurrent Clients | 100+ |
| SUPPORTED DATA RATES (MBPS) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) |
| 802.11ac | 6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80) |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
Shipping Specifications
| SKU | UAP-AC-M-PRO-5 |
| Model # | UAP-AC-M-PRO-5 |
| Barcode # | 817882020558 |
| Brand | Ubiquiti |
| Shipping Weight | 6.3000kg |
| Shipping Width | 0.370m |
| Shipping Height | 0.240m |
| Shipping Length | 0.460m |
| Shipping Cubic | 0.040848000m3 |
| Unit Of Measure | ea |
UniFI AC Mesh PRO - Documents
