UniFi Protect Network Video Recorder Pro (NVR)
UNVR-PRO

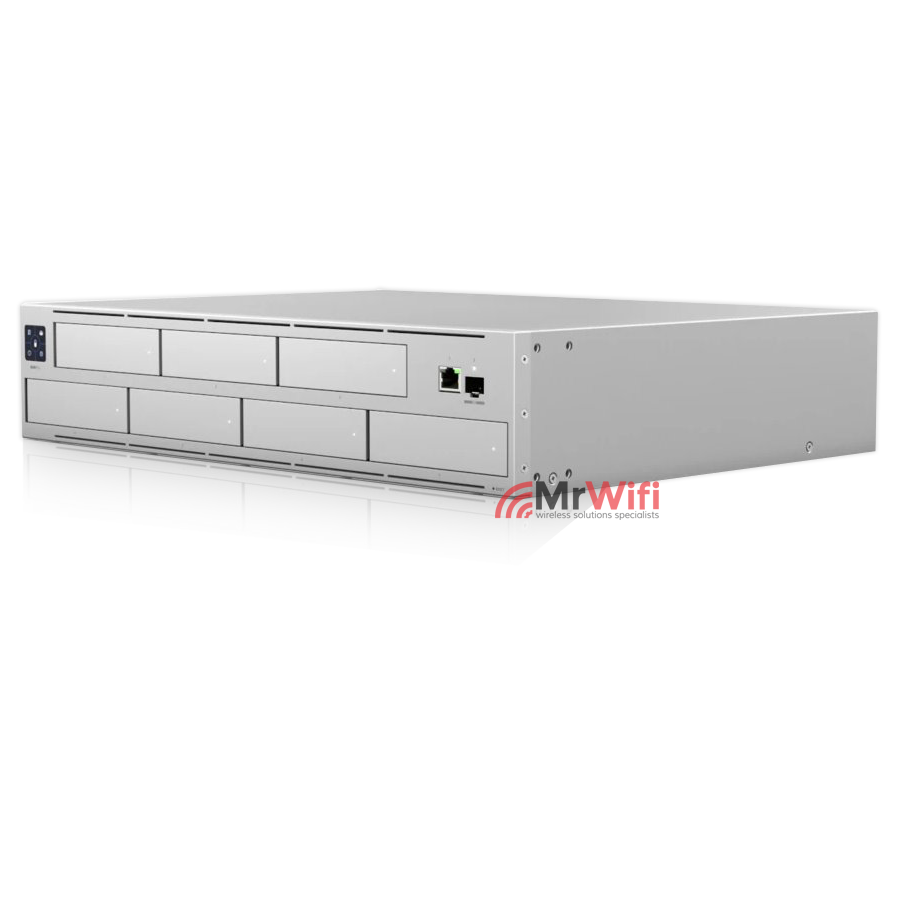

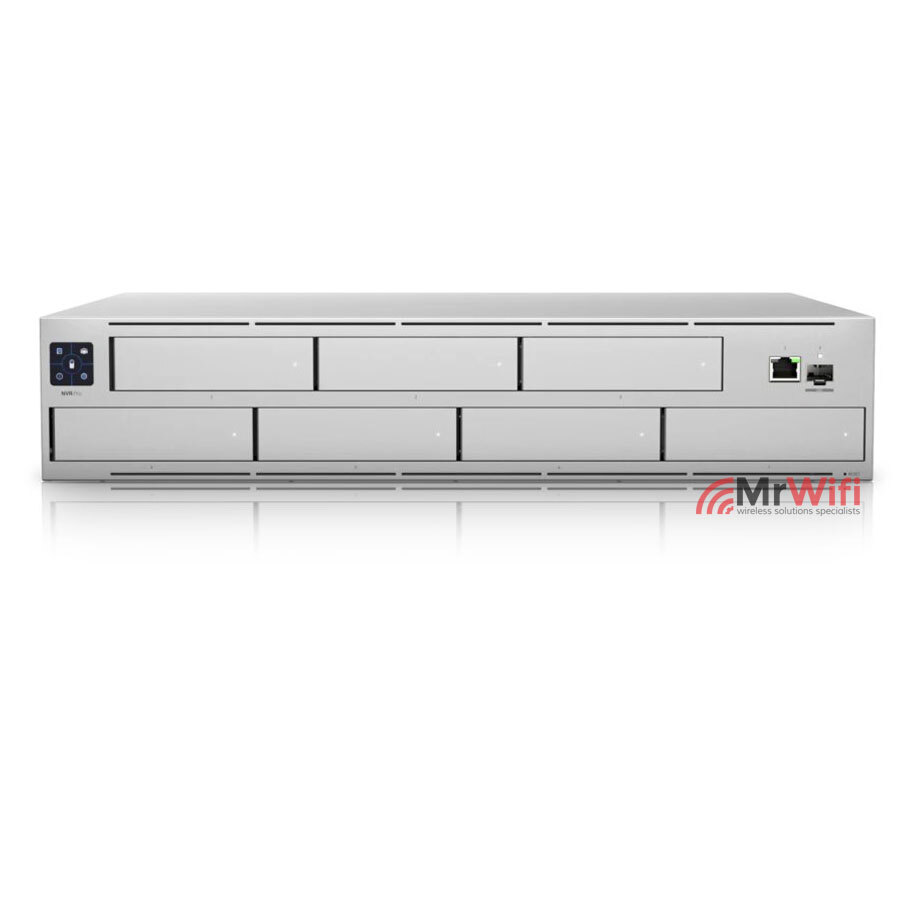

UniFi Protect Network Video Recorder PRO by Ubiquiti
The Network Video Recorder Pro (UNVR Pro) is a business-grade network video recorder that provides data redundancy and long-term storage capabilities (up to 60 days of storage for 20 4K cameras or 60 1080p cameras)
The UNVR Pro is a UniFi OS Console that runs the pre-installed UniFi Protect application and has a 7-drive hard disk drive (HDD) bay that offers the greatest storage capacity of any UniFi OS Console. The powerful, easy-to-use UNVR Pro can be deployed in minutes and support systems with up to 60 cameras. Combining the best features of Cloud and onsite surveillance systems, UniFi Protect gives you centralized, local, low-latency access to all of your live camera feeds and recordings, as well as remote access from anywhere in the world via unifi.ui.com and the Protect mobile app. The UNVR Pro also offers expanded RAID configuration options for enhanced data protection, applying either RAID 1, 5, or 10 based on the number of HDDs installed. It's also equipped with a 1.3" touchscreen display for concise, convenient video event previewing.*
Features:
(4)(7) 2.5"/3.5" HDD bays
(1) 10G SFP+ port
(1) Gigabit RJ45 port
2U-sized, rack-mountable console (kit Included)
1.3" touchscreen with video event previewing*
Pre-installed UniFi Protect application
Simple, Bluetooth-powered setup via the UniFi Protect mobile app
Automated RAID 1, 5, or 10 HDD configuration
Connect a SmartPower Redundant Power System to create an uninterruptible network
Managed with the UniFi Protect application: Version 1.4.3 or later (iOS) or 1.3.9 or later (Android)
Note: Please ensure your HDDs meet Ubiquiti's general guidelines and aren't included in our list of incompatible models.
* Will be included in a future console update
(UNVR-PRO)
UniFi Protect Network Video Recorder PRO by Ubiquiti
Pack Includes:
- 1 x UniFi Protect Network Vrideo Recorder UNVR-PRO
- 2 x Rack-Mount Brackets
- 8 x Bracket Screws M4
- 4 x Rack Mounting Screws
- 4 x Cage Nuts
- 28 x HD Mounding Screws M3
- 1 x Power Cord
- 1 x Quick Start Guide
UniFi Protect Network Video Recorder PRO by Ubiquiti - Specifications
| Mechanical | |
|---|---|
| Dimensions | 442 x 325 x 87 mm (17.4 x 12.8 x 3.4") |
| Weight | Without Rackmount Brackets: 9.2 kg (20.28 lb) With Rackmount Brackets: 9.45 kg (20.83 lb) |
| Enclosure Material | SGCC Steel |
| Mount Materials | SGCC Steel |
| Hardware | |
| Max. Power Consumption | 160W |
| Max. Power Budget for Drives | 135W |
| Power Method | (1) Universal AC input, 100-240VAC, 3A Max, 50/60 Hz (1) USP-RPS DC input, 11.5VDC, 13.91A |
| Power Supply | AC/DC, Internal, 200W |
| Networking Interfaces | (1) 10/100/1000 Mbps RJ45 Ethernet (1) 1/10 Gbps SFP+ Ethernet |
| RF Interface | (1) Bluetooth v4.1 |
| LCM Display | (1) 1.3" Touchscreen Bootup Animation: Bootup in Progress Firmware Upgrade Icon: Firmware Upgrading Steady White: Factory Defaults, Awaiting Adoption Steady Blue: Device is Adopted |
| Management Interface | Ethernet In-Band Management |
| ESD/EMP Protection | Air: ± 12kV, Contact: ± 8kV |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 5 - 95% Noncondensing |
| Certifications | FCC, CE, IC |
| LEDs | |
| Ethernet | White: 10/100/1000 Mbps |
| SFP+ | White: 1/10 Gbps |
| HDD | Amber: Disk Error, White: Disk Detected |
| RPS | Blue: Ready |
Shipping Specifications
| SKU | UNVR-PRO |
| Model # | UNVR-PRO |
| Barcode # | 810010075314 |
| Brand | Ubiquiti |
| Shipping Weight | 9.4500kg |
| Shipping Width | 0.325m |
| Shipping Height | 0.087m |
| Shipping Length | 0.442m |
| Shipping Cubic | 0.012498000m3 |
| Unit Of Measure | ea |
UniFi Protect Network Video Recorder PRO by Ubiquiti - Documents
