Switch Enterprise 24 PoE with 2 10GB SFP
USW-ENTERPRISE-24-POE
Switch Enterprise 24 PoE with 2 10GB SFP+
Layer 3, PoE switch with (12) 2.5GbE, 802.3at PoE+ RJ45 ports, (12) GbE, 802.3at PoE+ RJ45 ports, and (2) 10G SFP+ ports.

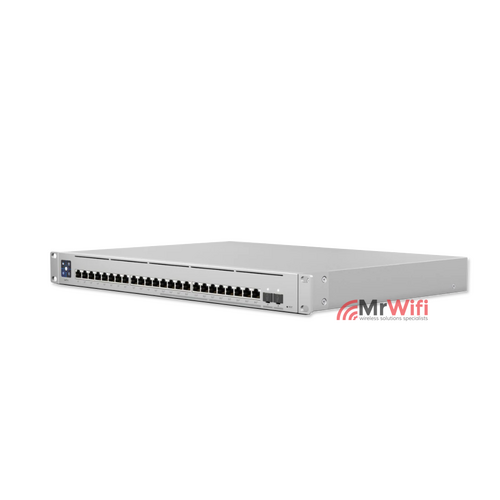

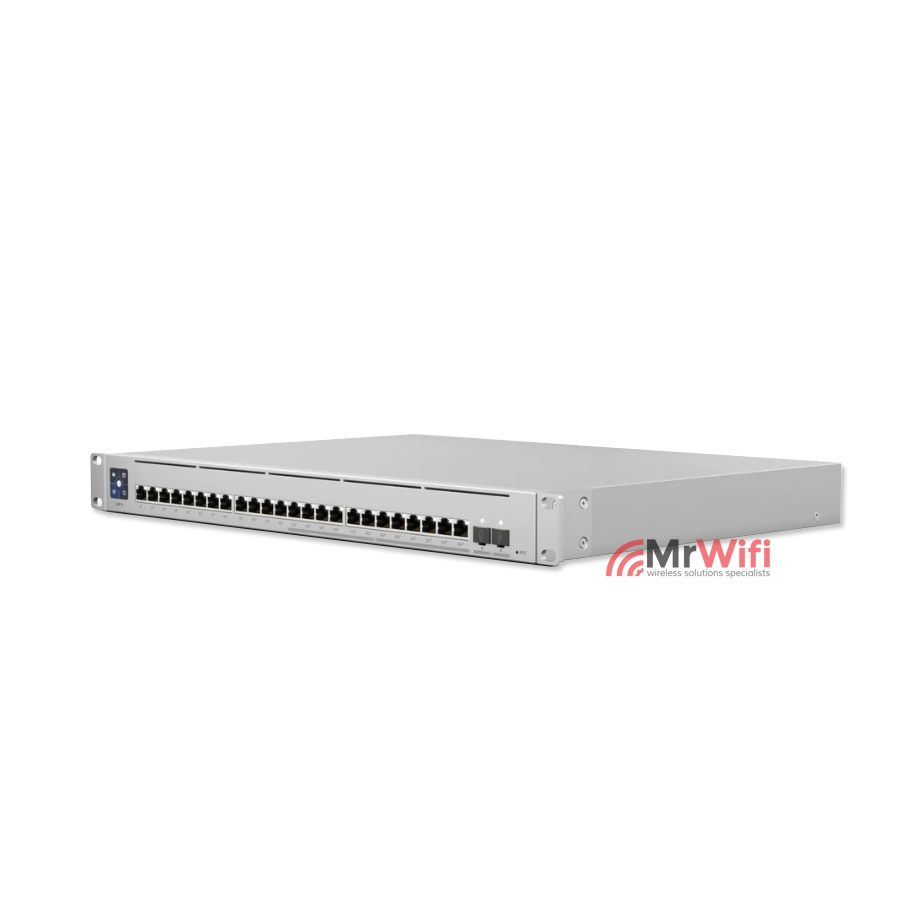

The Switch Enterprise 24 PoE (USW Enterprise 24 PoE) is a fully managed, Layer 3 switch with (12) 2.5GbE, 802.3at PoE+ RJ45 ports, (12) GbE, 802.3at PoE+ RJ45 ports, (2) 10G SFP+ ports, and a 400W total PoE supply. The USW Enterprise 24 PoE also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.
Additionally, the USW Enterprise 24 PoE offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features
(1) 1.3" LCM color touchscreen with AR switch management
(12) GbE, 802.3at PoE+ RJ45 ports
(12) 2.5GbE, 802.3at PoE+ RJ45 ports
(2) 10G SFP+ ports
(1) USP RPS DC input
400W total PoE supply
Layer 3 switching features
Single-row RJ45 port layout for easy patch panel cable management
(USW-Enterprise-24-PoE)
Switch Enterprise 24 PoE with 2 10GB SFP+
Package Includes
- 1 x USW-ENT-24-POE
- 2 x Mounting Brackets
- 1 x Wall Mount Cover
- 4 x Rack Mount Nuts
- 8 x M4 Bracket Screws
- Power Cable
- Quick Installation Guide
Switch Enterprise 24 PoE with 2 10GB SFP+ - Specifications
| Mechanical | |
|---|---|
| Dimensions | 442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8") |
| Weight | Without Mount: 5.11 kg (11.27 lb) With Mount: 5.2 kg (11.46 lb) |
| Enclosure Materials | SGCC Steel |
| Mount Material | SGCC Steel |
| Hardware | |
| Total Non-Blocking Throughput | 62 Gbps |
| Switching Capacity | 124 Gbps |
| Forwarding Rate | 92.25 Mpps |
| Max. Power Consumption | 550W |
| Power Method | (1) Universal AC input: 100-240VAC, 8.5A Max., 50/60 Hz (1) USP-RPS DC input: 52VDC, 7.7A; 11.5VDC, 8.7A |
| Power Supply | AC/DC, Internal, 550W |
| Management Interface | Ethernet In-Band |
| Networking Interfaces | (12) 10/100/1000 Mbps RJ45 Ethernet (12) 100/1000/2500 Mbps RJ45 Ethernet |
| SFP+ Interfaces | (2) 1/10G SFP+ |
| PoE Interfaces | (24) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) |
| Max. PoE+ Wattage per Port by PSE | 34.2W |
| Voltage Range 802.3af Mode | 44 to 57V |
| Voltage Range 802.3at Mode | 50 to 57V |
| Services | SMB Layer 3 PoE Gigabit Ethernet Switch |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 - 95% Noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | (1) Bootup Animation: Bootup in Progress Firmware Upgrade Icon: Firmware Upgrading Steady White: Factory Defaults, Awaiting Adoption Steady Blue: Device is Adopted |
| Ethernet | White: Link or Activity |
| SFP+ | White: Link or Activity |
Shipping Specifications
| SKU | USW-Enterprise-24-PoE |
| Model # | USW-ENTERPRISE-24-POE |
| Brand | Ubiquiti |
| Shipping Weight | 2.4000kg |
| Shipping Width | 0.200m |
| Shipping Height | 0.044m |
| Shipping Length | 0.248m |
| Shipping Cubic | 0.002182000m3 |
| Unit Of Measure | ea |
Switch Enterprise 24 PoE with 2 10GB SFP+ - Documents
